Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

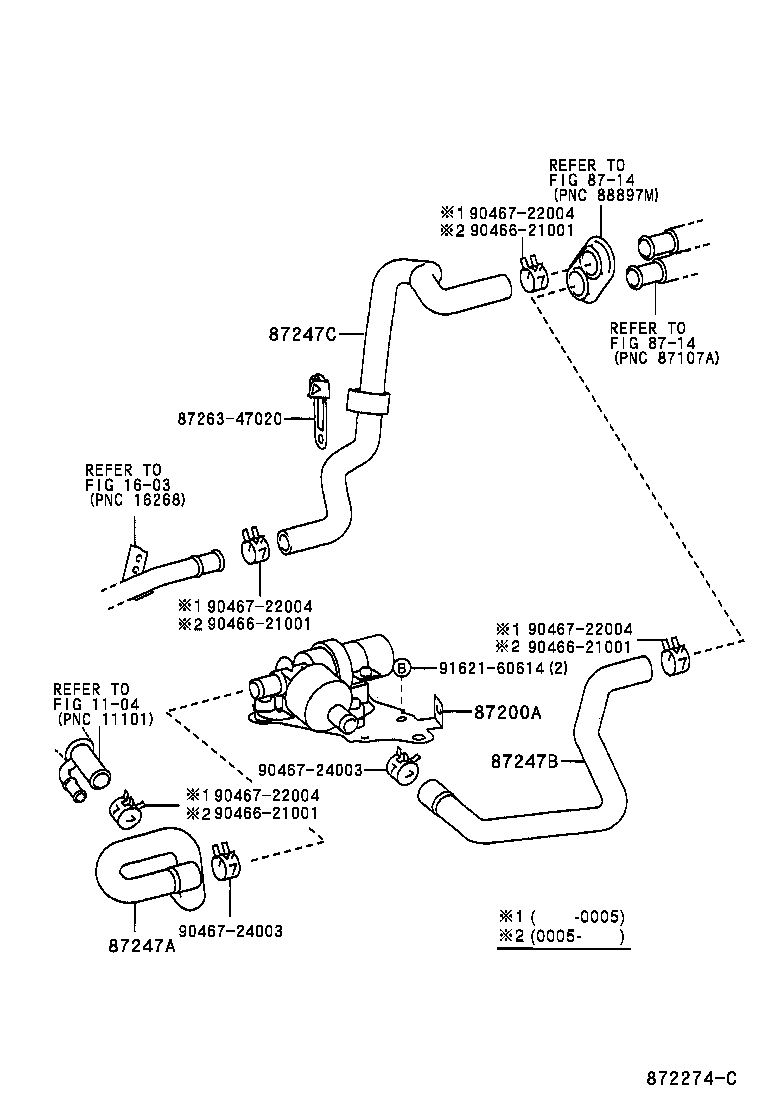

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87200A — Pump Assy, Water(FOR HEATER) | ||||
| 87200-47010 |
Pump Assy, Water(FOR HEATER)
1997-12 → 2000-05
ended
|
NHW10 | ¥38,900 | |
| 87200-47020 |
Pump Assy, Water(FOR HEATER)
2000-05 → —
|
NHW11 | ¥38,900 | |
| 87247A — Hose, Heater Water, A | ||||
| 87245-47080 |
Hose, Heater Water, A
1997-12 → 2000-05
ended
|
NHW10 | ¥2,150 | |
| 87245-47110 |
Hose, Heater Water, A
2000-05 → —
|
NHW11 | ¥2,190 | |
| 87247B — Hose, Heater Water, B | ||||
| 87245-47090 |
Hose, Heater Water, B
1997-12 → 2000-05
ended
|
NHW10 | ¥1,960 | |
| 87245-47120 |
Hose, Heater Water, B
2000-05 → —
|
NHW11 | ¥1,940 | |
| 87247C — Hose, Heater Water, C | ||||
| 87245-47100 |
Hose, Heater Water, C
1997-12 → 2000-05
ended
|
NHW10 | ¥3,590 | |
| 87245-47130 |
Hose, Heater Water, C
2000-05 → —
|
NHW11 | ¥3,210 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
