Toyota Prius
1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan
Discontinued model
Data version 2004-01

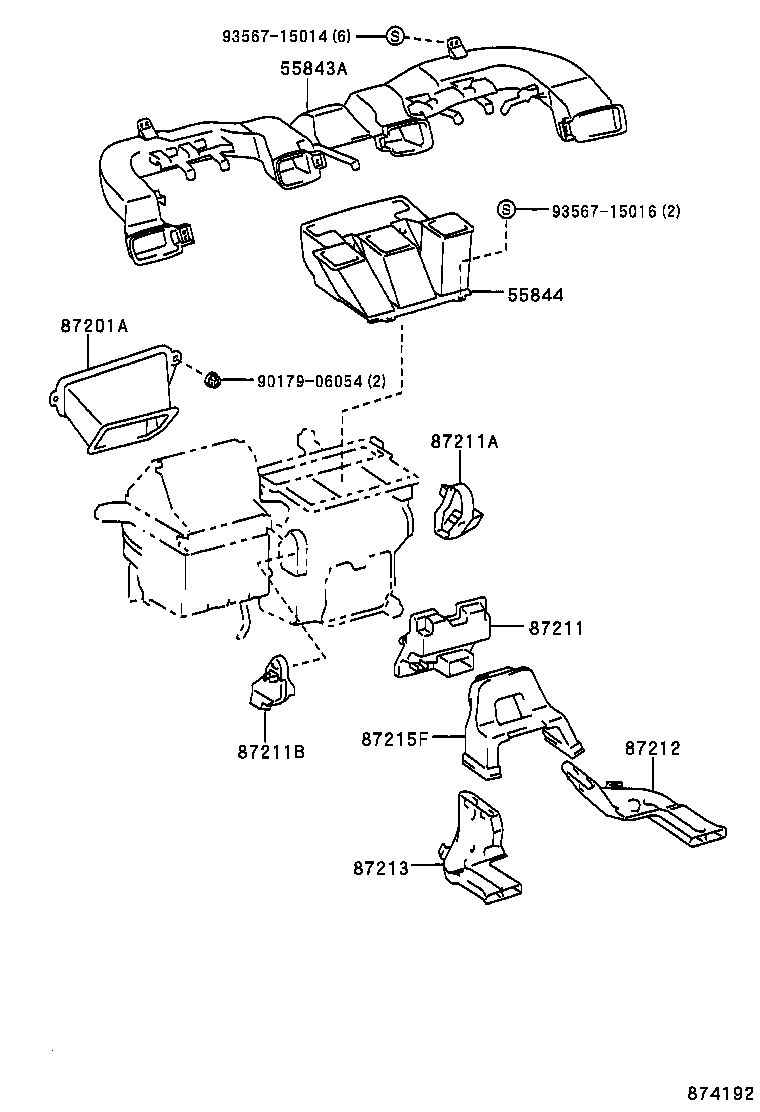

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55843A — Duct, Heater TO Register, NO.1 | ||||
| 55843-47010 |
Duct, Heater TO Register, NO.1
1997-12 → —
|
NHW1# | ¥10,900 | |
| 55844 — Duct, Heater TO Register, NO.2 | ||||
| 55844-47010 |
Duct, Heater TO Register, NO.2
1997-12 → —
|
NHW1# | ¥6,700 | |
| 87201A — Duct Sub-assy, Air | ||||
| 87201-47011 |
Duct Sub-assy, Air
1997-12 → 1998-02
ended
|
NHW10 | — | |
| 87201-47012 |
Duct Sub-assy, Air
1998-02 → 2000-05
ended
|
NHW10 | — | |
| 87201-47021 note |
Duct Sub-assy, Air
1997-12 → 2000-05
ended
|
NHW10 | — | |
| 87201-47030 |
Duct Sub-assy, Air
2000-05 → —
|
NHW11 | — | |
| 87211 — Duct, Air, NO.1 | ||||
| 87211-47040 |
Duct, Air, NO.1
2000-05 → —
|
NHW11 | — | |
| 87211-47050 note |
Duct, Air, NO.1
2000-05 → —
|
NHW11 | — | |
| 87211A — Duct, Air, NO.2 | ||||
| 87214-47010 |
Duct, Air, NO.2
1997-12 → —
|
NHW1# | — | |
| 87211B — Duct, Air, NO.3 | ||||
| 87211-47030 |
Duct, Air, NO.3
2000-05 → —
|
NHW11 | — | |
| 87212 — Duct, Air, Rear NO.1 | ||||
| 87212-47010 |
Duct, Air, Rear NO.1
1997-12 → —
|
NHW1# | ¥5,500 | |
| 87213 — Duct, Air, Rear NO.2 | ||||
| 87213-47010 |
Duct, Air, Rear NO.2
1997-12 → —
|
NHW1# | ¥5,500 | |
| 87215F — Duct, Air, Rear NO.3 | ||||
| 87215-47010 |
Duct, Air, Rear NO.3
1997-12 → —
|
NHW1# | ¥3,310 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
