Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

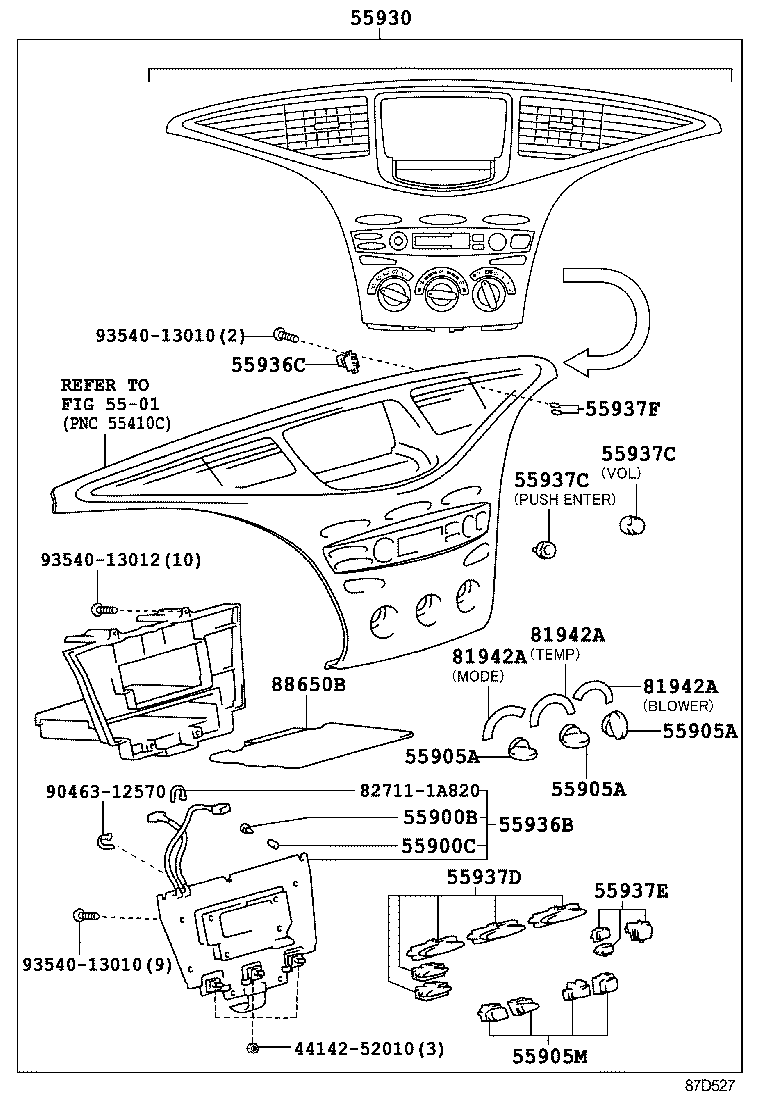

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

35 parts on this figure

Part number	Description	Fitment	Price
55900B — Bulb, Air Conditioner Control
84999-10310 note	Bulb, Air Conditioner Control 1997-12 → 2000-05 ended	NHW10	¥310
55900C — Cap, Air Conditioner Control Bulb
84998-10760	Cap, Air Conditioner Control Bulb 1997-12 → 2000-05 ended	NHW10	¥220
55905A — Knob, Heater Control
55905-47050	Knob, Heater Control 1997-12 → —	NHW1#	¥760
55905M — Knob Sub-assy, Control
55905-49015	Knob Sub-assy, Control 1997-12 → 2000-05 ended	NHW10	¥1,810
55905-49025	Knob Sub-assy, Control 2000-05 → —	NHW11	¥1,810
55930 — Control Assy, Center Cluster Module
55930-47010	Control Assy, Center Cluster Module 1997-12 → 1998-02 ended	NHW10	¥89,000
55930-47011	Control Assy, Center Cluster Module 1998-02 → 1998-06 ended	NHW10	¥89,000
55930-47012	Control Assy, Center Cluster Module 1998-06 → 2000-05 ended	NHW10	¥89,000
55930-47020-B0 note	Control Assy, Center Cluster Module 2000-05 → —	NHW11	¥118,000
55930-47030-B0 note	Control Assy, Center Cluster Module 2000-05 → —	NHW11	¥118,000
55936B — Switch, Center Cluster Module
55936-47010	Switch, Center Cluster Module 1997-12 → 2000-05 ended	NHW10	¥47,700
55936C — Switch, Center Cluster Module, NO.2
55936-47020	Switch, Center Cluster Module, NO.2 1997-12 → 2000-05 ended	NHW10	¥2,170
55937C — Knob, Center Cluster Module
55937-47060 note	Knob, Center Cluster Module 1997-12 → 2000-05 ended	NHW10	¥580
55937-47090 note	Knob, Center Cluster Module 1997-12 → 2000-05 ended	NHW10	¥580
55937-47130 note	Knob, Center Cluster Module 2000-05 → —	NHW11	¥580
55937-47150 note	Knob, Center Cluster Module 2000-05 → —	NHW11	¥440
55937-47160 note	Knob, Center Cluster Module 2000-05 → —	NHW11	¥440
55937-47240 note	Knob, Center Cluster Module 2000-05 → —	NHW11	¥580
55937D — Knob, Center Cluster Module, NO.1
55937-49015	Knob, Center Cluster Module, NO.1 1997-12 → 2000-05 ended	NHW10	¥2,680
55937-49045	Knob, Center Cluster Module, NO.1 2000-05 → —	NHW11	¥1,140
55937E — Knob, Center Cluster Module, NO.2
55937-49025	Knob, Center Cluster Module, NO.2 1997-12 → 2000-05 ended	NHW10	¥1,300
55937-49055	Knob, Center Cluster Module, NO.2 2000-05 → —	NHW11	¥1,630
55937F — Knob, Center Cluster Module, NO.3
55937-49035	Knob, Center Cluster Module, NO.3 1997-12 → 2000-05 ended	NHW10	¥760
55937-49065	Knob, Center Cluster Module, NO.3 2000-05 → —	NHW11	¥1,630
55937-49075 note	Knob, Center Cluster Module, NO.3 2000-05 → —	NHW11	¥1,630
81942A — Sheet, Heater Control Name, NO.1
81942-47010 note	Sheet, Heater Control Name, NO.1 1997-12 → 2000-05 ended	NHW10	¥500
81942-47020 note	Sheet, Heater Control Name, NO.1 1997-12 → 2000-05 ended	NHW10	¥500
81942-47030 note	Sheet, Heater Control Name, NO.1 1997-12 → 2000-05 ended	NHW10	¥500
81942-47040 note	Sheet, Heater Control Name, NO.1 2000-05 → —	NHW11	¥510
81942-47050 note	Sheet, Heater Control Name, NO.1 2000-05 → —	NHW11	¥510
81942-47060 note	Sheet, Heater Control Name, NO.1 2000-05 → —	NHW11	¥510
88650B — Amplifier Assy, Airconditioner
88650-47010	Amplifier Assy, Airconditioner 1997-12 → 1998-02 ended	NHW10	—
88650-47011	Amplifier Assy, Airconditioner 1998-02 → 1998-06 ended	NHW10	—
88650-47012	Amplifier Assy, Airconditioner 1998-06 → 2000-05 ended	NHW10	—
88650-47020	Amplifier Assy, Airconditioner 2000-05 → —	NHW11	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
