Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

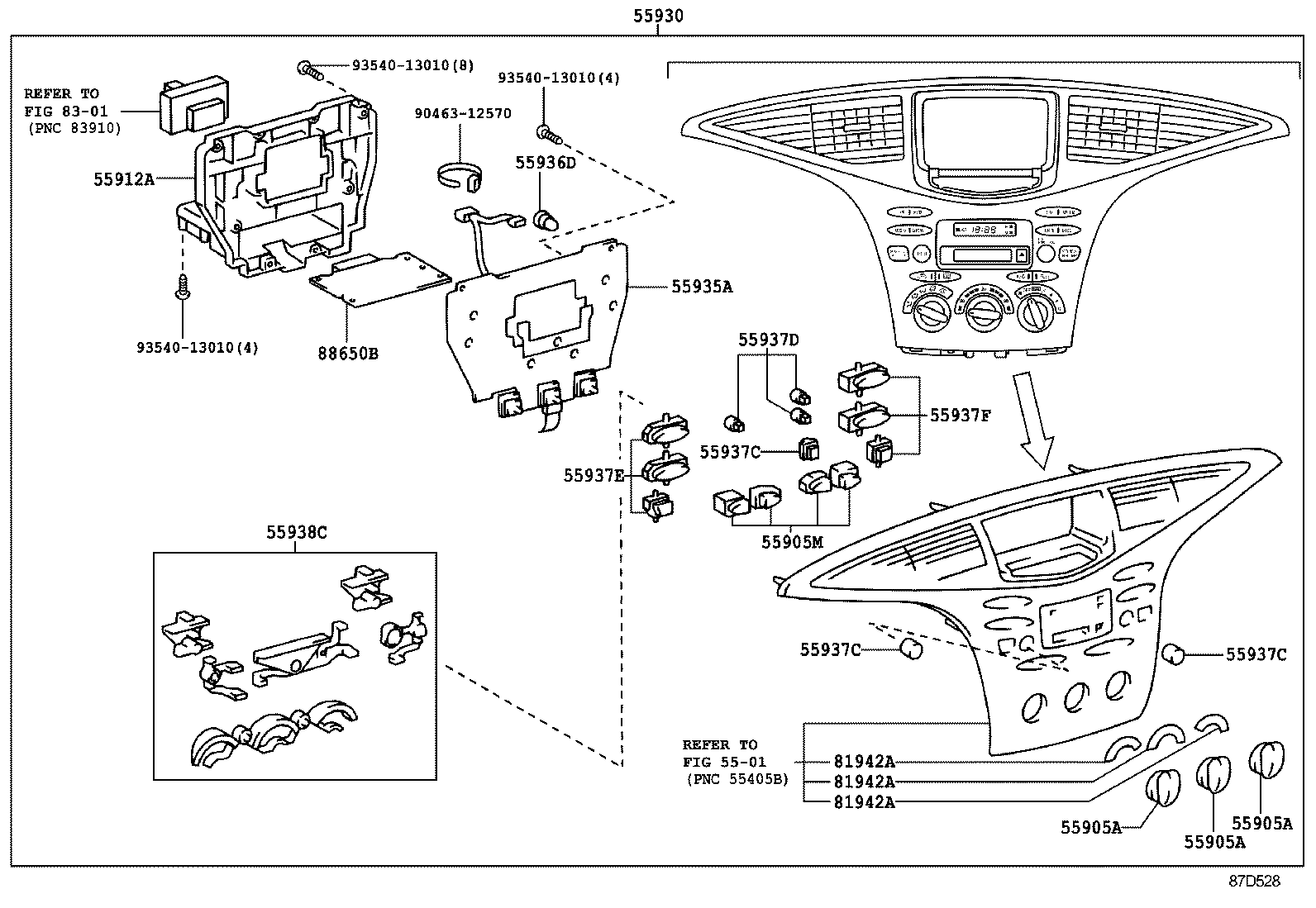

Exploded illustration 87D528 8301 — not listed in this catalogue 5501 — not listed in this catalogue 55912A — HOUSING, HEATER CONTROL (1 parts) 9354013010 — not listed in this catalogue 88650B — AMPLIFIER ASSY, AIRCONDITIONER (4 parts) 9354013010 — not listed in this catalogue 9046312570 — not listed in this catalogue 55930 — CONTROL ASSY, CENTER CLUSTER MODULE (5 parts) 55936D — BLUB, CENTER CLUSTER MODULE SWITCH (1 parts) 9354013010 — not listed in this catalogue 55935A — CIRCUIT, CENTER CLUSTER MODULE (2 parts) 55937D — KNOB, CENTER CLUSTER MODULE, NO.1 (2 parts) 55937F — KNOB, CENTER CLUSTER MODULE, NO.3 (3 parts) 55937C — KNOB, CENTER CLUSTER MODULE (6 parts) 55937E — KNOB, CENTER CLUSTER MODULE, NO.2 (2 parts) 55905M — KNOB SUB-ASSY, CONTROL (2 parts) 55937C — KNOB, CENTER CLUSTER MODULE (6 parts) 55938C — LENS, CENTER CLUSTER MODULE (2 parts) 81942A — SHEET, HEATER CONTROL NAME, NO.1 (6 parts) 81942A — SHEET, HEATER CONTROL NAME, NO.1 (6 parts) 81942A — SHEET, HEATER CONTROL NAME, NO.1 (6 parts) 55905A — KNOB, HEATER CONTROL (1 parts) 55905A — KNOB, HEATER CONTROL (1 parts) 55905A — KNOB, HEATER CONTROL (1 parts) 55937C — KNOB, CENTER CLUSTER MODULE (6 parts)
87D528 · 19 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
55905A — Knob, Heater Control
55905-47050 Knob, Heater Control
1997-12 → —
NHW1# ¥760
55905M — Knob Sub-assy, Control
55905-49015 Knob Sub-assy, Control
1997-12 → 2000-05 ended
NHW10 ¥1,810
55905-49025 Knob Sub-assy, Control
2000-05 → —
NHW11 ¥1,810
55912A — Housing, Heater Control
55912-47010 Housing, Heater Control
2000-05 → —
NHW11 ¥2,910
55930 — Control Assy, Center Cluster Module
55930-47010 Control Assy, Center Cluster Module
1997-12 → 1998-02 ended
NHW10 ¥89,000
55930-47011 Control Assy, Center Cluster Module
1998-02 → 1998-06 ended
NHW10 ¥89,000
55930-47012 Control Assy, Center Cluster Module
1998-06 → 2000-05 ended
NHW10 ¥89,000
55930-47020-B0 note Control Assy, Center Cluster Module
2000-05 → —
NHW11 ¥118,000
55930-47030-B0 note Control Assy, Center Cluster Module
2000-05 → —
NHW11 ¥118,000
55935A — Circuit, Center Cluster Module
55935-47010 Circuit, Center Cluster Module
2000-05 → —
NHW11 ¥44,200
55935-47030 note Circuit, Center Cluster Module
2000-05 → —
NHW11 ¥44,200
55936D — Blub, Center Cluster Module Switch
90010-01039 note Blub, Center Cluster Module Switch
2000-05 → —
NHW11 ¥270
55937C — Knob, Center Cluster Module
55937-47060 note Knob, Center Cluster Module
1997-12 → 2000-05 ended
NHW10 ¥580
55937-47090 note Knob, Center Cluster Module
1997-12 → 2000-05 ended
NHW10 ¥580
55937-47130 note Knob, Center Cluster Module
2000-05 → —
NHW11 ¥580
55937-47150 note Knob, Center Cluster Module
2000-05 → —
NHW11 ¥440
55937-47160 note Knob, Center Cluster Module
2000-05 → —
NHW11 ¥440
55937-47240 note Knob, Center Cluster Module
2000-05 → —
NHW11 ¥580
55937D — Knob, Center Cluster Module, NO.1
55937-49015 Knob, Center Cluster Module, NO.1
1997-12 → 2000-05 ended
NHW10 ¥2,680
55937-49045 Knob, Center Cluster Module, NO.1
2000-05 → —
NHW11 ¥1,140
55937E — Knob, Center Cluster Module, NO.2
55937-49025 Knob, Center Cluster Module, NO.2
1997-12 → 2000-05 ended
NHW10 ¥1,300
55937-49055 Knob, Center Cluster Module, NO.2
2000-05 → —
NHW11 ¥1,630
55937F — Knob, Center Cluster Module, NO.3
55937-49035 Knob, Center Cluster Module, NO.3
1997-12 → 2000-05 ended
NHW10 ¥760
55937-49065 Knob, Center Cluster Module, NO.3
2000-05 → —
NHW11 ¥1,630
55937-49075 note Knob, Center Cluster Module, NO.3
2000-05 → —
NHW11 ¥1,630
55938C — Lens, Center Cluster Module
55938-49015 Lens, Center Cluster Module
2000-05 → —
NHW11 ¥3,790
55938-49025 note Lens, Center Cluster Module
2000-05 → —
NHW11 ¥3,790
81942A — Sheet, Heater Control Name, NO.1
81942-47010 note Sheet, Heater Control Name, NO.1
1997-12 → 2000-05 ended
NHW10 ¥500
81942-47020 note Sheet, Heater Control Name, NO.1
1997-12 → 2000-05 ended
NHW10 ¥500
81942-47030 note Sheet, Heater Control Name, NO.1
1997-12 → 2000-05 ended
NHW10 ¥500
81942-47040 note Sheet, Heater Control Name, NO.1
2000-05 → —
NHW11 ¥510
81942-47050 note Sheet, Heater Control Name, NO.1
2000-05 → —
NHW11 ¥510
81942-47060 note Sheet, Heater Control Name, NO.1
2000-05 → —
NHW11 ¥510
88650B — Amplifier Assy, Airconditioner
88650-47010 Amplifier Assy, Airconditioner
1997-12 → 1998-02 ended
NHW10 —
88650-47011 Amplifier Assy, Airconditioner
1998-02 → 1998-06 ended
NHW10 —
88650-47012 Amplifier Assy, Airconditioner
1998-06 → 2000-05 ended
NHW10 —
88650-47020 Amplifier Assy, Airconditioner
2000-05 → —
NHW11 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
