Toyota Prius

1997-12 → 2003-08 · chassis NHW1# · catalogue 222110 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

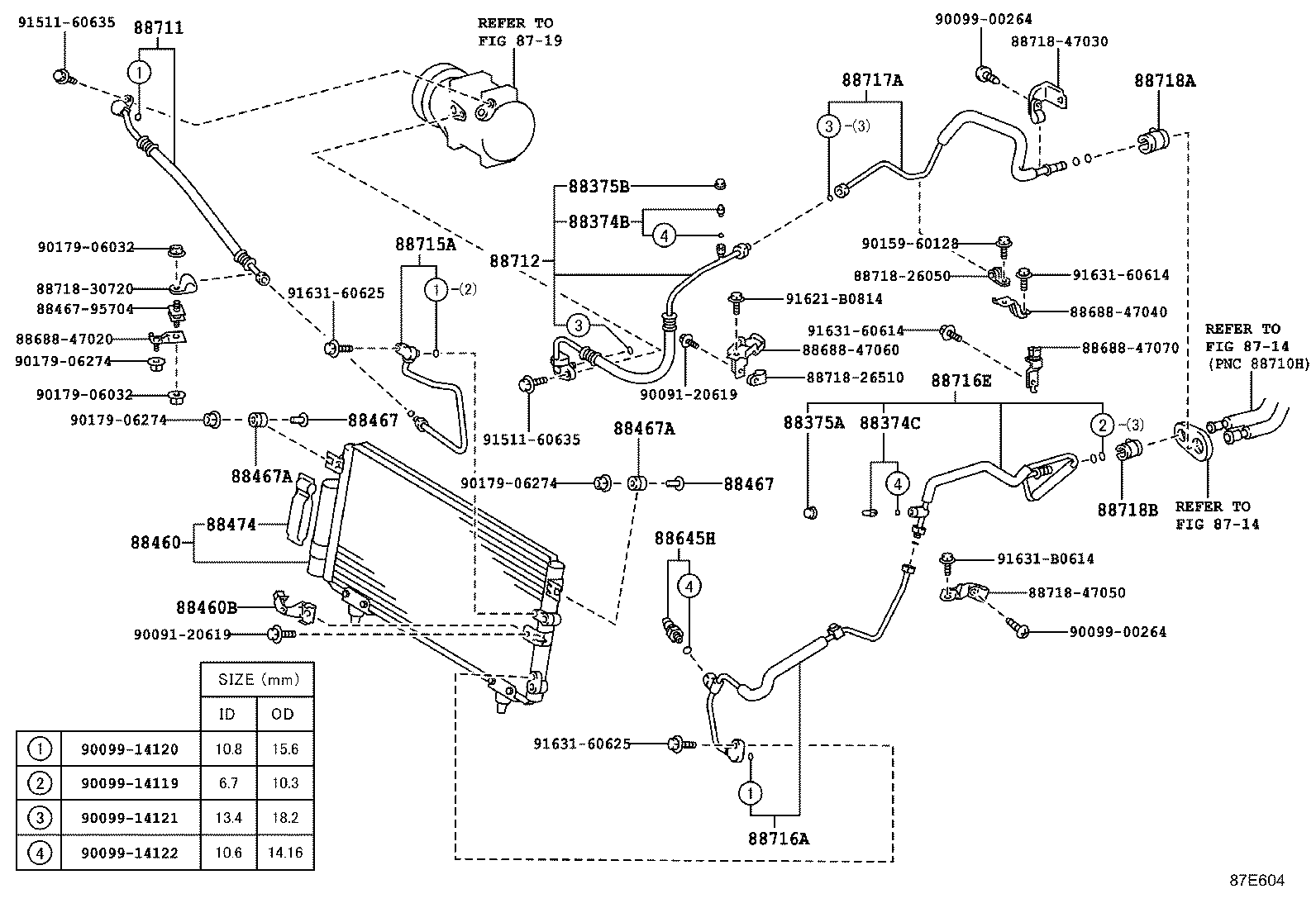

Exploded illustration 87E604 8714 — not listed in this catalogue 8714 — not listed in this catalogue 8719 — not listed in this catalogue 88467 — CUSHION, COOLER CONDENSER, NO.1 (1 parts) 9151160635 — not listed in this catalogue 9151160635 — not listed in this catalogue 88467 — CUSHION, COOLER CONDENSER, NO.1 (1 parts) 9017906274 — not listed in this catalogue 88467A — CUSHION, COOLER CONDENSER, NO.2 (1 parts) 88467A — CUSHION, COOLER CONDENSER, NO.2 (1 parts) 88474 — DRYER, COOLER (1 parts) 88460 — CONDENSER ASSY, COOLER (1 parts) 88460B — BRACKET, COOLER CONDENSER, NO.1 (1 parts) 9017906032 — not listed in this catalogue 8871830720 — not listed in this catalogue 8846795704 — not listed in this catalogue 8868847020 — not listed in this catalogue 9017906274 — not listed in this catalogue 9009120619 — not listed in this catalogue 9163160625 — not listed in this catalogue 88645H — SWITCH, PRESSURE NO.1 (1 parts) 9163160625 — not listed in this catalogue 88715A — PIPE, COOLER REFRIGERANT DISCHARGE, A (2 parts) 88718B — CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) (1 parts) 8868847040 — not listed in this catalogue 8871826050 — not listed in this catalogue 9015960128 — not listed in this catalogue 9163160614 — not listed in this catalogue 88718A — CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) (1 parts) 88717A — PIPE, COOLER REFRIGERANT SUCTION, A (2 parts) 9017906032 — not listed in this catalogue 9017906274 — not listed in this catalogue 9009914120 — not listed in this catalogue 9009914121 — not listed in this catalogue 9009914122 — not listed in this catalogue 9009914119 — not listed in this catalogue 88716E — PIPE, COOLER REFRIGERANT LIQUID, E (2 parts) 88375A — CAP, SERVICE VALVE (FOR COOLER PIPE) (1 parts) 88374C — VALVE, SERVICE, NO.2 (1 parts) 9163160614 — not listed in this catalogue 91631B0614 — not listed in this catalogue 8871847050 — not listed in this catalogue 9009900264 — not listed in this catalogue 8868847070 — not listed in this catalogue 9009900264 — not listed in this catalogue 88712 — HOSE, COOLER REFRIGERANT SUCTION, NO.1 (2 parts) 8871847030 — not listed in this catalogue 88716A — PIPE, COOLER REFRIGERANT LIQUID, A (2 parts) 88374B — VALVE, SERVICE, NO.1 (1 parts) 88375B — CAP, SERVICE VALVE, NO.1 (1 parts) 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (3 parts) 91621B0814 — not listed in this catalogue 9009120619 — not listed in this catalogue 8868847060 — not listed in this catalogue 8871826510 — not listed in this catalogue
87E604 · 20 callouts, 35 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
25 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
88374-30010 Valve, Service, NO.1
1997-12 → —
NHW1# —
88374C — Valve, Service, NO.2
88374-30010 Valve, Service, NO.2
1997-12 → —
NHW1# —
88375A — Cap, Service Valve (FOR COOLER PIPE)
88375-30280 Cap, Service Valve (FOR COOLER PIPE)
1997-12 → —
NHW1# —
88375B — Cap, Service Valve, NO.1
88375-30290 Cap, Service Valve, NO.1
1997-12 → —
NHW1# —
88460 — Condenser Assy, Cooler
88460-47010 Condenser Assy, Cooler
1997-12 → —
NHW1# ¥51,400
88460B — Bracket, Cooler Condenser, NO.1
88688-47010 Bracket, Cooler Condenser, NO.1
1997-12 → —
NHW1# —
88467 — Cushion, Cooler Condenser, NO.1
88467-20140 Cushion, Cooler Condenser, NO.1
1997-12 → —
NHW1# ¥0
88467A — Cushion, Cooler Condenser, NO.2
88467-47010 Cushion, Cooler Condenser, NO.2
1997-12 → —
NHW1# —
88474 — Dryer, Cooler
88474-47010 Dryer, Cooler
1997-12 → —
NHW1# —
88645H — Switch, Pressure NO.1
88645-60030 Switch, Pressure NO.1
1997-12 → —
NHW1# —
88711 — Hose, Cooler Refrigerant Discharge, NO.1
88711-47010 Hose, Cooler Refrigerant Discharge, NO.1
1997-12 → 2000-05 ended
NHW10 ¥12,200
88711-47020 Hose, Cooler Refrigerant Discharge, NO.1
2000-05 → 2002-08 ended
NHW11 ¥12,400
88711-47021 Hose, Cooler Refrigerant Discharge, NO.1
2002-08 → —
NHW11 ¥12,200
88712 — Hose, Cooler Refrigerant Suction, NO.1
88712-47010 Hose, Cooler Refrigerant Suction, NO.1
1997-12 → 2000-05 ended
NHW10 ¥14,000
88712-47020 Hose, Cooler Refrigerant Suction, NO.1
2000-05 → —
NHW11 ¥16,200
88715A — Pipe, Cooler Refrigerant Discharge, A
88715-47010 Pipe, Cooler Refrigerant Discharge, A
1997-12 → 2002-08 ended
NHW1# ¥4,760
88715-47011 Pipe, Cooler Refrigerant Discharge, A
2002-08 → —
NHW11 ¥4,750
88716A — Pipe, Cooler Refrigerant Liquid, A
88716-47010 Pipe, Cooler Refrigerant Liquid, A
1997-12 → 2000-05 ended
NHW10 ¥10,100
88716-47030 Pipe, Cooler Refrigerant Liquid, A
2000-05 → —
NHW11 ¥10,500
88716E — Pipe, Cooler Refrigerant Liquid, E
88706-47040 Pipe, Cooler Refrigerant Liquid, E
2000-05 → —
NHW11 ¥7,300
88716-47020 Pipe, Cooler Refrigerant Liquid, E
1997-12 → 2000-05 ended
NHW10 ¥5,300
88717A — Pipe, Cooler Refrigerant Suction, A
88717-47010 Pipe, Cooler Refrigerant Suction, A
1997-12 → 2000-05 ended
NHW10 ¥13,200
88717-47020 Pipe, Cooler Refrigerant Suction, A
2000-05 → —
NHW11 ¥11,400
88718A — Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-2D140 Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
1997-12 → —
NHW1# —
88718B — Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-2D150 Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
1997-12 → —
NHW1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
