Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

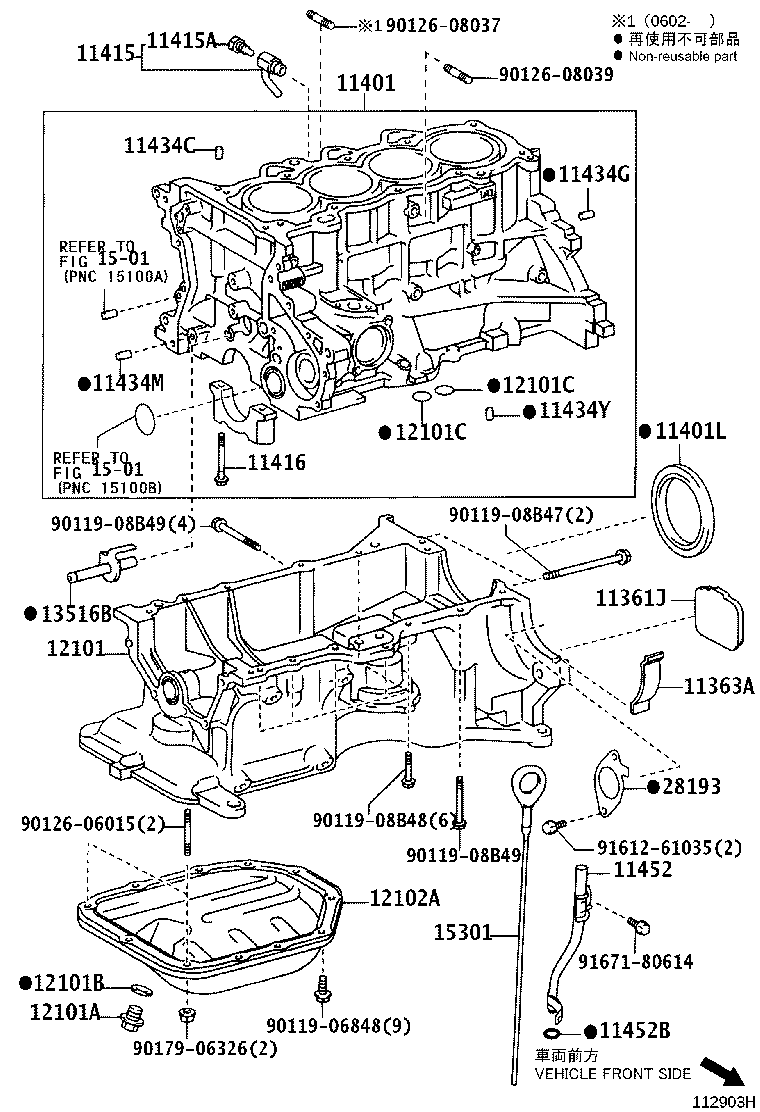

Exploded illustration 112903H 11415 — COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) (3 parts) 11415A — PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) (3 parts) 11401 — BLOCK SUB-ASSY, CYLINDER (4 parts) 11434C — PIN, STRAIGHT (FOR CYLINDER HEAD SET) (3 parts) 1501 — not listed in this catalogue 11434G — PIN, STRAIGHT(FOR END PLATE) (3 parts) 11363A — COVER, FLYWHEEL HOUSING SIDE (3 parts) 11401L — SEAL, ENGINE REAR OIL (2 parts) 12101C — RING, O(FOR OIL PAN) (3 parts) 12101C — RING, O(FOR OIL PAN) (3 parts) 11434Y — PIN, STRAIGHT(FOR OIL PAN) (3 parts) 9011908B47 — not listed in this catalogue 11416 — BOLT(FOR CRANKSHAFT BEARING CAP SET) (2 parts) 11434M — PIN, STRAIGHT(FOR CHAIN TENSIONER) (3 parts) 1501 — not listed in this catalogue 9011908B49 — not listed in this catalogue 12101 — PAN SUB-ASSY, OIL (3 parts) 9012606015 — not listed in this catalogue 9011908B48 — not listed in this catalogue 9011908B49 — not listed in this catalogue 12102A — PAN SUB-ASSY, OIL, NO.2 (3 parts) 15301 — GAGE SUB-ASSY, OIL LEVEL (3 parts) 12101B — GASKET(FOR OIL PAN DRAIN PLUG) (3 parts) 12101A — PLUG(FOR OIL PAN DRAIN) (3 parts) 9017906326 — not listed in this catalogue 9011906848 — not listed in this catalogue 11452B — RING, O(FOR OIL LEVEL GAGE GUIDE) (3 parts) 11452 — GUIDE, OIL LEVEL GAGE (3 parts) 28193 — INSULATOR, STARTER HOLE (3 parts) 11361J — COVER, FLYWHEEL HOUSING UNDER (3 parts) 9012608039 — not listed in this catalogue 9161261035 — not listed in this catalogue 9012608037 — not listed in this catalogue 13516B — JET, OIL (3 parts) 9167180614 — not listed in this catalogue
112903H · 22 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
11361J — Cover, Flywheel Housing Under
11361-21011 Cover, Flywheel Housing Under
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥490
11361-21011 Cover, Flywheel Housing Under
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥490
11361-21011 Cover, Flywheel Housing Under
2005-11 → —
1NZFXE NHW20 S ¥490
11363A — Cover, Flywheel Housing Side
11363-21010 Cover, Flywheel Housing Side
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥350
11363-21010 Cover, Flywheel Housing Side
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥350
11363-21010 Cover, Flywheel Housing Side
2005-11 → —
1NZFXE NHW20 S ¥350
11401 — Block Sub-assy, Cylinder
11401-29855 Block Sub-assy, Cylinder
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥182,000
11401-29855 Block Sub-assy, Cylinder
2005-11 → 2008-12 ended
1NZFXE NHW20 ¥182,000
11401-29856 Block Sub-assy, Cylinder
2008-12 → 2011-11 ended
1NZFXE NHW20 ¥182,000
11401-29857 Block Sub-assy, Cylinder
2011-11 → 2011-12 ended
1NZFXE NHW20 ¥182,000
11401L — Seal, Engine Rear Oil
90311-75016 Seal, Engine Rear Oil
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥1,390
90311-75016 Seal, Engine Rear Oil
2005-11 → 2011-12 ended
1NZFXE NHW20 ¥1,390
11415 — Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
90910-09107 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥610
90910-09107 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥610
90910-09107 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
2005-11 → —
1NZFXE NHW20 S ¥610
11415A — Plug, Water Drain Cock(FOR CYLINDER BLOCK)
90910-09087 Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥230
90910-09087 Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥230
90910-09087 Plug, Water Drain Cock(FOR CYLINDER BLOCK)
2005-11 → —
1NZFXE NHW20 S ¥230
11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET)
90910-02125 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥220
90910-02125 Bolt(FOR CRANKSHAFT BEARING CAP SET)
2005-11 → 2011-12 ended
1NZFXE NHW20 ¥220
11434C — Pin, Straight (FOR CYLINDER HEAD SET)
90250-08120 note Pin, Straight (FOR CYLINDER HEAD SET)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥140
90250-08120 note Pin, Straight (FOR CYLINDER HEAD SET)
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥140
90250-08120 note Pin, Straight (FOR CYLINDER HEAD SET)
2005-11 → —
1NZFXE NHW20 S ¥140
11434G — Pin, Straight(FOR END PLATE)
90250-10113 Pin, Straight(FOR END PLATE)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥120
90250-10113 Pin, Straight(FOR END PLATE)
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥120
90250-10113 Pin, Straight(FOR END PLATE)
2005-11 → —
1NZFXE NHW20 S ¥120
11434M — Pin, Straight(FOR CHAIN TENSIONER)
90250-10030 Pin, Straight(FOR CHAIN TENSIONER)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥160
90250-10030 Pin, Straight(FOR CHAIN TENSIONER)
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥160
90250-10030 Pin, Straight(FOR CHAIN TENSIONER)
2005-11 → —
1NZFXE NHW20 S ¥160
11434Y — Pin, Straight(FOR OIL PAN)
90250-08120 Pin, Straight(FOR OIL PAN)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥140
90250-08120 Pin, Straight(FOR OIL PAN)
2005-11 → —
1NZFXE NHW20 S ¥140
90250-08120 Pin, Straight(FOR OIL PAN)
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥140
11452 — Guide, Oil Level Gage
11452-21021 Guide, Oil Level Gage
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥1,680
11452-21021 Guide, Oil Level Gage
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥1,680
11452-21021 Guide, Oil Level Gage
2005-11 → —
1NZFXE NHW20 S ¥1,680
11452B — Ring, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥190
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥190
96721-19010 Ring, O(FOR OIL LEVEL GAGE GUIDE)
2005-11 → —
1NZFXE NHW20 S ¥190
12101 — Pan Sub-assy, Oil
12111-21051 Pan Sub-assy, Oil
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥66,800
12111-21051 Pan Sub-assy, Oil
2005-11 → 2009-06 ended
1NZFXE NHW20 ¥66,800
12111-21060 Pan Sub-assy, Oil
2009-06 → —
1NZFXE NHW20 ¥66,800
12101A — Plug(FOR OIL PAN DRAIN)
90341-12012 Plug(FOR OIL PAN DRAIN)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥160
90341-12012 Plug(FOR OIL PAN DRAIN)
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥160
90341-12012 Plug(FOR OIL PAN DRAIN)
2005-11 → —
1NZFXE NHW20 S ¥160
12101B — Gasket(FOR OIL PAN DRAIN PLUG)
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2005-11 → —
1NZFXE NHW20 S ¥90
90430-12031 Gasket(FOR OIL PAN DRAIN PLUG)
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥90
12101C — Ring, O(FOR OIL PAN)
96722-24020 Ring, O(FOR OIL PAN)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥140
96722-24020 Ring, O(FOR OIL PAN)
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥140
96722-24020 Ring, O(FOR OIL PAN)
2005-11 → —
1NZFXE NHW20 S ¥140
12102A — Pan Sub-assy, Oil, NO.2
12102-21010 Pan Sub-assy, Oil, NO.2
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥3,780
12102-21010 Pan Sub-assy, Oil, NO.2
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥3,780
12102-21010 Pan Sub-assy, Oil, NO.2
2005-11 → —
1NZFXE NHW20 S ¥3,780
13516B — Jet, Oil
13516-21010 Jet, Oil
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥590
13516-21010 Jet, Oil
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥590
13516-21010 Jet, Oil
2005-11 → —
1NZFXE NHW20 S ¥590
15301 — Gage Sub-assy, Oil Level
15301-21020 Gage Sub-assy, Oil Level
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥1,200
15301-21020 Gage Sub-assy, Oil Level
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥1,200
15301-21020 Gage Sub-assy, Oil Level
2005-11 → —
1NZFXE NHW20 S ¥1,200
28193 — Insulator, Starter Hole
28193-21010 Insulator, Starter Hole
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥760
28193-21010 Insulator, Starter Hole
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥760
28193-21010 Insulator, Starter Hole
2005-11 → —
1NZFXE NHW20 S ¥760
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
