Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

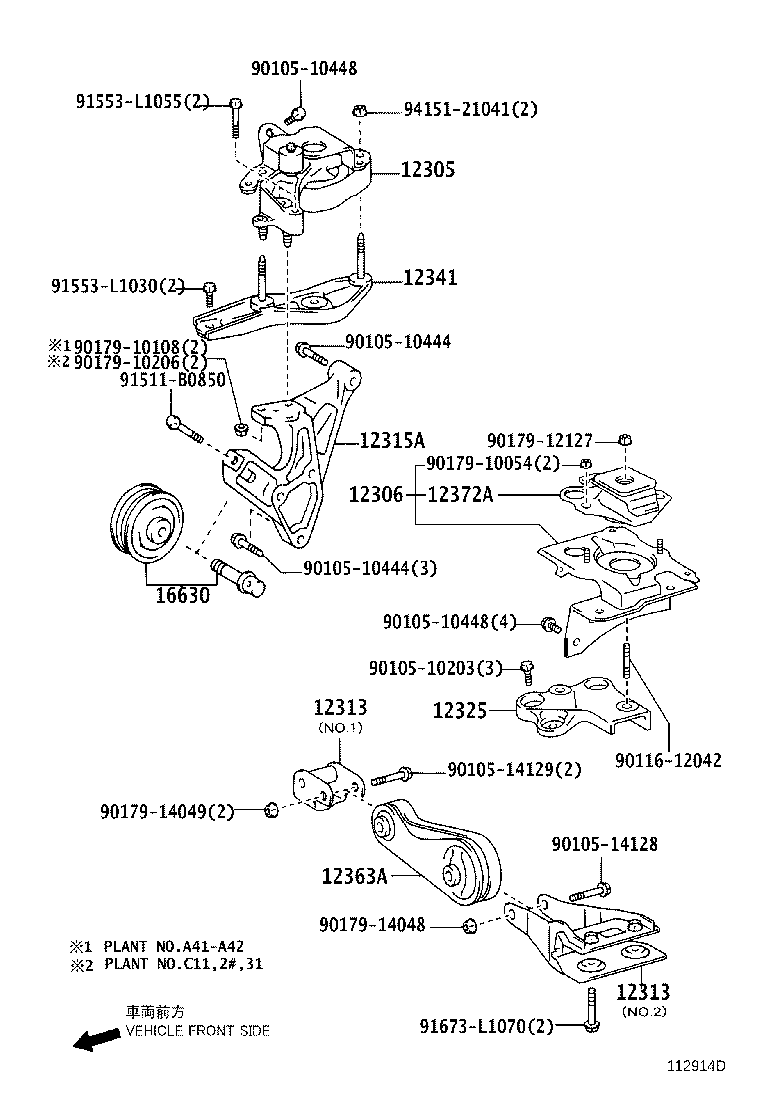

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12305 — Insulator Sub-assy, Engine Mounting, RH | ||||
| 12305-21190 |
Insulator Sub-assy, Engine Mounting, RH
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥19,400 | |
| 12305-21190 |
Insulator Sub-assy, Engine Mounting, RH
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥19,400 | |
| 12305-21190 |
Insulator Sub-assy, Engine Mounting, RH
2005-11 → —
|
1NZFXE NHW20 S | ¥19,400 | |
| 12306 — Insulator Sub-assy, Engine Mounting, LH | ||||
| 12306-21030 |
Insulator Sub-assy, Engine Mounting, LH
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥10,200 | |
| 12306-21030 |
Insulator Sub-assy, Engine Mounting, LH
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥10,200 | |
| 12306-21030 |
Insulator Sub-assy, Engine Mounting, LH
2005-11 → —
|
1NZFXE NHW20 S | ¥10,200 | |
| 12313 — Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE) | ||||
| 12313-21010 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥1,990 | |
| 12313-21030 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥4,180 | |
| 12313-21010 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥1,990 | |
| 12313-21010 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2005-11 → —
|
1NZFXE NHW20 S | ¥1,990 | |
| 12313-21030 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥4,180 | |
| 12313-21030 note |
Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
2005-11 → —
|
1NZFXE NHW20 S | ¥4,180 | |
| 12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-21050 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥6,000 | |
| 12315-21050 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥6,000 | |
| 12315-21050 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2005-11 → —
|
1NZFXE NHW20 S | ¥6,000 | |
| 12325 — Bracket, Engine Mounting, NO.3 | ||||
| 12325-21150 |
Bracket, Engine Mounting, NO.3
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥3,650 | |
| 12325-21150 |
Bracket, Engine Mounting, NO.3
2005-11 → 2011-12
ended
|
1NZFXE NHW20 | ¥3,650 | |
| 12341 — Spacer, Engine Mounting | ||||
| 12341-21010 |
Spacer, Engine Mounting
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥7,800 | |
| 12341-21010 |
Spacer, Engine Mounting
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥7,800 | |
| 12341-21010 |
Spacer, Engine Mounting
2005-11 → —
|
1NZFXE NHW20 S | ¥7,800 | |
| 12363A — Rod, Engine Moving Control | ||||
| 12363-21030 |
Rod, Engine Moving Control
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥7,700 | |
| 12363-21030 |
Rod, Engine Moving Control
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥7,700 | |
| 12363-21030 |
Rod, Engine Moving Control
2005-11 → —
|
1NZFXE NHW20 S | ¥7,700 | |
| 12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-21111 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥7,200 | |
| 12372-21111 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2005-11 → 2008-09
ended
|
1NZFXE NHW20 | ¥7,200 | |
| 12372-21112 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-10 → 2009-03
ended
|
1NZFXE NHW20 G | ¥7,200 | |
| 12372-21112 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2008-10 → —
|
1NZFXE NHW20 S | ¥7,200 | |
| 16630 — Pulley Assy, Idler | ||||
| 16630-21020 |
Pulley Assy, Idler
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥7,100 | |
| 16630-21020 |
Pulley Assy, Idler
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥7,100 | |
| 16630-21020 |
Pulley Assy, Idler
2005-11 → —
|
1NZFXE NHW20 S | ¥7,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
