Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

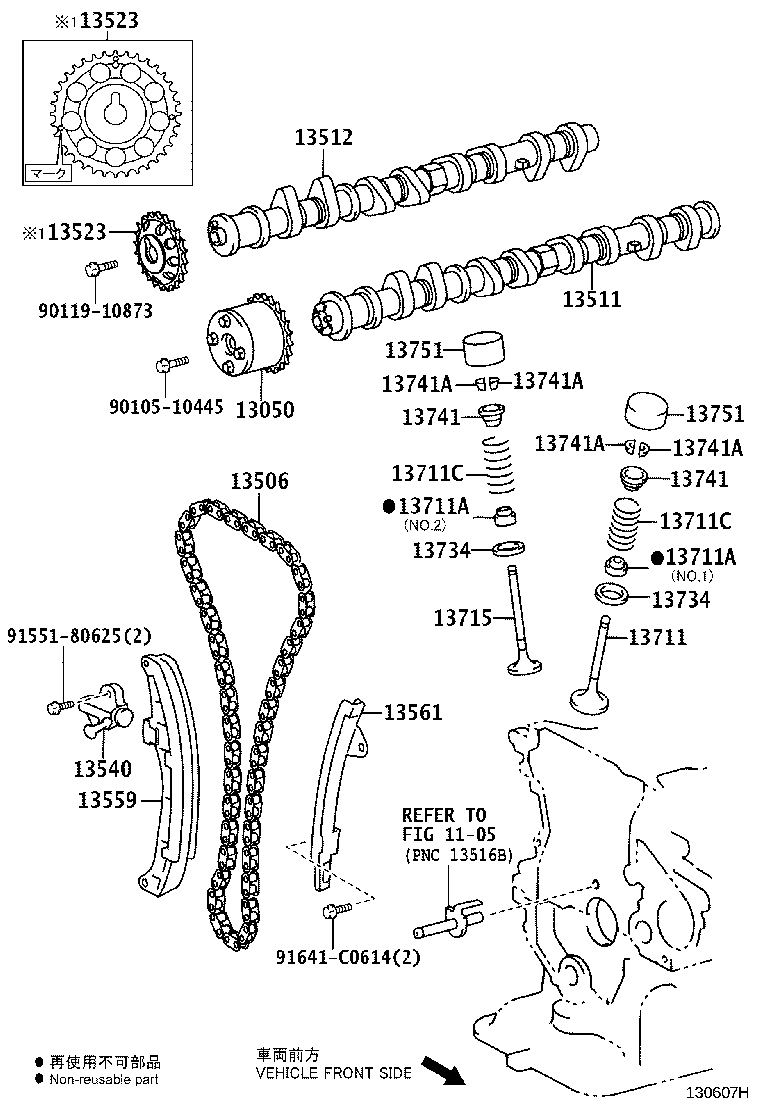

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 13050 — Gear Assy, Camshaft Timing | ||||
| 13050-21050 |
Gear Assy, Camshaft Timing
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥20,100 | |
| 13050-21050 |
Gear Assy, Camshaft Timing
2005-11 → 2006-02
ended
|
1NZFXE NHW20 | ¥20,100 | |
| 13050-21051 |
Gear Assy, Camshaft Timing
2006-02 → —
|
1NZFXE NHW20 S | ¥20,100 | |
| 13050-21051 |
Gear Assy, Camshaft Timing
2006-02 → 2009-03
ended
|
1NZFXE NHW20 G | ¥20,100 | |
| 13506 — Chain Sub-assy | ||||
| 13506-21020 |
Chain Sub-assy
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥16,000 | |
| 13506-21020 |
Chain Sub-assy
2005-11 → 2011-10
ended
|
1NZFXE NHW20 | ¥16,000 | |
| 13506-21050 |
Chain Sub-assy
2011-10 → 2011-12
ended
|
1NZFXE NHW20 | ¥9,900 | |
| 13511 — Camshaft | ||||
| 13501-21060 |
Camshaft
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥31,500 | |
| 13501-21060 |
Camshaft
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥31,500 | |
| 13501-21060 |
Camshaft
2005-11 → —
|
1NZFXE NHW20 S | ¥31,500 | |
| 13512 — Camshaft, NO.2 | ||||
| 13502-21020 |
Camshaft, NO.2
2003-08 → 2004-01
ended
|
1NZFXE NHW20 | ¥28,700 | |
| 13502-21021 |
Camshaft, NO.2
2004-01 → 2005-11
ended
|
1NZFXE NHW20 | ¥19,800 | |
| 13502-21021 |
Camshaft, NO.2
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥19,800 | |
| 13502-21021 |
Camshaft, NO.2
2005-11 → —
|
1NZFXE NHW20 S | ¥19,800 | |
| 13523 — Gear OR Sprocket, Camshaft Timing | ||||
| 13523-21020 note |
Gear OR Sprocket, Camshaft Timing
2003-08 → 2004-01
ended
|
1NZFXE NHW20 | ¥4,000 | |
| 13523-22020 note |
Gear OR Sprocket, Camshaft Timing
2004-01 → 2005-11
ended
|
1NZFXE NHW20 | ¥4,270 | |
| 13523-22020 |
Gear OR Sprocket, Camshaft Timing
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥4,270 | |
| 13523-22020 |
Gear OR Sprocket, Camshaft Timing
2005-11 → —
|
1NZFXE NHW20 S | ¥4,270 | |
| 13540 — Tensioner Assy, Chain, NO.1 | ||||
| 13540-21020 |
Tensioner Assy, Chain, NO.1
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥3,220 | |
| 13540-21020 |
Tensioner Assy, Chain, NO.1
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥3,220 | |
| 13540-21020 |
Tensioner Assy, Chain, NO.1
2005-11 → —
|
1NZFXE NHW20 S | ¥3,220 | |
| 13559 — Slipper, Chain Tensioner | ||||
| 13559-21010 |
Slipper, Chain Tensioner
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥3,940 | |
| 13559-21010 |
Slipper, Chain Tensioner
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥3,940 | |
| 13559-21010 |
Slipper, Chain Tensioner
2005-11 → —
|
1NZFXE NHW20 S | ¥3,940 | |
| 13561 — Damper, Chain Vibration, NO.1 | ||||
| 13561-21010 |
Damper, Chain Vibration, NO.1
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥2,700 | |
| 13561-21010 |
Damper, Chain Vibration, NO.1
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥2,700 | |
| 13561-21010 |
Damper, Chain Vibration, NO.1
2005-11 → —
|
1NZFXE NHW20 S | ¥2,700 | |
| 13711 — Valve, Intake | ||||
| 13711-21010 |
Valve, Intake
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥1,220 | |
| 13711-21010 |
Valve, Intake
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥1,220 | |
| 13711-21010 |
Valve, Intake
2005-11 → —
|
1NZFXE NHW20 S | ¥1,220 | |
| 13711A — Seal OR Ring, O(FOR VALVE STEM OIL) | ||||
| 90913-02092 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥380 | |
| 90913-02093 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥280 | |
| 90913-02092 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥380 | |
| 90913-02092 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2005-11 → —
|
1NZFXE NHW20 S | ¥380 | |
| 90913-02093 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥280 | |
| 90913-02093 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2005-11 → —
|
1NZFXE NHW20 S | ¥280 | |
| 13711C — Spring, Compression(FOR OUTER) | ||||
| 90501-23135 |
Spring, Compression(FOR OUTER)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥160 | |
| 90501-23135 |
Spring, Compression(FOR OUTER)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥160 | |
| 90501-23135 |
Spring, Compression(FOR OUTER)
2005-11 → —
|
1NZFXE NHW20 S | ¥160 | |
| 13715 — Valve, Exhaust | ||||
| 13715-21010 |
Valve, Exhaust
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥1,730 | |
| 13715-21010 |
Valve, Exhaust
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥1,730 | |
| 13715-21010 |
Valve, Exhaust
2005-11 → —
|
1NZFXE NHW20 S | ¥1,730 | |
| 13734 — Seat, Valve Spring | ||||
| 13734-74010 |
Seat, Valve Spring
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥50 | |
| 13734-74010 |
Seat, Valve Spring
2005-11 → —
|
1NZFXE NHW20 S | ¥50 | |
| 13734-74010 |
Seat, Valve Spring
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥50 | |
| 13741 — Retainer, Valve Spring | ||||
| 13741-22021 |
Retainer, Valve Spring
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥220 | |
| 13741-22021 |
Retainer, Valve Spring
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥220 | |
| 13741-22021 |
Retainer, Valve Spring
2005-11 → —
|
1NZFXE NHW20 S | ¥220 | |
| 13741A — Lock, Valve Spring Retainer | ||||
| 90913-03031 |
Lock, Valve Spring Retainer
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥70 | |
| 90913-03031 |
Lock, Valve Spring Retainer
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥70 | |
| 90913-03031 |
Lock, Valve Spring Retainer
2005-11 → —
|
1NZFXE NHW20 S | ¥70 | |
| 13751 — Lifter, Valve | ||||
| 13751-46030 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46040 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46050 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46060 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46070 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46080 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46090 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46100 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46110 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46120 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46130 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46140 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46150 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46160 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46170 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46180 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46190 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46200 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46210 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46220 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46230 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46240 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46250 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46260 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46270 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46280 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46290 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46300 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46310 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46320 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46330 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46340 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46350 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46360 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46370 note |
Lifter, Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥860 | |
| 13751-46030 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46030 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46040 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46040 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46050 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46050 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46060 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46060 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46070 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46070 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46080 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46080 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46090 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46090 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46100 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46100 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46110 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46110 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46120 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46120 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46130 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46130 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46140 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46140 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46150 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46150 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46160 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46160 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46170 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46170 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46180 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46180 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46190 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46190 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46200 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46200 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46210 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46210 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46220 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46220 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46230 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46230 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46240 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46240 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46250 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46250 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46260 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46260 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46270 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46270 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46280 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46280 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46290 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46290 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46300 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46300 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46310 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46310 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46320 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46320 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46330 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46330 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46340 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46340 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46350 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46350 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46360 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46360 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
| 13751-46370 note |
Lifter, Valve
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥860 | |
| 13751-46370 note |
Lifter, Valve
2005-11 → —
|
1NZFXE NHW20 S | ¥860 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
