Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

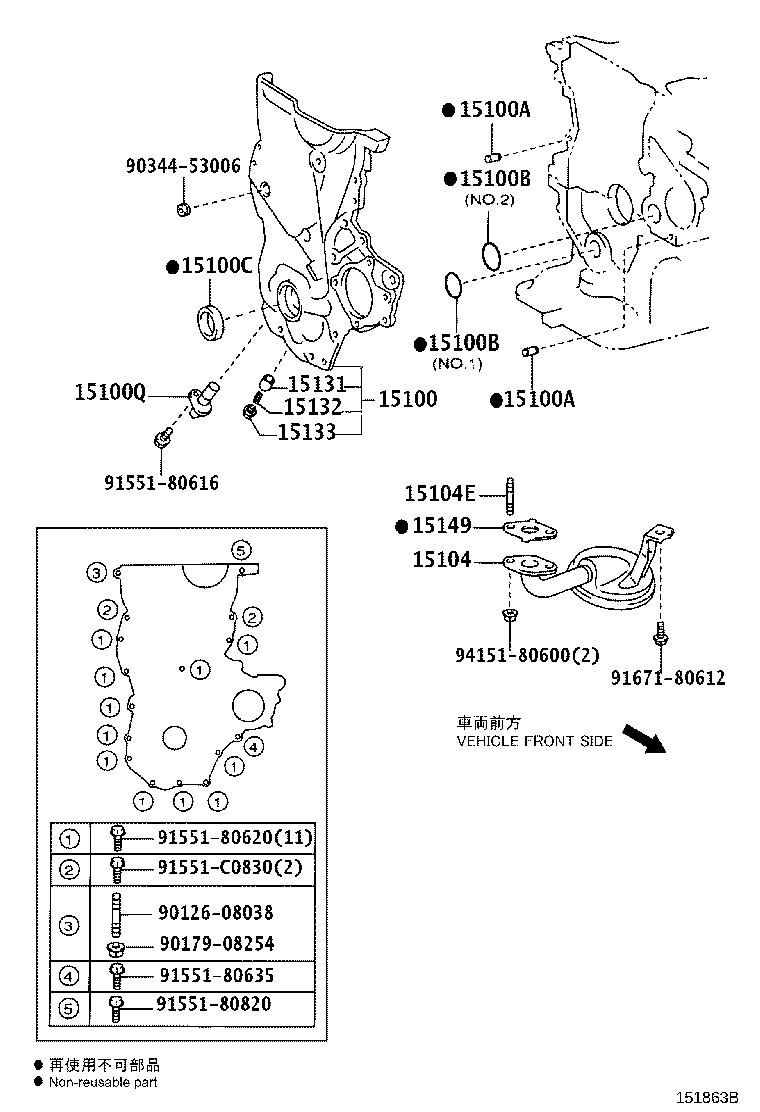

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15100 — Pump Assy, Oil | ||||
| 15100-21050 |
Pump Assy, Oil
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥23,800 | |
| 15100-21050 |
Pump Assy, Oil
2005-11 → 2011-11
ended
|
1NZFXE NHW20 | ¥23,800 | |
| 15100-21052 |
Pump Assy, Oil
2011-11 → 2011-12
ended
|
1NZFXE NHW20 | ¥23,800 | |
| 15100A — Pin, Ring(FOR OIL PUMP SET) | ||||
| 90253-08003 |
Pin, Ring(FOR OIL PUMP SET)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥80 | |
| 90253-08003 |
Pin, Ring(FOR OIL PUMP SET)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥80 | |
| 90253-08003 |
Pin, Ring(FOR OIL PUMP SET)
2005-11 → —
|
1NZFXE NHW20 S | ¥80 | |
| 15100B — Ring, O(FOR OIL PUMP) | ||||
| 90301-31012 note |
Ring, O(FOR OIL PUMP)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥240 | |
| 90301-42006 note |
Ring, O(FOR OIL PUMP)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥240 | |
| 11497-21010 note |
Ring, O(FOR OIL PUMP)
2011-11 → 2011-12
ended
|
1NZFXE NHW20 | ¥340 | |
| 12151-21010 note |
Ring, O(FOR OIL PUMP)
2011-11 → 2011-12
ended
|
1NZFXE NHW20 | ¥80 | |
| 90301-31012 note |
Ring, O(FOR OIL PUMP)
2005-11 → 2011-11
ended
|
1NZFXE NHW20 | ¥240 | |
| 90301-42006 note |
Ring, O(FOR OIL PUMP)
2005-11 → 2011-11
ended
|
1NZFXE NHW20 | ¥240 | |
| 15100C — Seal(FOR OIL PUMP) | ||||
| 90311-25021 |
Seal(FOR OIL PUMP)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥310 | |
| 90311-25021 |
Seal(FOR OIL PUMP)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥310 | |
| 90311-25021 |
Seal(FOR OIL PUMP)
2005-11 → —
|
1NZFXE NHW20 S | ¥310 | |
| 15100Q — Sensor, Crank Position | ||||
| 90919-05045 |
Sensor, Crank Position
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥4,390 | |
| 90919-05045 |
Sensor, Crank Position
2005-11 → 2011-05
ended
|
1NZFXE NHW20 | ¥4,390 | |
| 90919-05081 |
Sensor, Crank Position
2011-05 → 2011-12
ended
|
1NZFXE NHW20 | ¥4,390 | |
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-21021 |
Strainer Sub-assy, Oil
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥3,110 | |
| 15104-21021 |
Strainer Sub-assy, Oil
2005-11 → 2006-12
ended
|
1NZFXE NHW20 | ¥3,110 | |
| 15104-21022 |
Strainer Sub-assy, Oil
2006-12 → 2009-03
ended
|
1NZFXE NHW20 G | ¥1,960 | |
| 15104-21022 |
Strainer Sub-assy, Oil
2006-12 → —
|
1NZFXE NHW20 S | ¥1,960 | |
| 15104E — Bolt, Stud(FOR OIL STRAINER) | ||||
| 90126-06021 |
Bolt, Stud(FOR OIL STRAINER)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥80 | |
| 90126-06021 |
Bolt, Stud(FOR OIL STRAINER)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥80 | |
| 90126-06021 |
Bolt, Stud(FOR OIL STRAINER)
2005-11 → —
|
1NZFXE NHW20 S | ¥80 | |
| 15131 — Valve, Oil Pump Relief | ||||
| 15131-21020 |
Valve, Oil Pump Relief
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥340 | |
| 15131-21020 |
Valve, Oil Pump Relief
2005-11 → 2011-12
ended
|
1NZFXE NHW20 | ¥340 | |
| 15132 — Spring, Oil Pump Relief Valve | ||||
| 15132-21050 |
Spring, Oil Pump Relief Valve
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥200 | |
| 15132-21050 |
Spring, Oil Pump Relief Valve
2005-11 → 2011-12
ended
|
1NZFXE NHW20 | ¥200 | |
| 15133 — Plug, Oil Pump Relief Valve | ||||
| 15133-21020 |
Plug, Oil Pump Relief Valve
2003-08 → 2004-05
ended
|
1NZFXE NHW20 | ¥360 | |
| 15133-21030 |
Plug, Oil Pump Relief Valve
2004-05 → 2005-11
ended
|
1NZFXE NHW20 | ¥220 | |
| 15133-21030 |
Plug, Oil Pump Relief Valve
2005-11 → 2011-12
ended
|
1NZFXE NHW20 | ¥220 | |
| 15149 — Gasket, Oil Strainer Flange | ||||
| 16258-21030 |
Gasket, Oil Strainer Flange
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥270 | |
| 16258-21030 |
Gasket, Oil Strainer Flange
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥270 | |
| 16258-21030 |
Gasket, Oil Strainer Flange
2005-11 → —
|
1NZFXE NHW20 S | ¥270 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
