Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

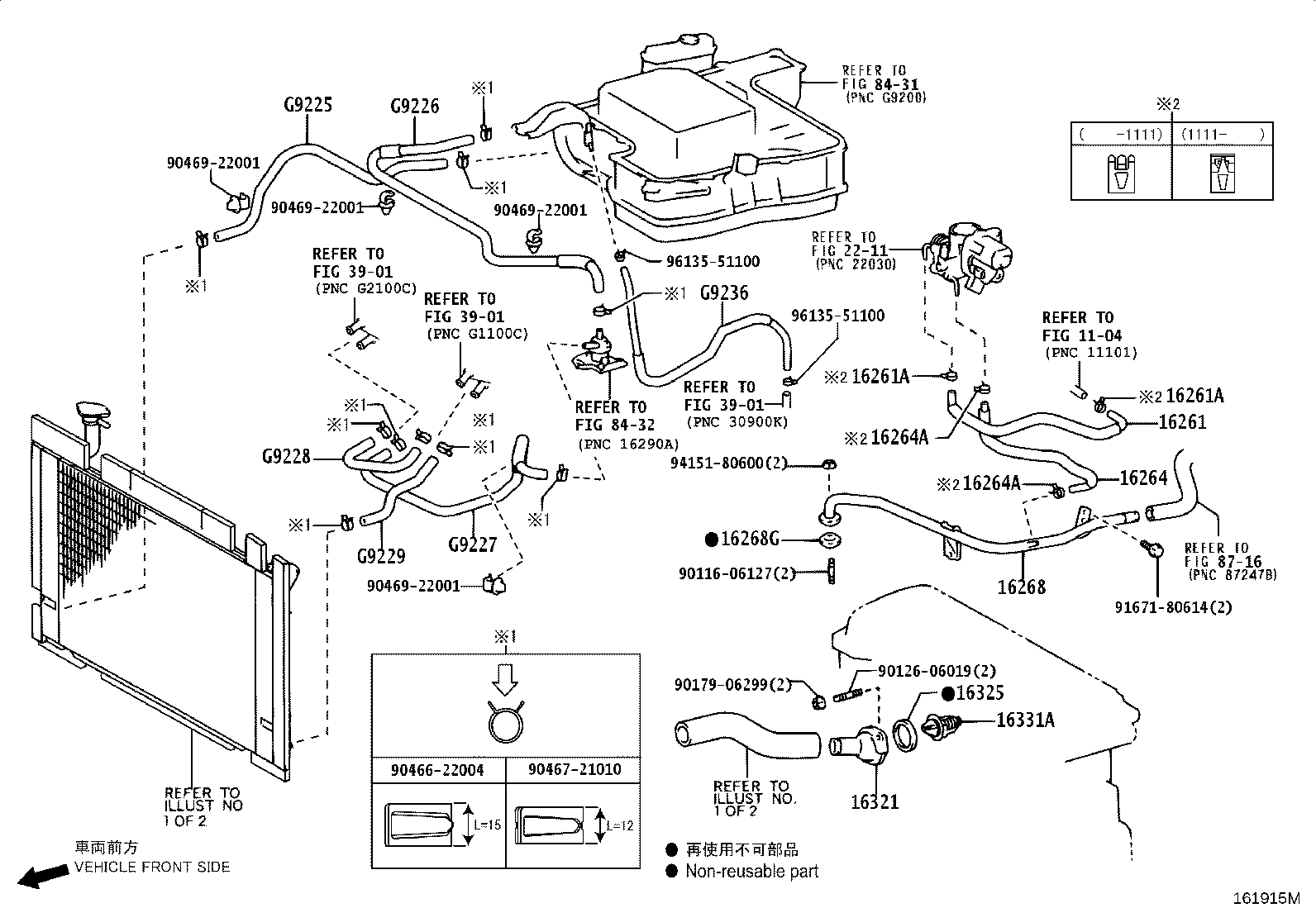

Exploded illustration 161915M 9046922001 — not listed in this catalogue G9225 — HOSE, INVERTER COOLING, NO.1 (2 parts) G9226 — HOSE, INVERTER COOLING, NO.2 (2 parts) 9046922001 — not listed in this catalogue G9228 — HOSE, INVERTER COOLING, NO.4 (2 parts) G9229 — HOSE, INVERTER COOLING, NO.5 (2 parts) G9227 — HOSE, INVERTER COOLING, NO.3 (2 parts) 8432 — not listed in this catalogue 3901 — not listed in this catalogue 3901 — not listed in this catalogue 3901 — not listed in this catalogue 1104 — not listed in this catalogue 9046922001 — not listed in this catalogue 9046922001 — not listed in this catalogue 9613551100 — not listed in this catalogue 9613551100 — not listed in this catalogue G9236 — HOSE, INVERTER COOLING, NO.6 (2 parts) 9415180600 — not listed in this catalogue 16268G — GASKET(FOR WATER BY-PASS PIPE) (4 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (3 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (3 parts) 2211 — not listed in this catalogue 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (3 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (3 parts) 16261 — HOSE, WATER BY-PASS (3 parts) 16264 — HOSE, WATER BY-PASS, NO.2 (3 parts) 8716 — not listed in this catalogue 9167180614 — not listed in this catalogue 16268 — PIPE, WATER BY-PASS, NO.1 (3 parts) 9012606019 — not listed in this catalogue 16325 — GASKET, WATER INLET HOUSING, NO.1 (3 parts) 16331A — THERMOSTAT (3 parts) 16321 — INLET, WATER (3 parts) 9017906299 — not listed in this catalogue 9011606127 — not listed in this catalogue 8431 — not listed in this catalogue 9046622004 — not listed in this catalogue 9046721010 — not listed in this catalogue
161915M · 17 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
16261 — Hose, Water By-pass
16261-21030 Hose, Water By-pass
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥1,610
16261-21030 Hose, Water By-pass
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥1,610
16261-21030 Hose, Water By-pass
2005-11 → —
1NZFXE NHW20 S ¥1,610
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
90467-13054 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥110
90467-13054 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2005-11 → 2011-11 ended
1NZFXE NHW20 ¥110
96136-41501 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2011-11 → 2011-12 ended
1NZFXE NHW20 ¥70
16264 — Hose, Water By-pass, NO.2
16264-21030 Hose, Water By-pass, NO.2
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥1,610
16264-21030 Hose, Water By-pass, NO.2
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥1,610
16264-21030 Hose, Water By-pass, NO.2
2005-11 → —
1NZFXE NHW20 S ¥1,610
16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
90467-13054 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥110
90467-13054 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2005-11 → 2011-11 ended
1NZFXE NHW20 ¥110
96136-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2011-11 → 2011-12 ended
1NZFXE NHW20 ¥70
16268 — Pipe, Water By-pass, NO.1
16268-21060 Pipe, Water By-pass, NO.1
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥4,390
16268-21060 Pipe, Water By-pass, NO.1
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥4,390
16268-21060 Pipe, Water By-pass, NO.1
2005-11 → —
1NZFXE NHW20 S ¥4,390
16268G — Gasket(FOR WATER BY-PASS PIPE)
16258-21020 Gasket(FOR WATER BY-PASS PIPE)
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥450
16258-21020 Gasket(FOR WATER BY-PASS PIPE)
2005-11 → 2008-11 ended
1NZFXE NHW20 ¥450
16258-21021 Gasket(FOR WATER BY-PASS PIPE)
2008-11 → 2009-03 ended
1NZFXE NHW20 G ¥270
16258-21021 Gasket(FOR WATER BY-PASS PIPE)
2008-11 → —
1NZFXE NHW20 S ¥270
16321 — Inlet, Water
16321-21010 Inlet, Water
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥1,470
16321-21010 Inlet, Water
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥1,470
16321-21010 Inlet, Water
2005-11 → —
1NZFXE NHW20 S ¥1,470
16325 — Gasket, Water Inlet Housing, NO.1
16325-62010 Gasket, Water Inlet Housing, NO.1
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥350
16325-62010 Gasket, Water Inlet Housing, NO.1
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥350
16325-62010 Gasket, Water Inlet Housing, NO.1
2005-11 → —
1NZFXE NHW20 S ¥350
16331A — Thermostat
90916-03093 note Thermostat
2003-08 → 2005-11 ended
1NZFXE NHW20 ¥1,600
90916-03093 note Thermostat
2005-11 → 2009-03 ended
1NZFXE NHW20 G ¥1,600
90916-03093 note Thermostat
2005-11 → —
1NZFXE NHW20 S ¥1,600
G9225 — Hose, Inverter Cooling, NO.1
G9225-47010 Hose, Inverter Cooling, NO.1
2003-08 → 2005-11 ended
NHW20 ¥4,790
G9225-47010 Hose, Inverter Cooling, NO.1
2005-11 → —
NHW20 ¥4,790
G9226 — Hose, Inverter Cooling, NO.2
G9226-47010 Hose, Inverter Cooling, NO.2
2003-08 → 2005-11 ended
NHW20 ¥4,790
G9226-47010 Hose, Inverter Cooling, NO.2
2005-11 → —
NHW20 ¥4,790
G9227 — Hose, Inverter Cooling, NO.3
G9227-47010 Hose, Inverter Cooling, NO.3
2003-08 → 2005-11 ended
NHW20 ¥4,790
G9227-47010 Hose, Inverter Cooling, NO.3
2005-11 → 2011-12 ended
NHW20 ¥4,790
G9228 — Hose, Inverter Cooling, NO.4
G9228-47010 Hose, Inverter Cooling, NO.4
2003-08 → 2005-11 ended
NHW20 ¥2,400
G9228-47010 Hose, Inverter Cooling, NO.4
2005-11 → 2011-12 ended
NHW20 ¥2,400
G9229 — Hose, Inverter Cooling, NO.5
G9229-47010 Hose, Inverter Cooling, NO.5
2003-08 → 2005-11 ended
NHW20 ¥2,110
G9229-47010 Hose, Inverter Cooling, NO.5
2005-11 → 2011-12 ended
NHW20 ¥2,110
G9236 — Hose, Inverter Cooling, NO.6
G9236-47020 Hose, Inverter Cooling, NO.6
2003-08 → 2005-11 ended
NHW20 ¥2,570
G9236-47020 Hose, Inverter Cooling, NO.6
2005-11 → 2011-12 ended
NHW20 ¥2,570
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
