Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

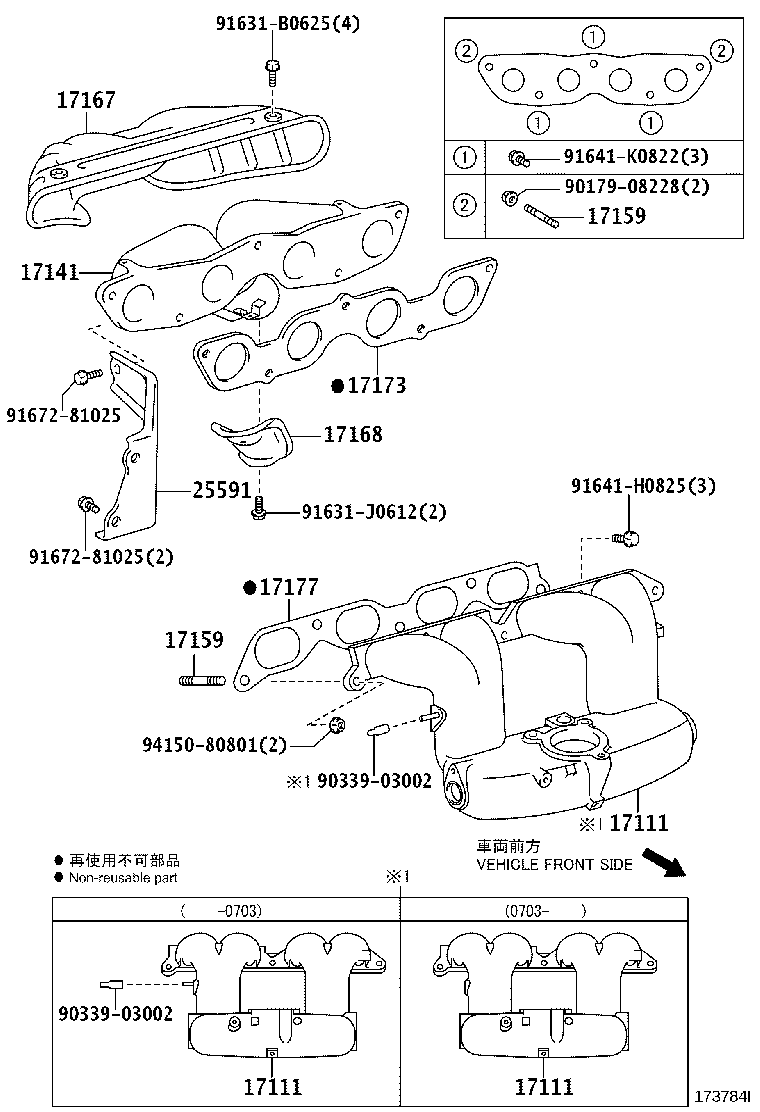

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17111 — Manifold, Intake | ||||
| 17101-21060 |
Manifold, Intake
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥21,200 | |
| 17101-21060 |
Manifold, Intake
2005-11 → 2007-03
ended
|
1NZFXE NHW20 | ¥21,200 | |
| 17101-21061 |
Manifold, Intake
2007-03 → 2009-03
ended
|
1NZFXE NHW20 G | ¥24,000 | |
| 17101-21061 |
Manifold, Intake
2007-03 → —
|
1NZFXE NHW20 S | ¥24,000 | |
| 17141 — Manifold, Exhaust | ||||
| 17141-21120 |
Manifold, Exhaust
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥26,400 | |
| 17141-21120 |
Manifold, Exhaust
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥26,400 | |
| 17141-21120 |
Manifold, Exhaust
2005-11 → —
|
1NZFXE NHW20 S | ¥26,400 | |
| 17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥210 | |
| 90126-08037 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥340 | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥210 | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2005-11 → —
|
1NZFXE NHW20 S | ¥210 | |
| 90126-08037 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥340 | |
| 90126-08037 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2005-11 → —
|
1NZFXE NHW20 S | ¥340 | |
| 17167 — Insulator, Exhaust Manifold Heat, NO.1 | ||||
| 17167-21091 |
Insulator, Exhaust Manifold Heat, NO.1
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥10,100 | |
| 17167-21091 |
Insulator, Exhaust Manifold Heat, NO.1
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥10,100 | |
| 17167-21091 |
Insulator, Exhaust Manifold Heat, NO.1
2005-11 → —
|
1NZFXE NHW20 S | ¥10,100 | |
| 17168 — Insulator, Exhaust Manifold Heat, NO.2 | ||||
| 17168-21030 |
Insulator, Exhaust Manifold Heat, NO.2
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥3,080 | |
| 17168-21030 |
Insulator, Exhaust Manifold Heat, NO.2
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥3,080 | |
| 17168-21030 |
Insulator, Exhaust Manifold Heat, NO.2
2005-11 → —
|
1NZFXE NHW20 S | ¥3,080 | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-21020 |
Gasket, Exhaust Manifold TO Head
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥980 | |
| 17173-21020 |
Gasket, Exhaust Manifold TO Head
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥980 | |
| 17173-21020 |
Gasket, Exhaust Manifold TO Head
2005-11 → —
|
1NZFXE NHW20 S | ¥980 | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17177-21010 |
Gasket, Intake Manifold TO Head, NO.1
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥630 | |
| 17177-21010 |
Gasket, Intake Manifold TO Head, NO.1
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥630 | |
| 17177-21010 |
Gasket, Intake Manifold TO Head, NO.1
2005-11 → —
|
1NZFXE NHW20 S | ¥630 | |
| 25591 — Bracket, Manifold Support | ||||
| 25591-21050 |
Bracket, Manifold Support
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥2,650 | |
| 25591-21050 |
Bracket, Manifold Support
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥2,650 | |
| 25591-21050 |
Bracket, Manifold Support
2005-11 → —
|
1NZFXE NHW20 S | ¥2,650 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
