Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

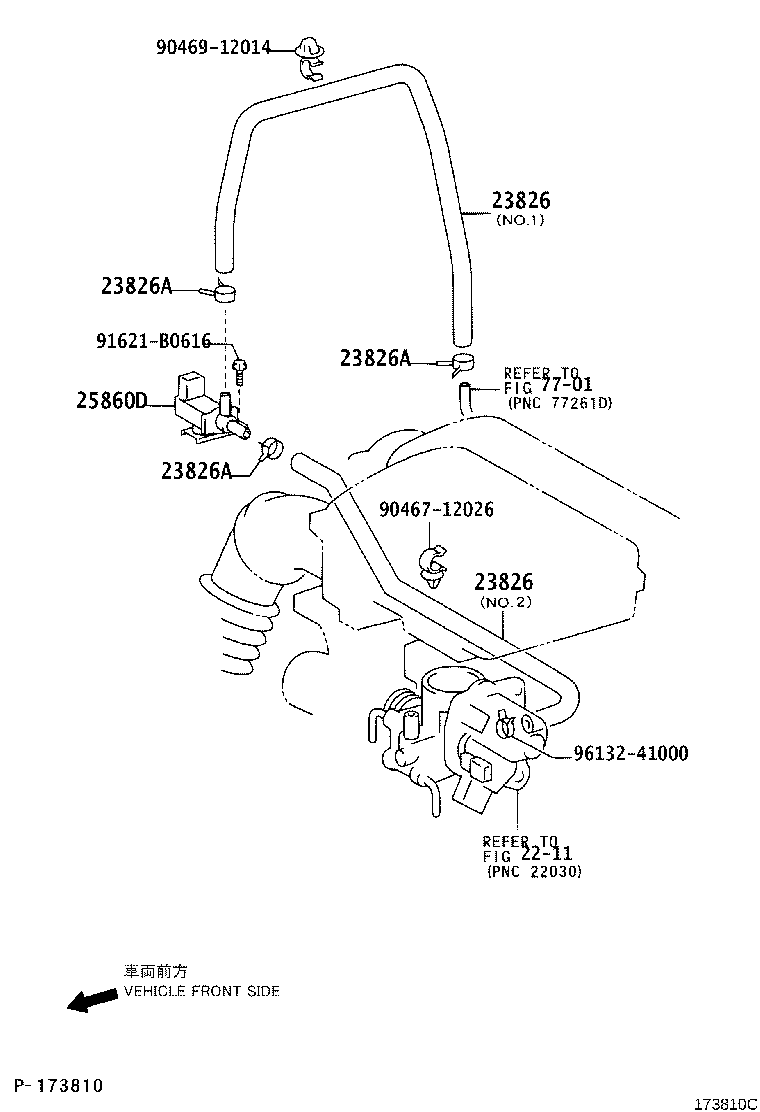

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23826 — Hose, Fuel Vapor Feed, NO.1 | ||||
| 23826-21070 note |
Hose, Fuel Vapor Feed, NO.1
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥1,520 | |
| 23826-21090 note |
Hose, Fuel Vapor Feed, NO.1
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥1,020 | |
| 23826-21070 note |
Hose, Fuel Vapor Feed, NO.1
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥1,520 | |
| 23826-21070 note |
Hose, Fuel Vapor Feed, NO.1
2005-11 → —
|
1NZFXE NHW20 S | ¥1,520 | |
| 23826-21090 note |
Hose, Fuel Vapor Feed, NO.1
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥1,020 | |
| 23826-21090 note |
Hose, Fuel Vapor Feed, NO.1
2005-11 → —
|
1NZFXE NHW20 S | ¥1,020 | |
| 23826A — Clip(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 90466-11003 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥100 | |
| 90466-11003 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥100 | |
| 90466-11003 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2005-11 → —
|
1NZFXE NHW20 S | ¥100 | |
| 25860D — Valve Assy, Vacuum Switching, NO.2 | ||||
| 25860-21060 |
Valve Assy, Vacuum Switching, NO.2
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥5,700 | |
| 25860-21060 |
Valve Assy, Vacuum Switching, NO.2
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥5,700 | |
| 25860-21060 |
Valve Assy, Vacuum Switching, NO.2
2005-11 → —
|
1NZFXE NHW20 S | ¥5,700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
