Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

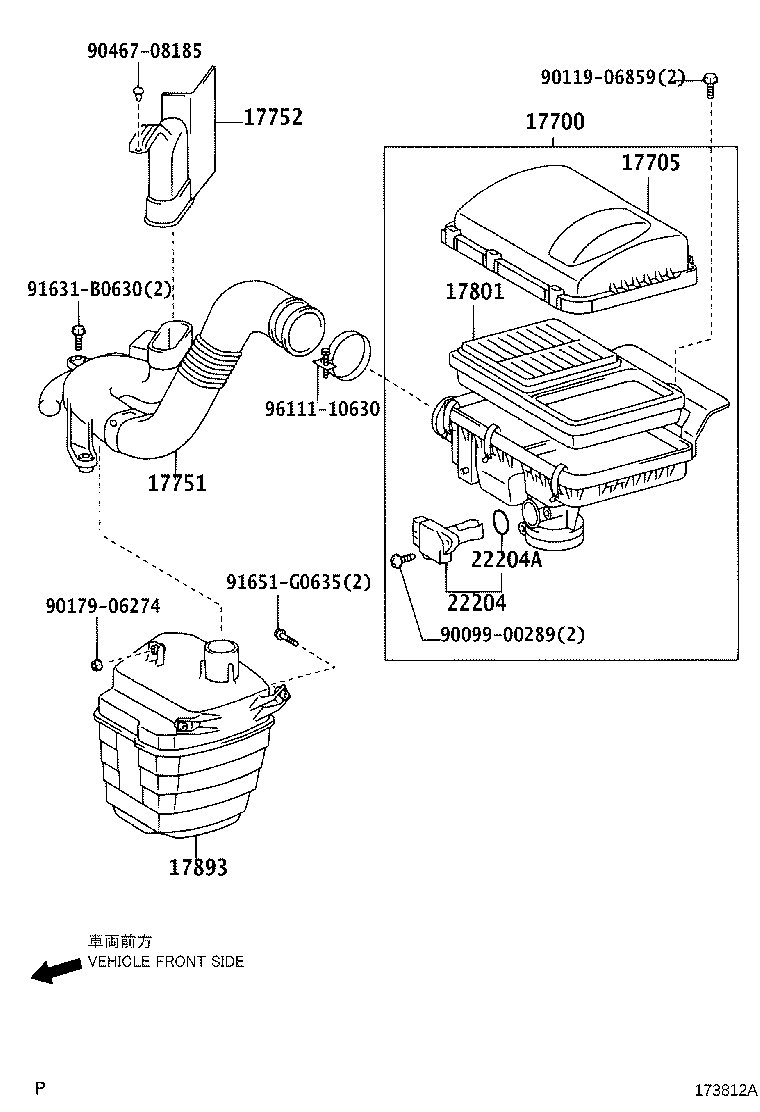

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-21140 |
Cleaner Assy, Air
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥25,000 | |
| 17700-21140 |
Cleaner Assy, Air
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥25,000 | |
| 17700-21140 |
Cleaner Assy, Air
2005-11 → —
|
1NZFXE NHW20 S | ¥25,000 | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-21110 |
Cap Sub-assy, Air Cleaner
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | — | |
| 17705-21110 |
Cap Sub-assy, Air Cleaner
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | — | |
| 17705-21110 |
Cap Sub-assy, Air Cleaner
2005-11 → —
|
1NZFXE NHW20 S | — | |
| 17751 — Inlet, Air Cleaner, NO.1 | ||||
| 17751-21120 |
Inlet, Air Cleaner, NO.1
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥7,000 | |
| 17751-21120 |
Inlet, Air Cleaner, NO.1
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥7,000 | |
| 17751-21120 |
Inlet, Air Cleaner, NO.1
2005-11 → —
|
1NZFXE NHW20 S | ¥7,000 | |
| 17752 — Inlet, Air Cleaner, NO.2 | ||||
| 17752-21050 |
Inlet, Air Cleaner, NO.2
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥3,370 | |
| 17752-21050 |
Inlet, Air Cleaner, NO.2
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥3,370 | |
| 17752-21050 |
Inlet, Air Cleaner, NO.2
2005-11 → —
|
1NZFXE NHW20 S | ¥3,370 | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-21040 |
Element Sub-assy, Air Cleaner Filter
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥2,840 | |
| 17801-21040 |
Element Sub-assy, Air Cleaner Filter
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥2,840 | |
| 17801-21040 |
Element Sub-assy, Air Cleaner Filter
2005-11 → —
|
1NZFXE NHW20 S | ¥2,840 | |
| 17893 — Resonator, Intake Air | ||||
| 17893-21030 |
Resonator, Intake Air
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥7,700 | |
| 17893-21030 |
Resonator, Intake Air
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥7,700 | |
| 17893-21030 |
Resonator, Intake Air
2005-11 → —
|
1NZFXE NHW20 S | ¥7,700 | |
| 22204 — Meter Sub-assy, Intake Air Flow | ||||
| 22204-22010 |
Meter Sub-assy, Intake Air Flow
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥12,400 | |
| 22204-22010 |
Meter Sub-assy, Intake Air Flow
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥12,400 | |
| 22204-22010 |
Meter Sub-assy, Intake Air Flow
2005-11 → —
|
1NZFXE NHW20 S | ¥12,400 | |
| 22204A — Ring, O(FOR INTAKE AIR FLOW METER) | ||||
| 90099-14141 |
Ring, O(FOR INTAKE AIR FLOW METER)
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥120 | |
| 90099-14141 |
Ring, O(FOR INTAKE AIR FLOW METER)
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥120 | |
| 90099-14141 |
Ring, O(FOR INTAKE AIR FLOW METER)
2005-11 → —
|
1NZFXE NHW20 S | ¥120 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
