Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

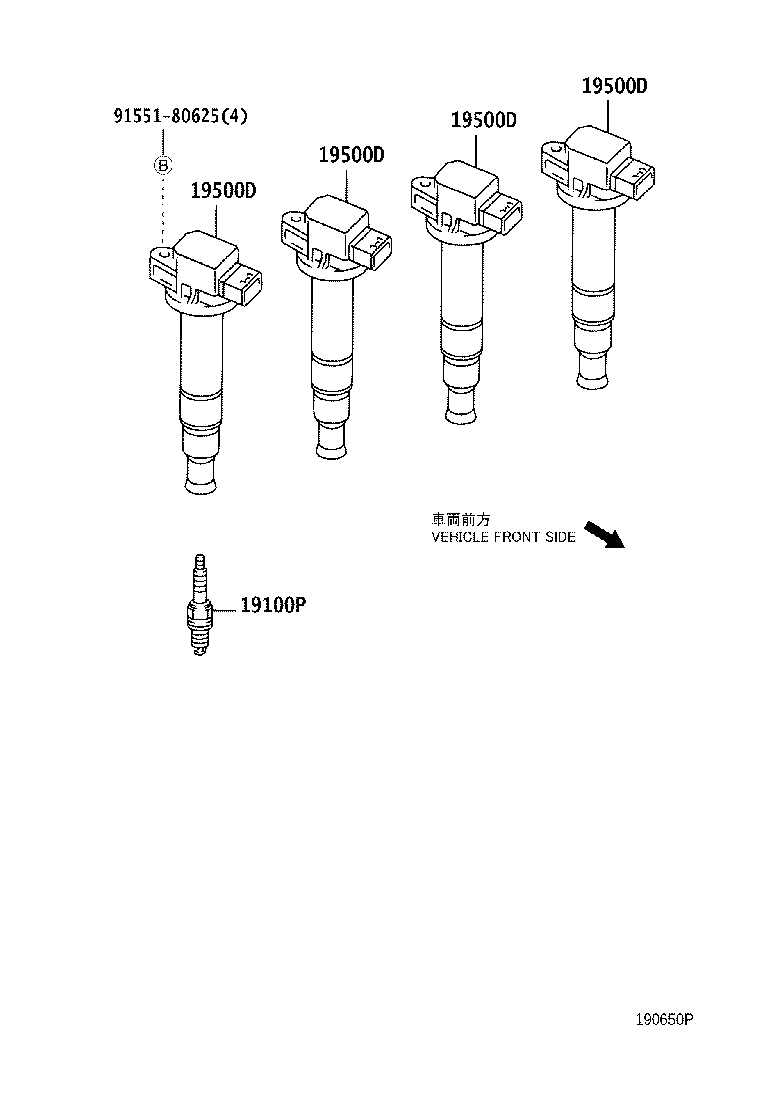

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100P — Plug, Spark | ||||
| 90919-01240 note |
Plug, Spark
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥1,700 | |
| 90919-01240 note |
Plug, Spark
2005-11 → 2009-03
ended
|
1NZFXE NHW20 G | ¥1,700 | |
| 90919-01240 note |
Plug, Spark
2005-11 → —
|
1NZFXE NHW20 S | ¥1,700 | |
| 19500D — Coil, Ignition, NO.1 | ||||
| 90919-02240 |
Coil, Ignition, NO.1
2003-08 → 2005-11
ended
|
1NZFXE NHW20 | ¥12,000 | |
| 90919-02240 |
Coil, Ignition, NO.1
2005-11 → 2010-10
ended
|
1NZFXE NHW20 | ¥12,000 | |
| 90919-02265 |
Coil, Ignition, NO.1
2010-10 → —
|
1NZFXE NHW20 | ¥7,500 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
