Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01

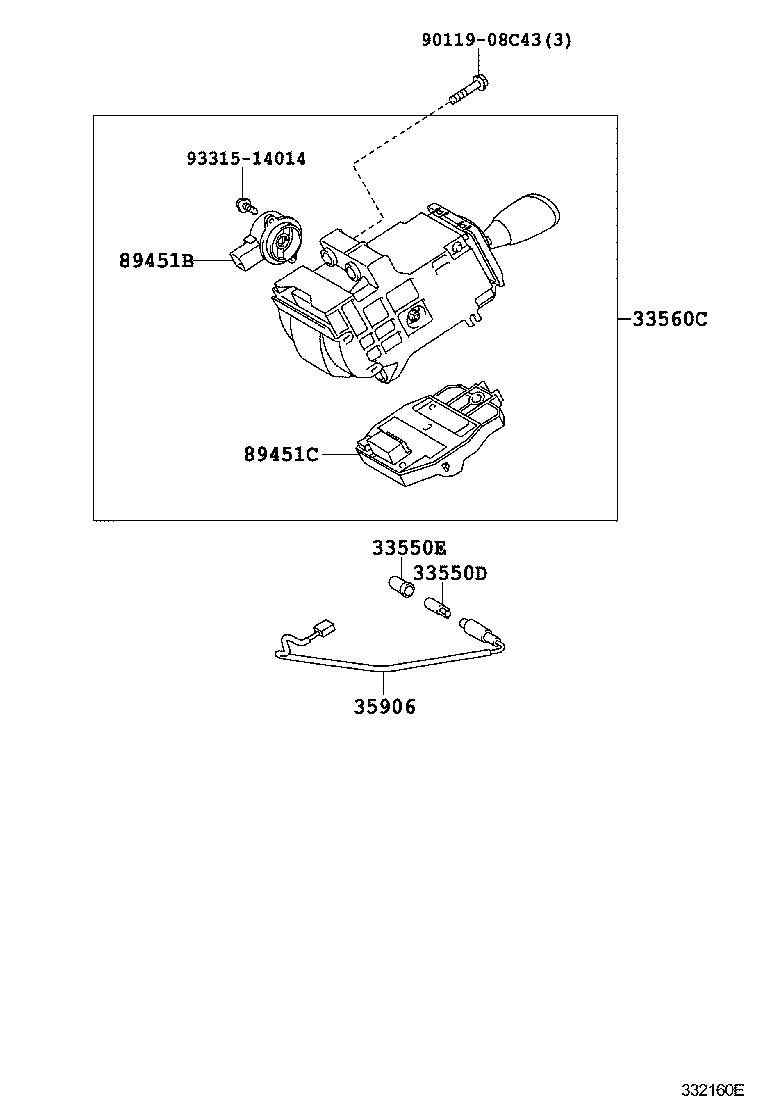

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

15 parts on this figure

Part number	Description	Fitment	Price
33550D — Bulb, Position Indicator Lamp
90981-11040 note	Bulb, Position Indicator Lamp 2003-08 → 2005-11 ended	NHW20	¥140
90981-11040 note	Bulb, Position Indicator Lamp 2005-11 → 2011-12 ended	NHW20	¥140
33550E — Cap, Position Indicator Lamp
90339-04049	Cap, Position Indicator Lamp 2003-08 → 2005-11 ended	NHW20	¥100
90339-04049	Cap, Position Indicator Lamp 2005-11 → 2011-12 ended	NHW20	¥100
33560C — Lever Assy, Shift, Lower
33560-47011	Lever Assy, Shift, Lower 2003-08 → 2005-03 ended	NHW20	¥22,600
33560-47012	Lever Assy, Shift, Lower 2005-04 → 2005-11 ended	NHW20	¥22,600
33560-47012	Lever Assy, Shift, Lower 2005-11 → 2011-05 ended	NHW20	¥22,600
33560-47013	Lever Assy, Shift, Lower 2011-06 → 2011-12 ended	NHW20	¥22,600
35906 — Wire Sub-assy, Indicator Lamp
35906-47010	Wire Sub-assy, Indicator Lamp 2003-08 → 2005-11 ended	NHW20	¥700
35906-47010	Wire Sub-assy, Indicator Lamp 2005-11 → 2011-12 ended	NHW20	¥700
89451B — Sensor, Shift Lever Position
89451-47030	Sensor, Shift Lever Position 2003-08 → 2005-11 ended	NHW20	¥9,400
89451-47030	Sensor, Shift Lever Position 2005-11 → 2011-12 ended	NHW20	¥9,400
89451C — Sensor, Shift Lever Position, NO.2
89451-47050	Sensor, Shift Lever Position, NO.2 2003-08 → 2005-11 ended	NHW20	¥9,400
89451-47050	Sensor, Shift Lever Position, NO.2 2005-11 → 2011-05 ended	NHW20	¥9,400
89451-47051	Sensor, Shift Lever Position, NO.2 2011-06 → 2011-12 ended	NHW20	¥9,400

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
