Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

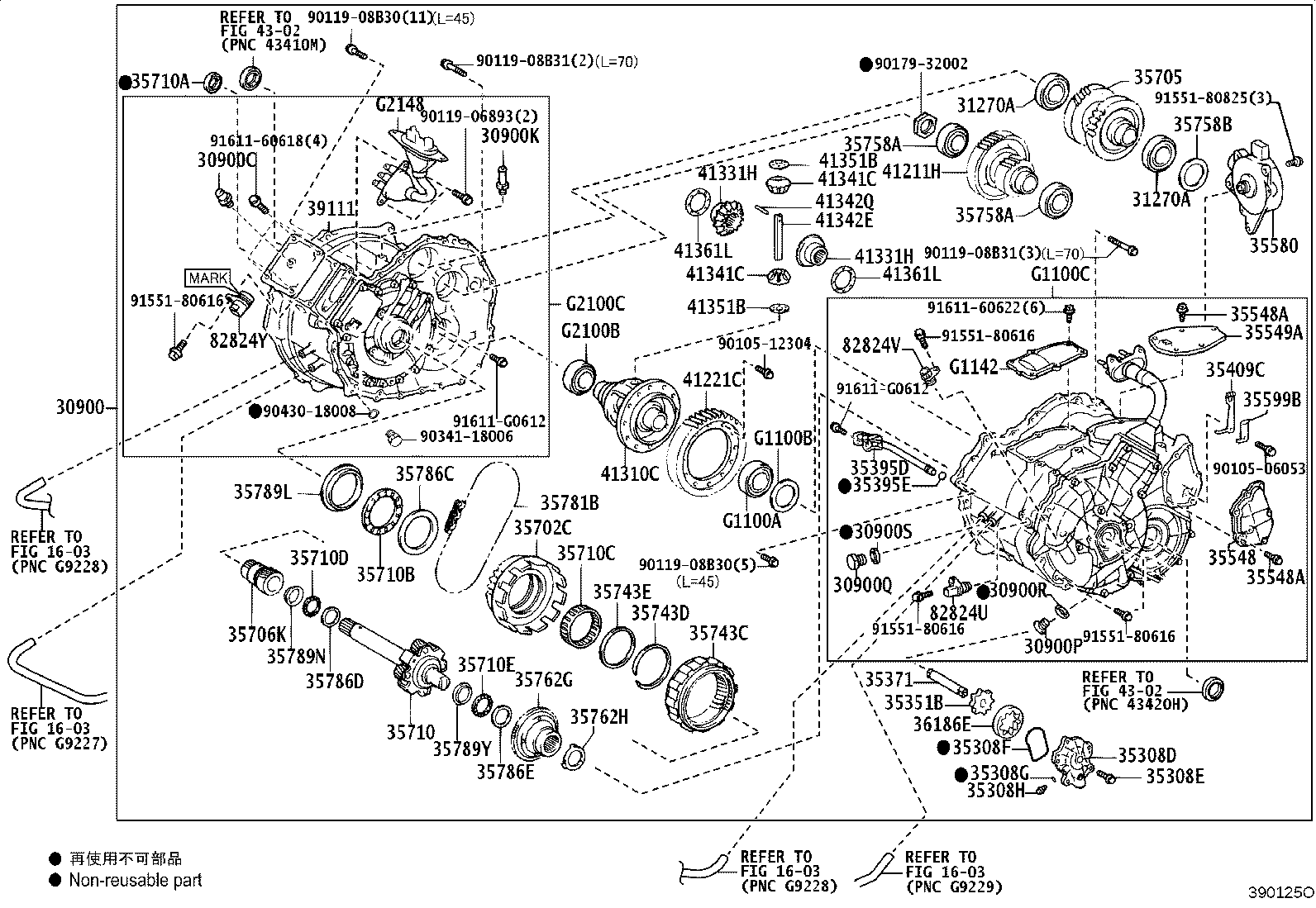

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30900 — Transaxle Assy, Hybrid Vehicle | ||||
| 30900-47040 |
Transaxle Assy, Hybrid Vehicle
2003-08 → 2005-11
ended
|
NHW20 | ¥359,000 | |
| 30900-47040 |
Transaxle Assy, Hybrid Vehicle
2005-11 → 2009-03
ended
|
NHW20 G | ¥359,000 | |
| 30900-47040 |
Transaxle Assy, Hybrid Vehicle
2005-11 → —
|
NHW20 S | ¥359,000 | |
| 30900C — Plug, Breather(FOR PARKING COVER) | ||||
| 90930-03031 |
Plug, Breather(FOR PARKING COVER)
2003-08 → 2004-08
ended
|
NHW20 | ¥370 | |
| 90930-03179 |
Plug, Breather(FOR PARKING COVER)
2004-08 → 2005-11
ended
|
NHW20 | ¥120 | |
| 90930-03179 |
Plug, Breather(FOR PARKING COVER)
2005-11 → 2009-03
ended
|
NHW20 G | ¥120 | |
| 90930-03179 |
Plug, Breather(FOR PARKING COVER)
2005-11 → —
|
NHW20 S | ¥120 | |
| 30900K — Connector, Tube(FOR TRANSAXLE HOUSING) | ||||
| 90404-51079 |
Connector, Tube(FOR TRANSAXLE HOUSING)
2003-08 → 2005-11
ended
|
NHW20 | ¥160 | |
| 90404-51079 |
Connector, Tube(FOR TRANSAXLE HOUSING)
2005-11 → —
|
NHW20 S | ¥160 | |
| 90404-51079 |
Connector, Tube(FOR TRANSAXLE HOUSING)
2005-11 → 2009-03
ended
|
NHW20 G | ¥160 | |
| 30900P — Plug, Drain(HEV) | ||||
| 90341-18051 |
Plug, Drain(HEV)
2003-08 → 2005-11
ended
|
NHW20 | ¥190 | |
| 90341-18051 |
Plug, Drain(HEV)
2005-11 → 2011-12
ended
|
NHW20 | ¥190 | |
| 30900Q — Plug, Filler(HEV) | ||||
| 90341-18006 |
Plug, Filler(HEV)
2003-08 → 2005-11
ended
|
NHW20 | ¥180 | |
| 90341-18006 |
Plug, Filler(HEV)
2005-11 → 2011-12
ended
|
NHW20 | ¥180 | |
| 30900R — Gasket, Drain Plug(HEV) | ||||
| 90430-18008 |
Gasket, Drain Plug(HEV)
2003-08 → 2005-11
ended
|
NHW20 | ¥110 | |
| 90430-18008 |
Gasket, Drain Plug(HEV)
2005-11 → 2011-12
ended
|
NHW20 | ¥110 | |
| 30900S — Gasket, Filler Plug(HEV) | ||||
| 90430-18008 |
Gasket, Filler Plug(HEV)
2003-08 → 2005-11
ended
|
NHW20 | ¥110 | |
| 90430-18008 |
Gasket, Filler Plug(HEV)
2005-11 → 2011-12
ended
|
NHW20 | ¥110 | |
| 31270A — Bearing, Radial Ball(FOR CRANKSHAFT) | ||||
| 90363-35055 |
Bearing, Radial Ball(FOR CRANKSHAFT)
2003-08 → 2005-11
ended
|
NHW20 | ¥2,040 | |
| 90363-35055 |
Bearing, Radial Ball(FOR CRANKSHAFT)
2005-11 → 2009-03
ended
|
NHW20 G | ¥2,040 | |
| 90363-35055 |
Bearing, Radial Ball(FOR CRANKSHAFT)
2005-11 → —
|
NHW20 S | ¥2,040 | |
| 35308D — Cover Sub-assy, Transmission Oil Pump | ||||
| 35308-47030 |
Cover Sub-assy, Transmission Oil Pump
2003-08 → 2005-11
ended
|
NHW20 | ¥4,210 | |
| 35308-47030 |
Cover Sub-assy, Transmission Oil Pump
2005-11 → 2009-03
ended
|
NHW20 G | ¥4,210 | |
| 35308-47030 |
Cover Sub-assy, Transmission Oil Pump
2005-11 → —
|
NHW20 S | ¥4,210 | |
| 35308E — Bolt, W/Washer (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 91611-60622 |
Bolt, W/Washer (FOR TRANSMISSION OIL PUMP COVER)
2003-08 → 2005-11
ended
|
NHW20 | ¥200 | |
| 91611-60622 |
Bolt, W/Washer (FOR TRANSMISSION OIL PUMP COVER)
2005-11 → 2009-03
ended
|
NHW20 G | ¥200 | |
| 91611-60622 |
Bolt, W/Washer (FOR TRANSMISSION OIL PUMP COVER)
2005-11 → —
|
NHW20 S | ¥200 | |
| 35308F — Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90903-01009 |
Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 90903-01009 |
Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 90903-01009 |
Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
2005-11 → —
|
NHW20 S | ¥220 | |
| 35308G — Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90301-06196 |
Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
2003-08 → 2005-11
ended
|
NHW20 | ¥170 | |
| 90301-06196 |
Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
2005-11 → 2009-03
ended
|
NHW20 G | ¥170 | |
| 90301-06196 |
Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
2005-11 → —
|
NHW20 S | ¥170 | |
| 35308H — Plug (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90341-08001 |
Plug (FOR TRANSMISSION OIL PUMP COVER)
2003-08 → 2005-11
ended
|
NHW20 | ¥120 | |
| 90341-08001 |
Plug (FOR TRANSMISSION OIL PUMP COVER)
2005-11 → 2009-03
ended
|
NHW20 G | ¥120 | |
| 90341-08001 |
Plug (FOR TRANSMISSION OIL PUMP COVER)
2005-11 → —
|
NHW20 S | ¥120 | |
| 35351B — Rotor, Transaxle Oil Pump Drive | ||||
| 35351-47030 |
Rotor, Transaxle Oil Pump Drive
2003-08 → 2005-11
ended
|
NHW20 | ¥350 | |
| 35351-47030 |
Rotor, Transaxle Oil Pump Drive
2005-11 → 2009-03
ended
|
NHW20 G | ¥350 | |
| 35351-47030 |
Rotor, Transaxle Oil Pump Drive
2005-11 → —
|
NHW20 S | ¥350 | |
| 35371 — Shaft, Oil Pump Drive | ||||
| 35371-47030 |
Shaft, Oil Pump Drive
2003-08 → 2005-11
ended
|
NHW20 | ¥1,820 | |
| 35371-47030 |
Shaft, Oil Pump Drive
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,820 | |
| 35371-47030 |
Shaft, Oil Pump Drive
2005-11 → —
|
NHW20 S | ¥1,820 | |
| 35395D — Strainer, Transmission Oil | ||||
| 35395-47030 |
Strainer, Transmission Oil
2003-08 → 2005-11
ended
|
NHW20 | ¥2,470 | |
| 35395-47030 |
Strainer, Transmission Oil
2005-11 → 2009-03
ended
|
NHW20 G | ¥2,470 | |
| 35395-47030 |
Strainer, Transmission Oil
2005-11 → —
|
NHW20 S | ¥2,470 | |
| 35395E — Ring, O(FOR TRANSAXLE OIL STRAINER) | ||||
| 90301-11019 |
Ring, O(FOR TRANSAXLE OIL STRAINER)
2003-08 → 2005-11
ended
|
NHW20 | ¥140 | |
| 90301-11019 |
Ring, O(FOR TRANSAXLE OIL STRAINER)
2005-11 → 2009-03
ended
|
NHW20 G | ¥140 | |
| 90301-11019 |
Ring, O(FOR TRANSAXLE OIL STRAINER)
2005-11 → —
|
NHW20 S | ¥140 | |
| 35409C — Spring Sub-assy, Manual Detent | ||||
| 35409-47030 |
Spring Sub-assy, Manual Detent
2003-08 → 2005-11
ended
|
NHW20 | ¥810 | |
| 35409-47030 |
Spring Sub-assy, Manual Detent
2005-11 → 2009-03
ended
|
NHW20 G | ¥810 | |
| 35409-47030 |
Spring Sub-assy, Manual Detent
2005-11 → —
|
NHW20 S | ¥810 | |
| 35548 — Cover, Parking | ||||
| 35548-47020 |
Cover, Parking
2003-08 → 2005-11
ended
|
NHW20 | ¥6,200 | |
| 35548-47020 |
Cover, Parking
2005-11 → —
|
NHW20 S | ¥6,200 | |
| 35548-47020 |
Cover, Parking
2005-11 → 2009-03
ended
|
NHW20 G | ¥6,200 | |
| 35548A — Bolt, W/Washer (FOR PARKING COVE & CASE) | ||||
| 91611-B0625 |
Bolt, W/Washer (FOR PARKING COVE & CASE)
2003-08 → 2005-11
ended
|
NHW20 | ¥110 | |
| 91611-B0625 |
Bolt, W/Washer (FOR PARKING COVE & CASE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥110 | |
| 91611-B0625 |
Bolt, W/Washer (FOR PARKING COVE & CASE)
2005-11 → —
|
NHW20 S | ¥110 | |
| 35549A — Cover, Parking Shaft | ||||
| 35549-47030 |
Cover, Parking Shaft
2003-08 → 2005-11
ended
|
NHW20 | ¥3,820 | |
| 35549-47030 |
Cover, Parking Shaft
2005-11 → 2009-03
ended
|
NHW20 G | ¥3,820 | |
| 35549-47030 |
Cover, Parking Shaft
2005-11 → —
|
NHW20 S | ¥3,820 | |
| 35580 — Actuator Assy, Shift Control | ||||
| 35580-47010 |
Actuator Assy, Shift Control
2003-08 → 2005-11
ended
|
NHW20 | ¥53,200 | |
| 35580-47010 |
Actuator Assy, Shift Control
2005-11 → —
|
NHW20 S | ¥53,200 | |
| 35580-47010 |
Actuator Assy, Shift Control
2005-11 → 2009-03
ended
|
NHW20 G | ¥53,200 | |
| 35599B — Cover, Manual Detent Spring | ||||
| 35599-47030 |
Cover, Manual Detent Spring
2003-08 → 2005-11
ended
|
NHW20 | ¥500 | |
| 35599-47030 |
Cover, Manual Detent Spring
2005-11 → 2009-03
ended
|
NHW20 G | ¥500 | |
| 35599-47030 |
Cover, Manual Detent Spring
2005-11 → —
|
NHW20 S | ¥500 | |
| 35702C — Sprocket Sub-assy, Transmission Drive | ||||
| 35702-47020 |
Sprocket Sub-assy, Transmission Drive
2003-08 → 2005-11
ended
|
NHW20 | ¥6,700 | |
| 35702-47020 |
Sprocket Sub-assy, Transmission Drive
2005-11 → 2009-03
ended
|
NHW20 G | ¥6,700 | |
| 35702-47020 |
Sprocket Sub-assy, Transmission Drive
2005-11 → —
|
NHW20 S | ¥6,700 | |
| 35705 — Gear Sub-assy, Counter Driven | ||||
| 35704-47010 |
Gear Sub-assy, Counter Driven
2003-08 → 2005-11
ended
|
NHW20 | ¥10,000 | |
| 35704-47010 |
Gear Sub-assy, Counter Driven
2005-11 → 2009-03
ended
|
NHW20 G | ¥10,000 | |
| 35704-47010 |
Gear Sub-assy, Counter Driven
2005-11 → —
|
NHW20 S | ¥10,000 | |
| 35706K — Gear Sub-assy, Planetary Sun | ||||
| 35706-47030 |
Gear Sub-assy, Planetary Sun
2003-08 → 2005-11
ended
|
NHW20 | ¥10,000 | |
| 35706-47030 |
Gear Sub-assy, Planetary Sun
2005-11 → —
|
NHW20 S | ¥10,000 | |
| 35706-47030 |
Gear Sub-assy, Planetary Sun
2005-11 → 2009-03
ended
|
NHW20 G | ¥10,000 | |
| 35710 — Shaft Assy, Input | ||||
| 35710-47030 |
Shaft Assy, Input
2003-08 → 2005-11
ended
|
NHW20 | ¥41,500 | |
| 35710-47030 |
Shaft Assy, Input
2005-11 → 2009-03
ended
|
NHW20 G | ¥41,500 | |
| 35710-47030 |
Shaft Assy, Input
2005-11 → —
|
NHW20 S | ¥41,500 | |
| 35710A — Seal, Type T Oil(FOR INPUT SHAFT) | ||||
| 90311-25025 |
Seal, Type T Oil(FOR INPUT SHAFT)
2003-08 → 2005-11
ended
|
NHW20 | ¥270 | |
| 90311-25025 |
Seal, Type T Oil(FOR INPUT SHAFT)
2005-11 → 2009-03
ended
|
NHW20 G | ¥270 | |
| 90311-25025 |
Seal, Type T Oil(FOR INPUT SHAFT)
2005-11 → —
|
NHW20 S | ¥270 | |
| 35710B — Bearing, Thrust Needle Roller, NO.1(FOR DRIVE SPROCKET) | ||||
| 90374-76001 |
Bearing, Thrust Needle Roller, NO.1(FOR DRIVE SPROCKET)
2003-08 → 2005-11
ended
|
NHW20 | ¥1,080 | |
| 90374-76001 |
Bearing, Thrust Needle Roller, NO.1(FOR DRIVE SPROCKET)
2005-11 → —
|
NHW20 S | ¥1,080 | |
| 90374-76001 |
Bearing, Thrust Needle Roller, NO.1(FOR DRIVE SPROCKET)
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,080 | |
| 35710C — Bearing, Needle Roller, NO.2(FOR DRIVE SPROCKET) | ||||
| 90364-73001 |
Bearing, Needle Roller, NO.2(FOR DRIVE SPROCKET)
2003-08 → 2005-11
ended
|
NHW20 | ¥1,390 | |
| 90364-73001 |
Bearing, Needle Roller, NO.2(FOR DRIVE SPROCKET)
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,390 | |
| 90364-73001 |
Bearing, Needle Roller, NO.2(FOR DRIVE SPROCKET)
2005-11 → —
|
NHW20 S | ¥1,390 | |
| 35710D — Bearing, Thrust Needle Roller, NO.1(FOR INPUT SHAFT) | ||||
| 90374-27011 |
Bearing, Thrust Needle Roller, NO.1(FOR INPUT SHAFT)
2003-08 → 2005-11
ended
|
NHW20 | ¥830 | |
| 90374-27011 |
Bearing, Thrust Needle Roller, NO.1(FOR INPUT SHAFT)
2005-11 → 2009-03
ended
|
NHW20 G | ¥830 | |
| 90374-27011 |
Bearing, Thrust Needle Roller, NO.1(FOR INPUT SHAFT)
2005-11 → —
|
NHW20 S | ¥830 | |
| 35710E — Bearing, Thrust Needle Roller, NO.2(FOR INPUT SHAFT) | ||||
| 90374-31004 |
Bearing, Thrust Needle Roller, NO.2(FOR INPUT SHAFT)
2003-08 → 2005-11
ended
|
NHW20 | ¥780 | |
| 90374-31004 |
Bearing, Thrust Needle Roller, NO.2(FOR INPUT SHAFT)
2005-11 → 2009-03
ended
|
NHW20 G | ¥780 | |
| 90374-31004 |
Bearing, Thrust Needle Roller, NO.2(FOR INPUT SHAFT)
2005-11 → —
|
NHW20 S | ¥780 | |
| 35743C — Gear, Planetary Ring | ||||
| 35743-47020 |
Gear, Planetary Ring
2003-08 → 2005-11
ended
|
NHW20 | ¥13,900 | |
| 35743-47020 |
Gear, Planetary Ring
2005-11 → —
|
NHW20 S | ¥13,900 | |
| 35743-47020 |
Gear, Planetary Ring
2005-11 → 2009-03
ended
|
NHW20 G | ¥13,900 | |
| 35743D — Ring, Snap(FOR PLANETARY RING GEAR) | ||||
| 90520-78001 |
Ring, Snap(FOR PLANETARY RING GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥160 | |
| 90520-78001 |
Ring, Snap(FOR PLANETARY RING GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥160 | |
| 90520-78001 |
Ring, Snap(FOR PLANETARY RING GEAR)
2005-11 → —
|
NHW20 S | ¥160 | |
| 35743E — Spacer(FOR PLANETARY RING GEAR) | ||||
| 90560-74001 |
Spacer(FOR PLANETARY RING GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥160 | |
| 90560-74001 |
Spacer(FOR PLANETARY RING GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥160 | |
| 90560-74001 |
Spacer(FOR PLANETARY RING GEAR)
2005-11 → —
|
NHW20 S | ¥160 | |
| 35758A — Bearing, Radial Ball(FOR CONTER DRIVE GEAR) | ||||
| 90363-35056 |
Bearing, Radial Ball(FOR CONTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥2,310 | |
| 90363-35056 |
Bearing, Radial Ball(FOR CONTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥2,310 | |
| 90363-35056 |
Bearing, Radial Ball(FOR CONTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥2,310 | |
| 35758B — Shim(FOR COUNTER DRIVE GEAR) | ||||
| 90564-35132 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35133 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35134 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35135 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35136 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35137 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35138 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35139 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35140 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35141 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35142 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35143 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-35144 note |
Shim(FOR COUNTER DRIVE GEAR)
2003-08 → 2005-11
ended
|
NHW20 | ¥500 | |
| 90564-35132 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35132 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35133 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35133 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35134 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35134 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35135 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35135 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35136 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35136 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35137 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35137 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35138 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35138 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35139 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35139 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35140 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35140 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35141 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35141 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35142 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35142 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35143 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-35143 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-35144 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → —
|
NHW20 S | ¥500 | |
| 90564-35144 note |
Shim(FOR COUNTER DRIVE GEAR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥500 | |
| 35762G — Flange, Planetary Ring Gear | ||||
| 35762-47030 |
Flange, Planetary Ring Gear
2003-08 → 2005-11
ended
|
NHW20 | ¥4,080 | |
| 35762-47030 |
Flange, Planetary Ring Gear
2005-11 → 2009-03
ended
|
NHW20 G | ¥4,080 | |
| 35762-47030 |
Flange, Planetary Ring Gear
2005-11 → —
|
NHW20 S | ¥4,080 | |
| 35762H — Shim(FOR PLANETARY RING GEAR FLANGE) | ||||
| 90564-36021 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥160 | |
| 90564-36022 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥160 | |
| 90564-36023 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥160 | |
| 90564-36024 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥160 | |
| 90564-36025 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 90564-36026 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 90564-36027 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 90564-36028 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 90564-36029 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 90564-36030 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 90564-36031 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 90564-36032 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 90564-36021 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥160 | |
| 90564-36021 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥160 | |
| 90564-36022 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥160 | |
| 90564-36022 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥160 | |
| 90564-36023 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥160 | |
| 90564-36023 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥160 | |
| 90564-36024 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥160 | |
| 90564-36024 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥160 | |
| 90564-36025 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 90564-36025 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥220 | |
| 90564-36026 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 90564-36026 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥220 | |
| 90564-36027 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 90564-36027 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥220 | |
| 90564-36028 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 90564-36028 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥220 | |
| 90564-36029 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 90564-36029 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥220 | |
| 90564-36030 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 90564-36030 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥220 | |
| 90564-36031 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 90564-36031 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥220 | |
| 90564-36032 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 90564-36032 note |
Shim(FOR PLANETARY RING GEAR FLANGE)
2005-11 → —
|
NHW20 S | ¥220 | |
| 35781B — Chain, Transmission Drive | ||||
| 35781-47020 |
Chain, Transmission Drive
2003-08 → 2005-11
ended
|
NHW20 | ¥35,400 | |
| 35781-47020 |
Chain, Transmission Drive
2005-11 → —
|
NHW20 S | ¥35,400 | |
| 35781-47020 |
Chain, Transmission Drive
2005-11 → 2009-03
ended
|
NHW20 G | ¥35,400 | |
| 35786C — Race, Thrust Bearing, NO.1 | ||||
| 35786-47040 |
Race, Thrust Bearing, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥350 | |
| 35786-47040 |
Race, Thrust Bearing, NO.1
2005-11 → —
|
NHW20 S | ¥350 | |
| 35786-47040 |
Race, Thrust Bearing, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥350 | |
| 35786D — Race, Thrust Bearing, NO.1(FOR INPUT SHAFT) | ||||
| 35786-47020 |
Race, Thrust Bearing, NO.1(FOR INPUT SHAFT)
2003-08 → 2005-11
ended
|
NHW20 | ¥100 | |
| 35786-47020 |
Race, Thrust Bearing, NO.1(FOR INPUT SHAFT)
2005-11 → 2009-03
ended
|
NHW20 G | ¥100 | |
| 35786-47020 |
Race, Thrust Bearing, NO.1(FOR INPUT SHAFT)
2005-11 → —
|
NHW20 S | ¥100 | |
| 35786E — Race, Thrust Bearing, NO.2(FOR INPUT SHAFT) | ||||
| 35786-47030 |
Race, Thrust Bearing, NO.2(FOR INPUT SHAFT)
2003-08 → 2005-11
ended
|
NHW20 | ¥350 | |
| 35786-47030 |
Race, Thrust Bearing, NO.2(FOR INPUT SHAFT)
2005-11 → 2009-03
ended
|
NHW20 G | ¥350 | |
| 35786-47030 |
Race, Thrust Bearing, NO.2(FOR INPUT SHAFT)
2005-11 → —
|
NHW20 S | ¥350 | |
| 35789L — Race, Thrust Bearing, NO.2 | ||||
| 35789-47040 |
Race, Thrust Bearing, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥1,150 | |
| 35789-47040 |
Race, Thrust Bearing, NO.2
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,150 | |
| 35789-47040 |
Race, Thrust Bearing, NO.2
2005-11 → —
|
NHW20 S | ¥1,150 | |
| 35789N — Race, Thrust Bearing, NO.2(FOR INPUT SHAFT) | ||||
| 35789-47020 |
Race, Thrust Bearing, NO.2(FOR INPUT SHAFT)
2003-08 → 2005-11
ended
|
NHW20 | ¥410 | |
| 35789-47020 |
Race, Thrust Bearing, NO.2(FOR INPUT SHAFT)
2005-11 → 2009-03
ended
|
NHW20 G | ¥410 | |
| 35789-47020 |
Race, Thrust Bearing, NO.2(FOR INPUT SHAFT)
2005-11 → —
|
NHW20 S | ¥410 | |
| 35789Y — Race, Thrust Bearing NO.3(FOR INPUT SHAFT) | ||||
| 35789-47030 |
Race, Thrust Bearing NO.3(FOR INPUT SHAFT)
2003-08 → 2005-11
ended
|
NHW20 | ¥750 | |
| 35789-47030 |
Race, Thrust Bearing NO.3(FOR INPUT SHAFT)
2005-11 → 2009-03
ended
|
NHW20 G | ¥750 | |
| 35789-47030 |
Race, Thrust Bearing NO.3(FOR INPUT SHAFT)
2005-11 → —
|
NHW20 S | ¥750 | |
| 36186E — Rotor, Oil Pump Driven | ||||
| 35352-47020 |
Rotor, Oil Pump Driven
2003-08 → 2005-11
ended
|
NHW20 | ¥200 | |
| 35352-47020 |
Rotor, Oil Pump Driven
2005-11 → 2009-03
ended
|
NHW20 G | ¥200 | |
| 35352-47020 |
Rotor, Oil Pump Driven
2005-11 → —
|
NHW20 S | ¥200 | |
| 39111 — Cover, Power Cable | ||||
| 39111-47020 |
Cover, Power Cable
2003-08 → 2005-11
ended
|
NHW20 | ¥6,200 | |
| 39111-47020 |
Cover, Power Cable
2005-11 → 2009-03
ended
|
NHW20 G | ¥6,200 | |
| 39111-47020 |
Cover, Power Cable
2005-11 → —
|
NHW20 S | ¥6,200 | |
| 41211H — Pinion, Differential Drive | ||||
| 41205-47010 |
Pinion, Differential Drive
2003-08 → 2005-11
ended
|
NHW20 | ¥19,500 | |
| 41205-47010 |
Pinion, Differential Drive
2005-11 → 2009-03
ended
|
NHW20 G | ¥19,500 | |
| 41205-47010 |
Pinion, Differential Drive
2005-11 → —
|
NHW20 S | ¥19,500 | |
| 41221C — Gear, Differential Ring | ||||
| 41221-47020 |
Gear, Differential Ring
2003-08 → 2005-11
ended
|
NHW20 | ¥12,800 | |
| 41221-47020 |
Gear, Differential Ring
2005-11 → 2009-03
ended
|
NHW20 G | ¥12,800 | |
| 41221-47020 |
Gear, Differential Ring
2005-11 → —
|
NHW20 S | ¥12,800 | |
| 41310C — Case Assy, Differential | ||||
| 41311-47010 |
Case Assy, Differential
2003-08 → 2005-11
ended
|
NHW20 | ¥23,400 | |
| 41311-47010 |
Case Assy, Differential
2005-11 → 2009-03
ended
|
NHW20 G | ¥23,400 | |
| 41311-47010 |
Case Assy, Differential
2005-11 → —
|
NHW20 S | ¥23,400 | |
| 41331H — Gear, Differential Side | ||||
| 41331-32010 |
Gear, Differential Side
2003-08 → 2005-11
ended
|
NHW20 | ¥5,100 | |
| 41331-32010 |
Gear, Differential Side
2005-11 → 2009-03
ended
|
NHW20 G | ¥5,100 | |
| 41331-32010 |
Gear, Differential Side
2005-11 → —
|
NHW20 S | ¥5,100 | |
| 41341C — Pinion, Differential | ||||
| 41341-30011 |
Pinion, Differential
2003-08 → 2005-11
ended
|
NHW20 | ¥2,160 | |
| 41341-30011 |
Pinion, Differential
2005-11 → 2009-03
ended
|
NHW20 G | ¥2,160 | |
| 41341-30011 |
Pinion, Differential
2005-11 → —
|
NHW20 S | ¥2,160 | |
| 41342E — Shaft, Differential Pinion | ||||
| 41342-32020 |
Shaft, Differential Pinion
2003-08 → 2005-11
ended
|
NHW20 | ¥1,690 | |
| 41342-32020 |
Shaft, Differential Pinion
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,690 | |
| 41342-32020 |
Shaft, Differential Pinion
2005-11 → —
|
NHW20 S | ¥1,690 | |
| 41342Q — Pin, Straight(FOR DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
Pin, Straight(FOR DIFFERENTIAL PINION SHAFT)
2003-08 → 2005-11
ended
|
NHW20 | ¥160 | |
| 90250-06058 |
Pin, Straight(FOR DIFFERENTIAL PINION SHAFT)
2005-11 → 2009-03
ended
|
NHW20 G | ¥160 | |
| 90250-06058 |
Pin, Straight(FOR DIFFERENTIAL PINION SHAFT)
2005-11 → —
|
NHW20 S | ¥160 | |
| 41351B — Washer, Differential Pinion Thrust | ||||
| 41351-32010 |
Washer, Differential Pinion Thrust
2003-08 → 2005-11
ended
|
NHW20 | ¥120 | |
| 41351-32010 |
Washer, Differential Pinion Thrust
2005-11 → 2009-03
ended
|
NHW20 G | ¥120 | |
| 41351-32010 |
Washer, Differential Pinion Thrust
2005-11 → —
|
NHW20 S | ¥120 | |
| 41361L — Washer, Differential Side Gear Thrust, NO.1 | ||||
| 41361-22020 note |
Washer, Differential Side Gear Thrust, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 41361-22030 note |
Washer, Differential Side Gear Thrust, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 41361-22040 note |
Washer, Differential Side Gear Thrust, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥220 | |
| 41361-22140 note |
Washer, Differential Side Gear Thrust, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥210 | |
| 41361-22150 note |
Washer, Differential Side Gear Thrust, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥210 | |
| 41361-22160 note |
Washer, Differential Side Gear Thrust, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥210 | |
| 41361-22020 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 41361-22020 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → —
|
NHW20 S | ¥220 | |
| 41361-22030 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 41361-22030 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → —
|
NHW20 S | ¥220 | |
| 41361-22040 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥220 | |
| 41361-22040 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → —
|
NHW20 S | ¥220 | |
| 41361-22140 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥210 | |
| 41361-22140 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → —
|
NHW20 S | ¥210 | |
| 41361-22150 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥210 | |
| 41361-22150 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → —
|
NHW20 S | ¥210 | |
| 41361-22160 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥210 | |
| 41361-22160 note |
Washer, Differential Side Gear Thrust, NO.1
2005-11 → —
|
NHW20 S | ¥210 | |
| 82824U — Connector, Wiring Harness(FOR MOTOR STATOR) | ||||
| 82824-47230 |
Connector, Wiring Harness(FOR MOTOR STATOR)
2003-08 → 2005-11
ended
|
NHW20 | ¥1,540 | |
| 82824-47230 |
Connector, Wiring Harness(FOR MOTOR STATOR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,540 | |
| 82824-47230 |
Connector, Wiring Harness(FOR MOTOR STATOR)
2005-11 → —
|
NHW20 S | ¥1,540 | |
| 82824V — Connector, Wiring Harness(FOR MOTOR REVOLUTION SENSOR) | ||||
| 82824-47100 |
Connector, Wiring Harness(FOR MOTOR REVOLUTION SENSOR)
2003-08 → 2005-11
ended
|
NHW20 | ¥1,060 | |
| 82824-47100 |
Connector, Wiring Harness(FOR MOTOR REVOLUTION SENSOR)
2005-11 → —
|
NHW20 S | ¥1,060 | |
| 82824-47100 |
Connector, Wiring Harness(FOR MOTOR REVOLUTION SENSOR)
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,060 | |
| 82824Y — Connector, Wiring Harness(FOR GENERATOR) | ||||
| 82824-47100 note |
Connector, Wiring Harness(FOR GENERATOR)
2003-08 → 2005-11
ended
|
NHW20 | ¥1,060 | |
| 82824-47100 note |
Connector, Wiring Harness(FOR GENERATOR)
2005-11 → 2008-06
ended
|
NHW20 | ¥1,060 | |
| 82824-47250 note |
Connector, Wiring Harness(FOR GENERATOR)
2008-06 → 2009-03
ended
|
NHW20 G | ¥1,710 | |
| 82824-47250 note |
Connector, Wiring Harness(FOR GENERATOR)
2008-06 → —
|
NHW20 S | ¥1,710 | |
| G1100A — Bearing, Tapered Roller(FOR DIFFERENTIAL CASE LH) | ||||
| 90366-40064 |
Bearing, Tapered Roller(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥2,690 | |
| 90366-40064 |
Bearing, Tapered Roller(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥2,690 | |
| 90366-40064 |
Bearing, Tapered Roller(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥2,690 | |
| G1100B — Shim(FOR DIFFERENTIAL CASE LH) | ||||
| 90564-45011 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥360 | |
| 90564-45040 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥310 | |
| 90564-45041 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥310 | |
| 90564-45042 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥310 | |
| 90564-45043 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥310 | |
| 90564-45060 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45061 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45062 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45063 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45071 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45072 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45073 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45074 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45075 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45076 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45077 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45078 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45079 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45080 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45081 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45082 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45083 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45084 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45085 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45086 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45087 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45088 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45089 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45090 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45091 note |
Shim(FOR DIFFERENTIAL CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥390 | |
| 90564-45011 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥360 | |
| 90564-45011 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥360 | |
| 90564-45040 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥310 | |
| 90564-45040 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥310 | |
| 90564-45041 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥310 | |
| 90564-45041 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥310 | |
| 90564-45042 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥310 | |
| 90564-45042 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥310 | |
| 90564-45043 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥310 | |
| 90564-45043 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥310 | |
| 90564-45060 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45060 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45061 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45061 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45062 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45062 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45063 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45063 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45071 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45071 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45072 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45072 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45073 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45073 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45074 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45074 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45075 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45075 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45076 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45076 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45077 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45077 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45078 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45078 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45079 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45079 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45080 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45080 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45081 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45081 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45082 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45082 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45083 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45083 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45084 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45084 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45085 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45085 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45086 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45086 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45087 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45087 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45088 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45088 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45089 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45089 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45090 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45090 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| 90564-45091 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥390 | |
| 90564-45091 note |
Shim(FOR DIFFERENTIAL CASE LH)
2005-11 → —
|
NHW20 S | ¥390 | |
| G1100C — Motor Assy, Hybrid Vehicle | ||||
| G1100-47060 |
Motor Assy, Hybrid Vehicle
2003-08 → 2005-11
ended
|
NHW20 | ¥217,000 | |
| G1100-47060 |
Motor Assy, Hybrid Vehicle
2005-11 → 2009-03
ended
|
NHW20 G | ¥217,000 | |
| G1100-47060 |
Motor Assy, Hybrid Vehicle
2005-11 → —
|
NHW20 S | ¥217,000 | |
| G1142 — Cover, Motor Waterjacet | ||||
| G1142-47020 |
Cover, Motor Waterjacet
2003-08 → 2005-11
ended
|
NHW20 | ¥3,980 | |
| G1142-47020 |
Cover, Motor Waterjacet
2005-11 → 2009-03
ended
|
NHW20 G | ¥3,980 | |
| G1142-47020 |
Cover, Motor Waterjacet
2005-11 → —
|
NHW20 S | ¥3,980 | |
| G2100B — Bearing, Tapered Roller(FOR DIFFERENTIAL CASE RH) | ||||
| 90366-40016 |
Bearing, Tapered Roller(FOR DIFFERENTIAL CASE RH)
2003-08 → 2005-11
ended
|
NHW20 | ¥2,690 | |
| 90366-40016 |
Bearing, Tapered Roller(FOR DIFFERENTIAL CASE RH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥2,690 | |
| 90366-40016 |
Bearing, Tapered Roller(FOR DIFFERENTIAL CASE RH)
2005-11 → —
|
NHW20 S | ¥2,690 | |
| G2100C — Generator Assy, Hybrid Vehicle | ||||
| G2100-47060 |
Generator Assy, Hybrid Vehicle
2003-08 → 2005-11
ended
|
NHW20 | ¥193,000 | |
| G2100-47060 |
Generator Assy, Hybrid Vehicle
2005-11 → 2009-03
ended
|
NHW20 G | ¥193,000 | |
| G2100-47060 |
Generator Assy, Hybrid Vehicle
2005-11 → —
|
NHW20 S | ¥193,000 | |
| G2148 — Cable, Generator | ||||
| G2148-47030 |
Cable, Generator
2003-08 → 2005-11
ended
|
NHW20 | ¥17,100 | |
| G2148-47030 |
Cable, Generator
2005-11 → 2009-03
ended
|
NHW20 G | ¥17,100 | |
| G2148-47030 |
Cable, Generator
2005-11 → —
|
NHW20 S | ¥17,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
