Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

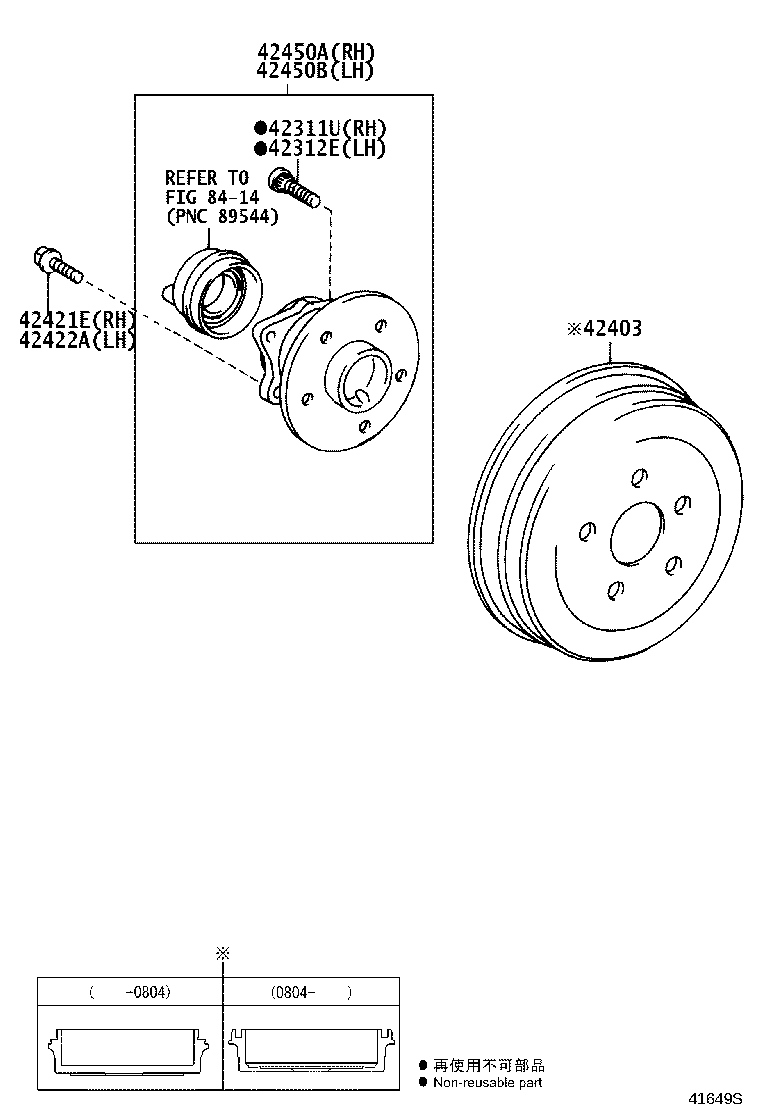

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311U — Bolt, Hub(FOR REAR AXLE RH) | ||||
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
2003-08 → 2005-11
ended
|
NHW20 | ¥240 | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥240 | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE RH)
2005-11 → —
|
NHW20 S | ¥240 | |
| 42312E — Bolt, Hub(FOR REAR AXLE LH) | ||||
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥240 | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥240 | |
| 90942-02049 |
Bolt, Hub(FOR REAR AXLE LH)
2005-11 → —
|
NHW20 S | ¥240 | |
| 42403 — Drum Sub-assy, Rear Brake | ||||
| 42431-12220 |
Drum Sub-assy, Rear Brake
2003-08 → 2005-11
ended
|
NHW20 | ¥10,400 | |
| 42431-12220 |
Drum Sub-assy, Rear Brake
2005-11 → 2008-04
ended
|
NHW20 | ¥10,400 | |
| 42431-20450 |
Drum Sub-assy, Rear Brake
2008-04 → 2009-03
ended
|
NHW20 G | ¥7,200 | |
| 42431-20450 |
Drum Sub-assy, Rear Brake
2008-04 → —
|
NHW20 S | ¥7,200 | |
| 42421E — Bolt (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-10507 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2003-08 → 2005-11
ended
|
NHW20 | ¥120 | |
| 90105-10507 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥120 | |
| 90105-10507 |
Bolt (FOR REAR AXLE BEARING CASE RH)
2005-11 → —
|
NHW20 S | ¥120 | |
| 42422A — Bolt (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-10507 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2003-08 → 2005-11
ended
|
NHW20 | ¥120 | |
| 90105-10507 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2005-11 → 2009-03
ended
|
NHW20 G | ¥120 | |
| 90105-10507 |
Bolt (FOR REAR AXLE BEARING CASE LH)
2005-11 → —
|
NHW20 S | ¥120 | |
| 42450A — Hub & Bearing Assy, Rear Axle, RH | ||||
| 42450-47030 |
Hub & Bearing Assy, Rear Axle, RH
2003-08 → 2005-11
ended
|
NHW20 | ¥21,000 | |
| 42450-47030 |
Hub & Bearing Assy, Rear Axle, RH
2005-11 → 2009-03
ended
|
NHW20 G | ¥21,000 | |
| 42450-47030 |
Hub & Bearing Assy, Rear Axle, RH
2005-11 → —
|
NHW20 S | ¥21,000 | |
| 42450B — Hub & Bearing Assy, Rear Axle, LH | ||||
| 42450-47030 |
Hub & Bearing Assy, Rear Axle, LH
2003-08 → 2005-11
ended
|
NHW20 | ¥21,000 | |
| 42450-47030 |
Hub & Bearing Assy, Rear Axle, LH
2005-11 → 2009-03
ended
|
NHW20 G | ¥21,000 | |
| 42450-47030 |
Hub & Bearing Assy, Rear Axle, LH
2005-11 → —
|
NHW20 S | ¥21,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
