Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

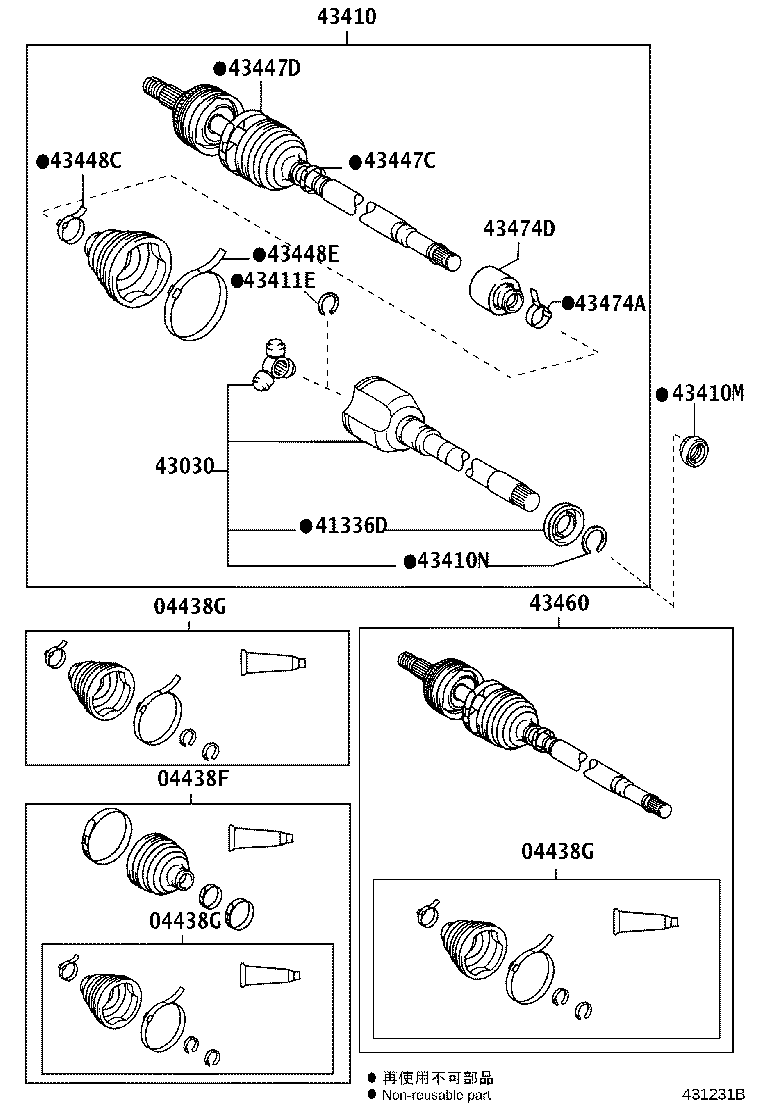

Exploded illustration 431231B 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (4 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (4 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (4 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (7 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (3 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (3 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (3 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (4 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (3 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (3 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (3 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (3 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (3 parts) 43474A — CLAMP (FOR DRIVE SHAFT DAMPER SETTING) (3 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (3 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (2 parts)
431231B · 17 callouts Full size ↗
49 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-47020 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2005-04 → 2005-11 ended
NHW20 ¥10,800
04438-12502 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2003-08 → 2005-04 ended
NHW20 ¥10,800
04427-47020 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2005-11 → 2006-03 ended
NHW20 ¥10,800
04427-47030 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2006-04 → 2009-09 ended
NHW20 ¥10,800
04427-47031 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-09 → 2009-11 ended
NHW20 ¥10,800
04427-47050 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-11 → 2010-03 ended
NHW20 ¥10,800
04427-47051 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-03 → —
NHW20 ¥10,800
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-47020 Boot Kit, Front Drive Shaft Inboard Joint, RH
2005-04 → 2005-11 ended
NHW20 ¥6,700
04438-52030 Boot Kit, Front Drive Shaft Inboard Joint, RH
2003-08 → 2005-04 ended
NHW20 ¥6,700
04437-47020 Boot Kit, Front Drive Shaft Inboard Joint, RH
2005-11 → 2009-09 ended
NHW20 ¥6,700
04437-47021 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-09 → —
NHW20 ¥5,500
41336D — Cover, Front Drive Shaft Dust, RH
41336-12060 Cover, Front Drive Shaft Dust, RH
2003-08 → 2005-11 ended
NHW20 ¥200
41336-12060 Cover, Front Drive Shaft Dust, RH
2005-11 → —
NHW20 S ¥200
41336-12060 Cover, Front Drive Shaft Dust, RH
2005-11 → 2009-03 ended
NHW20 G ¥200
43030 — Joint Assy, Front Drive Inboard, RH
43040-47020 Joint Assy, Front Drive Inboard, RH
2003-08 → 2005-11 ended
NHW20 ¥14,400
43040-47020 Joint Assy, Front Drive Inboard, RH
2005-11 → 2009-03 ended
NHW20 G ¥14,400
43040-47020 Joint Assy, Front Drive Inboard, RH
2005-11 → —
NHW20 S ¥14,400
43410 — Shaft Assy, Front Drive, RH
43410-47020 Shaft Assy, Front Drive, RH
2003-08 → 2005-11 ended
NHW20 ¥82,800
43410-47020 Shaft Assy, Front Drive, RH
2005-11 → 2009-03 ended
NHW20 G ¥82,800
43410-47020 Shaft Assy, Front Drive, RH
2005-11 → —
NHW20 S ¥82,800
43410M — Oil Seal, Front Drive Shaft, RH
90311-35055 Oil Seal, Front Drive Shaft, RH
2003-08 → 2005-11 ended
NHW20 ¥400
90311-35055 Oil Seal, Front Drive Shaft, RH
2005-11 → 2011-12 ended
NHW20 ¥400
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2003-08 → 2005-11 ended
NHW20 ¥110
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2005-11 → —
NHW20 S ¥110
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2005-11 → 2009-03 ended
NHW20 G ¥110
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2003-08 → 2005-11 ended
NHW20 ¥110
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2005-11 → 2009-03 ended
NHW20 G ¥110
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2005-11 → —
NHW20 S ¥110
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2003-08 → 2005-11 ended
NHW20 ¥360
42345-52110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-11 → 2009-03 ended
NHW20 G ¥360
42345-52110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-11 → —
NHW20 S ¥360
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-52100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2003-08 → 2005-11 ended
NHW20 ¥520
42345-52100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-11 → 2009-03 ended
NHW20 G ¥520
42345-52100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2005-11 → —
NHW20 S ¥520
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2003-08 → 2005-11 ended
NHW20 ¥80
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-11 → —
NHW20 ¥80
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2003-08 → 2005-11 ended
NHW20 ¥350
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-11 → 2009-03 ended
NHW20 G ¥350
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2005-11 → —
NHW20 S ¥350
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-49175 Shaft Assy, Front Drive Outboard Joint, RH
2003-08 → 2005-04 ended
NHW20 ¥59,700
43460-49385 Shaft Assy, Front Drive Outboard Joint, RH
2005-04 → 2005-11 ended
NHW20 ¥59,500
43460-49385 Shaft Assy, Front Drive Outboard Joint, RH
2005-11 → 2009-09 ended
NHW20 ¥59,500
43460-49386 Shaft Assy, Front Drive Outboard Joint, RH
2009-09 → —
NHW20 ¥59,500
43474A — Clamp (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2003-08 → 2005-11 ended
NHW20 ¥700
42345-14010 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2005-11 → 2009-03 ended
NHW20 G ¥700
42345-14010 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2005-11 → —
NHW20 S ¥700
43474D — Damper, Front Drive Shaft, RH
43474-52030 Damper, Front Drive Shaft, RH
2003-08 → 2005-11 ended
NHW20 ¥4,640
43474-52030 Damper, Front Drive Shaft, RH
2005-11 → 2009-03 ended
NHW20 G ¥4,640
43474-52030 Damper, Front Drive Shaft, RH
2005-11 → —
NHW20 S ¥4,640
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
