Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

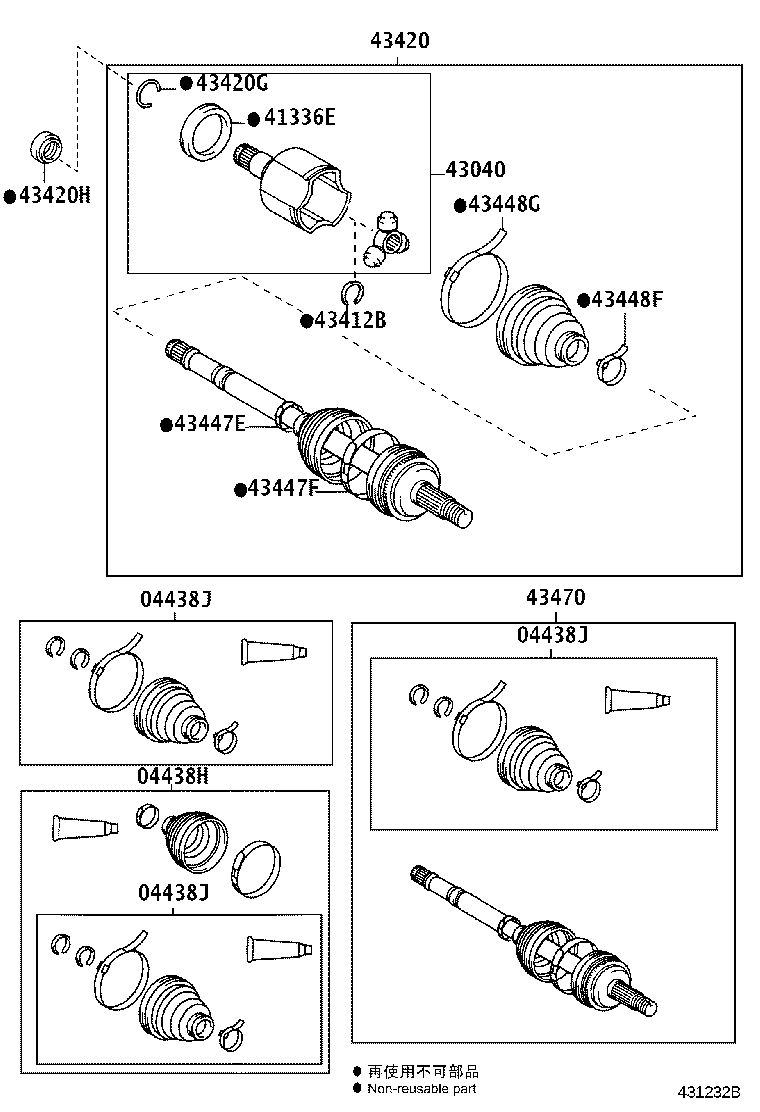

Exploded illustration 431232B 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (7 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (4 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (4 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (4 parts) 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (3 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (4 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (3 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (3 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (3 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (3 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (2 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (3 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (3 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (3 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (2 parts)
431232B · 15 callouts Full size ↗
43 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-47020 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2005-04 → 2005-11 ended
NHW20 ¥10,800
04438-12502 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2003-08 → 2005-04 ended
NHW20 ¥10,800
04427-47020 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2005-11 → 2006-03 ended
NHW20 ¥10,800
04427-47030 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-04 → 2009-09 ended
NHW20 ¥10,800
04427-47031 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-09 → 2009-11 ended
NHW20 ¥10,800
04427-47050 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-11 → 2010-03 ended
NHW20 ¥10,800
04427-47051 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-03 → —
NHW20 ¥10,800
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-47020 Boot Kit, Front Drive Shaft Inboard Joint, LH
2005-04 → 2005-11 ended
NHW20 ¥6,700
04438-52030 Boot Kit, Front Drive Shaft Inboard Joint, LH
2003-08 → 2005-04 ended
NHW20 ¥6,700
04437-47020 Boot Kit, Front Drive Shaft Inboard Joint, LH
2005-11 → 2009-09 ended
NHW20 ¥6,700
04437-47021 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-09 → —
NHW20 ¥5,500
41336E — Cover, Front Drive Shaft Dust, LH
41336-12060 Cover, Front Drive Shaft Dust, LH
2003-08 → 2005-11 ended
NHW20 ¥200
41336-12060 Cover, Front Drive Shaft Dust, LH
2005-11 → 2009-03 ended
NHW20 G ¥200
41336-12060 Cover, Front Drive Shaft Dust, LH
2005-11 → —
NHW20 S ¥200
43040 — Joint Assy, Front Drive Inboard, LH
43040-47020 Joint Assy, Front Drive Inboard, LH
2003-08 → 2005-11 ended
NHW20 ¥14,400
43040-47020 Joint Assy, Front Drive Inboard, LH
2005-11 → 2009-03 ended
NHW20 G ¥14,400
43040-47020 Joint Assy, Front Drive Inboard, LH
2005-11 → —
NHW20 S ¥14,400
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2003-08 → 2005-11 ended
NHW20 ¥110
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2005-11 → 2009-03 ended
NHW20 G ¥110
90520-22001 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2005-11 → —
NHW20 S ¥110
43420 — Shaft Assy, Front Drive, LH
43420-47020 Shaft Assy, Front Drive, LH
2003-08 → 2005-11 ended
NHW20 ¥71,300
43420-47020 Shaft Assy, Front Drive, LH
2005-11 → 2009-03 ended
NHW20 G ¥71,300
43420-47020 Shaft Assy, Front Drive, LH
2005-11 → —
NHW20 S ¥71,300
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2003-08 → 2005-11 ended
NHW20 ¥110
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2005-11 → 2009-03 ended
NHW20 G ¥110
90521-27005 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2005-11 → —
NHW20 S ¥110
43420H — Oil Seal, Front Drive Shaft, LH
90311-35054 Oil Seal, Front Drive Shaft, LH
2003-08 → 2005-11 ended
NHW20 ¥400
90311-35054 Oil Seal, Front Drive Shaft, LH
2005-11 → 2011-12 ended
NHW20 ¥400
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2003-08 → 2005-11 ended
NHW20 ¥360
42345-52110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2005-11 → 2009-03 ended
NHW20 G ¥360
42345-52110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2005-11 → —
NHW20 S ¥360
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-52100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2003-08 → 2005-11 ended
NHW20 ¥520
42345-52100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2005-11 → 2009-03 ended
NHW20 G ¥520
42345-52100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2005-11 → —
NHW20 S ¥520
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2003-08 → 2005-11 ended
NHW20 ¥80
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2005-11 → —
NHW20 ¥80
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2003-08 → 2005-11 ended
NHW20 ¥350
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2005-11 → 2009-03 ended
NHW20 G ¥350
90949-01146 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2005-11 → —
NHW20 S ¥350
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-49305 Shaft Assy, Front Drive Outboard Joint, LH
2003-08 → 2005-04 ended
NHW20 ¥48,600
43470-49595 Shaft Assy, Front Drive Outboard Joint, LH
2005-04 → 2005-11 ended
NHW20 ¥48,500
43470-49595 Shaft Assy, Front Drive Outboard Joint, LH
2005-11 → 2009-09 ended
NHW20 ¥48,500
43470-49596 Shaft Assy, Front Drive Outboard Joint, LH
2009-09 → —
NHW20 ¥48,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
