Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

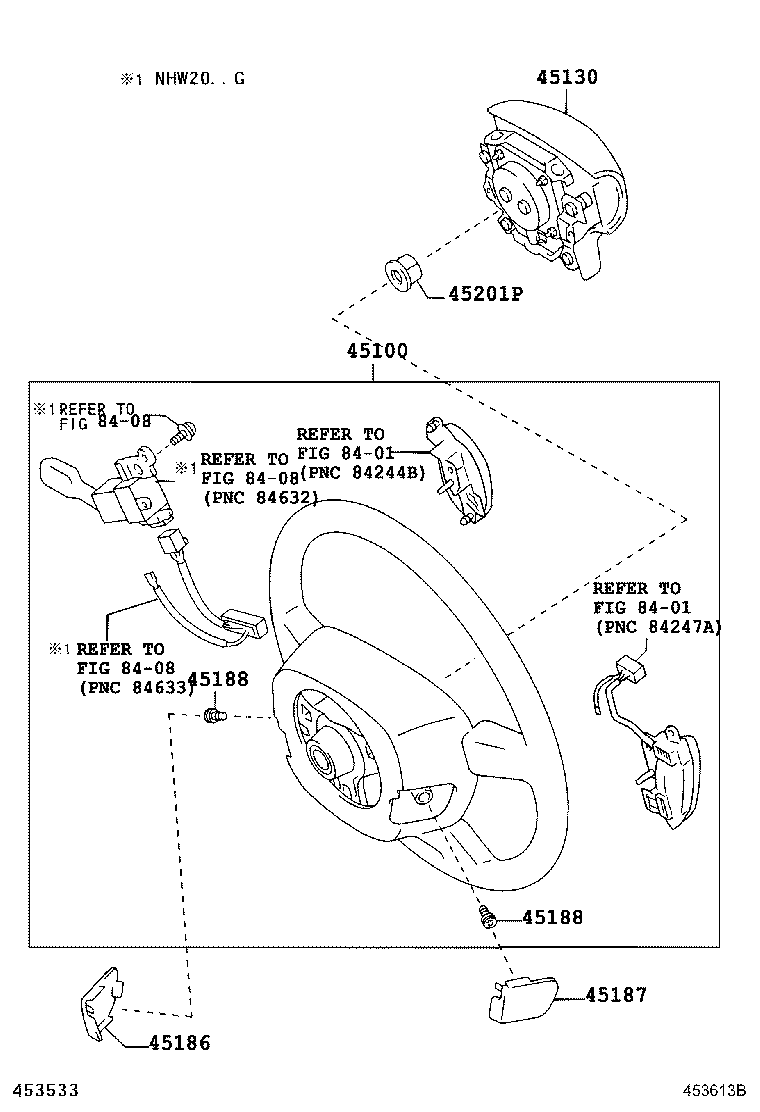

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45100 — Wheel Assy, Steering | ||||
| 45100-47040-C0 note |
Wheel Assy, Steering
2003-08 → 2005-11
ended
|
NHW20 S | ¥38,200 | |
| 45100-47050-C0 note |
Wheel Assy, Steering
2003-08 → 2004-07
ended
|
NHW20 G | ¥84,500 | |
| 45100-47051-C0 note |
Wheel Assy, Steering
2004-08 → 2005-11
ended
|
NHW20 G | ¥84,300 | |
| 45100-47051-C0 note |
Wheel Assy, Steering
2004-08 → 2005-11
ended
|
NHW20 S | ¥84,300 | |
| 45100-47060-C0 note |
Wheel Assy, Steering
2003-08 → 2005-11
ended
|
NHW20 S | ¥38,200 | |
| 45100-47090-C0 note |
Wheel Assy, Steering
2003-08 → 2004-07
ended
|
NHW20 G | ¥84,500 | |
| 45100-47091-C0 note |
Wheel Assy, Steering
2004-08 → 2005-11
ended
|
NHW20 G | ¥84,300 | |
| 45100-47091-C0 note |
Wheel Assy, Steering
2004-08 → 2005-11
ended
|
NHW20 S | ¥84,300 | |
| 45100-47040-C0 note |
Wheel Assy, Steering
2005-11 → 2011-12
ended
|
NHW20 S | ¥38,200 | |
| 45100-47051-C0 note |
Wheel Assy, Steering
2005-11 → 2009-03
ended
|
NHW20 G | ¥84,300 | |
| 45100-47060-C0 note |
Wheel Assy, Steering
2005-11 → 2010-11
ended
|
NHW20 S | ¥38,200 | |
| 45100-47060-C0 note |
Wheel Assy, Steering
2010-11 → 2011-12
ended
|
NHW20 | ¥38,200 | |
| 45100-47091-C0 note |
Wheel Assy, Steering
2005-11 → 2009-03
ended
|
NHW20 G | ¥84,300 | |
| 45100-47091-C0 note |
Wheel Assy, Steering
2005-11 → 2009-03
ended
|
NHW20 G | ¥84,300 | |
| 45100-47091-C0 note |
Wheel Assy, Steering
2007-04 → 2009-03
ended
|
NHW20 S | ¥84,300 | |
| 45130 — Button Assy, Horn | ||||
| 45130-47060-C0 note |
Button Assy, Horn
2003-08 → 2004-07
ended
|
NHW20 | ¥77,200 | |
| 45130-47061-C0 note |
Button Assy, Horn
2004-08 → 2005-11
ended
|
NHW20 | ¥77,200 | |
| 45130-47090-C0 note |
Button Assy, Horn
2005-11 → 2011-12
ended
|
NHW20 | ¥77,000 | |
| 45186 — Cover, Steering Wheel, Lower NO.2 | ||||
| 45186-46010-C0 note |
Cover, Steering Wheel, Lower NO.2
2003-08 → 2005-11
ended
|
NHW20 S | ¥390 | |
| 45186-47010-C0 note |
Cover, Steering Wheel, Lower NO.2
2003-08 → 2005-11
ended
|
NHW20 G | ¥320 | |
| 45186-47010-C0 note |
Cover, Steering Wheel, Lower NO.2
2004-08 → 2005-11
ended
|
NHW20 S | ¥320 | |
| 45186-46010-C0 note |
Cover, Steering Wheel, Lower NO.2
2005-11 → 2011-12
ended
|
NHW20 S | ¥390 | |
| 45186-47010-C0 note |
Cover, Steering Wheel, Lower NO.2
2005-11 → 2009-03
ended
|
NHW20 G | ¥320 | |
| 45186-47010-C0 note |
Cover, Steering Wheel, Lower NO.2
2007-04 → 2009-03
ended
|
NHW20 S | ¥320 | |
| 45187 — Cover, Steering Wheel, Lower NO.3 | ||||
| 45187-46010-C0 note |
Cover, Steering Wheel, Lower NO.3
2003-08 → 2005-11
ended
|
NHW20 S | ¥390 | |
| 45187-46010-C0 note |
Cover, Steering Wheel, Lower NO.3
2003-08 → 2005-11
ended
|
NHW20 G | ¥390 | |
| 45187-46010-C0 note |
Cover, Steering Wheel, Lower NO.3
2005-11 → 2011-12
ended
|
NHW20 | ¥390 | |
| 45188 — Screw, Steering Wheel Pad Attaching | ||||
| 45188-60010 note |
Screw, Steering Wheel Pad Attaching
2003-08 → 2005-11
ended
|
NHW20 | ¥160 | |
| 45188-60010 note |
Screw, Steering Wheel Pad Attaching
2005-11 → 2011-12
ended
|
NHW20 | ¥160 | |
| 45201P — Nut, Steering Wheel Set | ||||
| 90179-12071 |
Nut, Steering Wheel Set
2003-08 → 2005-11
ended
|
NHW20 | ¥130 | |
| 90179-12071 |
Nut, Steering Wheel Set
2005-11 → 2011-12
ended
|
NHW20 | ¥130 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
