Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

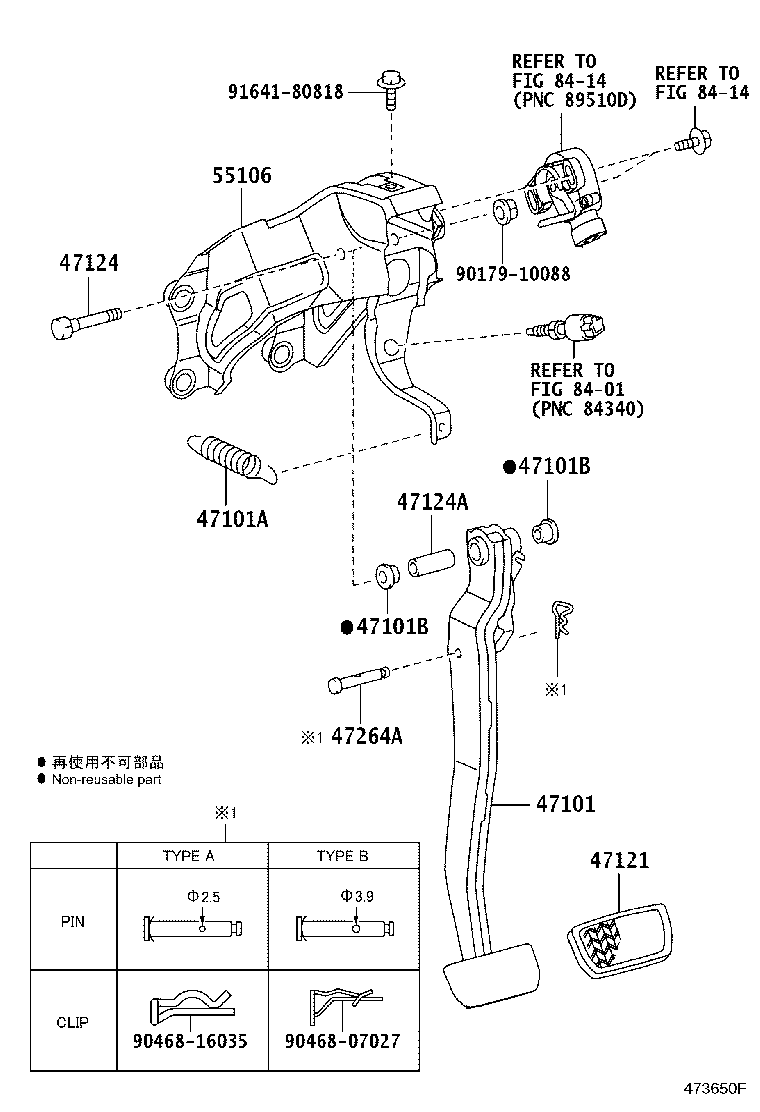

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101 — Pedal Sub-assy, Brake | ||||
| 47101-47040 |
Pedal Sub-assy, Brake
2003-08 → 2005-11
ended
|
NHW20 | ¥2,790 | |
| 47101-47040 |
Pedal Sub-assy, Brake
2005-11 → 2009-03
ended
|
NHW20 G | ¥2,790 | |
| 47101-47040 |
Pedal Sub-assy, Brake
2005-11 → —
|
NHW20 S | ¥2,790 | |
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90507-16027 |
Spring(FOR BRAKE PEDAL RETURN)
2003-08 → 2005-11
ended
|
NHW20 | ¥300 | |
| 90507-16027 |
Spring(FOR BRAKE PEDAL RETURN)
2005-11 → 2009-03
ended
|
NHW20 G | ¥300 | |
| 90507-16027 |
Spring(FOR BRAKE PEDAL RETURN)
2005-11 → —
|
NHW20 S | ¥300 | |
| 47101B — Bush(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2003-08 → 2005-11
ended
|
NHW20 | ¥120 | |
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2005-11 → 2009-03
ended
|
NHW20 G | ¥120 | |
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2005-11 → —
|
NHW20 S | ¥120 | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-52010 |
Pad, Brake Pedal
2003-08 → 2005-11
ended
|
NHW20 | ¥260 | |
| 47121-52010 |
Pad, Brake Pedal
2005-11 → 2009-03
ended
|
NHW20 G | ¥260 | |
| 47121-52010 |
Pad, Brake Pedal
2005-11 → —
|
NHW20 S | ¥260 | |
| 47124 — Shaft, Brake Pedal | ||||
| 90101-10015 |
Shaft, Brake Pedal
2003-08 → 2005-11
ended
|
NHW20 | ¥160 | |
| 90101-10015 |
Shaft, Brake Pedal
2005-11 → 2009-03
ended
|
NHW20 G | ¥160 | |
| 90101-10015 |
Shaft, Brake Pedal
2005-11 → —
|
NHW20 S | ¥160 | |
| 47124A — Collar(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
Collar(FOR BRAKE PEDAL SHAFT)
2003-08 → 2005-11
ended
|
NHW20 | ¥370 | |
| 90387-10003 |
Collar(FOR BRAKE PEDAL SHAFT)
2005-11 → 2009-03
ended
|
NHW20 G | ¥370 | |
| 90387-10003 |
Collar(FOR BRAKE PEDAL SHAFT)
2005-11 → —
|
NHW20 S | ¥370 | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 47148-47020 |
Pin(FOR PUSH ROD)
2003-08 → 2005-11
ended
|
NHW20 | ¥280 | |
| 47148-47020 |
Pin(FOR PUSH ROD)
2005-11 → 2006-06
ended
|
NHW20 | ¥280 | |
| 47148-47020 note |
Pin(FOR PUSH ROD)
2006-06 → 2011-12
ended
|
NHW20 | ¥280 | |
| 47148-47030 note |
Pin(FOR PUSH ROD)
2006-06 → 2011-12
ended
|
NHW20 | ¥360 | |
| 55106 — Support Sub-assy, Brake Pedal | ||||
| 55106-47040 |
Support Sub-assy, Brake Pedal
2003-08 → 2005-11
ended
|
NHW20 | ¥4,010 | |
| 55106-47040 |
Support Sub-assy, Brake Pedal
2005-11 → —
|
NHW20 | ¥4,010 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
