Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

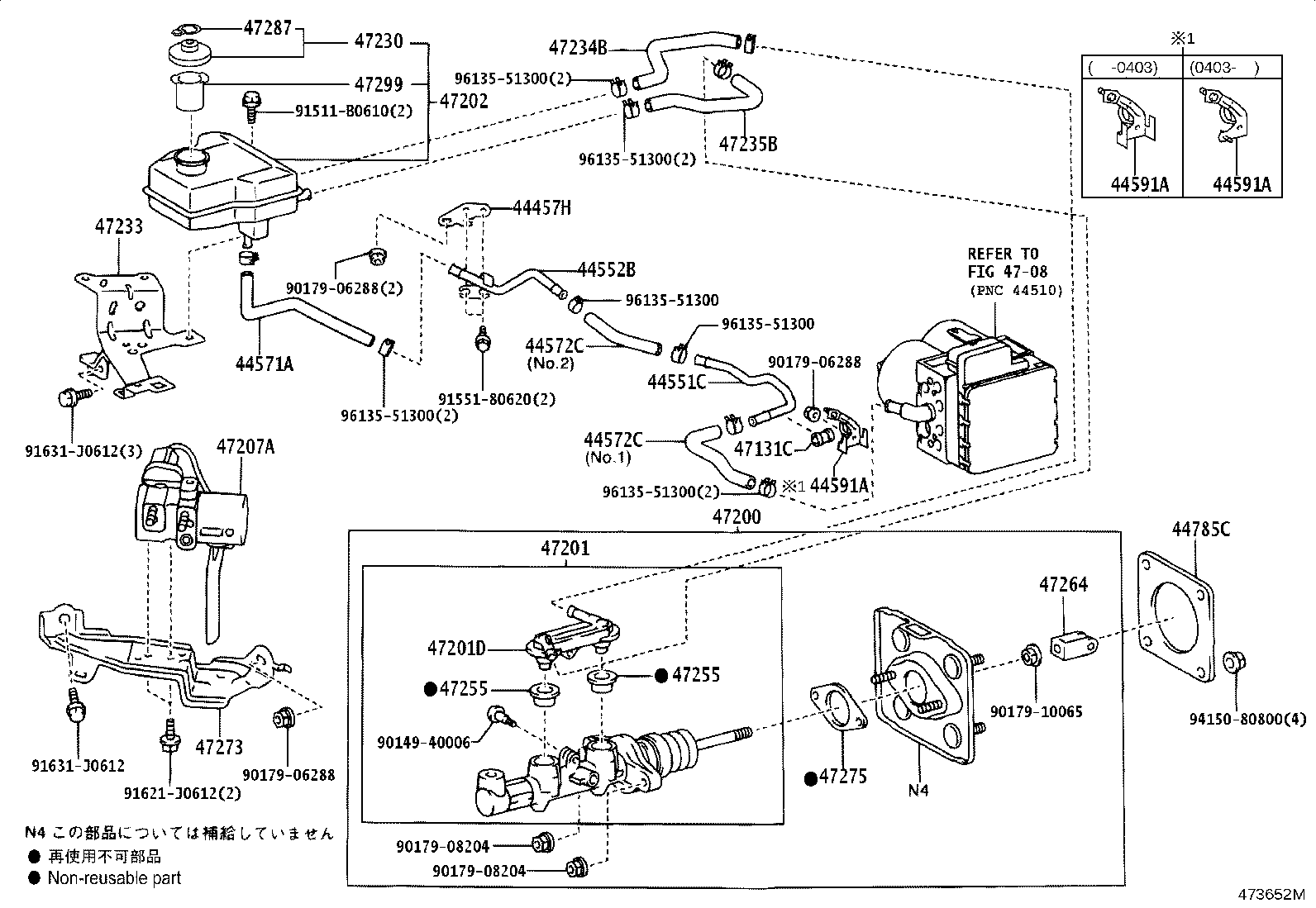

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44457H — Bracket, Tube Support | ||||
| 44457-47010 |
Bracket, Tube Support
2003-08 → 2005-11
ended
|
NHW20 | ¥1,320 | |
| 44457-47010 |
Bracket, Tube Support
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,320 | |
| 44457-47010 |
Bracket, Tube Support
2005-11 → —
|
NHW20 S | ¥1,320 | |
| 44551C — Tube, Brake Actuator, NO.1 | ||||
| 44551-47030 |
Tube, Brake Actuator, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥930 | |
| 44551-47030 |
Tube, Brake Actuator, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥930 | |
| 44551-47030 |
Tube, Brake Actuator, NO.1
2005-11 → —
|
NHW20 S | ¥930 | |
| 44552B — Tube, Brake Actuator, NO.2 | ||||
| 44552-47010 |
Tube, Brake Actuator, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥980 | |
| 44552-47010 |
Tube, Brake Actuator, NO.2
2005-11 → 2009-03
ended
|
NHW20 G | ¥980 | |
| 44552-47010 |
Tube, Brake Actuator, NO.2
2005-11 → —
|
NHW20 S | ¥980 | |
| 44571A — Hose, Brake Actuator, NO.1 | ||||
| 44571-47030 |
Hose, Brake Actuator, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥1,160 | |
| 44571-47030 |
Hose, Brake Actuator, NO.1
2005-11 → 2006-04
ended
|
NHW20 | ¥1,160 | |
| 44571-47060 |
Hose, Brake Actuator, NO.1
2006-05 → 2009-03
ended
|
NHW20 G | ¥1,150 | |
| 44571-47060 |
Hose, Brake Actuator, NO.1
2006-05 → —
|
NHW20 S | ¥1,150 | |
| 44572C — Hose, Brake Actuator, NO.2 | ||||
| 44572-47010 note |
Hose, Brake Actuator, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥840 | |
| 44572-47030 note |
Hose, Brake Actuator, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥520 | |
| 44572-47010 note |
Hose, Brake Actuator, NO.2
2005-11 → 2009-03
ended
|
NHW20 G | ¥840 | |
| 44572-47010 note |
Hose, Brake Actuator, NO.2
2005-11 → —
|
NHW20 S | ¥840 | |
| 44572-47030 note |
Hose, Brake Actuator, NO.2
2005-11 → 2009-03
ended
|
NHW20 G | ¥520 | |
| 44572-47030 note |
Hose, Brake Actuator, NO.2
2005-11 → —
|
NHW20 S | ¥520 | |
| 44591A — Bracket, Brake Actuator, NO.1 | ||||
| 44591-47030 |
Bracket, Brake Actuator, NO.1
2003-08 → 2004-03
ended
|
NHW20 | ¥700 | |
| 44591-47031 |
Bracket, Brake Actuator, NO.1
2004-03 → 2005-11
ended
|
NHW20 | ¥700 | |
| 44591-47031 |
Bracket, Brake Actuator, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥700 | |
| 44591-47031 |
Bracket, Brake Actuator, NO.1
2005-11 → —
|
NHW20 S | ¥700 | |
| 44785C — Gasket, Brake Booster | ||||
| 44785-47010 |
Gasket, Brake Booster
2003-08 → 2005-11
ended
|
NHW20 | ¥250 | |
| 44785-47010 |
Gasket, Brake Booster
2005-11 → 2009-03
ended
|
NHW20 G | ¥250 | |
| 44785-47010 |
Gasket, Brake Booster
2005-11 → —
|
NHW20 S | ¥250 | |
| 47131C — Cushion | ||||
| 47131-47050 |
Cushion
2003-08 → 2005-11
ended
|
NHW20 | ¥310 | |
| 47131-47050 |
Cushion
2005-11 → —
|
NHW20 S | ¥310 | |
| 47131-47050 |
Cushion
2005-11 → 2009-03
ended
|
NHW20 G | ¥310 | |
| 47200 — Cylinder Assy, Brake Master | ||||
| 47200-47010 |
Cylinder Assy, Brake Master
2003-08 → 2005-11
ended
|
NHW20 | ¥22,100 | |
| 47200-47010 |
Cylinder Assy, Brake Master
2005-11 → 2009-03
ended
|
NHW20 G | ¥22,100 | |
| 47200-47010 |
Cylinder Assy, Brake Master
2005-11 → —
|
NHW20 S | ¥22,100 | |
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-47030 |
Cylinder Sub-assy, Brake Master
2003-08 → 2005-11
ended
|
NHW20 | ¥22,100 | |
| 47201-47030 |
Cylinder Sub-assy, Brake Master
2005-11 → 2009-03
ended
|
NHW20 G | ¥22,100 | |
| 47201-47030 |
Cylinder Sub-assy, Brake Master
2005-11 → —
|
NHW20 S | ¥22,100 | |
| 47201D — Union, Brake Master Cylinder, NO.1 | ||||
| 90015-AM001 |
Union, Brake Master Cylinder, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥500 | |
| 90015-AM001 |
Union, Brake Master Cylinder, NO.1
2005-11 → —
|
NHW20 S | ¥500 | |
| 90015-AM001 |
Union, Brake Master Cylinder, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥500 | |
| 47202 — Reservoir Sub-assy, Brake Master Cylinder | ||||
| 47220-47030 |
Reservoir Sub-assy, Brake Master Cylinder
2003-08 → 2005-11
ended
|
NHW20 | ¥9,700 | |
| 47220-47030 |
Reservoir Sub-assy, Brake Master Cylinder
2005-11 → 2009-03
ended
|
NHW20 G | ¥9,700 | |
| 47220-47030 |
Reservoir Sub-assy, Brake Master Cylinder
2005-11 → —
|
NHW20 S | ¥9,700 | |
| 47207A — Cylinder Sub-assy, Brake Stroke Simulator | ||||
| 47207-47010 |
Cylinder Sub-assy, Brake Stroke Simulator
2003-08 → 2005-11
ended
|
NHW20 | ¥14,600 | |
| 47207-47010 |
Cylinder Sub-assy, Brake Stroke Simulator
2005-11 → 2009-03
ended
|
NHW20 G | ¥14,600 | |
| 47207-47010 |
Cylinder Sub-assy, Brake Stroke Simulator
2005-11 → —
|
NHW20 S | ¥14,600 | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2003-08 → 2005-11
ended
|
NHW20 | ¥530 | |
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2005-11 → 2009-03
ended
|
NHW20 G | ¥530 | |
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2005-11 → —
|
NHW20 S | ¥530 | |
| 47233 — Bracket, Reservoir | ||||
| 47233-47030 |
Bracket, Reservoir
2003-08 → 2005-11
ended
|
NHW20 | ¥1,320 | |
| 47233-47030 |
Bracket, Reservoir
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,320 | |
| 47233-47030 |
Bracket, Reservoir
2005-11 → —
|
NHW20 S | ¥1,320 | |
| 47234B — Tube, Reservoir, NO.1 | ||||
| 47234-47030 |
Tube, Reservoir, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥380 | |
| 47234-47030 |
Tube, Reservoir, NO.1
2005-11 → 2009-03
ended
|
NHW20 G | ¥380 | |
| 47234-47030 |
Tube, Reservoir, NO.1
2005-11 → —
|
NHW20 S | ¥380 | |
| 47235B — Tube, Brake Master Cyrinder Reservoir, NO.2 | ||||
| 47235-47030 |
Tube, Brake Master Cyrinder Reservoir, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥380 | |
| 47235-47030 |
Tube, Brake Master Cyrinder Reservoir, NO.2
2005-11 → —
|
NHW20 S | ¥380 | |
| 47235-47030 |
Tube, Brake Master Cyrinder Reservoir, NO.2
2005-11 → 2009-03
ended
|
NHW20 G | ¥380 | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 47255-16010 |
Grommet, Master Cylinder Reservoir
2003-08 → 2005-11
ended
|
NHW20 | ¥360 | |
| 47255-16010 |
Grommet, Master Cylinder Reservoir
2005-11 → 2009-03
ended
|
NHW20 G | ¥360 | |
| 47255-16010 |
Grommet, Master Cylinder Reservoir
2005-11 → —
|
NHW20 S | ¥360 | |
| 47264 — Clevis, Master Cylinder Push Rod | ||||
| 47264-47010 |
Clevis, Master Cylinder Push Rod
2003-08 → 2005-11
ended
|
NHW20 | ¥230 | |
| 47264-47010 |
Clevis, Master Cylinder Push Rod
2005-11 → 2009-03
ended
|
NHW20 G | ¥230 | |
| 47264-47010 |
Clevis, Master Cylinder Push Rod
2005-11 → —
|
NHW20 S | ¥230 | |
| 47273 — Bracket, Brake Stroke Simulator | ||||
| 47273-47010 |
Bracket, Brake Stroke Simulator
2003-08 → 2005-11
ended
|
NHW20 | ¥1,820 | |
| 47273-47010 |
Bracket, Brake Stroke Simulator
2005-11 → —
|
NHW20 S | ¥1,820 | |
| 47273-47010 |
Bracket, Brake Stroke Simulator
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,820 | |
| 47275 — Gasket, Brake Master Cylinder | ||||
| 47275-12020 |
Gasket, Brake Master Cylinder
2003-08 → 2005-11
ended
|
NHW20 | ¥120 | |
| 47275-12020 |
Gasket, Brake Master Cylinder
2005-11 → 2009-03
ended
|
NHW20 G | ¥120 | |
| 47275-12020 |
Gasket, Brake Master Cylinder
2005-11 → —
|
NHW20 S | ¥120 | |
| 47287 — Label, Brake Fluid Information | ||||
| 47287-20010 |
Label, Brake Fluid Information
2003-08 → 2005-11
ended
|
NHW20 | ¥130 | |
| 47287-20010 |
Label, Brake Fluid Information
2005-11 → 2009-03
ended
|
NHW20 G | ¥130 | |
| 47287-20010 |
Label, Brake Fluid Information
2005-11 → —
|
NHW20 S | ¥130 | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-47030 |
Strainer, Brake Master Cylinder Reservoir
2003-08 → 2005-11
ended
|
NHW20 | ¥1,040 | |
| 47299-47030 |
Strainer, Brake Master Cylinder Reservoir
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,040 | |
| 47299-47030 |
Strainer, Brake Master Cylinder Reservoir
2005-11 → —
|
NHW20 S | ¥1,040 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
