Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

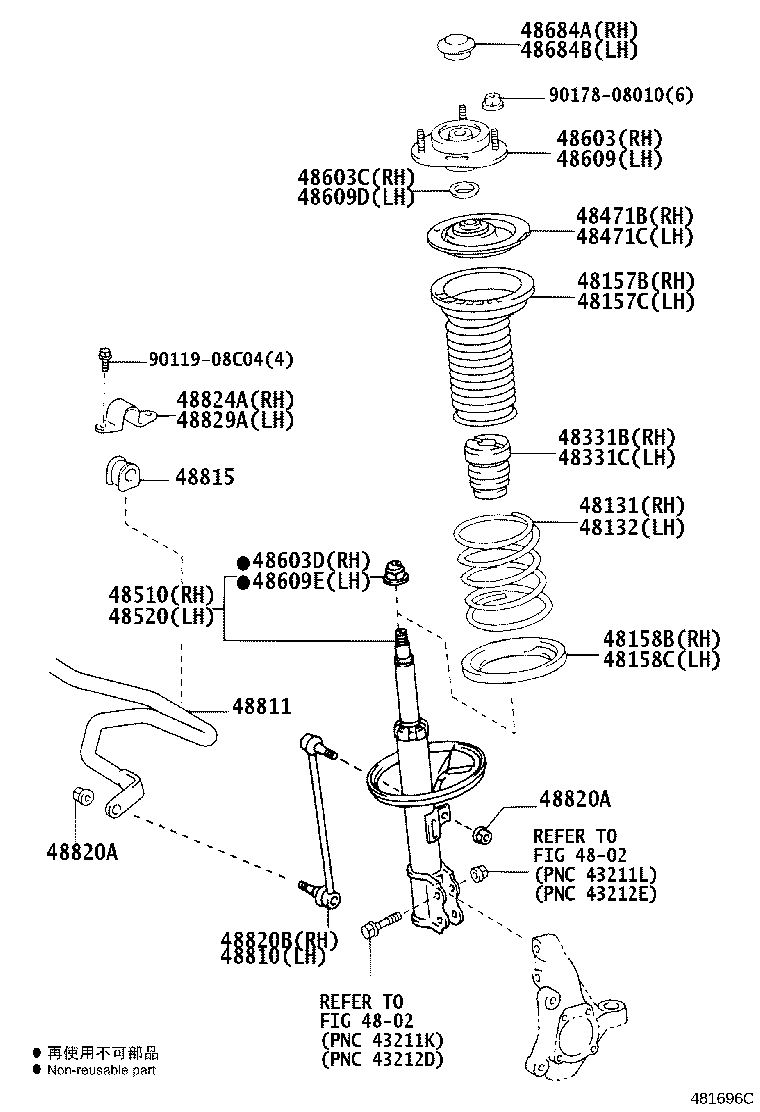

Exploded illustration 481696C 9011908C04 — not listed in this catalogue 48603C — SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) (2 parts) 48609D — SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) (2 parts) 48510 — ABSORBER ASSY, SHOCK, FRONT RH (5 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (5 parts) 48603D — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) (3 parts) 48609E — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) (3 parts) 48815 — BUSH, FRONT STABILIZER BAR, NO.1 (7 parts) 48824A — BRACKET, FRONT STABILIZER, NO.1 RH (3 parts) 48829A — BRACKET, FRONT STABILIZER, NO.1 LH (3 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (3 parts) 48820B — LINK ASSY, FRONT STABILIZER, RH (3 parts) 4802 — not listed in this catalogue 48811 — BAR, STABILIZER, FRONT (7 parts) 4802 — not listed in this catalogue 48820A — NUT(FOR FRONT STABILIZER LINK) (3 parts) 48331B — BUMPER, FRONT SPRING, RH (2 parts) 48331C — BUMPER, FRONT SPRING, LH (2 parts) 48131 — SPRING, FRONT COIL, RH (8 parts) 48132 — SPRING, FRONT COIL, LH (8 parts) 48158B — INSULATOR, FRONT COIL SPRING, LOWER RH (2 parts) 48158C — INSULATOR, FRONT COIL SPRING, LOWER LH (2 parts) 9017808010 — not listed in this catalogue 48157B — INSULATOR, FRONT COIL SPRING, UPPER RH (2 parts) 48157C — INSULATOR, FRONT COIL SPRING, UPPER LH (2 parts) 48471B — SEAT, FRONT COIL SPRING, UPPER RH (2 parts) 48471C — SEAT, FRONT COIL SPRING, UPPER LH (2 parts) 48603 — SUPPORT SUB-ASSY, FRONT SUSPENSION, RH (2 parts) 48609 — SUPPORT SUB-ASSY, FRONT SUSPENSION, LH (2 parts) 48684A — COVER, FRONT SUSPENSION SUPPORT DUST, RH (2 parts) 48684B — COVER, FRONT SUSPENSION SUPPORT DUST, LH (2 parts) 48810 — LINK ASSY, FRONT STABILIZER, LH (3 parts)
481696C · 28 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
89 parts on this figure
Part number Description Fitment Price
48131 — Spring, Front Coil, RH
48131-1N550 note Spring, Front Coil, RH
2003-08 → 2005-11 ended
NHW20 ¥7,100
48131-1N550 note Spring, Front Coil, RH
2004-08 → 2005-11 ended
NHW20 ¥7,100
48131-47070 Spring, Front Coil, RH
2003-08 → 2005-11 ended
NHW20 ¥6,800
48131-1N550 note Spring, Front Coil, RH
2005-11 → 2008-07 ended
NHW20 G ¥7,100
48131-1N550 note Spring, Front Coil, RH
2005-11 → 2008-07 ended
NHW20 ¥7,100
48131-47070 Spring, Front Coil, RH
2005-11 → —
NHW20 ¥6,800
48131-47210 note Spring, Front Coil, RH
2008-07 → 2009-03 ended
NHW20 G ¥7,100
48131-47210 note Spring, Front Coil, RH
2008-07 → 2009-03 ended
NHW20 ¥7,100
48132 — Spring, Front Coil, LH
48131-1N550 note Spring, Front Coil, LH
2003-08 → 2005-11 ended
NHW20 ¥7,100
48131-1N550 note Spring, Front Coil, LH
2004-08 → 2005-11 ended
NHW20 ¥7,100
48131-47070 Spring, Front Coil, LH
2003-08 → 2005-11 ended
NHW20 ¥6,800
48131-1N550 note Spring, Front Coil, LH
2005-11 → 2008-07 ended
NHW20 ¥7,100
48131-1N550 note Spring, Front Coil, LH
2005-11 → 2008-07 ended
NHW20 G ¥7,100
48131-47070 Spring, Front Coil, LH
2005-11 → —
NHW20 ¥6,800
48131-47210 note Spring, Front Coil, LH
2008-07 → 2009-03 ended
NHW20 G ¥7,100
48131-47210 note Spring, Front Coil, LH
2008-07 → 2009-03 ended
NHW20 ¥7,100
48157B — Insulator, Front Coil Spring, Upper RH
48157-12080 Insulator, Front Coil Spring, Upper RH
2003-08 → 2005-11 ended
NHW20 ¥1,070
48157-12080 Insulator, Front Coil Spring, Upper RH
2005-11 → —
NHW20 ¥1,070
48157C — Insulator, Front Coil Spring, Upper LH
48157-12080 Insulator, Front Coil Spring, Upper LH
2003-08 → 2005-11 ended
NHW20 ¥1,070
48157-12080 Insulator, Front Coil Spring, Upper LH
2005-11 → —
NHW20 ¥1,070
48158B — Insulator, Front Coil Spring, Lower RH
48158-47010 Insulator, Front Coil Spring, Lower RH
2003-08 → 2005-11 ended
NHW20 ¥710
48158-47010 Insulator, Front Coil Spring, Lower RH
2005-11 → —
NHW20 ¥710
48158C — Insulator, Front Coil Spring, Lower LH
48158-47010 Insulator, Front Coil Spring, Lower LH
2003-08 → 2005-11 ended
NHW20 ¥710
48158-47010 Insulator, Front Coil Spring, Lower LH
2005-11 → —
NHW20 ¥710
48331B — Bumper, Front Spring, RH
48331-12200 Bumper, Front Spring, RH
2003-08 → 2005-11 ended
NHW20 ¥900
48331-12200 Bumper, Front Spring, RH
2005-11 → —
NHW20 ¥900
48331C — Bumper, Front Spring, LH
48331-12200 Bumper, Front Spring, LH
2003-08 → 2005-11 ended
NHW20 ¥900
48331-12200 Bumper, Front Spring, LH
2005-11 → —
NHW20 ¥900
48471B — Seat, Front Coil Spring, Upper RH
48044-12100 Seat, Front Coil Spring, Upper RH
2003-08 → 2005-11 ended
NHW20 ¥890
48044-12100 Seat, Front Coil Spring, Upper RH
2005-11 → —
NHW20 ¥890
48471C — Seat, Front Coil Spring, Upper LH
48044-12100 Seat, Front Coil Spring, Upper LH
2003-08 → 2005-11 ended
NHW20 ¥890
48044-12100 Seat, Front Coil Spring, Upper LH
2005-11 → —
NHW20 ¥890
48510 — Absorber Assy, Shock, Front RH
48510-49495 note Absorber Assy, Shock, Front RH
2003-08 → 2005-03 ended
NHW20 ¥22,500
48510-49505 note Absorber Assy, Shock, Front RH
2003-08 → 2005-03 ended
NHW20 ¥22,500
48510-49505 note Absorber Assy, Shock, Front RH
2004-08 → 2005-03 ended
NHW20 ¥22,500
48510-80274 note Absorber Assy, Shock, Front RH
2005-03 → 2005-11 ended
NHW20 ¥22,400
48510-80274 note Absorber Assy, Shock, Front RH
2005-11 → 2011-12 ended
NHW20 ¥22,400
48520 — Absorber Assy, Shock, Front LH
48520-49575 note Absorber Assy, Shock, Front LH
2003-08 → 2005-03 ended
NHW20 ¥22,500
48520-49585 note Absorber Assy, Shock, Front LH
2003-08 → 2005-03 ended
NHW20 ¥22,500
48520-49585 note Absorber Assy, Shock, Front LH
2004-08 → 2005-03 ended
NHW20 ¥22,500
48520-80064 note Absorber Assy, Shock, Front LH
2005-03 → 2005-11 ended
NHW20 ¥22,400
48520-80064 note Absorber Assy, Shock, Front LH
2005-11 → 2011-12 ended
NHW20 ¥22,400
48603 — Support Sub-assy, Front Suspension, RH
48609-13010 Support Sub-assy, Front Suspension, RH
2003-08 → 2005-11 ended
NHW20 ¥5,300
48609-13010 Support Sub-assy, Front Suspension, RH
2005-11 → —
NHW20 ¥5,300
48603C — Seal, Dust(FOR FRONT SUSPENSION SUPPORT RH)
90303-22002 Seal, Dust(FOR FRONT SUSPENSION SUPPORT RH)
2003-08 → 2005-11 ended
NHW20 ¥200
90303-22002 Seal, Dust(FOR FRONT SUSPENSION SUPPORT RH)
2005-11 → —
NHW20 ¥200
48603D — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90179-14015 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2003-08 → 2005-11 ended
NHW20 ¥130
90177-14005 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2009-06 → —
NHW20 ¥120
90179-14015 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2005-11 → 2009-05 ended
NHW20 ¥130
48609 — Support Sub-assy, Front Suspension, LH
48609-13010 Support Sub-assy, Front Suspension, LH
2003-08 → 2005-11 ended
NHW20 ¥5,300
48609-13010 Support Sub-assy, Front Suspension, LH
2005-11 → —
NHW20 ¥5,300
48609D — Seal, Dust(FOR FRONT SUSPENSION SUPPORT LH)
90303-22002 Seal, Dust(FOR FRONT SUSPENSION SUPPORT LH)
2003-08 → 2005-11 ended
NHW20 ¥200
90303-22002 Seal, Dust(FOR FRONT SUSPENSION SUPPORT LH)
2005-11 → —
NHW20 ¥200
48609E — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90179-14015 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2003-08 → 2005-11 ended
NHW20 ¥130
90177-14005 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2009-06 → —
NHW20 ¥120
90179-14015 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2005-11 → 2009-05 ended
NHW20 ¥130
48684A — Cover, Front Suspension Support Dust, RH
48684-52010 Cover, Front Suspension Support Dust, RH
2003-08 → 2005-11 ended
NHW20 ¥600
48684-52010 Cover, Front Suspension Support Dust, RH
2005-11 → —
NHW20 ¥600
48684B — Cover, Front Suspension Support Dust, LH
48684-52010 Cover, Front Suspension Support Dust, LH
2003-08 → 2005-11 ended
NHW20 ¥600
48684-52010 Cover, Front Suspension Support Dust, LH
2005-11 → —
NHW20 ¥600
48810 — Link Assy, Front Stabilizer, LH
48820-47010 Link Assy, Front Stabilizer, LH
2003-08 → 2005-11 ended
NHW20 ¥5,400
48820-47010 Link Assy, Front Stabilizer, LH
2005-11 → 2009-03 ended
NHW20 G ¥5,400
48820-47010 Link Assy, Front Stabilizer, LH
2005-11 → —
NHW20 S ¥5,400
48811 — Bar, Stabilizer, Front
48811-47040 note Bar, Stabilizer, Front
2003-08 → 2005-11 ended
NHW20 ¥10,700
48811-47050 note Bar, Stabilizer, Front
2003-08 → 2005-11 ended
NHW20 ¥11,700
48811-47050 note Bar, Stabilizer, Front
2004-08 → 2005-11 ended
NHW20 ¥11,700
48811-47040 note Bar, Stabilizer, Front
2005-11 → 2009-03 ended
NHW20 G ¥10,700
48811-47040 note Bar, Stabilizer, Front
2005-11 → —
NHW20 S ¥10,700
48811-47050 note Bar, Stabilizer, Front
2005-11 → 2009-03 ended
NHW20 ¥11,700
48811-47050 note Bar, Stabilizer, Front
2005-11 → 2009-03 ended
NHW20 G ¥11,700
48815 — Bush, Front Stabilizer Bar, NO.1
48815-12340 note Bush, Front Stabilizer Bar, NO.1
2003-08 → 2005-11 ended
NHW20 ¥770
48815-13040 note Bush, Front Stabilizer Bar, NO.1
2003-08 → 2005-11 ended
NHW20 ¥750
48815-13040 note Bush, Front Stabilizer Bar, NO.1
2004-08 → 2005-11 ended
NHW20 ¥750
48815-12340 note Bush, Front Stabilizer Bar, NO.1
2005-11 → 2009-03 ended
NHW20 G ¥770
48815-12340 note Bush, Front Stabilizer Bar, NO.1
2005-11 → —
NHW20 S ¥770
48815-13040 note Bush, Front Stabilizer Bar, NO.1
2005-11 → 2009-03 ended
NHW20 ¥750
48815-13040 note Bush, Front Stabilizer Bar, NO.1
2005-11 → 2009-03 ended
NHW20 G ¥750
48820A — Nut(FOR FRONT STABILIZER LINK)
90179-12151 Nut(FOR FRONT STABILIZER LINK)
2003-08 → 2005-11 ended
NHW20 ¥100
90179-12151 Nut(FOR FRONT STABILIZER LINK)
2005-11 → —
NHW20 S ¥100
90179-12151 Nut(FOR FRONT STABILIZER LINK)
2005-11 → 2009-03 ended
NHW20 G ¥100
48820B — Link Assy, Front Stabilizer, RH
48820-47010 Link Assy, Front Stabilizer, RH
2003-08 → 2005-11 ended
NHW20 ¥5,400
48820-47010 Link Assy, Front Stabilizer, RH
2005-11 → 2009-03 ended
NHW20 G ¥5,400
48820-47010 Link Assy, Front Stabilizer, RH
2005-11 → —
NHW20 S ¥5,400
48824A — Bracket, Front Stabilizer, NO.1 RH
48824-26210 Bracket, Front Stabilizer, NO.1 RH
2003-08 → 2005-11 ended
NHW20 ¥930
48824-26210 Bracket, Front Stabilizer, NO.1 RH
2005-11 → 2009-03 ended
NHW20 G ¥930
48824-26210 Bracket, Front Stabilizer, NO.1 RH
2005-11 → —
NHW20 S ¥930
48829A — Bracket, Front Stabilizer, NO.1 LH
48824-26210 Bracket, Front Stabilizer, NO.1 LH
2003-08 → 2005-11 ended
NHW20 ¥930
48824-26210 Bracket, Front Stabilizer, NO.1 LH
2005-11 → 2009-03 ended
NHW20 G ¥930
48824-26210 Bracket, Front Stabilizer, NO.1 LH
2005-11 → —
NHW20 S ¥930
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
