Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

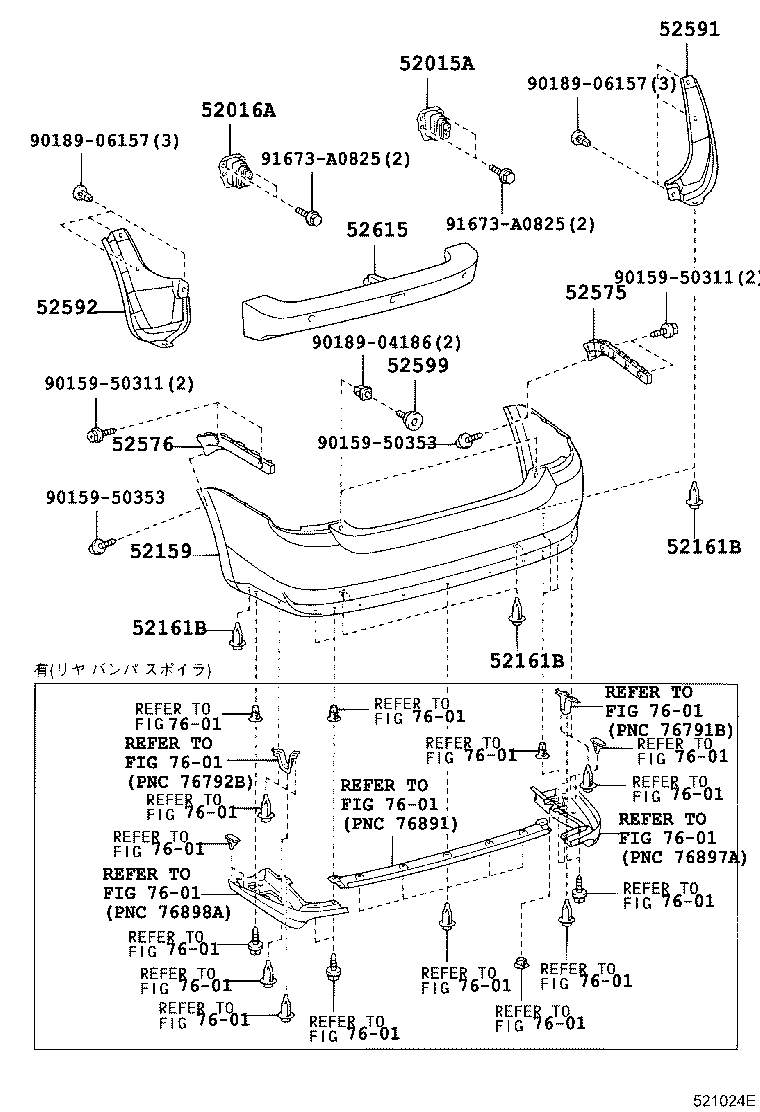

Exploded illustration 521024E 9018906157 — not listed in this catalogue 52016A — ARM SUB-ASSY, REAR BUMPER, LH (2 parts) 52015A — ARM SUB-ASSY, REAR BUMPER, RH (2 parts) 91673A0825 — not listed in this catalogue 91673A0825 — not listed in this catalogue 52615 — ABSORBER, REAR BUMPER ENERGY (2 parts) 52576 — RETAINER, REAR BUMPER SIDE, LH (3 parts) 9015950353 — not listed in this catalogue 52599 — STOPPER, REAR BUMPER, UPPER (2 parts) 9018904186 — not listed in this catalogue 52575 — RETAINER, REAR BUMPER SIDE, RH (3 parts) 9015950311 — not listed in this catalogue 52591 — SEAL, REAR BUMPER SIDE, RH (2 parts) 9018906157 — not listed in this catalogue 52161B — PIECE, REAR BUMPER (2 parts) 52161B — PIECE, REAR BUMPER (2 parts) 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 52161B — PIECE, REAR BUMPER (2 parts) 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 52159 — COVER, REAR BUMPER (51 parts) 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 9015950353 — not listed in this catalogue 9015950311 — not listed in this catalogue 52592 — SEAL, REAR BUMPER SIDE, LH (2 parts)
521024E · 12 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
71 parts on this figure
Part number Description Fitment Price
52015A — Arm Sub-assy, Rear Bumper, RH
52015-47010 Arm Sub-assy, Rear Bumper, RH
2003-08 → 2005-11 ended
NHW20 ¥2,650
52015-47010 Arm Sub-assy, Rear Bumper, RH
2005-11 → —
NHW20 ¥2,650
52016A — Arm Sub-assy, Rear Bumper, LH
52015-47010 Arm Sub-assy, Rear Bumper, LH
2003-08 → 2005-11 ended
NHW20 ¥2,650
52015-47010 Arm Sub-assy, Rear Bumper, LH
2005-11 → —
NHW20 ¥2,650
52159 — Cover, Rear Bumper
52159-47030-A0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,500
52159-47030-A1 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,800
52159-47030-B0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,800
52159-47030-C0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,500
52159-47030-D0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,800
52159-47030-E0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,500
52159-47030-G0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,800
52159-47030-J0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,500
52159-47040-A0 note Cover, Rear Bumper
2004-08 → 2005-11 ended
NHW20 ¥65,500
52159-47040-A0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,500
52159-47040-A1 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,800
52159-47040-A1 note Cover, Rear Bumper
2004-08 → 2005-11 ended
NHW20 ¥65,800
52159-47040-B0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,800
52159-47040-B0 note Cover, Rear Bumper
2004-08 → 2005-11 ended
NHW20 ¥65,800
52159-47040-C0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,500
52159-47040-C0 note Cover, Rear Bumper
2004-08 → 2005-11 ended
NHW20 ¥65,500
52159-47040-D0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,800
52159-47040-D0 note Cover, Rear Bumper
2004-08 → 2005-11 ended
NHW20 ¥65,800
52159-47040-E0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,500
52159-47040-E0 note Cover, Rear Bumper
2004-08 → 2005-11 ended
NHW20 ¥65,500
52159-47040-G0 note Cover, Rear Bumper
2004-08 → 2005-11 ended
NHW20 ¥65,800
52159-47040-G0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,800
52159-47040-J0 note Cover, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥65,500
52159-47040-J0 note Cover, Rear Bumper
2004-08 → 2005-11 ended
NHW20 ¥65,500
52159-47040-J1 note Cover, Rear Bumper
2004-08 → 2005-11 ended
NHW20 ¥65,800
52159-47040-J1 note Cover, Rear Bumper
2004-08 → 2005-11 ended
NHW20 ¥65,800
52159-47030-A0 note Cover, Rear Bumper
2005-11 → 2011-12 ended
NHW20 ¥65,500
52159-47030-A2 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47030-B1 note Cover, Rear Bumper
2005-11 → 2011-12 ended
NHW20 ¥65,500
52159-47030-C0 note Cover, Rear Bumper
2005-11 → 2011-12 ended
NHW20 ¥65,500
52159-47030-D1 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47030-E0 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47030-G1 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47030-J0 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47030-J2 note Cover, Rear Bumper
2007-04 → 2009-03 ended
NHW20 S ¥65,500
52159-47040-A0 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47040-A0 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 G ¥65,500
52159-47040-A2 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 G ¥65,500
52159-47040-A2 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47040-B1 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47040-B1 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 G ¥65,500
52159-47040-C0 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47040-C0 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 G ¥65,500
52159-47040-D1 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47040-D1 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 G ¥65,500
52159-47040-E0 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47040-E0 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 G ¥65,500
52159-47040-G1 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47040-G1 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 G ¥65,500
52159-47040-J0 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 ¥65,500
52159-47040-J0 note Cover, Rear Bumper
2005-11 → 2009-03 ended
NHW20 G ¥65,500
52161B — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2003-08 → 2005-11 ended
NHW20 ¥120
52161-16010 Piece, Rear Bumper
2005-11 → —
NHW20 ¥120
52575 — Retainer, Rear Bumper Side, RH
52575-47010 Retainer, Rear Bumper Side, RH
2003-08 → 2005-08 ended
NHW20 ¥3,470
52575-47011 Retainer, Rear Bumper Side, RH
2005-09 → 2005-11 ended
NHW20 ¥3,470
52575-47011 Retainer, Rear Bumper Side, RH
2005-11 → —
NHW20 ¥3,470
52576 — Retainer, Rear Bumper Side, LH
52576-47010 Retainer, Rear Bumper Side, LH
2003-08 → 2005-08 ended
NHW20 ¥3,470
52576-47011 Retainer, Rear Bumper Side, LH
2005-09 → 2005-11 ended
NHW20 ¥3,470
52576-47011 Retainer, Rear Bumper Side, LH
2005-11 → —
NHW20 ¥3,470
52591 — Seal, Rear Bumper Side, RH
52591-47010 Seal, Rear Bumper Side, RH
2003-08 → 2005-11 ended
NHW20 ¥1,790
52591-47010 Seal, Rear Bumper Side, RH
2005-11 → —
NHW20 ¥1,790
52592 — Seal, Rear Bumper Side, LH
52592-47010 Seal, Rear Bumper Side, LH
2003-08 → 2005-11 ended
NHW20 ¥2,210
52592-47010 Seal, Rear Bumper Side, LH
2005-11 → —
NHW20 ¥2,210
52599 — Stopper, Rear Bumper, Upper
52599-68020 Stopper, Rear Bumper, Upper
2003-08 → 2005-11 ended
NHW20 ¥230
52599-68020 Stopper, Rear Bumper, Upper
2005-11 → —
NHW20 ¥230
52615 — Absorber, Rear Bumper Energy
52615-47030 Absorber, Rear Bumper Energy
2003-08 → 2005-11 ended
NHW20 ¥9,600
52615-47030 Absorber, Rear Bumper Energy
2005-11 → —
NHW20 ¥9,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
