Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

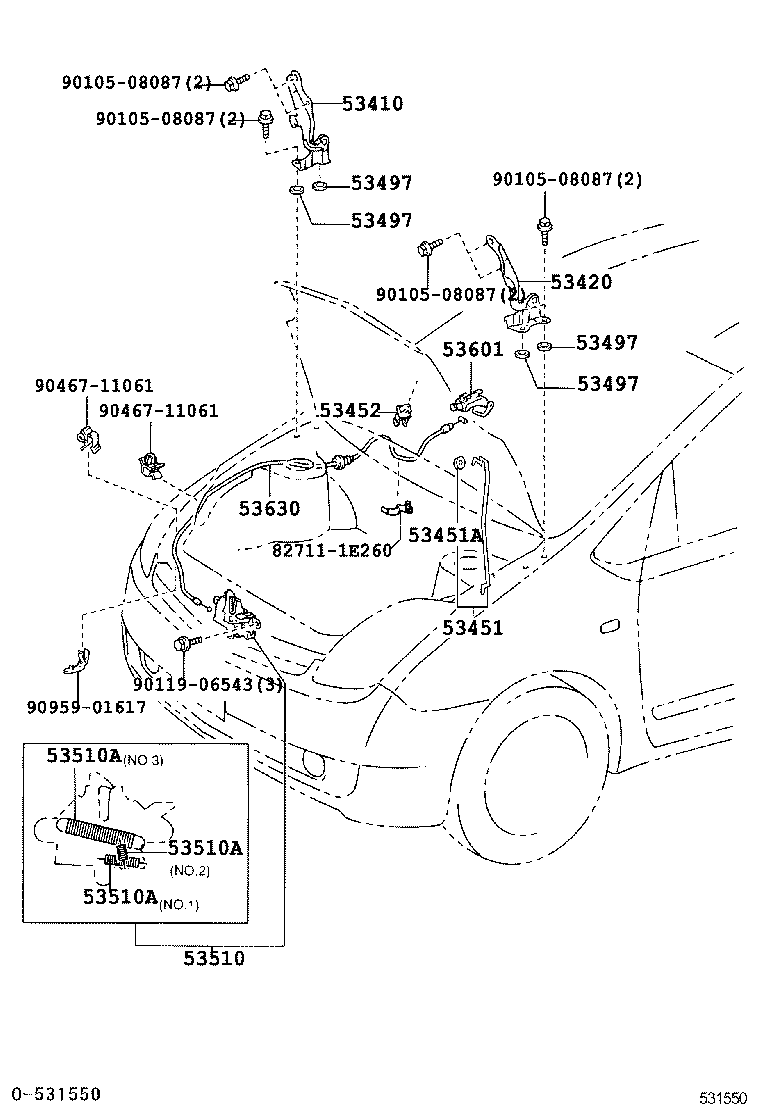

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53410 — Hinge Assy, Hood, RH | ||||
| 53410-47040 |
Hinge Assy, Hood, RH
2003-08 → 2005-11
ended
|
NHW20 | ¥2,340 | |
| 53410-47040 |
Hinge Assy, Hood, RH
2005-11 → 2011-12
ended
|
NHW20 | ¥2,340 | |
| 53420 — Hinge Assy, Hood, LH | ||||
| 53420-47040 |
Hinge Assy, Hood, LH
2003-08 → 2005-11
ended
|
NHW20 | ¥2,340 | |
| 53420-47040 |
Hinge Assy, Hood, LH
2005-11 → 2011-12
ended
|
NHW20 | ¥2,340 | |
| 53451 — Rod, Hood Support | ||||
| 53440-47020 |
Rod, Hood Support
2003-08 → 2005-11
ended
|
NHW20 | ¥1,310 | |
| 53440-47020 |
Rod, Hood Support
2005-11 → —
|
NHW20 | ¥1,310 | |
| 53451A — Grommet(FOR HOOD SUPPORT ROD) | ||||
| 90480-15028 |
Grommet(FOR HOOD SUPPORT ROD)
2003-08 → 2005-11
ended
|
NHW20 | ¥170 | |
| 90480-15028 |
Grommet(FOR HOOD SUPPORT ROD)
2005-11 → —
|
NHW20 | ¥170 | |
| 53452 — Holder, Hood Stay | ||||
| 53452-26010 |
Holder, Hood Stay
2003-08 → 2005-11
ended
|
NHW20 | ¥260 | |
| 53452-26010 |
Holder, Hood Stay
2005-11 → —
|
NHW20 | ¥260 | |
| 53497 — Pad, Hood Hinge, NO.1 | ||||
| 53497-42010 note |
Pad, Hood Hinge, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥100 | |
| 53497-42010 note |
Pad, Hood Hinge, NO.1
2005-11 → —
|
NHW20 | ¥100 | |
| 53510 — Lock Assy, Hood | ||||
| 53510-47050 |
Lock Assy, Hood
2003-08 → 2005-11
ended
|
NHW20 | ¥3,200 | |
| 53510-47050 |
Lock Assy, Hood
2005-11 → 2011-12
ended
|
NHW20 | ¥3,200 | |
| 53510A — Spring, Tension(FOR HOOD LOCK) | ||||
| 90506-09055 note |
Spring, Tension(FOR HOOD LOCK)
2003-08 → 2005-11
ended
|
NHW20 | ¥90 | |
| 90506-12063 note |
Spring, Tension(FOR HOOD LOCK)
2003-08 → 2005-11
ended
|
NHW20 | ¥90 | |
| 90506-16077 note |
Spring, Tension(FOR HOOD LOCK)
2003-08 → 2005-11
ended
|
NHW20 | ¥120 | |
| 90506-09055 note |
Spring, Tension(FOR HOOD LOCK)
2005-11 → —
|
NHW20 | ¥90 | |
| 90506-12063 note |
Spring, Tension(FOR HOOD LOCK)
2005-11 → —
|
NHW20 | ¥90 | |
| 90506-16077 note |
Spring, Tension(FOR HOOD LOCK)
2005-11 → —
|
NHW20 | ¥120 | |
| 53601 — Lever Sub-assy, Hood Lock Control | ||||
| 53601-52010-A0 note |
Lever Sub-assy, Hood Lock Control
2003-08 → 2005-11
ended
|
NHW20 | ¥1,860 | |
| 53601-52010-B6 note |
Lever Sub-assy, Hood Lock Control
2003-08 → 2005-11
ended
|
NHW20 | ¥2,240 | |
| 53601-52010-B6 note |
Lever Sub-assy, Hood Lock Control
2005-11 → 2011-12
ended
|
NHW20 | ¥2,240 | |
| 53601-52010-E4 note |
Lever Sub-assy, Hood Lock Control
2005-11 → 2009-03
ended
|
NHW20 | ¥1,860 | |
| 53630 — Cable Assy, Hood Lock Control | ||||
| 53630-47030 |
Cable Assy, Hood Lock Control
2003-08 → 2005-11
ended
|
NHW20 | ¥1,610 | |
| 53630-47030 |
Cable Assy, Hood Lock Control
2005-11 → —
|
NHW20 | ¥1,610 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
