Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

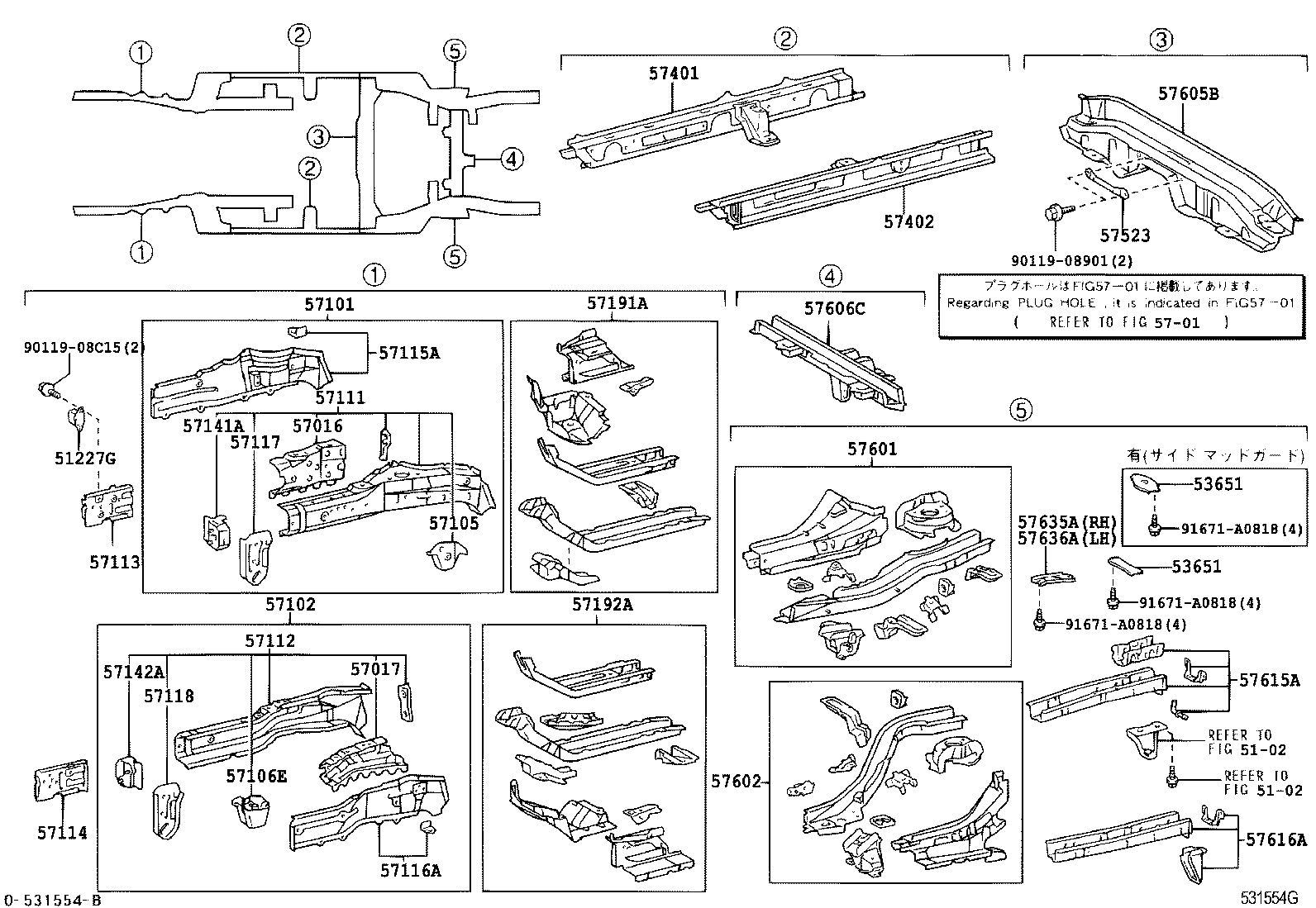

Exploded illustration 531554G 57114 — EXTENSION, FRONT SIDE MEMBER, LH (2 parts) 57113 — EXTENSION, FRONT SIDE MEMBER, RH (2 parts) 57602 — MEMBER SUB-ASSY, REAR FLOOR SIDE, LH (8 parts) 91671A0818 — not listed in this catalogue 91671A0818 — not listed in this catalogue 91671A0818 — not listed in this catalogue 57192A — MEMBER, FRONT SIDE, INNER REAR LH (2 parts) 57191A — MEMBER, FRONT SIDE, INNER REAR RH (3 parts) 57401 — MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH (2 parts) 9011908C15 — not listed in this catalogue 57601 — MEMBER SUB-ASSY, REAR FLOOR SIDE, RH (3 parts) 57402 — MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH (2 parts) 57605B — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 (2 parts) 53651 — BRACE, REAR FLOOR SIDE MEMBER (6 parts) 57635A — REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH (2 parts) 57636A — REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH (2 parts) 53651 — BRACE, REAR FLOOR SIDE MEMBER (6 parts) 57523 — BRACE, CENTER FLOOR CROSSMEMBER (2 parts) 9011908901 — not listed in this catalogue 5701 — not listed in this catalogue 57606C — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 (2 parts) 57615A — MEMBER, REAR FLOOR SIDE, REAR RH (3 parts) 57616A — MEMBER, REAR FLOOR SIDE, REAR LH (3 parts) 5102 — not listed in this catalogue 5102 — not listed in this catalogue 57102 — MEMBER SUB-ASSY, FRONT SIDE, LH (2 parts) 57112 — MEMBER, FRONT SIDE, LH (2 parts) 57017 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH (2 parts) 57142A — SUPPORT, FRONT BUMPER ARM, LH (2 parts) 57118 — PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH (2 parts) 57106E — BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH (2 parts) 57116A — PLATE, FRONT SIDE MEMBER, OUTER LH (2 parts) 57101 — MEMBER SUB-ASSY, FRONT SIDE, RH (2 parts) 57115A — PLATE, FRONT SIDE MEMBER, OUTER RH (2 parts) 57111 — MEMBER, FRONT SIDE, RH (2 parts) 57141A — SUPPORT, FRONT BUMPER ARM, RH (2 parts) 57117 — PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH (2 parts) 57016 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH (2 parts) 57105 — BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH (2 parts) 51227G — DAMPER, FRONT SUSPENSION MEMBER DYNAMIC (2 parts)
531554G · 32 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
51227G — Damper, Front Suspension Member Dynamic
51227-47010 Damper, Front Suspension Member Dynamic
2003-08 → 2005-11 ended
NHW20 ¥6,000
51227-47010 Damper, Front Suspension Member Dynamic
2005-11 → —
NHW20 ¥6,000
53651 — Brace, Rear Floor Side Member
53651-20010 Brace, Rear Floor Side Member
2003-08 → 2005-11 ended
NHW20 ¥590
53651-47010 note Brace, Rear Floor Side Member
2003-08 → 2005-11 ended
NHW20 ¥820
53651-47010 note Brace, Rear Floor Side Member
2004-08 → 2005-11 ended
NHW20 ¥820
53651-20010 Brace, Rear Floor Side Member
2005-11 → —
NHW20 ¥590
53651-47010 note Brace, Rear Floor Side Member
2005-11 → 2009-03 ended
NHW20 ¥820
53651-47010 note Brace, Rear Floor Side Member
2005-11 → 2009-03 ended
NHW20 G ¥820
57016 — Reinforcement Sub-assy, Front Side Member, RH
57016-47020 Reinforcement Sub-assy, Front Side Member, RH
2003-08 → 2005-11 ended
NHW20 ¥4,400
57016-47020 Reinforcement Sub-assy, Front Side Member, RH
2005-11 → —
NHW20 ¥4,400
57017 — Reinforcement Sub-assy, Front Side Member, LH
57017-47020 Reinforcement Sub-assy, Front Side Member, LH
2003-08 → 2005-11 ended
NHW20 ¥6,000
57017-47020 Reinforcement Sub-assy, Front Side Member, LH
2005-11 → —
NHW20 ¥6,000
57101 — Member Sub-assy, Front Side, RH
57101-47900 Member Sub-assy, Front Side, RH
2003-08 → 2005-11 ended
NHW20 ¥29,700
57101-47900 Member Sub-assy, Front Side, RH
2005-11 → —
NHW20 ¥29,700
57102 — Member Sub-assy, Front Side, LH
57102-47900 Member Sub-assy, Front Side, LH
2003-08 → 2005-11 ended
NHW20 ¥31,800
57102-47900 Member Sub-assy, Front Side, LH
2005-11 → —
NHW20 ¥31,800
57105 — Bracket Sub-assy, Front Suspension Member Mounting, Front RH
57105-12140 Bracket Sub-assy, Front Suspension Member Mounting, Front RH
2003-08 → 2005-11 ended
NHW20 ¥5,800
57105-12140 Bracket Sub-assy, Front Suspension Member Mounting, Front RH
2005-11 → —
NHW20 ¥5,800
57106E — Bracket Sub-assy, Front Suspension Member Mounting, Front LH
57106-12130 Bracket Sub-assy, Front Suspension Member Mounting, Front LH
2003-08 → 2005-11 ended
NHW20 ¥5,900
57106-12130 Bracket Sub-assy, Front Suspension Member Mounting, Front LH
2005-11 → —
NHW20 ¥5,900
57111 — Member, Front Side, RH
57111-47904 Member, Front Side, RH
2003-08 → 2005-11 ended
NHW20 ¥23,300
57111-47904 Member, Front Side, RH
2005-11 → —
NHW20 ¥23,300
57112 — Member, Front Side, LH
57112-47903 Member, Front Side, LH
2003-08 → 2005-11 ended
NHW20 ¥25,300
57112-47903 Member, Front Side, LH
2005-11 → —
NHW20 ¥25,300
57113 — Extension, Front Side Member, RH
57113-47010 Extension, Front Side Member, RH
2003-08 → 2005-11 ended
NHW20 ¥2,650
57113-47010 Extension, Front Side Member, RH
2005-11 → —
NHW20 ¥2,650
57114 — Extension, Front Side Member, LH
57114-47010 Extension, Front Side Member, LH
2003-08 → 2005-11 ended
NHW20 ¥2,690
57114-47010 Extension, Front Side Member, LH
2005-11 → —
NHW20 ¥2,690
57115A — Plate, Front Side Member, Outer RH
57115-47900 Plate, Front Side Member, Outer RH
2003-08 → 2005-11 ended
NHW20 ¥9,100
57115-47900 Plate, Front Side Member, Outer RH
2005-11 → —
NHW20 ¥9,100
57116A — Plate, Front Side Member, Outer LH
57116-47900 Plate, Front Side Member, Outer LH
2003-08 → 2005-11 ended
NHW20 ¥8,500
57116-47900 Plate, Front Side Member, Outer LH
2005-11 → —
NHW20 ¥8,500
57117 — Plate Sub-assy, Front Side Member, Front RH
57117-12130 Plate Sub-assy, Front Side Member, Front RH
2003-08 → 2005-11 ended
NHW20 ¥2,110
57117-12130 Plate Sub-assy, Front Side Member, Front RH
2005-11 → —
NHW20 ¥2,110
57118 — Plate Sub-assy, Front Side Member, Front LH
57118-12130 Plate Sub-assy, Front Side Member, Front LH
2003-08 → 2005-11 ended
NHW20 ¥2,110
57118-12130 Plate Sub-assy, Front Side Member, Front LH
2005-11 → —
NHW20 ¥2,110
57141A — Support, Front Bumper Arm, RH
57141-47010 Support, Front Bumper Arm, RH
2003-08 → 2005-11 ended
NHW20 ¥2,110
57141-47010 Support, Front Bumper Arm, RH
2005-11 → 2011-12 ended
NHW20 ¥2,110
57142A — Support, Front Bumper Arm, LH
57014-47020 Support, Front Bumper Arm, LH
2003-08 → 2005-11 ended
NHW20 ¥3,180
57014-47020 Support, Front Bumper Arm, LH
2005-11 → 2011-12 ended
NHW20 ¥3,180
57191A — Member, Front Side, Inner Rear RH
57191-47900 Member, Front Side, Inner Rear RH
2003-08 → 2005-07 ended
NHW20 ¥32,100
57191-47901 Member, Front Side, Inner Rear RH
2005-07 → 2005-11 ended
NHW20 ¥31,800
57191-13902 Member, Front Side, Inner Rear RH
2005-11 → —
NHW20 ¥38,700
57192A — Member, Front Side, Inner Rear LH
57192-47900 Member, Front Side, Inner Rear LH
2003-08 → 2005-11 ended
NHW20 ¥35,600
57192-13901 Member, Front Side, Inner Rear LH
2005-11 → —
NHW20 ¥42,500
57401 — Member Sub-assy, Main Floor Side, RH
57401-47040 Member Sub-assy, Main Floor Side, RH
2003-08 → 2005-11 ended
NHW20 ¥24,200
57401-47040 Member Sub-assy, Main Floor Side, RH
2005-11 → 2011-12 ended
NHW20 ¥24,200
57402 — Member Sub-assy, Main Floor Side, LH
57402-47050 Member Sub-assy, Main Floor Side, LH
2003-08 → 2005-11 ended
NHW20 ¥24,200
57402-47050 Member Sub-assy, Main Floor Side, LH
2005-11 → 2011-12 ended
NHW20 ¥24,200
57523 — Brace, Center Floor Crossmember
57523-47010 Brace, Center Floor Crossmember
2003-08 → 2005-11 ended
NHW20 ¥2,320
57523-47010 Brace, Center Floor Crossmember
2005-11 → —
NHW20 ¥2,320
57601 — Member Sub-assy, Rear Floor Side, RH
57611-47902 Member Sub-assy, Rear Floor Side, RH
2004-02 → 2005-11 ended
NHW20 ¥39,500
57611-47903 note Member Sub-assy, Rear Floor Side, RH
2003-08 → 2004-02 ended
NHW20 —
57611-47902 Member Sub-assy, Rear Floor Side, RH
2005-11 → —
NHW20 ¥39,500
57602 — Member Sub-assy, Rear Floor Side, LH
57612-47903 Member Sub-assy, Rear Floor Side, LH
2004-02 → 2005-11 ended
NHW20 ¥39,500
57612-47905 Member Sub-assy, Rear Floor Side, LH
2003-08 → 2004-02 ended
NHW20 ¥39,500
57612-47906 note Member Sub-assy, Rear Floor Side, LH
2003-08 → 2004-02 ended
NHW20 ¥39,500
57612-47903 Member Sub-assy, Rear Floor Side, LH
2005-11 → —
NHW20 ¥39,500
57612-47904 note Member Sub-assy, Rear Floor Side, LH
2005-11 → 2009-03 ended
NHW20 ¥39,500
57612-47904 note Member Sub-assy, Rear Floor Side, LH
2007-03 → 2009-03 ended
NHW20 S ¥39,500
57612-47904 note Member Sub-assy, Rear Floor Side, LH
2005-11 → 2009-03 ended
NHW20 ¥39,500
57612-47904 note Member Sub-assy, Rear Floor Side, LH
2005-11 → 2009-03 ended
NHW20 ¥39,500
57605B — Member Sub-assy, Rear Floor Cross, NO.1
57605-47040 Member Sub-assy, Rear Floor Cross, NO.1
2003-08 → 2005-11 ended
NHW20 ¥23,500
57605-47040 Member Sub-assy, Rear Floor Cross, NO.1
2005-11 → —
NHW20 ¥23,500
57606C — Member Sub-assy, Rear Floor Cross, NO.2
57606-47030 Member Sub-assy, Rear Floor Cross, NO.2
2003-08 → 2005-11 ended
NHW20 ¥20,900
57606-47030 Member Sub-assy, Rear Floor Cross, NO.2
2005-11 → —
NHW20 ¥20,900
57615A — Member, Rear Floor Side, Rear RH
57615-47900 Member, Rear Floor Side, Rear RH
2003-08 → 2005-03 ended
NHW20 ¥11,300
57615-47902 Member, Rear Floor Side, Rear RH
2005-03 → 2005-11 ended
NHW20 ¥11,200
57615-47902 Member, Rear Floor Side, Rear RH
2005-11 → —
NHW20 ¥11,200
57616A — Member, Rear Floor Side, Rear LH
57616-47900 Member, Rear Floor Side, Rear LH
2003-08 → 2005-03 ended
NHW20 ¥11,300
57616-47902 Member, Rear Floor Side, Rear LH
2005-03 → 2005-11 ended
NHW20 ¥11,200
57616-47902 Member, Rear Floor Side, Rear LH
2005-11 → —
NHW20 ¥11,200
57635A — Reinforcement, Rear Floor Side Member, Rear RH
57635-63010 Reinforcement, Rear Floor Side Member, Rear RH
2003-08 → 2005-11 ended
NHW20 ¥570
57635-63010 Reinforcement, Rear Floor Side Member, Rear RH
2005-11 → —
NHW20 ¥570
57636A — Reinforcement, Rear Floor Side Member, Rear LH
57636-63010 Reinforcement, Rear Floor Side Member, Rear LH
2003-08 → 2005-11 ended
NHW20 ¥570
57636-63010 Reinforcement, Rear Floor Side Member, Rear LH
2005-11 → —
NHW20 ¥570
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
