Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

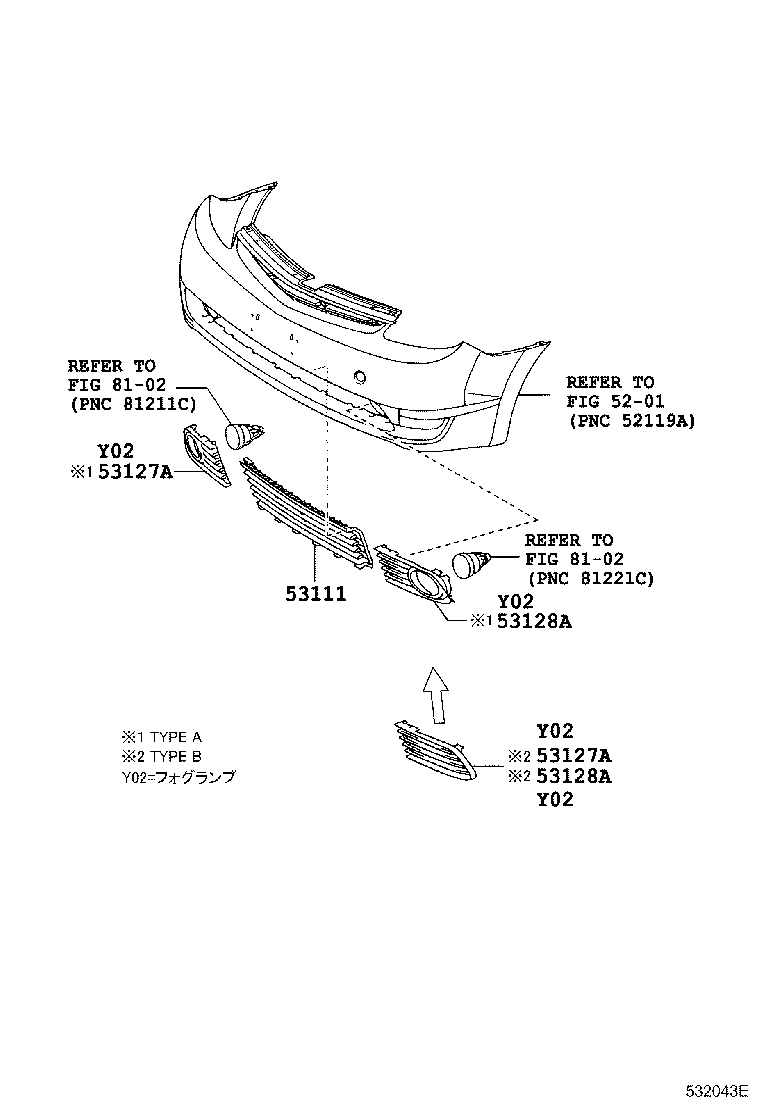

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53111 — Grille, Radiator | ||||
| 53111-47010 |
Grille, Radiator
2003-08 → 2005-11
ended
|
NHW20 | ¥8,000 | |
| 53111-47010 |
Grille, Radiator
2005-11 → 2011-12
ended
|
NHW20 | ¥8,000 | |
| 53127A — Grille, Radiator, Lower RH | ||||
| 53112-47020 |
Grille, Radiator, Lower RH
2003-08 → 2005-11
ended
|
NHW20 | ¥4,100 | |
| 53112-47030 note |
Grille, Radiator, Lower RH
2003-08 → 2005-11
ended
|
NHW20 | ¥2,980 | |
| 53112-47020 note |
Grille, Radiator, Lower RH
2009-03 → 2011-12
ended
|
NHW20 | ¥4,100 | |
| 53112-47030 note |
Grille, Radiator, Lower RH
2005-11 → 2009-03
ended
|
NHW20 | ¥2,980 | |
| 53112-47030 note |
Grille, Radiator, Lower RH
2009-06 → 2011-12
ended
|
NHW20 | ¥2,980 | |
| 53128A — Grille, Radiator, Lower LH | ||||
| 53113-47020 |
Grille, Radiator, Lower LH
2003-08 → 2005-11
ended
|
NHW20 | ¥4,100 | |
| 53113-47030 note |
Grille, Radiator, Lower LH
2003-08 → 2005-11
ended
|
NHW20 | ¥2,980 | |
| 53113-47020 note |
Grille, Radiator, Lower LH
2009-03 → 2011-12
ended
|
NHW20 | ¥4,100 | |
| 53113-47030 note |
Grille, Radiator, Lower LH
2005-11 → 2009-03
ended
|
NHW20 | ¥2,980 | |
| 53113-47030 note |
Grille, Radiator, Lower LH
2009-06 → 2011-12
ended
|
NHW20 | ¥2,980 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
