Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

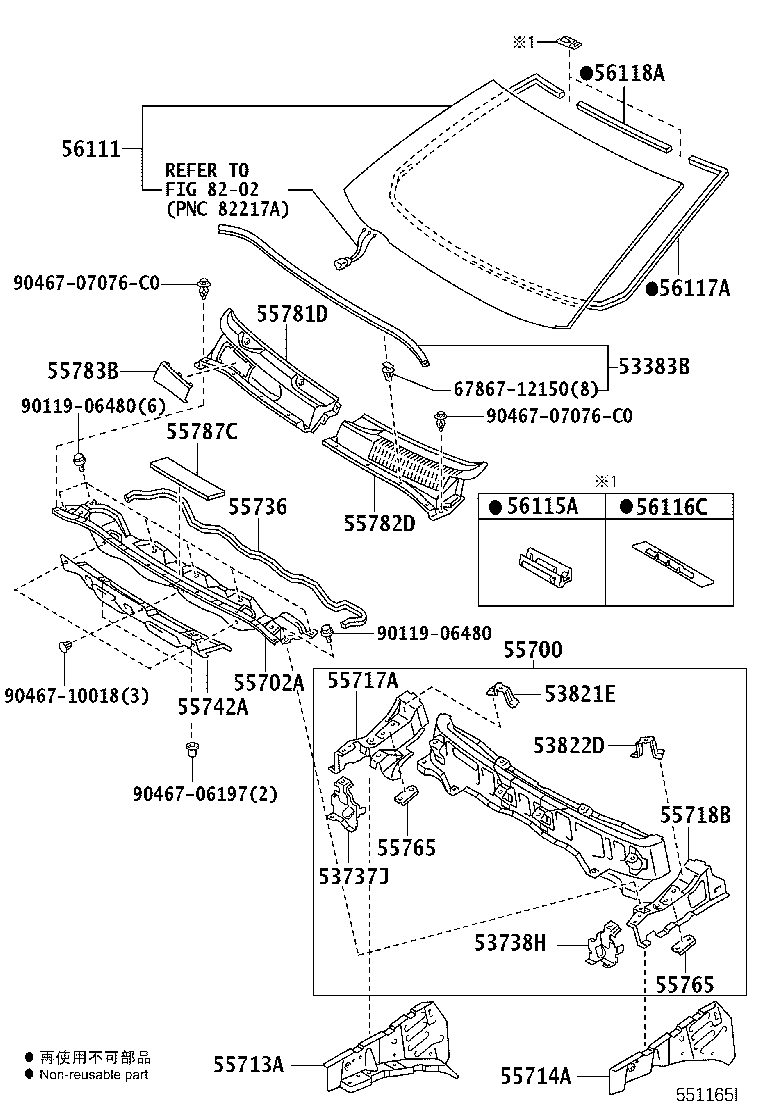

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53383B — Seal, Hood TO Cowl Top | ||||
| 53383-47020 |
Seal, Hood TO Cowl Top
2003-08 → 2005-11
ended
|
NHW20 | ¥1,020 | |
| 53383-47020 |
Seal, Hood TO Cowl Top
2005-11 → 2006-01
ended
|
NHW20 | ¥1,020 | |
| 53383-47060 |
Seal, Hood TO Cowl Top
2006-02 → —
|
NHW20 | ¥1,010 | |
| 53737J — Plate, Front Apron TO Cowl Side Member, RH | ||||
| 53737-47010 |
Plate, Front Apron TO Cowl Side Member, RH
2003-08 → 2005-11
ended
|
NHW20 | ¥820 | |
| 53737-47010 |
Plate, Front Apron TO Cowl Side Member, RH
2005-11 → 2011-12
ended
|
NHW20 | ¥820 | |
| 53738H — Plate, Front Apron TO Cowl Side Member, LH | ||||
| 53738-47010 |
Plate, Front Apron TO Cowl Side Member, LH
2003-08 → 2005-11
ended
|
NHW20 | ¥820 | |
| 53738-47010 |
Plate, Front Apron TO Cowl Side Member, LH
2005-11 → —
|
NHW20 | ¥820 | |
| 53821E — Bracket, Front Fender, Rear RH | ||||
| 53821-47010 |
Bracket, Front Fender, Rear RH
2003-08 → 2005-11
ended
|
NHW20 | ¥650 | |
| 53821-47010 |
Bracket, Front Fender, Rear RH
2005-11 → —
|
NHW20 | ¥650 | |
| 53822D — Bracket, Front Fender, Rear LH | ||||
| 53822-47010 |
Bracket, Front Fender, Rear LH
2003-08 → 2005-11
ended
|
NHW20 | ¥650 | |
| 53822-47010 |
Bracket, Front Fender, Rear LH
2005-11 → —
|
NHW20 | ¥650 | |
| 55700 — Panel Assy, Front | ||||
| 55700-47050 |
Panel Assy, Front
2003-08 → 2005-11
ended
|
NHW20 | ¥22,600 | |
| 55700-47050 |
Panel Assy, Front
2005-11 → 2006-08
ended
|
NHW20 | ¥22,600 | |
| 55700-47051 |
Panel Assy, Front
2006-08 → 2006-09
ended
|
NHW20 | ¥22,600 | |
| 55700-47100 |
Panel Assy, Front
2006-09 → 2011-12
ended
|
NHW20 | ¥22,700 | |
| 55702A — Panel Sub-assy, Cowl Top, Outer Front | ||||
| 55702-47040 |
Panel Sub-assy, Cowl Top, Outer Front
2003-08 → 2005-06
ended
|
NHW20 | ¥12,300 | |
| 55702-47041 |
Panel Sub-assy, Cowl Top, Outer Front
2005-07 → 2005-11
ended
|
NHW20 | ¥12,500 | |
| 55702-47041 |
Panel Sub-assy, Cowl Top, Outer Front
2005-11 → —
|
NHW20 | ¥12,500 | |
| 55713A — Panel, Cowl Top Side, RH | ||||
| 55713-47020 |
Panel, Cowl Top Side, RH
2003-08 → 2005-11
ended
|
NHW20 | ¥4,500 | |
| 55713-47020 |
Panel, Cowl Top Side, RH
2005-11 → 2011-12
ended
|
NHW20 | ¥4,500 | |
| 55714A — Panel, Cowl Top Side, LH | ||||
| 55714-47020 |
Panel, Cowl Top Side, LH
2003-08 → 2005-11
ended
|
NHW20 | ¥4,500 | |
| 55714-47020 |
Panel, Cowl Top Side, LH
2005-11 → 2011-12
ended
|
NHW20 | ¥4,500 | |
| 55717A — Panel, Cowl Top Side, Inner RH | ||||
| 55717-47020 |
Panel, Cowl Top Side, Inner RH
2003-08 → 2005-11
ended
|
NHW20 | ¥3,920 | |
| 55717-47020 |
Panel, Cowl Top Side, Inner RH
2005-11 → —
|
NHW20 | ¥3,920 | |
| 55718B — Panel, Cowl Top Side, Inner LH | ||||
| 55718-47020 |
Panel, Cowl Top Side, Inner LH
2003-08 → 2005-11
ended
|
NHW20 | ¥3,920 | |
| 55718-47020 |
Panel, Cowl Top Side, Inner LH
2005-11 → —
|
NHW20 | ¥3,920 | |
| 55736 — Seal, Water Guard Plate | ||||
| 55736-47010 |
Seal, Water Guard Plate
2003-08 → 2005-11
ended
|
NHW20 | ¥1,550 | |
| 55736-47010 |
Seal, Water Guard Plate
2005-11 → —
|
NHW20 | ¥1,550 | |
| 55742A — Sheet, Cowl Top Insulator | ||||
| 55742-47010 |
Sheet, Cowl Top Insulator
2003-08 → 2005-11
ended
|
NHW20 | ¥3,860 | |
| 55742-47010 |
Sheet, Cowl Top Insulator
2005-11 → —
|
NHW20 | ¥3,860 | |
| 55765 — Bracket, Hood Damper Mounting | ||||
| 55765-44010 |
Bracket, Hood Damper Mounting
2003-08 → 2005-11
ended
|
NHW20 | ¥310 | |
| 55765-44010 |
Bracket, Hood Damper Mounting
2005-11 → —
|
NHW20 | ¥310 | |
| 55781D — Louver, Cowl Top Ventilator, RH | ||||
| 55708-47040 |
Louver, Cowl Top Ventilator, RH
2003-08 → 2005-11
ended
|
NHW20 | ¥8,500 | |
| 55708-47040 |
Louver, Cowl Top Ventilator, RH
2005-11 → —
|
NHW20 | ¥8,500 | |
| 55782D — Louver, Cowl Top Ventilator, LH | ||||
| 55709-47040 |
Louver, Cowl Top Ventilator, LH
2003-08 → 2004-10
ended
|
NHW20 | ¥7,800 | |
| 55709-47041 |
Louver, Cowl Top Ventilator, LH
2004-10 → 2005-11
ended
|
NHW20 | ¥7,700 | |
| 55709-47060 note |
Louver, Cowl Top Ventilator, LH
2003-08 → 2004-10
ended
|
NHW20 | ¥8,800 | |
| 55709-47061 note |
Louver, Cowl Top Ventilator, LH
2004-10 → 2005-11
ended
|
NHW20 | ¥9,000 | |
| 55709-47041 |
Louver, Cowl Top Ventilator, LH
2005-11 → —
|
NHW20 | ¥7,700 | |
| 55709-47061 note |
Louver, Cowl Top Ventilator, LH
2005-11 → —
|
NHW20 | ¥9,000 | |
| 55783B — Louver, Cowl Top Ventilator, Center NO.1 | ||||
| 55783-47020 |
Louver, Cowl Top Ventilator, Center NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥1,290 | |
| 55783-47020 |
Louver, Cowl Top Ventilator, Center NO.1
2005-11 → —
|
NHW20 | ¥1,290 | |
| 55787C — Insulator, Cowl Top Panel, NO.1 | ||||
| 55787-47010 |
Insulator, Cowl Top Panel, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥3,340 | |
| 55787-47010 |
Insulator, Cowl Top Panel, NO.1
2005-11 → —
|
NHW20 | ¥3,340 | |
| 56111 — Glass, Windshield | ||||
| 56101-47010 note |
Glass, Windshield
2003-08 → 2005-03
ended
|
NHW20 | ¥117,000 | |
| 56101-47050 note |
Glass, Windshield
2003-08 → 2005-03
ended
|
NHW20 | ¥0 | |
| 56101-47110 note |
Glass, Windshield
2005-03 → 2005-11
ended
|
NHW20 | — | |
| 56101-47150 note |
Glass, Windshield
2005-03 → 2005-11
ended
|
NHW20 | — | |
| 56101-47110 note |
Glass, Windshield
2005-11 → 2006-10
ended
|
NHW20 | — | |
| 56101-47150 note |
Glass, Windshield
2005-11 → 2006-10
ended
|
NHW20 | — | |
| 56101-47210 note |
Glass, Windshield
2006-11 → 2009-03
ended
|
NHW20 | — | |
| 56101-47220 note |
Glass, Windshield
2006-11 → 2009-03
ended
|
NHW20 | — | |
| 56101-47440 note |
Glass, Windshield
2009-06 → 2010-02
ended
|
NHW20 | — | |
| 56101-47450 note |
Glass, Windshield
2009-06 → 2010-02
ended
|
NHW20 | — | |
| 56101-47926 note |
Glass, Windshield
2010-02 → —
|
NHW20 | — | |
| 56101-47930 note |
Glass, Windshield
2010-02 → —
|
NHW20 | — | |
| 56115A — Stopper, Windshield Glass, NO.1 | ||||
| 56115-22010 |
Stopper, Windshield Glass, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥160 | |
| 56115-22010 |
Stopper, Windshield Glass, NO.1
2005-11 → —
|
NHW20 | ¥160 | |
| 56116C — Stopper, Windshield Glass, NO.2 | ||||
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥120 | |
| 56116-22050 |
Stopper, Windshield Glass, NO.2
2005-11 → —
|
NHW20 | ¥120 | |
| 56117A — Dam, Window Glass Adhesive | ||||
| 56117-47010 note |
Dam, Window Glass Adhesive
2003-08 → 2005-11
ended
|
NHW20 | ¥1,630 | |
| 56117-47010 note |
Dam, Window Glass Adhesive
2003-08 → 2005-11
ended
|
NHW20 | ¥1,630 | |
| 56118-20070 note |
Dam, Window Glass Adhesive
2009-06 → —
|
NHW20 | ¥1,590 | |
| 56118-20070 note |
Dam, Window Glass Adhesive
2009-06 → —
|
NHW20 | ¥1,590 | |
| 56118-20070 note |
Dam, Window Glass Adhesive
2005-11 → —
|
NHW20 G | ¥1,590 | |
| 56118-20070 note |
Dam, Window Glass Adhesive
2005-11 → —
|
NHW20 G | ¥1,590 | |
| 56118-20070 note |
Dam, Window Glass Adhesive
2005-11 → 2009-03
ended
|
NHW20 S | ¥1,590 | |
| 56118-20070 note |
Dam, Window Glass Adhesive
2005-11 → 2009-03
ended
|
NHW20 S | ¥1,590 | |
| 56118A — Dam, Window Glass Adhesive, NO.2 | ||||
| 64813-52010 note |
Dam, Window Glass Adhesive, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥820 | |
| 64813-52010 note |
Dam, Window Glass Adhesive, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥820 | |
| 56117-30280 note |
Dam, Window Glass Adhesive, NO.2
2005-11 → 2009-03
ended
|
NHW20 S | ¥700 | |
| 56117-30280 note |
Dam, Window Glass Adhesive, NO.2
2005-11 → 2009-03
ended
|
NHW20 S | ¥700 | |
| 56117-30280 note |
Dam, Window Glass Adhesive, NO.2
2005-11 → —
|
NHW20 G | ¥700 | |
| 56117-30280 note |
Dam, Window Glass Adhesive, NO.2
2005-11 → —
|
NHW20 G | ¥700 | |
| 56117-30280 note |
Dam, Window Glass Adhesive, NO.2
2009-06 → —
|
NHW20 | ¥700 | |
| 56117-30280 note |
Dam, Window Glass Adhesive, NO.2
2009-06 → —
|
NHW20 | ¥700 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
