Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

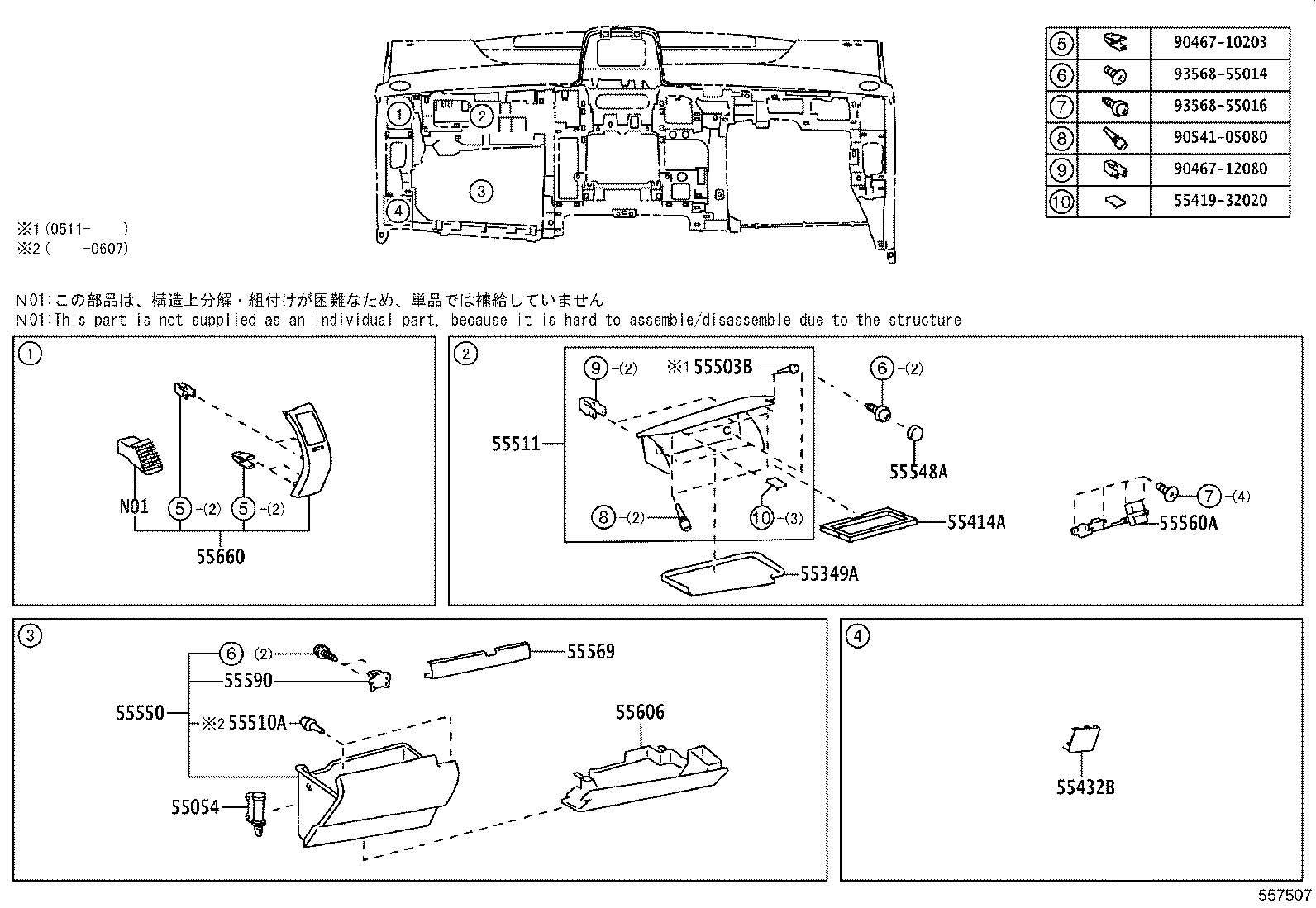

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55054 — Stopper Sub-assy, Glove Compartment Door | ||||
| 55054-12010 |
Stopper Sub-assy, Glove Compartment Door
2003-08 → 2005-11
ended
|
NHW20 | ¥780 | |
| 55054-12010 |
Stopper Sub-assy, Glove Compartment Door
2005-11 → —
|
NHW20 | ¥780 | |
| 55349A — Cushion, Instrument Panel | ||||
| 55349-47010 |
Cushion, Instrument Panel
2003-08 → 2005-11
ended
|
NHW20 | ¥3,090 | |
| 55349-47010 |
Cushion, Instrument Panel
2005-11 → —
|
NHW20 | ¥3,090 | |
| 55414A — Panel, Instrument Cluster Finish, End | ||||
| 55414-47010 |
Panel, Instrument Cluster Finish, End
2003-08 → 2005-11
ended
|
NHW20 | ¥2,950 | |
| 55414-47010 |
Panel, Instrument Cluster Finish, End
2005-11 → —
|
NHW20 | ¥2,950 | |
| 55432B — Panel, Instrument Panel Finish, Lower | ||||
| 55432-47020-A0 note |
Panel, Instrument Panel Finish, Lower
2003-08 → 2005-11
ended
|
NHW20 | ¥2,290 | |
| 55432-47020-B0 note |
Panel, Instrument Panel Finish, Lower
2003-08 → 2005-11
ended
|
NHW20 | ¥2,290 | |
| 55432-47020-B0 note |
Panel, Instrument Panel Finish, Lower
2005-11 → 2011-12
ended
|
NHW20 | ¥2,290 | |
| 55432-47020-E0 note |
Panel, Instrument Panel Finish, Lower
2005-11 → 2009-03
ended
|
NHW20 | ¥2,290 | |
| 55503B — Cushion(FOR GLOVE COMPARTMENT) | ||||
| 58959-60060 |
Cushion(FOR GLOVE COMPARTMENT)
2005-11 → —
|
NHW20 | ¥100 | |
| 55510A — Cushion(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05020 |
Cushion(FOR GLOVE COMPARTMENT DOOR)
2003-08 → 2005-11
ended
|
NHW20 | ¥110 | |
| 90541-05080 |
Cushion(FOR GLOVE COMPARTMENT DOOR)
2005-11 → 2006-07
ended
|
NHW20 | ¥170 | |
| 55511 — Door, Glove Compartment | ||||
| 55511-47010-D0 note |
Door, Glove Compartment
2003-08 → 2005-11
ended
|
NHW20 | ¥12,600 | |
| 55511-47010-E0 note |
Door, Glove Compartment
2003-08 → 2005-11
ended
|
NHW20 | ¥12,600 | |
| 55511-47050-C0 note |
Door, Glove Compartment
2005-11 → 2011-12
ended
|
NHW20 | ¥17,900 | |
| 55511-47050-E2 note |
Door, Glove Compartment
2005-11 → 2009-03
ended
|
NHW20 | ¥17,900 | |
| 55548A — Cover, Instrument Panel Hole | ||||
| 55548-47010 |
Cover, Instrument Panel Hole
2003-08 → 2005-11
ended
|
NHW20 | ¥360 | |
| 55548-47010 |
Cover, Instrument Panel Hole
2005-11 → —
|
NHW20 | ¥360 | |
| 55550 — Door Assy, Glove Compartment | ||||
| 55550-47030-D1 note |
Door Assy, Glove Compartment
2003-08 → 2005-11
ended
|
NHW20 | ¥16,100 | |
| 55550-47030-E1 note |
Door Assy, Glove Compartment
2003-08 → 2005-11
ended
|
NHW20 | ¥16,100 | |
| 55550-47030-E2 note |
Door Assy, Glove Compartment
2003-08 → 2005-11
ended
|
NHW20 | ¥16,100 | |
| 55550-47050-C0 note |
Door Assy, Glove Compartment
2005-11 → 2006-07
ended
|
NHW20 | ¥24,000 | |
| 55550-47050-E2 note |
Door Assy, Glove Compartment
2005-11 → 2006-07
ended
|
NHW20 | ¥24,000 | |
| 55550-47051-C0 note |
Door Assy, Glove Compartment
2006-07 → 2007-11
ended
|
NHW20 | ¥24,000 | |
| 55550-47051-E2 note |
Door Assy, Glove Compartment
2006-07 → 2007-11
ended
|
NHW20 | ¥24,000 | |
| 55550-47052-C0 note |
Door Assy, Glove Compartment
2007-12 → 2011-12
ended
|
NHW20 | ¥23,900 | |
| 55550-47052-E2 note |
Door Assy, Glove Compartment
2007-12 → 2009-03
ended
|
NHW20 | ¥23,900 | |
| 55560A — Lock Assy, Glove Compartment Door | ||||
| 55560-47010-D0 note |
Lock Assy, Glove Compartment Door
2003-08 → 2005-11
ended
|
NHW20 | ¥7,000 | |
| 55560-47010-E0 note |
Lock Assy, Glove Compartment Door
2003-08 → 2005-11
ended
|
NHW20 | ¥7,000 | |
| 55560-47030-C0 note |
Lock Assy, Glove Compartment Door
2005-11 → 2006-06
ended
|
NHW20 | ¥5,300 | |
| 55560-47030-E2 note |
Lock Assy, Glove Compartment Door
2005-11 → 2006-06
ended
|
NHW20 | ¥5,300 | |
| 55560-47031-C0 note |
Lock Assy, Glove Compartment Door
2006-07 → 2011-12
ended
|
NHW20 | ¥5,300 | |
| 55560-47031-E2 note |
Lock Assy, Glove Compartment Door
2006-07 → 2009-03
ended
|
NHW20 | ¥5,300 | |
| 55569 — Cover, Glove Compartment Door Lock | ||||
| 55569-47010 |
Cover, Glove Compartment Door Lock
2003-08 → 2005-11
ended
|
NHW20 | ¥2,330 | |
| 55569-47010 |
Cover, Glove Compartment Door Lock
2005-11 → 2007-11
ended
|
NHW20 | ¥2,330 | |
| 55569-47011 |
Cover, Glove Compartment Door Lock
2007-12 → —
|
NHW20 | ¥2,330 | |
| 55590 — Plate Assy, Grove Compartment Door Lock Striker | ||||
| 55590-47010 |
Plate Assy, Grove Compartment Door Lock Striker
2003-08 → 2005-11
ended
|
NHW20 | ¥360 | |
| 55590-47010 |
Plate Assy, Grove Compartment Door Lock Striker
2005-11 → —
|
NHW20 | ¥360 | |
| 55606 — Cover Sub-assy, Instrument Panel Under, NO.1 | ||||
| 55607-47010 |
Cover Sub-assy, Instrument Panel Under, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥4,270 | |
| 55607-47010 |
Cover Sub-assy, Instrument Panel Under, NO.1
2005-11 → —
|
NHW20 | ¥4,270 | |
| 55660 — Register Assy, Instrument Panel, NO.2 | ||||
| 55660-47010 |
Register Assy, Instrument Panel, NO.2
2003-08 → 2005-11
ended
|
NHW20 | ¥10,400 | |
| 55660-47010 |
Register Assy, Instrument Panel, NO.2
2005-11 → —
|
NHW20 | ¥10,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
