Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

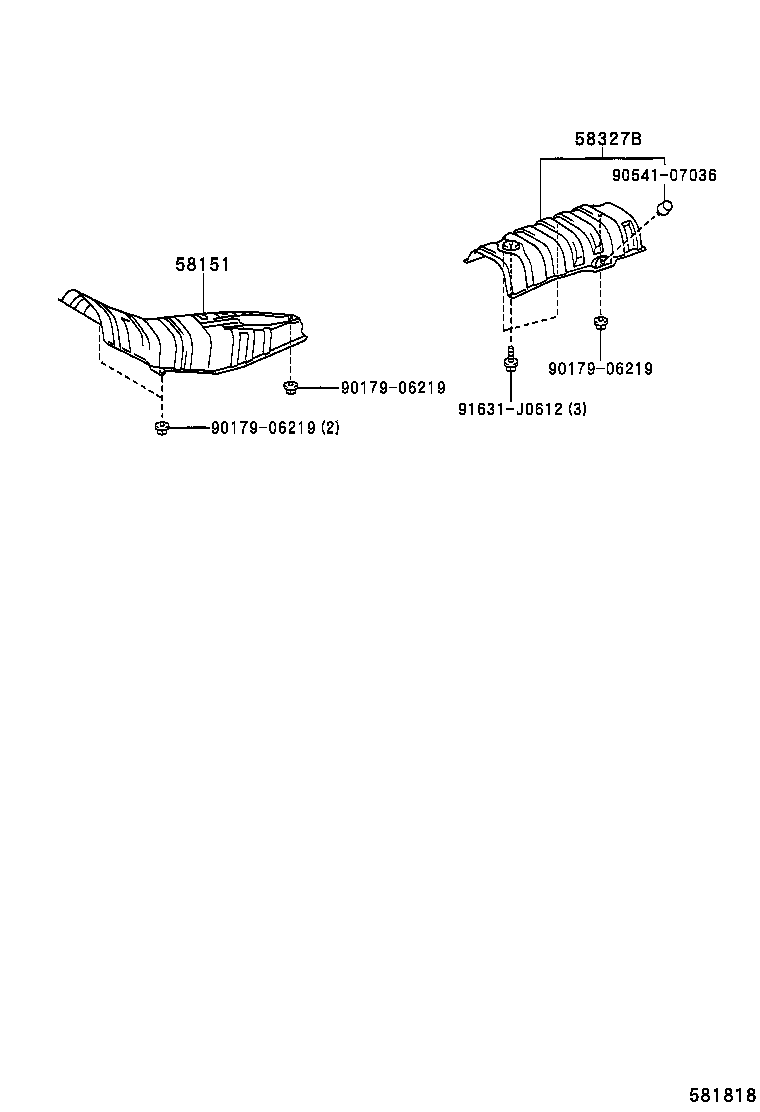

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-12220 |
Insulator, Front Floor Heat, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥4,760 | |
| 58151-12220 |
Insulator, Front Floor Heat, NO.1
2005-11 → —
|
NHW20 | ¥4,760 | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-47010 |
Insulator, Main Muffler Heat
2003-08 → 2005-11
ended
|
NHW20 | ¥3,850 | |
| 58327-47010 |
Insulator, Main Muffler Heat
2005-11 → —
|
NHW20 | ¥3,850 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
