Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

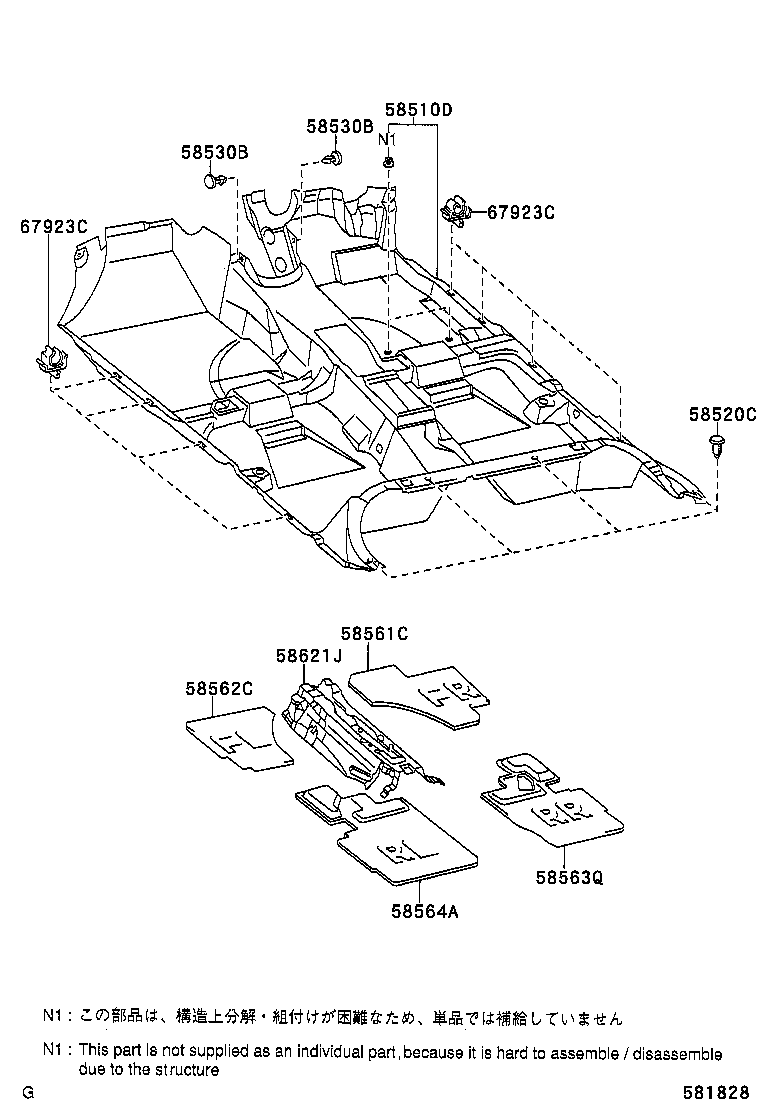

Exploded illustration 581828 58510D — CARPET ASSY, FLOOR, FRONT (25 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (3 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (3 parts) 67923C — CLAMP, DOOR SCUFF PLATE, NO.1 (3 parts) 67923C — CLAMP, DOOR SCUFF PLATE, NO.1 (3 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (4 parts) 58561C — SILENCER, FRONT FLOOR, NO.1 (2 parts) 58621J — SILENCER, CENTER CONSOLE, NO.1 (2 parts) 58562C — SILENCER, FRONT FLOOR, NO.2 (2 parts) 58563Q — SILENCER, FRONT FLOOR, NO.3 (2 parts) 58564A — SILENCER, FRONT FLOOR, NO.4 (2 parts)
581828 · 11 callouts Full size ↗
45 parts on this figure
Part number Description Fitment Price
58510D — Carpet Assy, Floor, Front
58510-47050-A1 note Carpet Assy, Floor, Front
2003-08 → 2005-08 ended
NHW20 ¥59,000
58510-47050-B1 note Carpet Assy, Floor, Front
2003-08 → 2005-08 ended
NHW20 ¥59,000
58510-47080-A0 note Carpet Assy, Floor, Front
2005-09 → 2005-11 ended
NHW20 ¥59,000
58510-47080-B0 note Carpet Assy, Floor, Front
2005-09 → 2005-11 ended
NHW20 ¥59,000
58510-47110-B0 note Carpet Assy, Floor, Front
2005-11 → 2009-08 ended
NHW20 S ¥59,200
58510-47110-B0 note Carpet Assy, Floor, Front
2005-11 → 2009-08 ended
NHW20 S ¥59,200
58510-47110-B0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 G ¥59,200
58510-47110-B0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 G ¥59,200
58510-47110-B0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 G ¥59,200
58510-47110-E0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 G ¥59,200
58510-47110-E0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 G ¥59,200
58510-47110-E0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 S ¥59,200
58510-47110-E0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 G ¥59,200
58510-47110-E0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 S ¥59,200
58510-47111-B0 note Carpet Assy, Floor, Front
2009-09 → 2010-11 ended
NHW20 ¥59,200
58510-47111-B0 note Carpet Assy, Floor, Front
2009-09 → 2010-11 ended
NHW20 ¥59,200
58510-47140-B0 note Carpet Assy, Floor, Front
2005-11 → 2009-08 ended
NHW20 ¥59,200
58510-47140-E0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 ¥59,200
58510-47141-B0 note Carpet Assy, Floor, Front
2009-09 → 2011-12 ended
NHW20 ¥59,200
58510-47170-B0 note Carpet Assy, Floor, Front
2005-11 → 2009-08 ended
NHW20 S ¥59,200
58510-47170-B0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 G ¥59,200
58510-47170-E0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 S ¥59,200
58510-47170-E0 note Carpet Assy, Floor, Front
2005-11 → 2009-03 ended
NHW20 G ¥59,200
58510-47171-B0 note Carpet Assy, Floor, Front
2009-09 → 2010-11 ended
NHW20 ¥53,700
58510-47171-B0 note Carpet Assy, Floor, Front
2010-11 → 2011-12 ended
NHW20 ¥53,700
58520C — Clip(FOR FRONT FLOOR CARPET)
90467-07049-B7 note Clip(FOR FRONT FLOOR CARPET)
2003-08 → 2005-11 ended
NHW20 ¥100
90467-07049-E3 note Clip(FOR FRONT FLOOR CARPET)
2003-08 → 2005-11 ended
NHW20 ¥160
90467-07049-B7 note Clip(FOR FRONT FLOOR CARPET)
2005-11 → 2011-12 ended
NHW20 ¥100
90467-07049-E5 note Clip(FOR FRONT FLOOR CARPET)
2005-11 → 2009-03 ended
NHW20 ¥110
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-09110-B3 note Clip(FOR FRONT FLOOR CARPET)
2003-08 → 2005-11 ended
NHW20 ¥240
90467-09110-E2 note Clip(FOR FRONT FLOOR CARPET)
2003-08 → 2005-11 ended
NHW20 ¥250
90467-09110-A0 note Clip(FOR FRONT FLOOR CARPET)
2005-11 → 2011-12 ended
NHW20 ¥260
58561C — Silencer, Front Floor, NO.1
58561-47020 Silencer, Front Floor, NO.1
2003-08 → 2005-11 ended
NHW20 ¥2,330
58561-47020 Silencer, Front Floor, NO.1
2005-11 → —
NHW20 ¥2,330
58562C — Silencer, Front Floor, NO.2
58562-47020 Silencer, Front Floor, NO.2
2003-08 → 2005-11 ended
NHW20 ¥2,330
58562-47020 Silencer, Front Floor, NO.2
2005-11 → —
NHW20 ¥2,330
58563Q — Silencer, Front Floor, NO.3
58563-47020 Silencer, Front Floor, NO.3
2003-08 → 2005-11 ended
NHW20 ¥4,270
58563-47020 Silencer, Front Floor, NO.3
2005-11 → —
NHW20 ¥4,270
58564A — Silencer, Front Floor, NO.4
58564-47020 Silencer, Front Floor, NO.4
2003-08 → 2005-11 ended
NHW20 ¥4,370
58564-47020 Silencer, Front Floor, NO.4
2005-11 → —
NHW20 ¥4,370
58621J — Silencer, Center Console, NO.1
58621-47010 Silencer, Center Console, NO.1
2003-08 → 2005-11 ended
NHW20 ¥5,400
58621-47010 Silencer, Center Console, NO.1
2005-11 → —
NHW20 ¥5,400
67923C — Clamp, Door Scuff Plate, NO.1
67923-20080 note Clamp, Door Scuff Plate, NO.1
2003-08 → 2005-11 ended
NHW20 ¥430
67923-20080 note Clamp, Door Scuff Plate, NO.1
2005-11 → 2008-07 ended
NHW20 ¥430
67923-47070 note Clamp, Door Scuff Plate, NO.1
2008-08 → 2011-12 ended
NHW20 ¥430
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
