Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

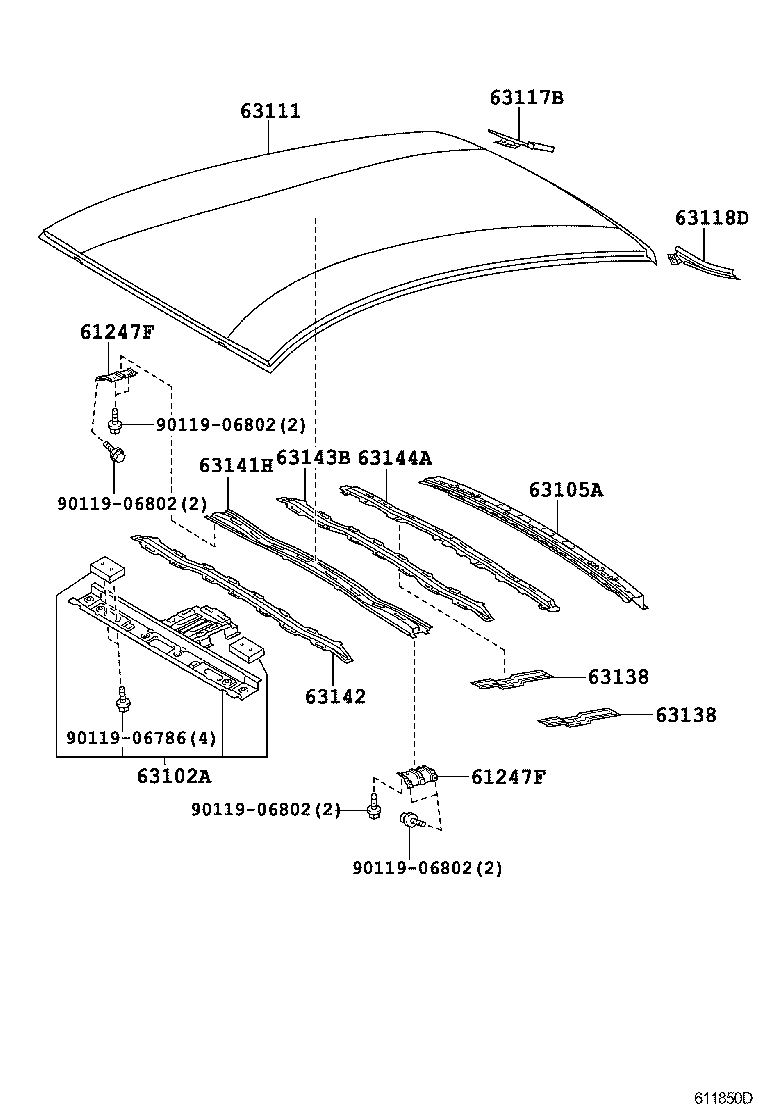

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 61247F — Reinforcement, Roof Side Rail, Inner | ||||
| 61247-47010 |
Reinforcement, Roof Side Rail, Inner
2003-08 → 2005-11
ended
|
NHW20 | ¥940 | |
| 61247-47010 |
Reinforcement, Roof Side Rail, Inner
2005-11 → 2011-12
ended
|
NHW20 | ¥940 | |
| 63102A — Panel Sub-assy, Windshield Header | ||||
| 63102-47020 |
Panel Sub-assy, Windshield Header
2003-08 → 2005-11
ended
|
NHW20 | ¥7,100 | |
| 63102-47020 |
Panel Sub-assy, Windshield Header
2005-11 → 2011-12
ended
|
NHW20 | ¥7,100 | |
| 63105A — Frame Sub-assy, Back Door Opening | ||||
| 63105-47010 |
Frame Sub-assy, Back Door Opening
2003-08 → 2005-11
ended
|
NHW20 | ¥11,500 | |
| 63105-47010 |
Frame Sub-assy, Back Door Opening
2005-11 → 2011-12
ended
|
NHW20 | ¥11,500 | |
| 63111 — Panel, Roof | ||||
| 63111-47020 |
Panel, Roof
2003-08 → 2004-07
ended
|
NHW20 | ¥46,900 | |
| 63111-47020 |
Panel, Roof
2004-08 → 2005-11
ended
|
NHW20 | ¥46,900 | |
| 63111-47020 |
Panel, Roof
2005-11 → —
|
NHW20 | ¥46,900 | |
| 63117B — Panel, Roof, Rear RH | ||||
| 63117-47010 |
Panel, Roof, Rear RH
2003-08 → 2004-07
ended
|
NHW20 | ¥1,300 | |
| 63117-47010 |
Panel, Roof, Rear RH
2004-08 → 2005-11
ended
|
NHW20 | ¥1,300 | |
| 63117-47010 |
Panel, Roof, Rear RH
2005-11 → 2010-10
ended
|
NHW20 | ¥1,300 | |
| 63117-47011 |
Panel, Roof, Rear RH
2010-10 → —
|
NHW20 | ¥1,450 | |
| 63118D — Panel, Roof, Rear LH | ||||
| 63118-47010 |
Panel, Roof, Rear LH
2003-08 → 2004-07
ended
|
NHW20 | ¥1,300 | |
| 63118-47010 |
Panel, Roof, Rear LH
2004-08 → 2005-11
ended
|
NHW20 | ¥1,300 | |
| 63118-47010 |
Panel, Roof, Rear LH
2005-11 → 2010-10
ended
|
NHW20 | ¥1,300 | |
| 63118-47011 |
Panel, Roof, Rear LH
2010-10 → —
|
NHW20 | ¥1,450 | |
| 63138 — Bracket, Dome Lamp, NO.2 | ||||
| 63138-47010 |
Bracket, Dome Lamp, NO.2
2003-08 → 2004-07
ended
|
NHW20 | ¥1,070 | |
| 63138-47010 |
Bracket, Dome Lamp, NO.2
2004-08 → 2005-11
ended
|
NHW20 | ¥1,070 | |
| 63138-47010 |
Bracket, Dome Lamp, NO.2
2005-11 → —
|
NHW20 | ¥1,070 | |
| 63141H — Reinforcement, Roof Panel, Center | ||||
| 63141-47020 |
Reinforcement, Roof Panel, Center
2003-08 → 2004-08
ended
|
NHW20 | ¥7,100 | |
| 63141-47021 |
Reinforcement, Roof Panel, Center
2004-08 → 2005-11
ended
|
NHW20 | ¥7,100 | |
| 63141-47021 |
Reinforcement, Roof Panel, Center
2005-11 → —
|
NHW20 | ¥7,100 | |
| 63142 — Reinforcement, Roof Panel, NO.2 | ||||
| 63142-47010 |
Reinforcement, Roof Panel, NO.2
2003-08 → 2004-07
ended
|
NHW20 | ¥2,400 | |
| 63142-47010 |
Reinforcement, Roof Panel, NO.2
2004-08 → 2005-11
ended
|
NHW20 | ¥2,400 | |
| 63142-47010 |
Reinforcement, Roof Panel, NO.2
2005-11 → —
|
NHW20 | ¥2,400 | |
| 63143B — Reinforcement, Roof Panel, NO.3 | ||||
| 63143-47020 |
Reinforcement, Roof Panel, NO.3
2003-08 → 2004-07
ended
|
NHW20 | ¥2,440 | |
| 63143-47020 |
Reinforcement, Roof Panel, NO.3
2004-08 → 2005-11
ended
|
NHW20 | ¥2,440 | |
| 63143-47020 |
Reinforcement, Roof Panel, NO.3
2005-11 → —
|
NHW20 | ¥2,440 | |
| 63144A — Reinforcement, Roof Panel, NO.4 | ||||
| 63144-47010 |
Reinforcement, Roof Panel, NO.4
2003-08 → 2004-07
ended
|
NHW20 | ¥2,530 | |
| 63144-47010 |
Reinforcement, Roof Panel, NO.4
2004-08 → 2005-11
ended
|
NHW20 | ¥2,530 | |
| 63144-47010 |
Reinforcement, Roof Panel, NO.4
2005-11 → —
|
NHW20 | ¥2,530 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
