Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

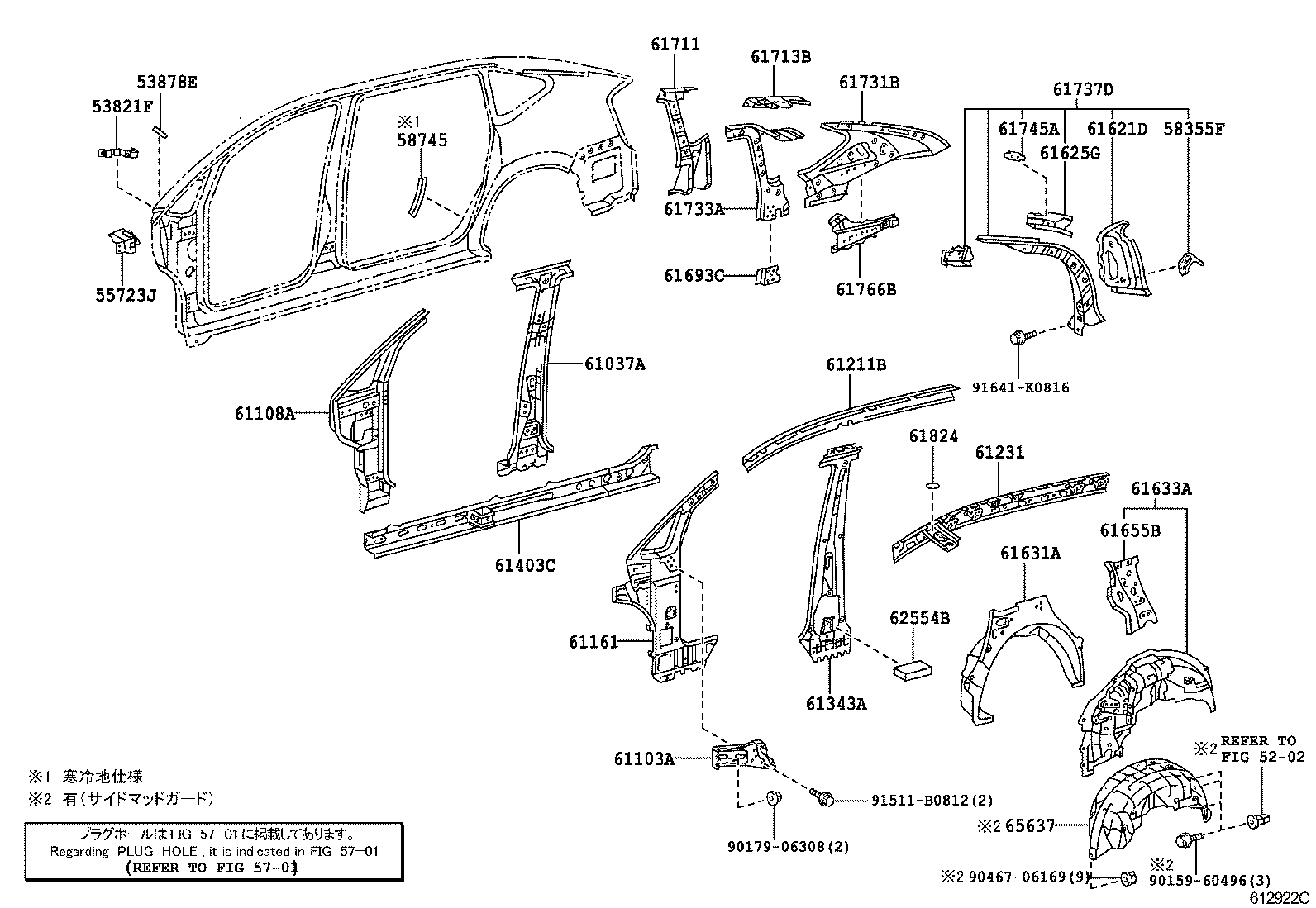

Exploded illustration 612922C 53821F — BRACKET, FRONT FENDER, REAR NO.2 RH (2 parts) 61037A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH (2 parts) 55723J — REINFORCEMENT, COWL TOP SIDE, RH (2 parts) 61211B — RAIL, ROOF SIDE, OUTER REAR RH (2 parts) 61231 — RAIL, ROOF SIDE, INNER RH (2 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (2 parts) 58745 — PROTECTOR, QUARTER PANEL, FRONT RH (2 parts) 61711 — PANEL, ROOF SIDE, OUTER RH (2 parts) 61713B — REINFORCE, ROOF SIDE, OUTER RH (2 parts) 61733A — PANEL, ROOF SIDE, INNER FRONT RH (2 parts) 61693C — RETAINER, REAR SEATBACK SET, RH (2 parts) 61766B — REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH (2 parts) 62554B — PAD, PILLAR, NO.4 (2 parts) 61343A — PILLAR, CENTER BODY, INNER RH (2 parts) 61403C — REINFORCE SUB-ASSY, ROCKER, OUTER RH (2 parts) 61161 — PILLAR, FRONT BODY, UPPER INNER RH (2 parts) 91511B0812 — not listed in this catalogue 61108A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH (2 parts) 61103A — REINFORCEMENT SUB-ASSY, COWL SIDE, RH (4 parts) 9017906308 — not listed in this catalogue 9015960496 — not listed in this catalogue 9046706169 — not listed in this catalogue 91641K0816 — not listed in this catalogue 61731B — PANEL, ROOF SIDE, INNER RH (2 parts) 61745A — REINFORCEMENT, BACK DOOR OPENING, LOWER RH (2 parts) 61625G — EXTENSION, QUARTER PANEL, REAR RH (2 parts) 61621D — TROUGH, BACK DOOR OPENING, RH (2 parts) 58355F — BRACKET, REAR BUMPER ARM, RH (2 parts) 61737D — REINFORCEMENT, ROOF SIDE, INNER RH (2 parts) 61633A — PANEL, QUARTER WHEEL HOUSE, INNER RH (6 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (6 parts) 61655B — GUSSET, QUARTER WHEEL HOUSE, INNER RH (2 parts) 53878E — SPACER, FRONT FENDER (2 parts) 65637 — LINER, REAR WHEEL HOUSE, RH (4 parts) 5202 — not listed in this catalogue 5701 — not listed in this catalogue
612922C · 29 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
70 parts on this figure
Part number Description Fitment Price
53821F — Bracket, Front Fender, Rear NO.2 RH
53821-47020 Bracket, Front Fender, Rear NO.2 RH
2003-08 → 2005-11 ended
NHW20 ¥520
53821-47020 Bracket, Front Fender, Rear NO.2 RH
2005-11 → —
NHW20 ¥520
53878E — Spacer, Front Fender
53878-44040 Spacer, Front Fender
2003-08 → 2005-11 ended
NHW20 ¥680
53878-44040 Spacer, Front Fender
2005-11 → —
NHW20 ¥680
55723J — Reinforcement, Cowl Top Side, RH
55723-47010 Reinforcement, Cowl Top Side, RH
2003-08 → 2005-11 ended
NHW20 ¥1,800
55723-47010 Reinforcement, Cowl Top Side, RH
2005-11 → —
NHW20 ¥1,800
58355F — Bracket, Rear Bumper Arm, RH
58355-47010 Bracket, Rear Bumper Arm, RH
2003-08 → 2005-11 ended
NHW20 ¥450
58355-47010 Bracket, Rear Bumper Arm, RH
2005-11 → —
NHW20 ¥450
58745 — Protector, Quarter Panel, Front RH
58745-47010 note Protector, Quarter Panel, Front RH
2003-08 → 2005-11 ended
NHW20 ¥800
58745-47010 note Protector, Quarter Panel, Front RH
2005-11 → —
NHW20 ¥800
61037A — Reinforcement Sub-assy, Center Body Pillar, RH
61037-47020 Reinforcement Sub-assy, Center Body Pillar, RH
2003-08 → 2005-11 ended
NHW20 ¥21,400
61037-47020 Reinforcement Sub-assy, Center Body Pillar, RH
2005-11 → —
NHW20 ¥21,400
61103A — Reinforcement Sub-assy, Cowl Side, RH
61103-47010 Reinforcement Sub-assy, Cowl Side, RH
2003-08 → 2003-10 ended
NHW20 ¥2,760
61103-47011 Reinforcement Sub-assy, Cowl Side, RH
2003-10 → 2005-02 ended
NHW20 ¥2,760
61103-47020 Reinforcement Sub-assy, Cowl Side, RH
2005-03 → 2005-11 ended
NHW20 ¥3,820
61103-47020 Reinforcement Sub-assy, Cowl Side, RH
2005-11 → 2011-12 ended
NHW20 ¥3,820
61108A — Reinforce Sub-assy, Front Body Pillar, Lower RH
61108-47030 Reinforce Sub-assy, Front Body Pillar, Lower RH
2003-08 → 2005-11 ended
NHW20 ¥21,600
61108-47030 Reinforce Sub-assy, Front Body Pillar, Lower RH
2005-11 → —
NHW20 ¥21,600
61161 — Pillar, Front Body, Upper Inner RH
61023-47040 Pillar, Front Body, Upper Inner RH
2003-08 → 2005-11 ended
NHW20 ¥24,400
61023-47040 Pillar, Front Body, Upper Inner RH
2005-11 → 2011-12 ended
NHW20 ¥24,400
61211B — Rail, Roof Side, Outer Rear RH
61211-47040 Rail, Roof Side, Outer Rear RH
2003-08 → 2005-11 ended
NHW20 ¥11,800
61211-47040 Rail, Roof Side, Outer Rear RH
2005-11 → —
NHW20 ¥11,800
61231 — Rail, Roof Side, Inner RH
61231-47900 Rail, Roof Side, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥11,100
61231-47900 Rail, Roof Side, Inner RH
2005-11 → —
NHW20 ¥11,100
61343A — Pillar, Center Body, Inner RH
61343-47900 Pillar, Center Body, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥18,200
61343-47900 Pillar, Center Body, Inner RH
2005-11 → —
NHW20 ¥18,200
61403C — Reinforce Sub-assy, Rocker, Outer RH
61403-47020 Reinforce Sub-assy, Rocker, Outer RH
2003-08 → 2005-11 ended
NHW20 ¥21,600
61403-47020 Reinforce Sub-assy, Rocker, Outer RH
2005-11 → —
NHW20 ¥21,600
61621D — Trough, Back Door Opening, RH
61621-47020 Trough, Back Door Opening, RH
2003-08 → 2005-11 ended
NHW20 ¥3,980
61621-47020 Trough, Back Door Opening, RH
2005-11 → 2011-12 ended
NHW20 ¥3,980
61625G — Extension, Quarter Panel, Rear RH
61625-47030 Extension, Quarter Panel, Rear RH
2003-08 → 2005-11 ended
NHW20 ¥2,230
61625-47030 Extension, Quarter Panel, Rear RH
2005-11 → —
NHW20 ¥2,230
61631A — Panel, Quarter Wheel House, Outer RH
61631-47020 Panel, Quarter Wheel House, Outer RH
2003-08 → 2005-11 ended
NHW20 ¥11,500
61631-47030 note Panel, Quarter Wheel House, Outer RH
2003-08 → 2005-11 ended
NHW20 ¥11,500
61631-47030 note Panel, Quarter Wheel House, Outer RH
2004-08 → 2005-11 ended
NHW20 ¥11,500
61631-47020 Panel, Quarter Wheel House, Outer RH
2005-11 → —
NHW20 ¥11,500
61631-47030 note Panel, Quarter Wheel House, Outer RH
2005-11 → 2009-03 ended
NHW20 ¥11,500
61631-47030 note Panel, Quarter Wheel House, Outer RH
2005-11 → 2009-03 ended
NHW20 G ¥11,500
61633A — Panel, Quarter Wheel House, Inner RH
61607-47040 Panel, Quarter Wheel House, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥22,200
61607-47050 note Panel, Quarter Wheel House, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥22,200
61607-47050 note Panel, Quarter Wheel House, Inner RH
2004-08 → 2005-11 ended
NHW20 ¥22,200
61607-47040 Panel, Quarter Wheel House, Inner RH
2005-11 → 2011-12 ended
NHW20 ¥22,200
61607-47050 note Panel, Quarter Wheel House, Inner RH
2005-11 → 2009-03 ended
NHW20 ¥22,200
61607-47050 note Panel, Quarter Wheel House, Inner RH
2005-11 → 2009-03 ended
NHW20 G ¥22,200
61655B — Gusset, Quarter Wheel House, Inner RH
61655-47010 Gusset, Quarter Wheel House, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥4,370
61655-47010 Gusset, Quarter Wheel House, Inner RH
2005-11 → —
NHW20 ¥4,370
61693C — Retainer, Rear Seatback Set, RH
61693-47010 Retainer, Rear Seatback Set, RH
2003-08 → 2005-11 ended
NHW20 ¥1,000
61693-47010 Retainer, Rear Seatback Set, RH
2005-11 → —
NHW20 ¥1,000
61711 — Panel, Roof Side, Outer RH
61711-47010 Panel, Roof Side, Outer RH
2003-08 → 2005-11 ended
NHW20 ¥6,900
61711-47010 Panel, Roof Side, Outer RH
2005-11 → —
NHW20 ¥6,900
61713B — Reinforce, Roof Side, Outer RH
61713-47010 Reinforce, Roof Side, Outer RH
2003-08 → 2005-11 ended
NHW20 ¥4,240
61713-47010 Reinforce, Roof Side, Outer RH
2005-11 → —
NHW20 ¥4,240
61731B — Panel, Roof Side, Inner RH
61731-47020 Panel, Roof Side, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥6,900
61731-47020 Panel, Roof Side, Inner RH
2005-11 → —
NHW20 ¥6,900
61733A — Panel, Roof Side, Inner Front RH
61733-47010 Panel, Roof Side, Inner Front RH
2003-08 → 2005-11 ended
NHW20 ¥6,900
61733-47010 Panel, Roof Side, Inner Front RH
2005-11 → —
NHW20 ¥6,900
61737D — Reinforcement, Roof Side, Inner RH
61737-47901 Reinforcement, Roof Side, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥13,500
61737-47901 Reinforcement, Roof Side, Inner RH
2005-11 → —
NHW20 ¥13,500
61745A — Reinforcement, Back Door Opening, Lower RH
61745-32010 Reinforcement, Back Door Opening, Lower RH
2003-08 → 2005-11 ended
NHW20 ¥530
61745-32010 Reinforcement, Back Door Opening, Lower RH
2005-11 → —
NHW20 ¥530
61766B — Reinforcement, Belt Anchor TO Roof Side, Inner RH
61766-47010 Reinforcement, Belt Anchor TO Roof Side, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥3,590
61766-47010 Reinforcement, Belt Anchor TO Roof Side, Inner RH
2005-11 → —
NHW20 ¥3,590
61824 — Plate, Noise Control, NO.1
61824-12050 Plate, Noise Control, NO.1
2003-08 → 2005-11 ended
NHW20 ¥440
61824-12050 Plate, Noise Control, NO.1
2005-11 → —
NHW20 ¥440
62554B — Pad, Pillar, NO.4
62554-12180 Pad, Pillar, NO.4
2003-08 → 2005-11 ended
NHW20 ¥270
62554-12180 Pad, Pillar, NO.4
2005-11 → —
NHW20 ¥270
65637 — Liner, Rear Wheel House, RH
65637-47010 note Liner, Rear Wheel House, RH
2003-08 → 2005-11 ended
NHW20 ¥5,300
65637-47010 note Liner, Rear Wheel House, RH
2004-08 → 2005-11 ended
NHW20 ¥5,300
65637-47010 note Liner, Rear Wheel House, RH
2005-11 → 2009-03 ended
NHW20 ¥5,300
65637-47010 note Liner, Rear Wheel House, RH
2005-11 → 2009-03 ended
NHW20 G ¥5,300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
