Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

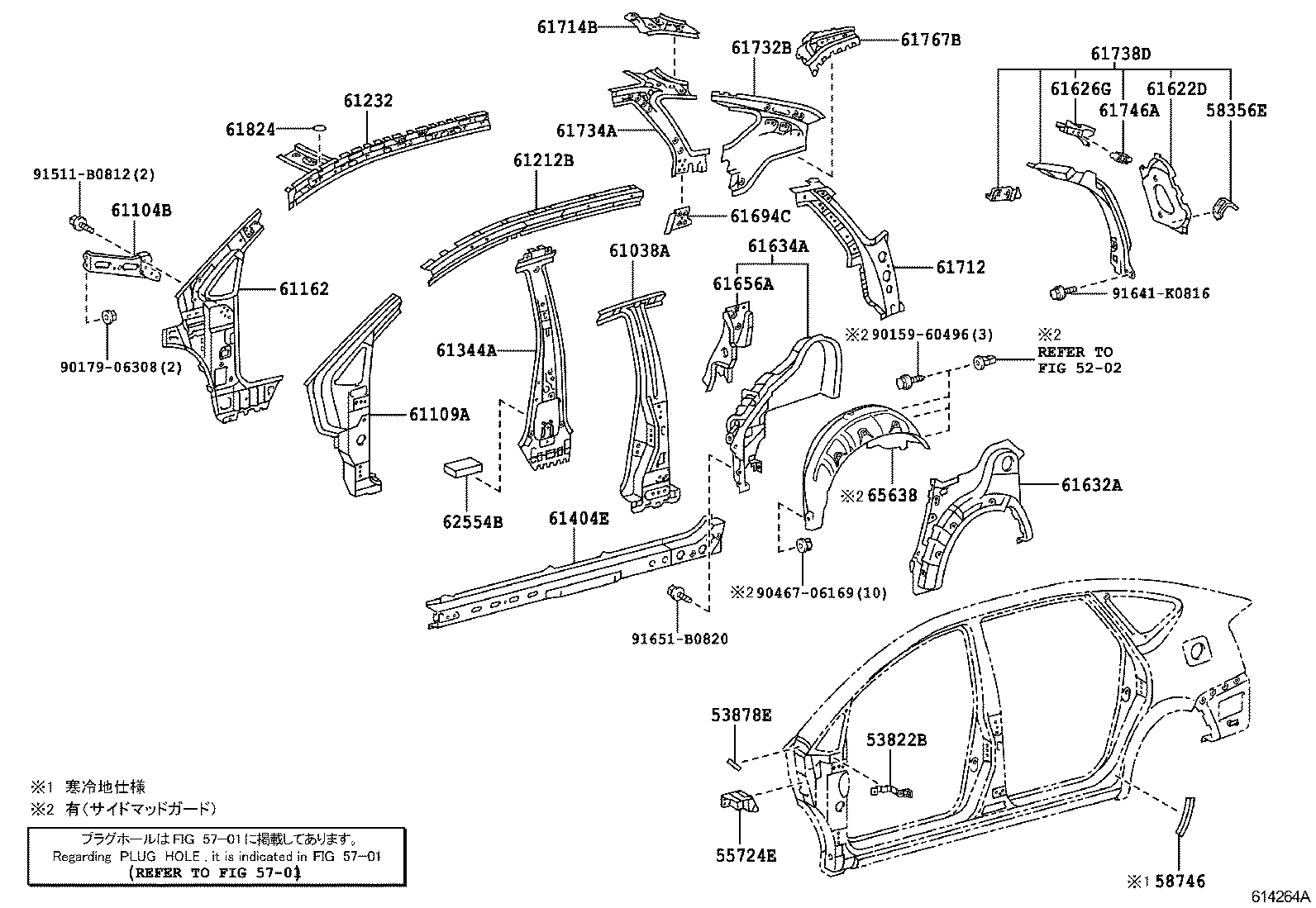

Exploded illustration 614264A 61232 — RAIL, ROOF SIDE, INNER LH (2 parts) 61344A — PILLAR, CENTER BODY, INNER LH (2 parts) 61212B — RAIL, ROOF SIDE, OUTER REAR LH (2 parts) 61734A — PANEL, ROOF SIDE, INNER FRONT LH (3 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (2 parts) 61162 — PILLAR, FRONT BODY, UPPER INNER LH (2 parts) 61104B — REINFORCEMENT SUB-ASSY, COWL SIDE, LH (4 parts) 91511B0812 — not listed in this catalogue 9017906308 — not listed in this catalogue 55724E — REINFORCEMENT, COWL TOP SIDE, LH (2 parts) 61109A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH (2 parts) 9015960496 — not listed in this catalogue 9046706169 — not listed in this catalogue 53822B — BRACKET, FRONT FENDER, REAR LH (2 parts) 61404E — REINFORCE SUB-ASSY, ROCKER, OUTER LH (2 parts) 62554B — PAD, PILLAR, NO.4 (2 parts) 61038A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH (2 parts) 61694C — RETAINER, REAR SEATBACK SET, LH (3 parts) 61712 — PANEL, ROOF SIDE, OUTER LH (3 parts) 58746 — PROTECTOR, QUARTER PANEL, FRONT LH (2 parts) 61767B — REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH (3 parts) 61732B — PANEL, ROOF SIDE, INNER LH (3 parts) 91641K0816 — not listed in this catalogue 61634A — PANEL, QUARTER WHEEL HOUSE, INNER LH (6 parts) 61656A — GUSSET, QUARTER WHEEL HOUSE, INNER LH (2 parts) 61714B — REINFORCE, ROOF SIDE, OUTER LH (3 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (6 parts) 65638 — LINER, REAR WHEEL HOUSE, LH (4 parts) 61738D — REINFORCEMENT, ROOF SIDE, INNER LH (2 parts) 53878E — SPACER, FRONT FENDER (2 parts) 91651B0820 — not listed in this catalogue 61746A — REINFORCEMENT, BACK DOOR OPENING, LOWER LH (2 parts) 58356E — BRACKET, REAR BUMPER ARM, LH (2 parts) 61626G — EXTENSION, QUARTER PANEL, REAR LH (2 parts) 61622D — TROUGH, BACK DOOR OPENING, LH (2 parts) 5202 — not listed in this catalogue 5701 — not listed in this catalogue 5701 — not listed in this catalogue
614264A · 29 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
53822B — Bracket, Front Fender, Rear LH
53822-47020 Bracket, Front Fender, Rear LH
2003-08 → 2005-11 ended
NHW20 ¥520
53822-47020 Bracket, Front Fender, Rear LH
2005-11 → —
NHW20 ¥520
53878E — Spacer, Front Fender
53878-44040 Spacer, Front Fender
2003-08 → 2005-11 ended
NHW20 ¥680
53878-44040 Spacer, Front Fender
2005-11 → —
NHW20 ¥680
55724E — Reinforcement, Cowl Top Side, LH
55724-47010 Reinforcement, Cowl Top Side, LH
2003-08 → 2005-11 ended
NHW20 ¥1,800
55724-47010 Reinforcement, Cowl Top Side, LH
2005-11 → —
NHW20 ¥1,800
58356E — Bracket, Rear Bumper Arm, LH
58356-47010 Bracket, Rear Bumper Arm, LH
2003-08 → 2005-11 ended
NHW20 ¥450
58356-47010 Bracket, Rear Bumper Arm, LH
2005-11 → —
NHW20 ¥450
58746 — Protector, Quarter Panel, Front LH
58746-47010 note Protector, Quarter Panel, Front LH
2003-08 → 2005-11 ended
NHW20 ¥800
58746-47010 note Protector, Quarter Panel, Front LH
2005-11 → —
NHW20 ¥800
61038A — Reinforcement Sub-assy, Center Body Pillar, LH
61038-47020 Reinforcement Sub-assy, Center Body Pillar, LH
2003-08 → 2005-11 ended
NHW20 ¥21,400
61038-47020 Reinforcement Sub-assy, Center Body Pillar, LH
2005-11 → —
NHW20 ¥21,400
61104B — Reinforcement Sub-assy, Cowl Side, LH
61104-47010 Reinforcement Sub-assy, Cowl Side, LH
2003-08 → 2003-10 ended
NHW20 ¥2,730
61104-47011 Reinforcement Sub-assy, Cowl Side, LH
2003-10 → 2005-02 ended
NHW20 ¥2,730
61104-47020 Reinforcement Sub-assy, Cowl Side, LH
2005-03 → 2005-11 ended
NHW20 ¥3,820
61104-47020 Reinforcement Sub-assy, Cowl Side, LH
2005-11 → 2011-12 ended
NHW20 ¥3,820
61109A — Reinforce Sub-assy, Front Body Pillar, Lower LH
61109-47020 Reinforce Sub-assy, Front Body Pillar, Lower LH
2003-08 → 2005-11 ended
NHW20 ¥21,600
61109-47020 Reinforce Sub-assy, Front Body Pillar, Lower LH
2005-11 → —
NHW20 ¥21,600
61162 — Pillar, Front Body, Upper Inner LH
61024-47040 Pillar, Front Body, Upper Inner LH
2003-08 → 2005-11 ended
NHW20 ¥24,400
61024-47040 Pillar, Front Body, Upper Inner LH
2005-11 → 2011-12 ended
NHW20 ¥24,400
61212B — Rail, Roof Side, Outer Rear LH
61212-47030 Rail, Roof Side, Outer Rear LH
2003-08 → 2005-11 ended
NHW20 ¥11,800
61212-47030 Rail, Roof Side, Outer Rear LH
2005-11 → —
NHW20 ¥11,800
61232 — Rail, Roof Side, Inner LH
61232-47900 Rail, Roof Side, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥10,900
61232-47900 Rail, Roof Side, Inner LH
2005-11 → —
NHW20 ¥10,900
61344A — Pillar, Center Body, Inner LH
61344-47900 Pillar, Center Body, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥19,900
61344-47900 Pillar, Center Body, Inner LH
2005-11 → —
NHW20 ¥19,900
61404E — Reinforce Sub-assy, Rocker, Outer LH
61404-47020 Reinforce Sub-assy, Rocker, Outer LH
2003-08 → 2005-11 ended
NHW20 ¥21,600
61404-47020 Reinforce Sub-assy, Rocker, Outer LH
2005-11 → —
NHW20 ¥21,600
61622D — Trough, Back Door Opening, LH
61622-47020 Trough, Back Door Opening, LH
2003-08 → 2005-11 ended
NHW20 ¥3,980
61622-47020 Trough, Back Door Opening, LH
2005-11 → 2011-12 ended
NHW20 ¥3,980
61626G — Extension, Quarter Panel, Rear LH
61626-47030 Extension, Quarter Panel, Rear LH
2003-08 → 2005-11 ended
NHW20 ¥2,230
61626-47030 Extension, Quarter Panel, Rear LH
2005-11 → —
NHW20 ¥2,230
61632A — Panel, Quarter Wheel House, Outer LH
61632-47030 Panel, Quarter Wheel House, Outer LH
2003-08 → 2005-11 ended
NHW20 ¥13,000
61632-47040 note Panel, Quarter Wheel House, Outer LH
2003-08 → 2005-11 ended
NHW20 ¥13,000
61632-47040 note Panel, Quarter Wheel House, Outer LH
2004-08 → 2005-11 ended
NHW20 ¥13,000
61632-47030 Panel, Quarter Wheel House, Outer LH
2005-11 → —
NHW20 ¥13,000
61632-47040 note Panel, Quarter Wheel House, Outer LH
2005-11 → 2009-03 ended
NHW20 ¥13,000
61632-47040 note Panel, Quarter Wheel House, Outer LH
2005-11 → 2009-03 ended
NHW20 G ¥13,000
61634A — Panel, Quarter Wheel House, Inner LH
61608-47040 Panel, Quarter Wheel House, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥23,600
61608-47050 note Panel, Quarter Wheel House, Inner LH
2004-08 → 2005-11 ended
NHW20 ¥23,600
61608-47050 note Panel, Quarter Wheel House, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥23,600
61608-47040 Panel, Quarter Wheel House, Inner LH
2005-11 → 2011-12 ended
NHW20 ¥23,600
61608-47050 note Panel, Quarter Wheel House, Inner LH
2005-11 → 2009-03 ended
NHW20 G ¥23,600
61608-47050 note Panel, Quarter Wheel House, Inner LH
2005-11 → 2009-03 ended
NHW20 ¥23,600
61656A — Gusset, Quarter Wheel House, Inner LH
61656-47010 Gusset, Quarter Wheel House, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥4,260
61656-47010 Gusset, Quarter Wheel House, Inner LH
2005-11 → —
NHW20 ¥4,260
61694C — Retainer, Rear Seatback Set, LH
61694-47010 Retainer, Rear Seatback Set, LH
2003-08 → 2005-11 ended
NHW20 ¥1,000
61694-47010 note Retainer, Rear Seatback Set, LH
2004-08 → 2005-11 ended
NHW20 ¥1,000
61694-47010 Retainer, Rear Seatback Set, LH
2005-11 → —
NHW20 ¥1,000
61712 — Panel, Roof Side, Outer LH
61712-47010 Panel, Roof Side, Outer LH
2003-08 → 2005-11 ended
NHW20 ¥6,900
61712-47010 note Panel, Roof Side, Outer LH
2004-08 → 2005-11 ended
NHW20 ¥6,900
61712-47010 Panel, Roof Side, Outer LH
2005-11 → —
NHW20 ¥6,900
61714B — Reinforce, Roof Side, Outer LH
61714-47010 Reinforce, Roof Side, Outer LH
2003-08 → 2005-11 ended
NHW20 ¥4,240
61714-47010 note Reinforce, Roof Side, Outer LH
2004-08 → 2005-11 ended
NHW20 ¥4,240
61714-47010 Reinforce, Roof Side, Outer LH
2005-11 → —
NHW20 ¥4,240
61732B — Panel, Roof Side, Inner LH
61732-47020 Panel, Roof Side, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥6,900
61732-47020 note Panel, Roof Side, Inner LH
2004-08 → 2005-11 ended
NHW20 ¥6,900
61732-47020 Panel, Roof Side, Inner LH
2005-11 → —
NHW20 ¥6,900
61734A — Panel, Roof Side, Inner Front LH
61734-47010 note Panel, Roof Side, Inner Front LH
2004-08 → 2005-11 ended
NHW20 ¥6,900
61734-47010 Panel, Roof Side, Inner Front LH
2003-08 → 2005-11 ended
NHW20 ¥6,900
61734-47010 Panel, Roof Side, Inner Front LH
2005-11 → —
NHW20 ¥6,900
61738D — Reinforcement, Roof Side, Inner LH
61738-47901 Reinforcement, Roof Side, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥13,500
61738-47901 Reinforcement, Roof Side, Inner LH
2005-11 → —
NHW20 ¥13,500
61746A — Reinforcement, Back Door Opening, Lower LH
61745-32010 Reinforcement, Back Door Opening, Lower LH
2003-08 → 2005-11 ended
NHW20 ¥530
61745-32010 Reinforcement, Back Door Opening, Lower LH
2005-11 → —
NHW20 ¥530
61767B — Reinforcement, Belt Anchor TO Roof Side, Inner LH
61767-47010 Reinforcement, Belt Anchor TO Roof Side, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥3,080
61767-47010 note Reinforcement, Belt Anchor TO Roof Side, Inner LH
2004-08 → 2005-11 ended
NHW20 ¥3,080
61767-47010 Reinforcement, Belt Anchor TO Roof Side, Inner LH
2005-11 → —
NHW20 ¥3,080
61824 — Plate, Noise Control, NO.1
61824-12050 Plate, Noise Control, NO.1
2003-08 → 2005-11 ended
NHW20 ¥440
61824-12050 Plate, Noise Control, NO.1
2005-11 → —
NHW20 ¥440
62554B — Pad, Pillar, NO.4
62554-12180 Pad, Pillar, NO.4
2003-08 → 2005-11 ended
NHW20 ¥270
62554-12180 Pad, Pillar, NO.4
2005-11 → —
NHW20 ¥270
65638 — Liner, Rear Wheel House, LH
65638-47010 note Liner, Rear Wheel House, LH
2003-08 → 2005-11 ended
NHW20 ¥5,300
65638-47010 note Liner, Rear Wheel House, LH
2004-08 → 2005-11 ended
NHW20 ¥5,300
65638-47010 note Liner, Rear Wheel House, LH
2005-11 → 2009-03 ended
NHW20 ¥5,300
65638-47010 note Liner, Rear Wheel House, LH
2005-11 → 2009-03 ended
NHW20 G ¥5,300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
