Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

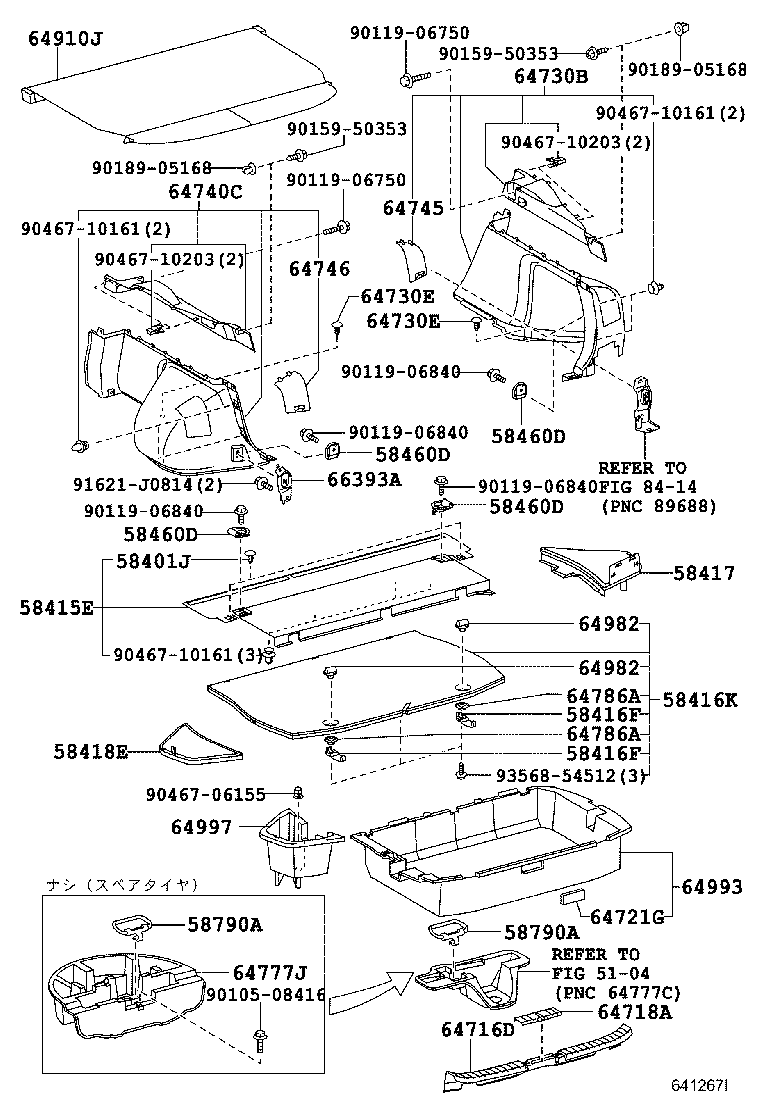

Exploded illustration 641267I 64910J — COVER ASSY, TONNEAU (8 parts) 9018905168 — not listed in this catalogue 64740C — PANEL ASSY, DECK TRIM SIDE, LH (4 parts) 9046710203 — not listed in this catalogue 9046710161 — not listed in this catalogue 9011906750 — not listed in this catalogue 66393A — BRACKET, ROPE HOOK, NO.1 LH (2 parts) 91621J0814 — not listed in this catalogue 64746 — COVER, REAR COMBINATION LAMP SERVICE, LH (4 parts) 64745 — COVER, REAR COMBINATION LAMP SERVICE, RH (4 parts) 9011906840 — not listed in this catalogue 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 9011906840 — not listed in this catalogue 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 58417 — BOARD, REAR FLOOR, NO.3 (4 parts) 9011906840 — not listed in this catalogue 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 9046710161 — not listed in this catalogue 58415E — BOARD, REAR FLOOR, NO.1 (4 parts) 9011906750 — not listed in this catalogue 9015950353 — not listed in this catalogue 64730B — PANEL ASSY, DECK TRIM SIDE, RH (4 parts) 9018905168 — not listed in this catalogue 9046710161 — not listed in this catalogue 58416K — BOARD, REAR FLOOR, NO.2 (4 parts) 64982 — KNOB, COVER (4 parts) 64982 — KNOB, COVER (4 parts) 64786A — PLATE, JACK COVER (2 parts) 64786A — PLATE, JACK COVER (2 parts) 58416F — BRACKET, DECK BOARD, NO.1 (2 parts) 58416F — BRACKET, DECK BOARD, NO.1 (2 parts) 64993 — BOX, DECK FLOOR, REAR (2 parts) 64721G — COVER, DECK TRIM, NO.1 (2 parts) 58401J — CLIP(FOR DECK BOAD) (4 parts) 9356854512 — not listed in this catalogue 58790A — CARRIER ASSY, JACK (2 parts) 64718A — COVER, DECK TRIM SERVICE HOLE (4 parts) 64716D — COVER, DECK TRIM, REAR (4 parts) 9010508416 — not listed in this catalogue 64777J — CUSHION, SPARE WHEEL (6 parts) 58790A — CARRIER ASSY, JACK (2 parts) 64997 — BOX, DECK FLOOR, LH (2 parts) 9046706155 — not listed in this catalogue 58418E — BOARD, REAR FLOOR, NO.4 (4 parts) 9015950353 — not listed in this catalogue 9011906840 — not listed in this catalogue 64730E — CLIP(FOR DECK TRIM SIDE BOARD) (3 parts) 64730E — CLIP(FOR DECK TRIM SIDE BOARD) (3 parts) 9046710203 — not listed in this catalogue 5104 — not listed in this catalogue 8414 — not listed in this catalogue
641267I · 31 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
81 parts on this figure
Part number Description Fitment Price
58401J — Clip(FOR DECK BOAD)
90467-05164-A0 note Clip(FOR DECK BOAD)
2003-08 → 2005-11 ended
NHW20 ¥90
90467-05164-B5 note Clip(FOR DECK BOAD)
2003-08 → 2005-11 ended
NHW20 ¥60
90467-05164-B5 note Clip(FOR DECK BOAD)
2005-11 → 2011-12 ended
NHW20 ¥60
90467-05164-E2 note Clip(FOR DECK BOAD)
2005-11 → 2009-03 ended
NHW20 ¥90
58415E — Board, Rear Floor, NO.1
58415-47010-A2 note Board, Rear Floor, NO.1
2003-08 → 2005-11 ended
NHW20 ¥15,500
58415-47010-B2 note Board, Rear Floor, NO.1
2003-08 → 2005-11 ended
NHW20 ¥15,500
58415-47010-B2 note Board, Rear Floor, NO.1
2005-11 → 2011-12 ended
NHW20 ¥15,500
58415-47010-E0 note Board, Rear Floor, NO.1
2005-11 → 2009-03 ended
NHW20 ¥15,500
58416F — Bracket, Deck Board, NO.1
58457-47010 Bracket, Deck Board, NO.1
2003-08 → 2005-11 ended
NHW20 ¥220
58457-47010 Bracket, Deck Board, NO.1
2005-11 → —
NHW20 ¥220
58416K — Board, Rear Floor, NO.2
58416-47010-A1 note Board, Rear Floor, NO.2
2003-08 → 2005-11 ended
NHW20 ¥27,100
58416-47010-B1 note Board, Rear Floor, NO.2
2003-08 → 2005-11 ended
NHW20 ¥27,000
58416-47010-B1 note Board, Rear Floor, NO.2
2005-11 → 2011-12 ended
NHW20 ¥27,000
58416-47010-E1 note Board, Rear Floor, NO.2
2005-11 → 2009-03 ended
NHW20 ¥27,000
58417 — Board, Rear Floor, NO.3
58490-47020-A1 note Board, Rear Floor, NO.3
2003-08 → 2005-11 ended
NHW20 ¥7,500
58490-47020-B1 note Board, Rear Floor, NO.3
2003-08 → 2005-11 ended
NHW20 ¥7,500
58490-47020-B1 note Board, Rear Floor, NO.3
2005-11 → 2011-12 ended
NHW20 ¥7,500
58490-47020-E0 note Board, Rear Floor, NO.3
2005-11 → 2009-03 ended
NHW20 ¥7,500
58418E — Board, Rear Floor, NO.4
58418-47010-A1 note Board, Rear Floor, NO.4
2003-08 → 2005-11 ended
NHW20 ¥4,950
58418-47010-B1 note Board, Rear Floor, NO.4
2003-08 → 2005-11 ended
NHW20 ¥4,950
58418-47010-B1 note Board, Rear Floor, NO.4
2005-11 → 2011-12 ended
NHW20 ¥4,950
58418-47010-E0 note Board, Rear Floor, NO.4
2005-11 → 2009-03 ended
NHW20 ¥4,950
58460D — Striker Assy, Luggage Hold Belt
58460-33020 Striker Assy, Luggage Hold Belt
2003-08 → 2005-11 ended
NHW20 ¥620
58460-33020 Striker Assy, Luggage Hold Belt
2005-11 → —
NHW20 ¥620
58790A — Carrier Assy, Jack
58790-52020 Carrier Assy, Jack
2003-08 → 2005-11 ended
NHW20 ¥570
58790-52020 Carrier Assy, Jack
2005-11 → —
NHW20 ¥570
64716D — Cover, Deck Trim, Rear
64716-47010-A0 note Cover, Deck Trim, Rear
2003-08 → 2005-11 ended
NHW20 ¥8,100
64716-47010-B0 note Cover, Deck Trim, Rear
2003-08 → 2005-11 ended
NHW20 ¥8,100
64716-47010-B0 note Cover, Deck Trim, Rear
2005-11 → 2011-12 ended
NHW20 ¥8,100
64716-47010-E0 note Cover, Deck Trim, Rear
2005-11 → 2009-03 ended
NHW20 ¥8,100
64718A — Cover, Deck Trim Service Hole
64718-47010-A0 note Cover, Deck Trim Service Hole
2003-08 → 2005-11 ended
NHW20 ¥1,930
64718-47010-B0 note Cover, Deck Trim Service Hole
2003-08 → 2005-11 ended
NHW20 ¥1,930
64718-47010-B0 note Cover, Deck Trim Service Hole
2005-11 → 2011-12 ended
NHW20 ¥1,930
64718-47010-E0 note Cover, Deck Trim Service Hole
2005-11 → 2009-03 ended
NHW20 ¥1,930
64721G — Cover, Deck Trim, NO.1
64721-47010 Cover, Deck Trim, NO.1
2003-08 → 2005-11 ended
NHW20 ¥510
64721-47010 Cover, Deck Trim, NO.1
2005-11 → —
NHW20 ¥510
64730B — Panel Assy, Deck Trim Side, RH
64730-47010-A1 note Panel Assy, Deck Trim Side, RH
2003-08 → 2005-11 ended
NHW20 ¥18,600
64730-47010-B1 note Panel Assy, Deck Trim Side, RH
2003-08 → 2005-11 ended
NHW20 ¥18,600
64730-47010-B2 note Panel Assy, Deck Trim Side, RH
2005-11 → 2011-12 ended
NHW20 ¥18,600
64730-47010-E1 note Panel Assy, Deck Trim Side, RH
2005-11 → 2009-03 ended
NHW20 ¥18,600
64730E — Clip(FOR DECK TRIM SIDE BOARD)
90467-05164-A0 note Clip(FOR DECK TRIM SIDE BOARD)
2003-08 → 2005-11 ended
NHW20 ¥90
90467-05164-B5 note Clip(FOR DECK TRIM SIDE BOARD)
2003-08 → 2005-11 ended
NHW20 ¥60
90467-05164-C0 note Clip(FOR DECK TRIM SIDE BOARD)
2005-11 → 2011-12 ended
NHW20 ¥90
64740C — Panel Assy, Deck Trim Side, LH
64740-47010-A1 note Panel Assy, Deck Trim Side, LH
2003-08 → 2005-11 ended
NHW20 ¥18,600
64740-47010-B1 note Panel Assy, Deck Trim Side, LH
2003-08 → 2005-11 ended
NHW20 ¥18,600
64740-47010-B2 note Panel Assy, Deck Trim Side, LH
2005-11 → 2011-12 ended
NHW20 ¥18,600
64740-47010-E1 note Panel Assy, Deck Trim Side, LH
2005-11 → 2009-03 ended
NHW20 ¥18,600
64745 — Cover, Rear Combination Lamp Service, RH
64745-47020-A0 note Cover, Rear Combination Lamp Service, RH
2003-08 → 2005-11 ended
NHW20 ¥1,930
64745-47020-B0 note Cover, Rear Combination Lamp Service, RH
2003-08 → 2005-11 ended
NHW20 ¥1,930
64745-47020-B0 note Cover, Rear Combination Lamp Service, RH
2005-11 → 2011-12 ended
NHW20 ¥1,930
64745-47020-E0 note Cover, Rear Combination Lamp Service, RH
2005-11 → 2009-03 ended
NHW20 ¥1,930
64746 — Cover, Rear Combination Lamp Service, LH
64746-47010-A0 note Cover, Rear Combination Lamp Service, LH
2003-08 → 2005-11 ended
NHW20 ¥1,930
64746-47010-B0 note Cover, Rear Combination Lamp Service, LH
2003-08 → 2005-11 ended
NHW20 ¥1,930
64746-47010-B0 note Cover, Rear Combination Lamp Service, LH
2005-11 → 2011-12 ended
NHW20 ¥1,930
64746-47010-E0 note Cover, Rear Combination Lamp Service, LH
2005-11 → 2009-03 ended
NHW20 ¥1,930
64777J — Cushion, Spare Wheel
64777-47020 note Cushion, Spare Wheel
2003-08 → 2005-11 ended
NHW20 ¥18,000
64777-47020 note Cushion, Spare Wheel
2003-08 → 2005-11 ended
NHW20 ¥18,000
64777-47020 note Cushion, Spare Wheel
2004-08 → 2005-11 ended
NHW20 ¥18,000
64777-47020 note Cushion, Spare Wheel
2005-11 → 2009-03 ended
NHW20 ¥18,000
64777-47020 note Cushion, Spare Wheel
2005-11 → 2009-03 ended
NHW20 G ¥18,000
64777-47020 note Cushion, Spare Wheel
2005-11 → —
NHW20 ¥18,000
64786A — Plate, Jack Cover
64786-20010 Plate, Jack Cover
2003-08 → 2005-11 ended
NHW20 ¥390
64786-20010 Plate, Jack Cover
2005-11 → —
NHW20 ¥390
64910J — Cover Assy, Tonneau
64910-47010-A0 note Cover Assy, Tonneau
2003-08 → 2005-11 ended
NHW20 ¥27,900
64910-47010-B0 note Cover Assy, Tonneau
2003-08 → 2005-11 ended
NHW20 ¥27,900
64910-47010-B0 note Cover Assy, Tonneau
2005-11 → 2011-12 ended
NHW20 ¥27,900
64910-47010-B0 note Cover Assy, Tonneau
2005-11 → 2011-12 ended
NHW20 ¥27,900
64910-47010-B0 note Cover Assy, Tonneau
2005-11 → 2011-12 ended
NHW20 S ¥27,900
64910-47010-E0 note Cover Assy, Tonneau
2005-11 → 2009-03 ended
NHW20 ¥27,900
64910-47010-E0 note Cover Assy, Tonneau
2005-11 → 2009-03 ended
NHW20 ¥27,900
64910-47010-E0 note Cover Assy, Tonneau
2005-11 → 2009-03 ended
NHW20 S ¥27,900
64982 — Knob, Cover
64982-13010-A0 note Knob, Cover
2003-08 → 2005-11 ended
NHW20 ¥300
64982-13010-B5 note Knob, Cover
2003-08 → 2005-11 ended
NHW20 ¥300
64982-13010-B5 note Knob, Cover
2005-11 → 2011-12 ended
NHW20 ¥300
64982-13010-E1 note Knob, Cover
2005-11 → 2009-03 ended
NHW20 ¥300
64993 — Box, Deck Floor, Rear
64993-47010 Box, Deck Floor, Rear
2003-08 → 2005-11 ended
NHW20 ¥27,900
64993-47010 Box, Deck Floor, Rear
2005-11 → —
NHW20 ¥27,900
64997 — Box, Deck Floor, LH
64997-47010 Box, Deck Floor, LH
2003-08 → 2005-11 ended
NHW20 ¥7,800
64997-47010 Box, Deck Floor, LH
2005-11 → —
NHW20 ¥7,800
66393A — Bracket, Rope Hook, NO.1 LH
66393-47010 Bracket, Rope Hook, NO.1 LH
2003-08 → 2005-11 ended
NHW20 ¥1,090
66393-47010 Bracket, Rope Hook, NO.1 LH
2005-11 → —
NHW20 ¥1,090
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
