Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

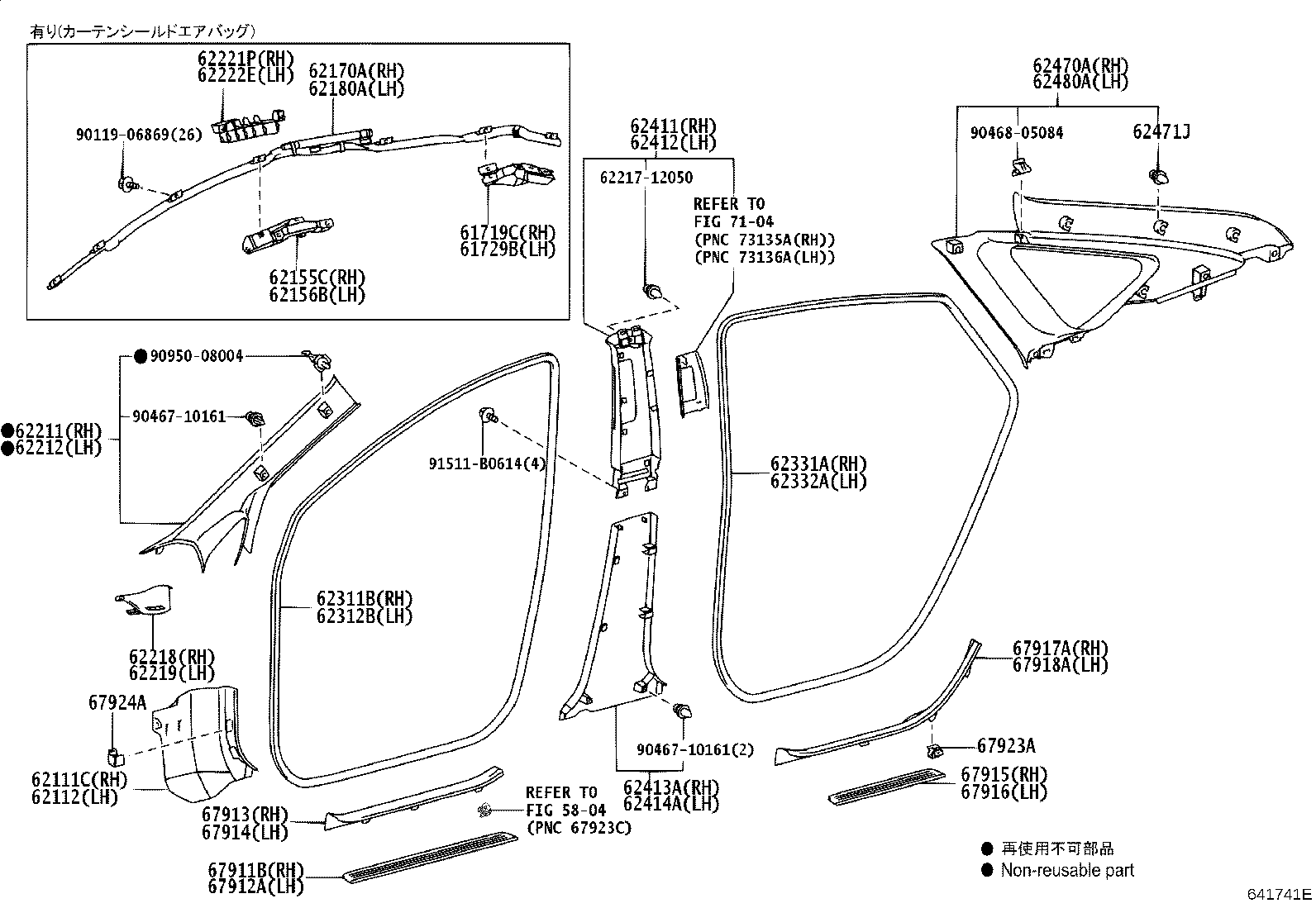

Exploded illustration 641741E 62470A — GARNISH ASSY, ROOF SIDE, INNER RH (8 parts) 62480A — GARNISH ASSY, ROOF SIDE, INNER LH (8 parts) 62471J — CLIP (FOR ROOF SIDE GARNISH) (2 parts) 9046805084 — not listed in this catalogue 62331A — WEATHERSTRIP, REAR DOOR OPENING TRIM, RH (4 parts) 62332A — WEATHERSTRIP, REAR DOOR OPENING TRIM, LH (4 parts) 62412 — GARNISH, CENTER PILLAR, LH (20 parts) 62411 — GARNISH, CENTER PILLAR, RH (20 parts) 61719C — BRACKET, ROOF SIDE RAIL, RH (2 parts) 61729B — BRACKET, ROOF SIDE RAIL, LH (2 parts) 62155C — BRACKET, CURTAIN SHIELD AIRBAG, RH (2 parts) 62156B — BRACKET, CURTAIN SHIELD AIRBAG, LH (2 parts) 62170A — AIRBAG ASSY, CURTAIN SHIELD, RH (2 parts) 62180A — AIRBAG ASSY, CURTAIN SHIELD, LH (2 parts) 62211 — GARNISH, FRONT PILLAR, RH (28 parts) 62212 — GARNISH, FRONT PILLAR, LH (28 parts) 9095008004 — not listed in this catalogue 62111C — BOARD, COWL SIDE TRIM, RH (4 parts) 62112 — BOARD, COWL SIDE TRIM, LH (4 parts) 62218 — PIECE, FRONT PILLAR GARNISH CORNER, RH (20 parts) 62219 — PIECE, FRONT PILLAR GARNISH CORNER, LH (20 parts) 62311B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH (4 parts) 62312B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH (4 parts) 62413A — GARNISH, CENTER PILLAR, LOWER RH (4 parts) 62414A — GARNISH, CENTER PILLAR, LOWER LH (4 parts) 67915 — PLATE, REAR DOOR SCUFF, OUTSIDE RH (3 parts) 67916 — PLATE, REAR DOOR SCUFF, OUTSIDE LH (3 parts) 67913 — PLATE, FRONT DOOR SCUFF, RH (5 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (5 parts) 67911B — PLATE, FRONT DOOR SCUFF, OUTSIDE, RH (3 parts) 67912A — PLATE, FRONT DOOR SCUFF, OUTSIDE LH (3 parts) 67917A — PLATE, REAR DOOR SCUFF, RH (4 parts) 67918A — PLATE, REAR DOOR SCUFF, LH (4 parts) 67923A — CLAMP, DOOR SCUFF PLATE, NO.1 (4 parts) 67924A — CLAMP, DOOR SCUFF PLATE, NO.2 (2 parts) 91511B0614 — not listed in this catalogue 6221712050 — not listed in this catalogue 9046710161 — not listed in this catalogue 9046710161 — not listed in this catalogue 9011906869 — not listed in this catalogue 62221P — SPACER, FRONT PILLAR, NO.1 RH (2 parts) 62222E — SPACER, FRONT PILLAR, NO.1 LH (2 parts) 5804 — not listed in this catalogue 7104 — not listed in this catalogue
641741E · 35 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
238 parts on this figure
Part number Description Fitment Price
61719C — Bracket, Roof Side Rail, RH
61719-47020 note Bracket, Roof Side Rail, RH
2003-08 → 2005-11 ended
NHW20 ¥2,110
61719-47020 note Bracket, Roof Side Rail, RH
2005-11 → —
NHW20 ¥2,110
61729B — Bracket, Roof Side Rail, LH
61729-47010 note Bracket, Roof Side Rail, LH
2003-08 → 2005-11 ended
NHW20 ¥2,110
61729-47010 note Bracket, Roof Side Rail, LH
2005-11 → —
NHW20 ¥2,110
62111C — Board, Cowl Side Trim, RH
62111-47030-A0 note Board, Cowl Side Trim, RH
2003-08 → 2005-11 ended
NHW20 ¥3,780
62111-47030-B0 note Board, Cowl Side Trim, RH
2003-08 → 2005-11 ended
NHW20 ¥3,780
62111-47030-B0 note Board, Cowl Side Trim, RH
2005-11 → 2011-12 ended
NHW20 ¥3,780
62111-47030-E0 note Board, Cowl Side Trim, RH
2005-11 → 2009-03 ended
NHW20 ¥3,780
62112 — Board, Cowl Side Trim, LH
62112-47030-A0 note Board, Cowl Side Trim, LH
2003-08 → 2005-11 ended
NHW20 ¥3,890
62112-47030-B0 note Board, Cowl Side Trim, LH
2003-08 → 2005-11 ended
NHW20 ¥3,890
62112-47030-B0 note Board, Cowl Side Trim, LH
2005-11 → 2011-12 ended
NHW20 ¥3,890
62112-47030-E0 note Board, Cowl Side Trim, LH
2005-11 → 2009-03 ended
NHW20 ¥3,890
62155C — Bracket, Curtain Shield Airbag, RH
62155-47010 note Bracket, Curtain Shield Airbag, RH
2003-08 → 2005-11 ended
NHW20 ¥1,520
62155-47010 note Bracket, Curtain Shield Airbag, RH
2005-11 → —
NHW20 ¥1,520
62156B — Bracket, Curtain Shield Airbag, LH
62156-47010 note Bracket, Curtain Shield Airbag, LH
2003-08 → 2005-11 ended
NHW20 ¥1,520
62156-47010 note Bracket, Curtain Shield Airbag, LH
2005-11 → —
NHW20 ¥1,520
62170A — Airbag Assy, Curtain Shield, RH
62170-47010 note Airbag Assy, Curtain Shield, RH
2003-08 → 2005-11 ended
NHW20 ¥44,300
62170-47010 note Airbag Assy, Curtain Shield, RH
2005-11 → —
NHW20 ¥44,300
62180A — Airbag Assy, Curtain Shield, LH
62180-47010 note Airbag Assy, Curtain Shield, LH
2003-08 → 2005-11 ended
NHW20 ¥44,300
62180-47010 note Airbag Assy, Curtain Shield, LH
2005-11 → —
NHW20 ¥44,300
62211 — Garnish, Front Pillar, RH
62210-47020-A1 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥10,700
62210-47020-B1 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥10,700
62210-47030-A1 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥13,300
62210-47030-B1 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥13,300
62210-47040-A0 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 G ¥11,400
62210-47040-A0 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥11,400
62210-47040-A0 note Garnish, Front Pillar, RH
2004-08 → 2005-11 ended
NHW20 S ¥11,400
62210-47040-B0 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 G ¥11,300
62210-47040-B0 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥11,300
62210-47040-B0 note Garnish, Front Pillar, RH
2004-08 → 2005-11 ended
NHW20 S ¥11,300
62210-47050-A0 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥13,600
62210-47050-A0 note Garnish, Front Pillar, RH
2004-08 → 2005-11 ended
NHW20 S ¥13,600
62210-47050-A0 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 G ¥13,600
62210-47050-B0 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 G ¥13,600
62210-47050-B0 note Garnish, Front Pillar, RH
2004-08 → 2005-11 ended
NHW20 S ¥13,600
62210-47050-B0 note Garnish, Front Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥13,600
62210-47020-B1 note Garnish, Front Pillar, RH
2005-11 → 2011-12 ended
NHW20 S ¥10,700
62210-47020-E0 note Garnish, Front Pillar, RH
2005-11 → 2009-03 ended
NHW20 S ¥10,700
62210-47030-B1 note Garnish, Front Pillar, RH
2005-11 → 2011-12 ended
NHW20 S ¥13,300
62210-47030-E0 note Garnish, Front Pillar, RH
2005-11 → 2009-03 ended
NHW20 S ¥13,300
62210-47040-B0 note Garnish, Front Pillar, RH
2005-11 → 2009-03 ended
NHW20 G ¥11,300
62210-47040-B0 note Garnish, Front Pillar, RH
2005-11 → 2009-03 ended
NHW20 S ¥11,300
62210-47040-E0 note Garnish, Front Pillar, RH
2005-11 → 2009-03 ended
NHW20 G ¥11,300
62210-47040-E0 note Garnish, Front Pillar, RH
2005-11 → 2009-03 ended
NHW20 S ¥11,300
62210-47050-B0 note Garnish, Front Pillar, RH
2005-11 → 2009-03 ended
NHW20 S ¥13,600
62210-47050-B0 note Garnish, Front Pillar, RH
2005-11 → 2009-03 ended
NHW20 G ¥13,600
62210-47050-E0 note Garnish, Front Pillar, RH
2005-11 → 2009-03 ended
NHW20 S ¥13,600
62210-47050-E0 note Garnish, Front Pillar, RH
2005-11 → 2009-03 ended
NHW20 G ¥13,600
62212 — Garnish, Front Pillar, LH
62220-47020-A1 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥10,700
62220-47020-B1 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥10,700
62220-47030-A1 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥13,300
62220-47030-B1 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥13,300
62220-47040-A0 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 G ¥11,400
62220-47040-A0 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥11,400
62220-47040-A0 note Garnish, Front Pillar, LH
2004-08 → 2005-11 ended
NHW20 S ¥11,400
62220-47040-B0 note Garnish, Front Pillar, LH
2004-08 → 2005-11 ended
NHW20 S ¥11,300
62220-47040-B0 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥11,300
62220-47040-B0 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 G ¥11,300
62220-47050-A0 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥13,900
62220-47050-A0 note Garnish, Front Pillar, LH
2004-08 → 2005-11 ended
NHW20 S ¥13,900
62220-47050-A0 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 G ¥13,900
62220-47050-B0 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 G ¥13,600
62220-47050-B0 note Garnish, Front Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥13,600
62220-47050-B0 note Garnish, Front Pillar, LH
2004-08 → 2005-11 ended
NHW20 S ¥13,600
62220-47020-B1 note Garnish, Front Pillar, LH
2005-11 → 2011-12 ended
NHW20 S ¥10,700
62220-47020-E0 note Garnish, Front Pillar, LH
2005-11 → 2009-03 ended
NHW20 S ¥10,700
62220-47030-B1 note Garnish, Front Pillar, LH
2005-11 → 2011-12 ended
NHW20 S ¥13,300
62220-47030-E0 note Garnish, Front Pillar, LH
2005-11 → 2009-03 ended
NHW20 S ¥13,300
62220-47040-B0 note Garnish, Front Pillar, LH
2005-11 → 2009-03 ended
NHW20 G ¥11,300
62220-47040-B0 note Garnish, Front Pillar, LH
2005-11 → 2009-03 ended
NHW20 S ¥11,300
62220-47040-E0 note Garnish, Front Pillar, LH
2005-11 → 2009-03 ended
NHW20 G ¥11,300
62220-47040-E0 note Garnish, Front Pillar, LH
2005-11 → 2009-03 ended
NHW20 S ¥11,300
62220-47050-B0 note Garnish, Front Pillar, LH
2005-11 → 2009-03 ended
NHW20 S ¥13,600
62220-47050-B0 note Garnish, Front Pillar, LH
2005-11 → 2009-03 ended
NHW20 G ¥13,600
62220-47050-E0 note Garnish, Front Pillar, LH
2005-11 → 2009-03 ended
NHW20 G ¥13,600
62220-47050-E0 note Garnish, Front Pillar, LH
2005-11 → 2009-03 ended
NHW20 S ¥13,600
62218 — Piece, Front Pillar Garnish Corner, RH
62218-47010-A0 note Piece, Front Pillar Garnish Corner, RH
2003-08 → 2005-11 ended
NHW20 S ¥1,530
62218-47010-B0 note Piece, Front Pillar Garnish Corner, RH
2003-08 → 2005-11 ended
NHW20 S ¥1,530
62218-47020-A1 note Piece, Front Pillar Garnish Corner, RH
2003-08 → 2005-11 ended
NHW20 G ¥1,560
62218-47020-A1 note Piece, Front Pillar Garnish Corner, RH
2003-08 → 2005-11 ended
NHW20 S ¥1,560
62218-47020-A1 note Piece, Front Pillar Garnish Corner, RH
2003-08 → 2005-11 ended
NHW20 S ¥1,560
62218-47020-A1 note Piece, Front Pillar Garnish Corner, RH
2004-08 → 2005-11 ended
NHW20 S ¥1,560
62218-47020-A1 note Piece, Front Pillar Garnish Corner, RH
2004-08 → 2005-11 ended
NHW20 S ¥1,560
62218-47020-B1 note Piece, Front Pillar Garnish Corner, RH
2003-08 → 2005-11 ended
NHW20 G ¥1,550
62218-47020-B1 note Piece, Front Pillar Garnish Corner, RH
2003-08 → 2005-11 ended
NHW20 S ¥1,550
62218-47020-B1 note Piece, Front Pillar Garnish Corner, RH
2003-08 → 2005-11 ended
NHW20 S ¥1,550
62218-47020-B1 note Piece, Front Pillar Garnish Corner, RH
2004-08 → 2005-11 ended
NHW20 S ¥1,550
62218-47020-B1 note Piece, Front Pillar Garnish Corner, RH
2004-08 → 2005-11 ended
NHW20 S ¥1,550
62218-47010-B0 note Piece, Front Pillar Garnish Corner, RH
2005-11 → 2011-12 ended
NHW20 S ¥1,530
62218-47010-E0 note Piece, Front Pillar Garnish Corner, RH
2005-11 → 2009-03 ended
NHW20 S ¥1,530
62218-47020-B1 note Piece, Front Pillar Garnish Corner, RH
2005-11 → 2009-03 ended
NHW20 S ¥1,550
62218-47020-B1 note Piece, Front Pillar Garnish Corner, RH
2005-11 → 2009-03 ended
NHW20 G ¥1,550
62218-47020-B1 note Piece, Front Pillar Garnish Corner, RH
2005-11 → 2009-03 ended
NHW20 S ¥1,550
62218-47020-E0 note Piece, Front Pillar Garnish Corner, RH
2005-11 → 2009-03 ended
NHW20 G ¥1,550
62218-47020-E0 note Piece, Front Pillar Garnish Corner, RH
2005-11 → 2009-03 ended
NHW20 S ¥1,550
62218-47020-E0 note Piece, Front Pillar Garnish Corner, RH
2005-11 → 2009-03 ended
NHW20 S ¥1,550
62219 — Piece, Front Pillar Garnish Corner, LH
62219-47010-A0 note Piece, Front Pillar Garnish Corner, LH
2003-08 → 2005-11 ended
NHW20 S ¥1,530
62219-47010-B0 note Piece, Front Pillar Garnish Corner, LH
2003-08 → 2005-11 ended
NHW20 S ¥1,530
62219-47020-A1 note Piece, Front Pillar Garnish Corner, LH
2004-08 → 2005-11 ended
NHW20 S ¥1,560
62219-47020-A1 note Piece, Front Pillar Garnish Corner, LH
2004-08 → 2005-11 ended
NHW20 S ¥1,560
62219-47020-A1 note Piece, Front Pillar Garnish Corner, LH
2003-08 → 2005-11 ended
NHW20 S ¥1,560
62219-47020-A1 note Piece, Front Pillar Garnish Corner, LH
2003-08 → 2005-11 ended
NHW20 G ¥1,560
62219-47020-A1 note Piece, Front Pillar Garnish Corner, LH
2003-08 → 2005-11 ended
NHW20 S ¥1,560
62219-47020-B1 note Piece, Front Pillar Garnish Corner, LH
2003-08 → 2005-11 ended
NHW20 G ¥1,550
62219-47020-B1 note Piece, Front Pillar Garnish Corner, LH
2003-08 → 2005-11 ended
NHW20 S ¥1,550
62219-47020-B1 note Piece, Front Pillar Garnish Corner, LH
2003-08 → 2005-11 ended
NHW20 S ¥1,550
62219-47020-B1 note Piece, Front Pillar Garnish Corner, LH
2004-08 → 2005-11 ended
NHW20 S ¥1,550
62219-47020-B1 note Piece, Front Pillar Garnish Corner, LH
2004-08 → 2005-11 ended
NHW20 S ¥1,550
62219-47010-B0 note Piece, Front Pillar Garnish Corner, LH
2005-11 → 2011-12 ended
NHW20 S ¥1,530
62219-47010-E0 note Piece, Front Pillar Garnish Corner, LH
2005-11 → 2009-03 ended
NHW20 S ¥1,530
62219-47020-B1 note Piece, Front Pillar Garnish Corner, LH
2005-11 → 2009-03 ended
NHW20 S ¥1,550
62219-47020-B1 note Piece, Front Pillar Garnish Corner, LH
2005-11 → 2009-03 ended
NHW20 S ¥1,550
62219-47020-B1 note Piece, Front Pillar Garnish Corner, LH
2005-11 → 2009-03 ended
NHW20 G ¥1,550
62219-47020-E0 note Piece, Front Pillar Garnish Corner, LH
2005-11 → 2009-03 ended
NHW20 G ¥1,550
62219-47020-E0 note Piece, Front Pillar Garnish Corner, LH
2005-11 → 2009-03 ended
NHW20 S ¥1,550
62219-47020-E0 note Piece, Front Pillar Garnish Corner, LH
2005-11 → 2009-03 ended
NHW20 S ¥1,550
62221P — Spacer, Front Pillar, NO.1 RH
62221-47040 note Spacer, Front Pillar, NO.1 RH
2003-08 → 2005-11 ended
NHW20 ¥1,150
62221-47040 note Spacer, Front Pillar, NO.1 RH
2005-11 → —
NHW20 ¥1,150
62222E — Spacer, Front Pillar, NO.1 LH
62222-47030 note Spacer, Front Pillar, NO.1 LH
2003-08 → 2005-11 ended
NHW20 ¥1,150
62222-47030 note Spacer, Front Pillar, NO.1 LH
2005-11 → —
NHW20 ¥1,150
62311B — Weatherstrip, Front Door Opening Trim, RH
62311-47020-A0 note Weatherstrip, Front Door Opening Trim, RH
2003-08 → 2005-11 ended
NHW20 ¥10,200
62311-47020-B0 note Weatherstrip, Front Door Opening Trim, RH
2003-08 → 2005-11 ended
NHW20 ¥10,200
62311-47020-B0 note Weatherstrip, Front Door Opening Trim, RH
2005-11 → 2011-12 ended
NHW20 ¥10,200
62311-47020-E0 note Weatherstrip, Front Door Opening Trim, RH
2005-11 → 2009-03 ended
NHW20 ¥10,200
62312B — Weatherstrip, Front Door Opening Trim, LH
62312-47020-A0 note Weatherstrip, Front Door Opening Trim, LH
2003-08 → 2005-11 ended
NHW20 ¥10,200
62312-47020-B0 note Weatherstrip, Front Door Opening Trim, LH
2003-08 → 2005-11 ended
NHW20 ¥10,200
62312-47020-B0 note Weatherstrip, Front Door Opening Trim, LH
2005-11 → 2011-12 ended
NHW20 ¥10,200
62312-47020-E0 note Weatherstrip, Front Door Opening Trim, LH
2005-11 → 2009-03 ended
NHW20 ¥10,200
62331A — Weatherstrip, Rear Door Opening Trim, RH
62331-47020-A0 note Weatherstrip, Rear Door Opening Trim, RH
2003-08 → 2005-11 ended
NHW20 ¥9,300
62331-47020-B0 note Weatherstrip, Rear Door Opening Trim, RH
2003-08 → 2005-11 ended
NHW20 ¥9,300
62331-47020-B0 note Weatherstrip, Rear Door Opening Trim, RH
2005-11 → 2011-12 ended
NHW20 ¥9,300
62331-47020-E0 note Weatherstrip, Rear Door Opening Trim, RH
2005-11 → 2009-03 ended
NHW20 ¥9,300
62332A — Weatherstrip, Rear Door Opening Trim, LH
62332-47020-A0 note Weatherstrip, Rear Door Opening Trim, LH
2003-08 → 2005-11 ended
NHW20 ¥9,300
62332-47020-B0 note Weatherstrip, Rear Door Opening Trim, LH
2003-08 → 2005-11 ended
NHW20 ¥9,300
62332-47020-B0 note Weatherstrip, Rear Door Opening Trim, LH
2005-11 → 2011-12 ended
NHW20 ¥9,300
62332-47020-E0 note Weatherstrip, Rear Door Opening Trim, LH
2005-11 → 2009-03 ended
NHW20 ¥9,300
62411 — Garnish, Center Pillar, RH
62410-47030-A0 note Garnish, Center Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥7,200
62410-47030-B0 note Garnish, Center Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥7,200
62410-47040-A1 note Garnish, Center Pillar, RH
2003-08 → 2005-11 ended
NHW20 G ¥9,100
62410-47040-A1 note Garnish, Center Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥9,100
62410-47040-A1 note Garnish, Center Pillar, RH
2004-08 → 2005-11 ended
NHW20 S ¥9,100
62410-47040-B1 note Garnish, Center Pillar, RH
2003-08 → 2005-11 ended
NHW20 G ¥9,100
62410-47040-B1 note Garnish, Center Pillar, RH
2003-08 → 2005-11 ended
NHW20 S ¥9,100
62410-47040-B1 note Garnish, Center Pillar, RH
2004-08 → 2005-11 ended
NHW20 S ¥9,100
62410-47030-B0 note Garnish, Center Pillar, RH
2005-11 → 2008-02 ended
NHW20 S ¥7,200
62410-47030-B2 note Garnish, Center Pillar, RH
2008-02 → 2011-12 ended
NHW20 S ¥7,200
62410-47030-E0 note Garnish, Center Pillar, RH
2005-11 → 2008-02 ended
NHW20 S ¥7,200
62410-47030-E1 note Garnish, Center Pillar, RH
2008-02 → 2009-03 ended
NHW20 S ¥7,200
62410-47040-B1 note Garnish, Center Pillar, RH
2005-11 → 2008-02 ended
NHW20 S ¥9,100
62410-47040-B1 note Garnish, Center Pillar, RH
2005-11 → 2008-02 ended
NHW20 G ¥9,100
62410-47040-B2 note Garnish, Center Pillar, RH
2008-02 → 2009-03 ended
NHW20 G ¥9,100
62410-47040-B2 note Garnish, Center Pillar, RH
2008-02 → 2009-03 ended
NHW20 S ¥9,100
62410-47040-E0 note Garnish, Center Pillar, RH
2005-11 → 2008-02 ended
NHW20 S ¥9,100
62410-47040-E0 note Garnish, Center Pillar, RH
2005-11 → 2008-02 ended
NHW20 G ¥9,100
62410-47040-E1 note Garnish, Center Pillar, RH
2008-02 → 2009-03 ended
NHW20 G ¥9,100
62410-47040-E1 note Garnish, Center Pillar, RH
2008-02 → 2009-03 ended
NHW20 S ¥9,100
62412 — Garnish, Center Pillar, LH
62420-47030-A0 note Garnish, Center Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥7,200
62420-47030-B0 note Garnish, Center Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥7,200
62420-47040-A1 note Garnish, Center Pillar, LH
2003-08 → 2005-11 ended
NHW20 G ¥9,100
62420-47040-A1 note Garnish, Center Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥9,100
62420-47040-A1 note Garnish, Center Pillar, LH
2004-08 → 2005-11 ended
NHW20 S ¥9,100
62420-47040-B1 note Garnish, Center Pillar, LH
2004-08 → 2005-11 ended
NHW20 S ¥9,100
62420-47040-B1 note Garnish, Center Pillar, LH
2003-08 → 2005-11 ended
NHW20 G ¥9,100
62420-47040-B1 note Garnish, Center Pillar, LH
2003-08 → 2005-11 ended
NHW20 S ¥9,100
62420-47030-B0 note Garnish, Center Pillar, LH
2005-11 → 2008-02 ended
NHW20 S ¥7,200
62420-47030-B2 note Garnish, Center Pillar, LH
2008-02 → 2011-12 ended
NHW20 S ¥7,200
62420-47030-E0 note Garnish, Center Pillar, LH
2005-11 → 2008-02 ended
NHW20 S ¥7,200
62420-47030-E1 note Garnish, Center Pillar, LH
2008-02 → 2009-03 ended
NHW20 S ¥7,200
62420-47040-B1 note Garnish, Center Pillar, LH
2005-11 → 2008-02 ended
NHW20 S ¥9,100
62420-47040-B1 note Garnish, Center Pillar, LH
2005-11 → 2008-02 ended
NHW20 G ¥9,100
62420-47040-B2 note Garnish, Center Pillar, LH
2008-02 → 2009-03 ended
NHW20 G ¥9,100
62420-47040-B2 note Garnish, Center Pillar, LH
2008-02 → 2009-03 ended
NHW20 S ¥9,100
62420-47040-E0 note Garnish, Center Pillar, LH
2005-11 → 2008-02 ended
NHW20 G ¥9,100
62420-47040-E0 note Garnish, Center Pillar, LH
2005-11 → 2008-02 ended
NHW20 S ¥9,100
62420-47040-E1 note Garnish, Center Pillar, LH
2008-02 → 2009-03 ended
NHW20 G ¥9,100
62420-47040-E1 note Garnish, Center Pillar, LH
2008-02 → 2009-03 ended
NHW20 S ¥9,100
62413A — Garnish, Center Pillar, Lower RH
62413-47020-A0 note Garnish, Center Pillar, Lower RH
2003-08 → 2005-11 ended
NHW20 ¥8,400
62413-47020-B0 note Garnish, Center Pillar, Lower RH
2003-08 → 2005-11 ended
NHW20 ¥8,200
62413-47020-B0 note Garnish, Center Pillar, Lower RH
2005-11 → 2011-12 ended
NHW20 ¥8,200
62413-47020-E0 note Garnish, Center Pillar, Lower RH
2005-11 → 2009-03 ended
NHW20 ¥8,200
62414A — Garnish, Center Pillar, Lower LH
62414-47020-A0 note Garnish, Center Pillar, Lower LH
2003-08 → 2005-11 ended
NHW20 ¥8,400
62414-47020-B0 note Garnish, Center Pillar, Lower LH
2003-08 → 2005-11 ended
NHW20 ¥8,200
62414-47020-B0 note Garnish, Center Pillar, Lower LH
2005-11 → 2011-12 ended
NHW20 ¥8,200
62414-47020-E0 note Garnish, Center Pillar, Lower LH
2005-11 → 2009-03 ended
NHW20 ¥8,200
62470A — Garnish Assy, Roof Side, Inner RH
62470-47020-A0 note Garnish Assy, Roof Side, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥14,800
62470-47020-B0 note Garnish Assy, Roof Side, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥14,800
62470-47030-A0 note Garnish Assy, Roof Side, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥14,800
62470-47030-B0 note Garnish Assy, Roof Side, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥14,800
62470-47040-B0 note Garnish Assy, Roof Side, Inner RH
2005-11 → 2011-12 ended
NHW20 ¥14,600
62470-47040-E0 note Garnish Assy, Roof Side, Inner RH
2005-11 → 2009-03 ended
NHW20 ¥14,600
62470-47050-B0 note Garnish Assy, Roof Side, Inner RH
2005-11 → 2011-12 ended
NHW20 ¥14,600
62470-47050-E0 note Garnish Assy, Roof Side, Inner RH
2005-11 → 2009-03 ended
NHW20 ¥14,600
62471J — Clip (FOR ROOF SIDE GARNISH)
90467-10161 Clip (FOR ROOF SIDE GARNISH)
2003-08 → 2005-11 ended
NHW20 ¥90
90467-10161 Clip (FOR ROOF SIDE GARNISH)
2005-11 → —
NHW20 ¥90
62480A — Garnish Assy, Roof Side, Inner LH
62480-47020-A0 note Garnish Assy, Roof Side, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥14,800
62480-47020-B0 note Garnish Assy, Roof Side, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥14,800
62480-47030-A0 note Garnish Assy, Roof Side, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥14,800
62480-47030-B0 note Garnish Assy, Roof Side, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥14,800
62480-47020-B0 note Garnish Assy, Roof Side, Inner LH
2005-11 → 2011-12 ended
NHW20 ¥14,800
62480-47020-E0 note Garnish Assy, Roof Side, Inner LH
2005-11 → 2009-03 ended
NHW20 ¥14,800
62480-47030-B0 note Garnish Assy, Roof Side, Inner LH
2005-11 → 2011-12 ended
NHW20 ¥14,800
62480-47030-E0 note Garnish Assy, Roof Side, Inner LH
2005-11 → 2009-03 ended
NHW20 ¥14,800
67911B — Plate, Front Door Scuff, Outside, RH
67911-63010-C0 note Plate, Front Door Scuff, Outside, RH
2003-08 → 2005-11 ended
NHW20 ¥2,190
67911-47020 Plate, Front Door Scuff, Outside, RH
2006-11 → —
NHW20 ¥2,190
67911-63010-C0 note Plate, Front Door Scuff, Outside, RH
2005-11 → 2006-10 ended
NHW20 ¥2,190
67912A — Plate, Front Door Scuff, Outside LH
67911-63010-C0 note Plate, Front Door Scuff, Outside LH
2003-08 → 2005-11 ended
NHW20 ¥2,190
67911-47020 Plate, Front Door Scuff, Outside LH
2006-11 → —
NHW20 ¥2,190
67911-63010-C0 note Plate, Front Door Scuff, Outside LH
2005-11 → 2006-10 ended
NHW20 ¥2,190
67913 — Plate, Front Door Scuff, RH
67913-47020-A0 note Plate, Front Door Scuff, RH
2003-08 → 2005-11 ended
NHW20 ¥3,040
67913-47020-B0 note Plate, Front Door Scuff, RH
2003-08 → 2005-11 ended
NHW20 ¥3,030
67913-47020-B0 note Plate, Front Door Scuff, RH
2005-11 → 2010-01 ended
NHW20 ¥3,030
67913-47020-E0 note Plate, Front Door Scuff, RH
2005-11 → 2009-03 ended
NHW20 ¥3,030
67913-47021-B0 note Plate, Front Door Scuff, RH
2010-02 → 2011-12 ended
NHW20 ¥3,030
67914 — Plate, Front Door Scuff, LH
67914-47020-A0 note Plate, Front Door Scuff, LH
2003-08 → 2005-11 ended
NHW20 ¥3,040
67914-47020-B0 note Plate, Front Door Scuff, LH
2003-08 → 2005-11 ended
NHW20 ¥3,030
67914-47020-B0 note Plate, Front Door Scuff, LH
2005-11 → 2010-01 ended
NHW20 ¥3,030
67914-47020-E0 note Plate, Front Door Scuff, LH
2005-11 → 2009-03 ended
NHW20 ¥3,030
67914-47021-B0 note Plate, Front Door Scuff, LH
2010-02 → 2011-12 ended
NHW20 ¥3,030
67915 — Plate, Rear Door Scuff, Outside RH
67915-63010-C0 note Plate, Rear Door Scuff, Outside RH
2003-08 → 2005-11 ended
NHW20 ¥2,190
67915-47020 Plate, Rear Door Scuff, Outside RH
2006-11 → —
NHW20 ¥2,190
67915-63010-C0 note Plate, Rear Door Scuff, Outside RH
2005-11 → 2006-10 ended
NHW20 ¥2,190
67916 — Plate, Rear Door Scuff, Outside LH
67915-63010-C0 note Plate, Rear Door Scuff, Outside LH
2003-08 → 2005-11 ended
NHW20 ¥2,190
67915-47020 Plate, Rear Door Scuff, Outside LH
2006-11 → —
NHW20 ¥2,190
67915-63010-C0 note Plate, Rear Door Scuff, Outside LH
2005-11 → 2006-10 ended
NHW20 ¥2,190
67917A — Plate, Rear Door Scuff, RH
67917-47020-A0 note Plate, Rear Door Scuff, RH
2003-08 → 2005-11 ended
NHW20 ¥3,030
67917-47020-B0 note Plate, Rear Door Scuff, RH
2003-08 → 2005-11 ended
NHW20 ¥3,030
67917-47020-B0 note Plate, Rear Door Scuff, RH
2005-11 → 2011-12 ended
NHW20 ¥3,030
67917-47020-E0 note Plate, Rear Door Scuff, RH
2005-11 → 2009-03 ended
NHW20 ¥3,030
67918A — Plate, Rear Door Scuff, LH
67918-47020-A0 note Plate, Rear Door Scuff, LH
2003-08 → 2005-11 ended
NHW20 ¥3,030
67918-47020-B0 note Plate, Rear Door Scuff, LH
2003-08 → 2005-11 ended
NHW20 ¥3,030
67918-47020-B0 note Plate, Rear Door Scuff, LH
2005-11 → 2011-12 ended
NHW20 ¥3,030
67918-47020-E0 note Plate, Rear Door Scuff, LH
2005-11 → 2009-03 ended
NHW20 ¥3,030
67923A — Clamp, Door Scuff Plate, NO.1
67923-20090 note Clamp, Door Scuff Plate, NO.1
2003-08 → 2005-11 ended
NHW20 ¥110
67923-47030 note Clamp, Door Scuff Plate, NO.1
2003-08 → 2005-11 ended
NHW20 ¥120
67923-20090 note Clamp, Door Scuff Plate, NO.1
2005-11 → 2011-12 ended
NHW20 ¥110
67923-47030 note Clamp, Door Scuff Plate, NO.1
2005-11 → 2011-12 ended
NHW20 ¥120
67924A — Clamp, Door Scuff Plate, NO.2
67924-46010 Clamp, Door Scuff Plate, NO.2
2003-08 → 2005-11 ended
NHW20 ¥240
67924-46010 Clamp, Door Scuff Plate, NO.2
2005-11 → —
NHW20 ¥240
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
