Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

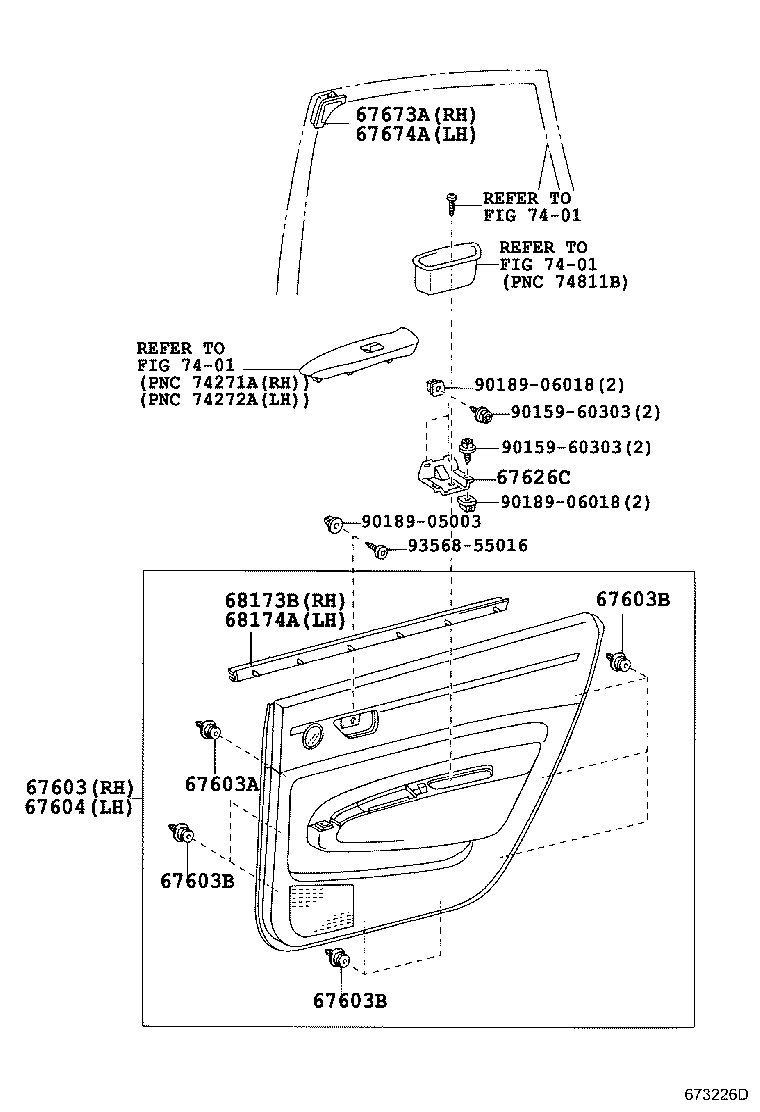

Exploded illustration 673226D 67673A — GARNISH, REAR DOOR FRAME, RH (2 parts) 67674A — GARNISH, REAR DOOR FRAME, LH (2 parts) 9018906018 — not listed in this catalogue 9018906018 — not listed in this catalogue 9015960303 — not listed in this catalogue 9015960303 — not listed in this catalogue 67626C — BRACKET, REAR DOOR TRIM, NO.2 (2 parts) 9018905003 — not listed in this catalogue 9356855016 — not listed in this catalogue 67603B — CLIP(FOR REAR DOOR TRIM BOARD) (2 parts) 67603B — CLIP(FOR REAR DOOR TRIM BOARD) (2 parts) 67603B — CLIP(FOR REAR DOOR TRIM BOARD) (2 parts) 67603A — RETAINER(FOR REAR DOOR TRIM BOARD) (2 parts) 67603 — BOARD SUB-ASSY, REAR DOOR TRIM, RH (14 parts) 67604 — BOARD SUB-ASSY, REAR DOOR TRIM, LH (14 parts) 68173B — WEATHERSTRIP, REAR DOOR GLASS, INNER RH (2 parts) 68174A — WEATHERSTRIP, REAR DOOR GLASS, INNER LH (2 parts) 7401 — not listed in this catalogue 7401 — not listed in this catalogue 7401 — not listed in this catalogue
673226D · 11 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
67603 — Board Sub-assy, Rear Door Trim, RH
67630-47070-D0 note Board Sub-assy, Rear Door Trim, RH
2003-08 → 2005-11 ended
NHW20 ¥33,500
67630-47070-E0 note Board Sub-assy, Rear Door Trim, RH
2003-08 → 2005-11 ended
NHW20 ¥33,500
67630-47070-E1 note Board Sub-assy, Rear Door Trim, RH
2003-08 → 2005-11 ended
NHW20 ¥33,500
67630-47090-D0 note Board Sub-assy, Rear Door Trim, RH
2003-08 → 2005-11 ended
NHW20 G ¥35,700
67630-47090-E0 note Board Sub-assy, Rear Door Trim, RH
2003-08 → 2005-11 ended
NHW20 G ¥35,700
67630-47090-E1 note Board Sub-assy, Rear Door Trim, RH
2003-08 → 2005-11 ended
NHW20 G ¥35,700
67630-47120-C1 note Board Sub-assy, Rear Door Trim, RH
2005-11 → 2009-03 ended
NHW20 G ¥44,300
67630-47120-E2 note Board Sub-assy, Rear Door Trim, RH
2005-11 → 2009-03 ended
NHW20 G ¥44,300
67630-47130-C1 note Board Sub-assy, Rear Door Trim, RH
2005-11 → 2009-03 ended
NHW20 G ¥44,300
67630-47130-E2 note Board Sub-assy, Rear Door Trim, RH
2005-11 → 2009-03 ended
NHW20 G ¥44,300
67630-47160-C0 note Board Sub-assy, Rear Door Trim, RH
2005-11 → 2011-12 ended
NHW20 ¥35,700
67630-47160-E2 note Board Sub-assy, Rear Door Trim, RH
2005-11 → 2009-03 ended
NHW20 ¥35,700
67630-47170-C0 note Board Sub-assy, Rear Door Trim, RH
2005-11 → 2009-03 ended
NHW20 G ¥35,700
67630-47170-E2 note Board Sub-assy, Rear Door Trim, RH
2005-11 → 2009-03 ended
NHW20 G ¥35,700
67603A — Retainer(FOR REAR DOOR TRIM BOARD)
67771-16080 Retainer(FOR REAR DOOR TRIM BOARD)
2004-01 → 2005-11 ended
NHW20 ¥160
67771-16080 Retainer(FOR REAR DOOR TRIM BOARD)
2005-11 → —
NHW20 ¥160
67603B — Clip(FOR REAR DOOR TRIM BOARD)
90467-10161 Clip(FOR REAR DOOR TRIM BOARD)
2003-08 → 2005-11 ended
NHW20 ¥90
90467-10161 Clip(FOR REAR DOOR TRIM BOARD)
2005-11 → —
NHW20 ¥90
67604 — Board Sub-assy, Rear Door Trim, LH
67640-47070-D0 note Board Sub-assy, Rear Door Trim, LH
2003-08 → 2005-11 ended
NHW20 ¥33,500
67640-47070-E0 note Board Sub-assy, Rear Door Trim, LH
2003-08 → 2005-11 ended
NHW20 ¥33,500
67640-47070-E1 note Board Sub-assy, Rear Door Trim, LH
2003-08 → 2005-11 ended
NHW20 ¥33,500
67640-47090-D0 note Board Sub-assy, Rear Door Trim, LH
2003-08 → 2005-11 ended
NHW20 G ¥35,700
67640-47090-E0 note Board Sub-assy, Rear Door Trim, LH
2003-08 → 2005-11 ended
NHW20 G ¥35,700
67640-47090-E1 note Board Sub-assy, Rear Door Trim, LH
2003-08 → 2005-11 ended
NHW20 G ¥35,700
67640-47120-C1 note Board Sub-assy, Rear Door Trim, LH
2005-11 → 2009-03 ended
NHW20 G ¥44,300
67640-47120-E2 note Board Sub-assy, Rear Door Trim, LH
2005-11 → 2009-03 ended
NHW20 G ¥44,300
67640-47130-C1 note Board Sub-assy, Rear Door Trim, LH
2005-11 → 2009-03 ended
NHW20 G ¥44,300
67640-47130-E2 note Board Sub-assy, Rear Door Trim, LH
2005-11 → 2009-03 ended
NHW20 G ¥44,300
67640-47160-C0 note Board Sub-assy, Rear Door Trim, LH
2005-11 → 2011-12 ended
NHW20 ¥35,700
67640-47160-E2 note Board Sub-assy, Rear Door Trim, LH
2005-11 → 2009-03 ended
NHW20 ¥35,700
67640-47170-C0 note Board Sub-assy, Rear Door Trim, LH
2005-11 → 2009-03 ended
NHW20 G ¥35,700
67640-47170-E2 note Board Sub-assy, Rear Door Trim, LH
2005-11 → 2009-03 ended
NHW20 G ¥35,700
67626C — Bracket, Rear Door Trim, NO.2
67626-47010 Bracket, Rear Door Trim, NO.2
2003-08 → 2005-11 ended
NHW20 ¥840
67626-47010 Bracket, Rear Door Trim, NO.2
2005-11 → —
NHW20 ¥840
67673A — Garnish, Rear Door Frame, RH
67673-48010 Garnish, Rear Door Frame, RH
2003-08 → 2005-11 ended
NHW20 ¥180
67673-48010 Garnish, Rear Door Frame, RH
2005-11 → —
NHW20 ¥180
67674A — Garnish, Rear Door Frame, LH
67674-48010 Garnish, Rear Door Frame, LH
2003-08 → 2005-11 ended
NHW20 ¥180
67674-48010 Garnish, Rear Door Frame, LH
2005-11 → —
NHW20 ¥180
68173B — Weatherstrip, Rear Door Glass, Inner RH
68173-47020 Weatherstrip, Rear Door Glass, Inner RH
2003-08 → 2005-11 ended
NHW20 ¥3,090
68173-47030 Weatherstrip, Rear Door Glass, Inner RH
2005-11 → 2011-12 ended
NHW20 ¥3,090
68174A — Weatherstrip, Rear Door Glass, Inner LH
68174-47020 Weatherstrip, Rear Door Glass, Inner LH
2003-08 → 2005-11 ended
NHW20 ¥3,090
68174-47030 Weatherstrip, Rear Door Glass, Inner LH
2005-11 → 2011-12 ended
NHW20 ¥3,090
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
