Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

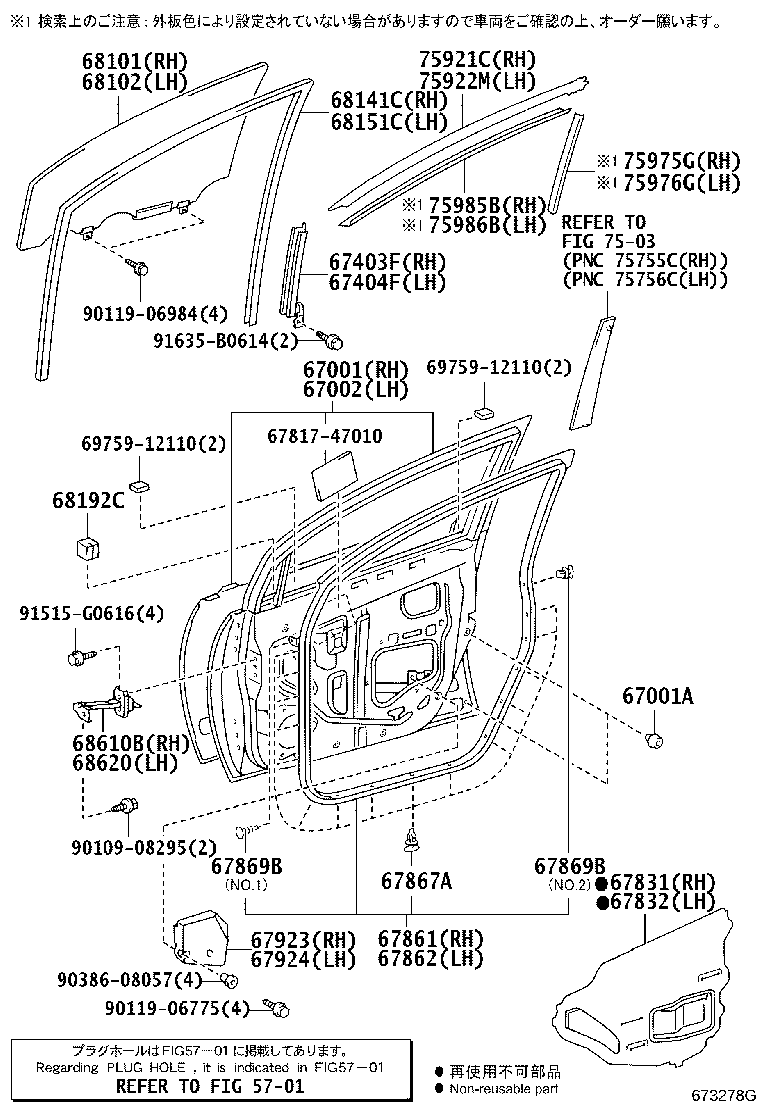

Exploded illustration 673278G 75975G — STRIPE, FRONT DOOR, NO.2 RH (3 parts) 75976G — STRIPE, FRONT DOOR, NO.2 LH (3 parts) 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (3 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (3 parts) 75922M — TAPE, BLACK OUT, NO.1 LH (3 parts) 6975912110 — not listed in this catalogue 6781747010 — not listed in this catalogue 9011906984 — not listed in this catalogue 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (2 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (2 parts) 68141C — RUN, FRONT DOOR GLASS, RH (2 parts) 68151C — RUN, FRONT DOOR GLASS, LH (2 parts) 75921C — TAPE, BLACK OUT, NO.1 RH (3 parts) 68192C — SEAL, FRONT DOOR BELT, FRONT RH (2 parts) 91515G0616 — not listed in this catalogue 68610B — CHECK ASSY, FRONT DOOR, RH (3 parts) 68620 — CHECK ASSY, FRONT DOOR, LH (3 parts) 67869B — CLIP, FRONT DOOR WEATHERSTRIP (4 parts) 67923 — CUSHION, FRONT DOOR STIFFENER, NO.1 (2 parts) 67924 — CUSHION, FRONT DOOR STIFFENER, NO.2 (2 parts) 67867A — CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) (2 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (2 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (2 parts) 9011906775 — not listed in this catalogue 9038608057 — not listed in this catalogue 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (5 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (5 parts) 67403F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (3 parts) 67404F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (3 parts) 91635B0614 — not listed in this catalogue 6975912110 — not listed in this catalogue 75985B — STRIPE, FRONT DOOR, NO.3 RH (3 parts) 75986B — STRIPE, FRONT DOOR, NO.3 LH (3 parts) 67001A — CUSHION, FRONT DOOR PANEL (5 parts) 67869B — CLIP, FRONT DOOR WEATHERSTRIP (4 parts) 5701 — not listed in this catalogue 9010908295 — not listed in this catalogue 7503 — not listed in this catalogue
673278G · 27 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
75 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-47040 Panel Sub-assy, Front Door, RH
2003-08 → 2005-11 ended
NHW20 ¥63,600
67001-47040 Panel Sub-assy, Front Door, RH
2005-11 → 2011-12 ended
NHW20 ¥63,600
67001A — Cushion, Front Door Panel
90541-09117 Cushion, Front Door Panel
2003-08 → 2005-11 ended
NHW20 ¥100
90541-09117 Cushion, Front Door Panel
2005-11 → 2009-09 ended
NHW20 ¥100
90541-09124 Cushion, Front Door Panel
2011-05 → —
NHW20 ¥100
90541-09124 Cushion, Front Door Panel
2009-10 → 2010-04 ended
NHW20 ¥100
90541-09138 Cushion, Front Door Panel
2010-05 → 2011-05 ended
NHW20 ¥110
67002 — Panel Sub-assy, Front Door, LH
67002-47040 Panel Sub-assy, Front Door, LH
2003-08 → 2005-11 ended
NHW20 ¥63,600
67002-47040 Panel Sub-assy, Front Door, LH
2005-11 → 2011-12 ended
NHW20 ¥63,600
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-47020 Frame Sub-assy, Front Door, Rear Lower RH
2003-08 → 2005-11 ended
NHW20 ¥1,780
67403-47020 Frame Sub-assy, Front Door, Rear Lower RH
2005-11 → 2007-04 ended
NHW20 ¥1,780
67403-47021 Frame Sub-assy, Front Door, Rear Lower RH
2007-05 → —
NHW20 ¥1,750
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-47020 Frame Sub-assy, Front Door, Rear Lower LH
2003-08 → 2005-11 ended
NHW20 ¥1,780
67404-47020 Frame Sub-assy, Front Door, Rear Lower LH
2005-11 → 2007-04 ended
NHW20 ¥1,780
67404-47021 Frame Sub-assy, Front Door, Rear Lower LH
2007-05 → —
NHW20 ¥1,750
67831 — Cover, Front Door Service Hole, RH
67831-47030 Cover, Front Door Service Hole, RH
2003-08 → 2005-11 ended
NHW20 G ¥1,330
67831-47050 Cover, Front Door Service Hole, RH
2003-08 → 2005-11 ended
NHW20 S ¥1,330
67831-47030 Cover, Front Door Service Hole, RH
2005-11 → 2009-03 ended
NHW20 G ¥1,330
67831-47030 note Cover, Front Door Service Hole, RH
2007-04 → 2009-03 ended
NHW20 S ¥1,330
67831-47050 Cover, Front Door Service Hole, RH
2005-11 → —
NHW20 S ¥1,330
67832 — Cover, Front Door Service Hole, LH
67832-47020 Cover, Front Door Service Hole, LH
2003-08 → 2005-11 ended
NHW20 G ¥1,330
67832-47040 Cover, Front Door Service Hole, LH
2003-08 → 2005-11 ended
NHW20 S ¥1,330
67832-47020 Cover, Front Door Service Hole, LH
2005-11 → 2009-03 ended
NHW20 G ¥1,330
67832-47020 note Cover, Front Door Service Hole, LH
2007-04 → 2009-03 ended
NHW20 S ¥1,330
67832-47040 Cover, Front Door Service Hole, LH
2005-11 → —
NHW20 S ¥1,330
67861 — Weatherstrip, Front Door, RH
67861-47020 Weatherstrip, Front Door, RH
2003-08 → 2005-11 ended
NHW20 ¥7,400
67861-47020 Weatherstrip, Front Door, RH
2005-11 → —
NHW20 ¥7,400
67862 — Weatherstrip, Front Door, LH
67862-47020 Weatherstrip, Front Door, LH
2003-08 → 2005-11 ended
NHW20 ¥7,400
67862-47020 Weatherstrip, Front Door, LH
2005-11 → —
NHW20 ¥7,400
67867A — Clip, Door Weatherstrip(FOR FRONT DOOR)
67867-12150 Clip, Door Weatherstrip(FOR FRONT DOOR)
2003-08 → 2005-11 ended
NHW20 ¥100
67867-12150 Clip, Door Weatherstrip(FOR FRONT DOOR)
2005-11 → —
NHW20 ¥100
67869B — Clip, Front Door Weatherstrip
67869-20030 note Clip, Front Door Weatherstrip
2003-08 → 2005-11 ended
NHW20 ¥100
90467-04034 note Clip, Front Door Weatherstrip
2003-08 → 2005-11 ended
NHW20 ¥60
67869-20030 note Clip, Front Door Weatherstrip
2005-11 → —
NHW20 ¥100
90467-04034 note Clip, Front Door Weatherstrip
2005-11 → —
NHW20 ¥60
67923 — Cushion, Front Door Stiffener, NO.1
67923-47010 Cushion, Front Door Stiffener, NO.1
2003-08 → 2005-11 ended
NHW20 ¥2,840
67923-47010 Cushion, Front Door Stiffener, NO.1
2005-11 → —
NHW20 ¥2,840
67924 — Cushion, Front Door Stiffener, NO.2
67924-47010 Cushion, Front Door Stiffener, NO.2
2003-08 → 2005-11 ended
NHW20 ¥2,840
67924-47010 Cushion, Front Door Stiffener, NO.2
2005-11 → —
NHW20 ¥2,840
68101 — Glass Sub-assy, Front Door, RH
68101-47060 note Glass Sub-assy, Front Door, RH
2003-08 → 2005-11 ended
NHW20 ¥0
68101-47051 note Glass Sub-assy, Front Door, RH
2009-06 → 2011-12 ended
NHW20 ¥24,900
68101-47060 note Glass Sub-assy, Front Door, RH
2005-11 → 2009-03 ended
NHW20 ¥0
68102 — Glass Sub-assy, Front Door, LH
68102-47060 note Glass Sub-assy, Front Door, LH
2003-08 → 2005-11 ended
NHW20 ¥0
68102-47051 note Glass Sub-assy, Front Door, LH
2009-06 → 2011-12 ended
NHW20 ¥24,900
68102-47060 note Glass Sub-assy, Front Door, LH
2005-11 → 2009-03 ended
NHW20 ¥0
68141C — Run, Front Door Glass, RH
68141-47020 Run, Front Door Glass, RH
2003-08 → 2005-11 ended
NHW20 ¥3,630
68141-47020 Run, Front Door Glass, RH
2005-11 → —
NHW20 ¥3,630
68151C — Run, Front Door Glass, LH
68151-47020 Run, Front Door Glass, LH
2003-08 → 2005-11 ended
NHW20 ¥3,630
68151-47020 Run, Front Door Glass, LH
2005-11 → —
NHW20 ¥3,630
68192C — Seal, Front Door Belt, Front RH
68192-47010 Seal, Front Door Belt, Front RH
2003-08 → 2005-11 ended
NHW20 ¥360
68192-47010 Seal, Front Door Belt, Front RH
2005-11 → —
NHW20 ¥360
68610B — Check Assy, Front Door, RH
68610-12160 Check Assy, Front Door, RH
2003-08 → 2004-05 ended
NHW20 ¥3,700
68610-12161 Check Assy, Front Door, RH
2004-05 → 2005-11 ended
NHW20 ¥3,700
68610-12161 Check Assy, Front Door, RH
2005-11 → —
NHW20 ¥3,700
68620 — Check Assy, Front Door, LH
68620-12090 Check Assy, Front Door, LH
2003-08 → 2004-05 ended
NHW20 ¥3,700
68620-12091 Check Assy, Front Door, LH
2004-05 → 2005-11 ended
NHW20 ¥3,700
68620-12091 Check Assy, Front Door, LH
2005-11 → —
NHW20 ¥3,700
75921C — Tape, Black Out, NO.1 RH
75921-47010 Tape, Black Out, NO.1 RH
2003-08 → 2005-11 ended
NHW20 ¥3,540
75921-47010 Tape, Black Out, NO.1 RH
2005-11 → 2009-05 ended
NHW20 ¥3,540
75921-47011 Tape, Black Out, NO.1 RH
2009-06 → 2011-12 ended
NHW20 ¥3,540
75922M — Tape, Black Out, NO.1 LH
75922-47010 Tape, Black Out, NO.1 LH
2003-08 → 2005-11 ended
NHW20 ¥3,540
75922-47010 Tape, Black Out, NO.1 LH
2005-11 → 2009-05 ended
NHW20 ¥3,540
75922-47011 Tape, Black Out, NO.1 LH
2009-06 → 2011-12 ended
NHW20 ¥3,540
75975G — Stripe, Front Door, NO.2 RH
75975-47010 Stripe, Front Door, NO.2 RH
2003-08 → 2005-11 ended
NHW20 ¥1,780
75975-47010 Stripe, Front Door, NO.2 RH
2005-11 → 2009-05 ended
NHW20 ¥1,780
75975-47011 Stripe, Front Door, NO.2 RH
2009-06 → —
NHW20 ¥1,780
75976G — Stripe, Front Door, NO.2 LH
75976-47010 Stripe, Front Door, NO.2 LH
2003-08 → 2005-11 ended
NHW20 ¥1,780
75976-47010 Stripe, Front Door, NO.2 LH
2005-11 → 2009-05 ended
NHW20 ¥1,780
75976-47011 Stripe, Front Door, NO.2 LH
2009-06 → —
NHW20 ¥1,780
75985B — Stripe, Front Door, NO.3 RH
75985-47010 Stripe, Front Door, NO.3 RH
2003-08 → 2005-11 ended
NHW20 ¥2,830
75985-47010 Stripe, Front Door, NO.3 RH
2005-11 → 2009-05 ended
NHW20 ¥2,830
75985-47011 Stripe, Front Door, NO.3 RH
2009-06 → —
NHW20 ¥2,830
75986B — Stripe, Front Door, NO.3 LH
75986-47010 Stripe, Front Door, NO.3 LH
2003-08 → 2005-11 ended
NHW20 ¥2,830
75986-47010 Stripe, Front Door, NO.3 LH
2005-11 → 2009-05 ended
NHW20 ¥2,830
75986-47011 Stripe, Front Door, NO.3 LH
2009-06 → —
NHW20 ¥2,830
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
