Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

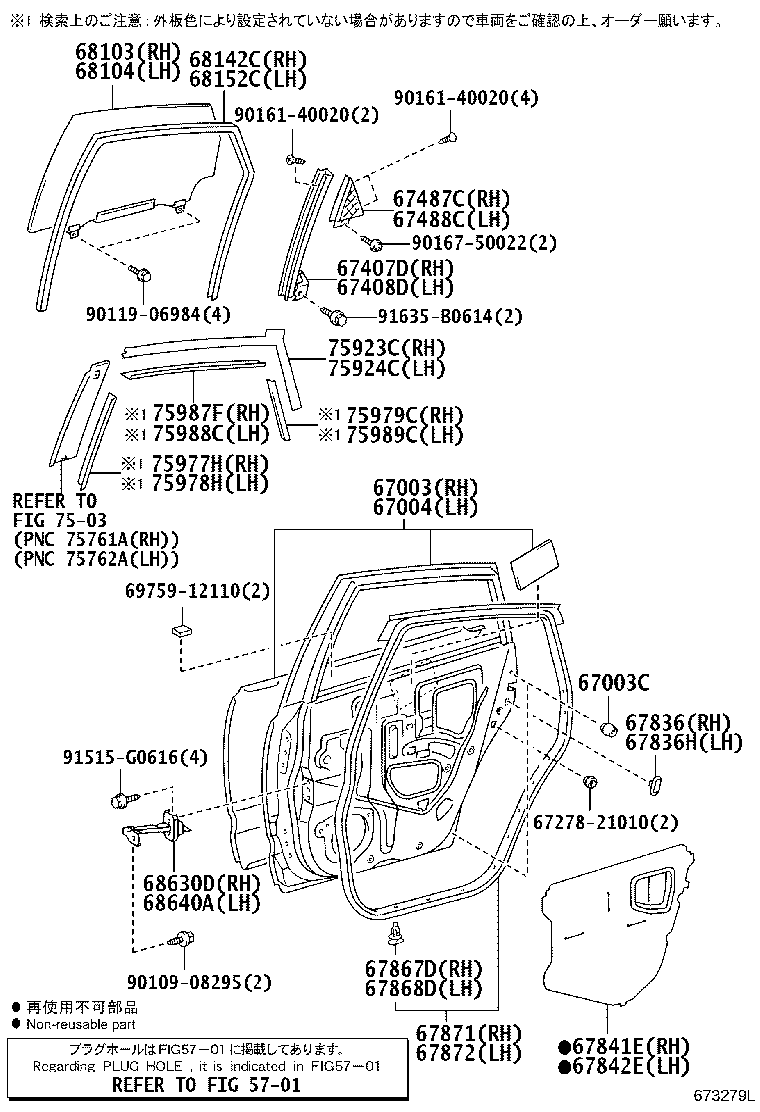

Exploded illustration 673279L 68103 — GLASS SUB-ASSY, REAR DOOR, RH (3 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (3 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (2 parts) 67003 — PANEL SUB-ASSY, REAR DOOR, RH (2 parts) 68152C — RUN, REAR DOOR GLASS, LH (3 parts) 68142C — RUN, REAR DOOR GLASS, RH (3 parts) 9011906984 — not listed in this catalogue 91635B0614 — not listed in this catalogue 6975912110 — not listed in this catalogue 91515G0616 — not listed in this catalogue 68630D — CHECK ASSY, REAR DOOR, RH (3 parts) 68640A — CHECK ASSY, REAR DOOR, LH (3 parts) 9010908295 — not listed in this catalogue 67868D — RETAINER, REAR DOOR WEATHERSTRIP, LH (2 parts) 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (2 parts) 67841E — COVER, REAR DOOR SERVICE HOLE, RH (2 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (2 parts) 67836H — COVER, REAR DOOR LOCK CHILD PROTECTION, LH (2 parts) 67836 — COVER, REAR DOOR LOCK CHILD PROTECTION, RH (2 parts) 75977H — STRIPE, REAR DOOR OUTSIDE, LOWER RH (3 parts) 75978H — STRIPE, REAR DOOR OUTSIDE, LOWER LH (3 parts) 75989C — STRIPE, REAR DOOR, OUTSIDE UPPER LH (3 parts) 75979C — STRIPE, REAR DOOR, OUTSIDE UPPER RH (3 parts) 75987F — STRIPE, REAR DOOR, OUTSIDE, RH (3 parts) 75988C — STRIPE, REAR DOOR, OUTSIDE LH (3 parts) 9016140020 — not listed in this catalogue 9016140020 — not listed in this catalogue 67408D — GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH (2 parts) 67488C — SEAL, REAR DOOR REAR GUIDE, LH (5 parts) 75924C — TAPE, BLACK OUT, NO.2 LH (3 parts) 75923C — TAPE, BLACK OUT, NO.2 RH (3 parts) 67487C — SEAL, REAR DOOR REAR GUIDE, RH (5 parts) 67407D — GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH (2 parts) 9016750022 — not listed in this catalogue 67871 — WEATHERSTRIP, REAR DOOR, RH (2 parts) 67003C — CUSHION, REAR DOOR PANEL (5 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (2 parts) 6727821010 — not listed in this catalogue 5701 — not listed in this catalogue 7503 — not listed in this catalogue
673279L · 29 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
81 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-47040 Panel Sub-assy, Rear Door, RH
2003-08 → 2005-11 ended
NHW20 ¥62,900
67003-47040 Panel Sub-assy, Rear Door, RH
2005-11 → 2011-12 ended
NHW20 ¥62,900
67003C — Cushion, Rear Door Panel
90541-09117 Cushion, Rear Door Panel
2003-08 → 2005-11 ended
NHW20 ¥100
90541-09117 Cushion, Rear Door Panel
2005-11 → 2009-09 ended
NHW20 ¥100
90541-09124 Cushion, Rear Door Panel
2011-05 → —
NHW20 ¥100
90541-09124 Cushion, Rear Door Panel
2009-10 → 2010-04 ended
NHW20 ¥100
90541-09138 Cushion, Rear Door Panel
2010-05 → 2011-05 ended
NHW20 ¥110
67004 — Panel Sub-assy, Rear Door, LH
67004-47040 Panel Sub-assy, Rear Door, LH
2003-08 → 2005-11 ended
NHW20 ¥62,900
67004-47040 Panel Sub-assy, Rear Door, LH
2005-11 → 2011-12 ended
NHW20 ¥62,900
67407D — Guide Sub-assy, Rear Door Window, Rear RH
67407-47020 Guide Sub-assy, Rear Door Window, Rear RH
2003-08 → 2005-11 ended
NHW20 ¥2,230
67407-47020 Guide Sub-assy, Rear Door Window, Rear RH
2005-11 → —
NHW20 ¥2,230
67408D — Guide Sub-assy, Rear Door Window, Rear LH
67408-47020 Guide Sub-assy, Rear Door Window, Rear LH
2003-08 → 2005-11 ended
NHW20 ¥2,230
67408-47020 Guide Sub-assy, Rear Door Window, Rear LH
2005-11 → —
NHW20 ¥2,230
67487C — Seal, Rear Door Rear Guide, RH
67487-47030-B0 note Seal, Rear Door Rear Guide, RH
2003-08 → 2004-04 ended
NHW20 ¥2,300
67487-47031 Seal, Rear Door Rear Guide, RH
2004-04 → 2005-11 ended
NHW20 ¥2,300
67487-47031 Seal, Rear Door Rear Guide, RH
2005-11 → 2009-01 ended
NHW20 ¥2,300
67487-47032 Seal, Rear Door Rear Guide, RH
2009-02 → 2011-08 ended
NHW20 ¥2,300
67487-47033 Seal, Rear Door Rear Guide, RH
2011-09 → 2011-12 ended
NHW20 ¥2,300
67488C — Seal, Rear Door Rear Guide, LH
67488-47030-B0 note Seal, Rear Door Rear Guide, LH
2003-08 → 2004-04 ended
NHW20 ¥2,300
67488-47031 Seal, Rear Door Rear Guide, LH
2004-04 → 2005-11 ended
NHW20 ¥2,300
67488-47031 Seal, Rear Door Rear Guide, LH
2005-11 → 2009-01 ended
NHW20 ¥2,300
67488-47032 Seal, Rear Door Rear Guide, LH
2009-02 → 2011-08 ended
NHW20 ¥2,300
67488-47033 Seal, Rear Door Rear Guide, LH
2011-09 → 2011-12 ended
NHW20 ¥2,300
67836 — Cover, Rear Door Lock Child Protection, RH
67836-12040 Cover, Rear Door Lock Child Protection, RH
2003-08 → 2005-11 ended
NHW20 ¥210
67836-12040 Cover, Rear Door Lock Child Protection, RH
2005-11 → —
NHW20 ¥210
67836H — Cover, Rear Door Lock Child Protection, LH
67836-12040 Cover, Rear Door Lock Child Protection, LH
2003-08 → 2005-11 ended
NHW20 ¥210
67836-12040 Cover, Rear Door Lock Child Protection, LH
2005-11 → —
NHW20 ¥210
67841E — Cover, Rear Door Service Hole, RH
67841-47030 Cover, Rear Door Service Hole, RH
2003-08 → 2005-11 ended
NHW20 ¥1,000
67841-47030 Cover, Rear Door Service Hole, RH
2005-11 → —
NHW20 ¥1,000
67842E — Cover, Rear Door Service Hole, LH
67842-47020 Cover, Rear Door Service Hole, LH
2003-08 → 2005-11 ended
NHW20 ¥1,000
67842-47020 Cover, Rear Door Service Hole, LH
2005-11 → —
NHW20 ¥1,000
67867D — Retainer, Rear Door Weatherstrip, RH
67867-12150 Retainer, Rear Door Weatherstrip, RH
2003-08 → 2005-11 ended
NHW20 ¥100
67867-12150 Retainer, Rear Door Weatherstrip, RH
2005-11 → —
NHW20 ¥100
67868D — Retainer, Rear Door Weatherstrip, LH
67867-12150 Retainer, Rear Door Weatherstrip, LH
2003-08 → 2005-11 ended
NHW20 ¥100
67867-12150 Retainer, Rear Door Weatherstrip, LH
2005-11 → —
NHW20 ¥100
67871 — Weatherstrip, Rear Door, RH
67871-47020 Weatherstrip, Rear Door, RH
2003-08 → 2005-11 ended
NHW20 ¥6,300
67871-47020 Weatherstrip, Rear Door, RH
2005-11 → —
NHW20 ¥6,300
67872 — Weatherstrip, Rear Door, LH
67872-47020 Weatherstrip, Rear Door, LH
2003-08 → 2005-11 ended
NHW20 ¥6,300
67872-47020 Weatherstrip, Rear Door, LH
2005-11 → —
NHW20 ¥6,300
68103 — Glass Sub-assy, Rear Door, RH
68103-47030 note Glass Sub-assy, Rear Door, RH
2003-08 → 2005-11 ended
NHW20 ¥0
68103-47030 note Glass Sub-assy, Rear Door, RH
2005-11 → 2009-03 ended
NHW20 ¥0
68103-47041 note Glass Sub-assy, Rear Door, RH
2009-06 → 2011-12 ended
NHW20 ¥21,300
68104 — Glass Sub-assy, Rear Door, LH
68104-47030 note Glass Sub-assy, Rear Door, LH
2003-08 → 2005-11 ended
NHW20 ¥0
68104-47030 note Glass Sub-assy, Rear Door, LH
2005-11 → 2009-03 ended
NHW20 ¥0
68104-47041 note Glass Sub-assy, Rear Door, LH
2009-06 → 2011-12 ended
NHW20 ¥21,300
68142C — Run, Rear Door Glass, RH
68142-47020 Run, Rear Door Glass, RH
2003-08 → 2005-11 ended
NHW20 ¥3,420
68142-47020 Run, Rear Door Glass, RH
2005-11 → 2009-01 ended
NHW20 ¥3,420
68142-47021 Run, Rear Door Glass, RH
2009-01 → —
NHW20 ¥3,420
68152C — Run, Rear Door Glass, LH
68152-47020 Run, Rear Door Glass, LH
2003-08 → 2005-11 ended
NHW20 ¥3,420
68152-47020 Run, Rear Door Glass, LH
2005-11 → 2009-01 ended
NHW20 ¥3,420
68152-47021 Run, Rear Door Glass, LH
2009-01 → —
NHW20 ¥3,420
68630D — Check Assy, Rear Door, RH
68630-47020 Check Assy, Rear Door, RH
2003-08 → 2004-06 ended
NHW20 ¥3,700
68630-47021 Check Assy, Rear Door, RH
2004-07 → 2005-11 ended
NHW20 ¥3,700
68630-47021 Check Assy, Rear Door, RH
2005-11 → —
NHW20 ¥3,700
68640A — Check Assy, Rear Door, LH
68640-47020 Check Assy, Rear Door, LH
2003-08 → 2004-06 ended
NHW20 ¥3,700
68640-47021 Check Assy, Rear Door, LH
2004-07 → 2005-11 ended
NHW20 ¥3,700
68640-47021 Check Assy, Rear Door, LH
2005-11 → —
NHW20 ¥3,700
75923C — Tape, Black Out, NO.2 RH
75923-47010 Tape, Black Out, NO.2 RH
2003-08 → 2005-11 ended
NHW20 ¥3,540
75923-47010 Tape, Black Out, NO.2 RH
2005-11 → 2009-05 ended
NHW20 ¥3,540
75923-47011 Tape, Black Out, NO.2 RH
2009-06 → 2011-12 ended
NHW20 ¥3,540
75924C — Tape, Black Out, NO.2 LH
75924-47010 Tape, Black Out, NO.2 LH
2003-08 → 2005-11 ended
NHW20 ¥3,540
75924-47010 Tape, Black Out, NO.2 LH
2005-11 → 2009-05 ended
NHW20 ¥3,540
75924-47011 Tape, Black Out, NO.2 LH
2009-06 → 2011-12 ended
NHW20 ¥3,540
75977H — Stripe, Rear Door Outside, Lower RH
75977-47010 Stripe, Rear Door Outside, Lower RH
2003-08 → 2005-11 ended
NHW20 ¥1,780
75977-47010 Stripe, Rear Door Outside, Lower RH
2005-11 → 2009-05 ended
NHW20 ¥1,780
75977-47011 Stripe, Rear Door Outside, Lower RH
2009-06 → —
NHW20 ¥1,780
75978H — Stripe, Rear Door Outside, Lower LH
75978-47010 Stripe, Rear Door Outside, Lower LH
2003-08 → 2005-11 ended
NHW20 ¥1,780
75978-47010 Stripe, Rear Door Outside, Lower LH
2005-11 → 2009-05 ended
NHW20 ¥1,780
75978-47011 Stripe, Rear Door Outside, Lower LH
2009-06 → —
NHW20 ¥1,780
75979C — Stripe, Rear Door, Outside Upper RH
75979-47010 Stripe, Rear Door, Outside Upper RH
2003-08 → 2005-11 ended
NHW20 ¥1,440
75979-47010 Stripe, Rear Door, Outside Upper RH
2005-11 → 2009-05 ended
NHW20 ¥1,440
75979-47011 Stripe, Rear Door, Outside Upper RH
2009-06 → —
NHW20 ¥1,440
75987F — Stripe, Rear Door, Outside, RH
75987-47010 Stripe, Rear Door, Outside, RH
2003-08 → 2005-11 ended
NHW20 ¥2,130
75987-47010 Stripe, Rear Door, Outside, RH
2005-11 → 2009-05 ended
NHW20 ¥2,130
75987-47011 Stripe, Rear Door, Outside, RH
2009-06 → —
NHW20 ¥2,130
75988C — Stripe, Rear Door, Outside LH
75988-47010 Stripe, Rear Door, Outside LH
2003-08 → 2005-11 ended
NHW20 ¥2,130
75988-47010 Stripe, Rear Door, Outside LH
2005-11 → 2009-05 ended
NHW20 ¥2,130
75988-47011 Stripe, Rear Door, Outside LH
2009-06 → —
NHW20 ¥2,130
75989C — Stripe, Rear Door, Outside Upper LH
75989-47010 Stripe, Rear Door, Outside Upper LH
2003-08 → 2005-11 ended
NHW20 ¥1,440
75989-47010 Stripe, Rear Door, Outside Upper LH
2005-11 → 2009-05 ended
NHW20 ¥1,440
75989-47011 Stripe, Rear Door, Outside Upper LH
2009-06 → —
NHW20 ¥1,440
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
