Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

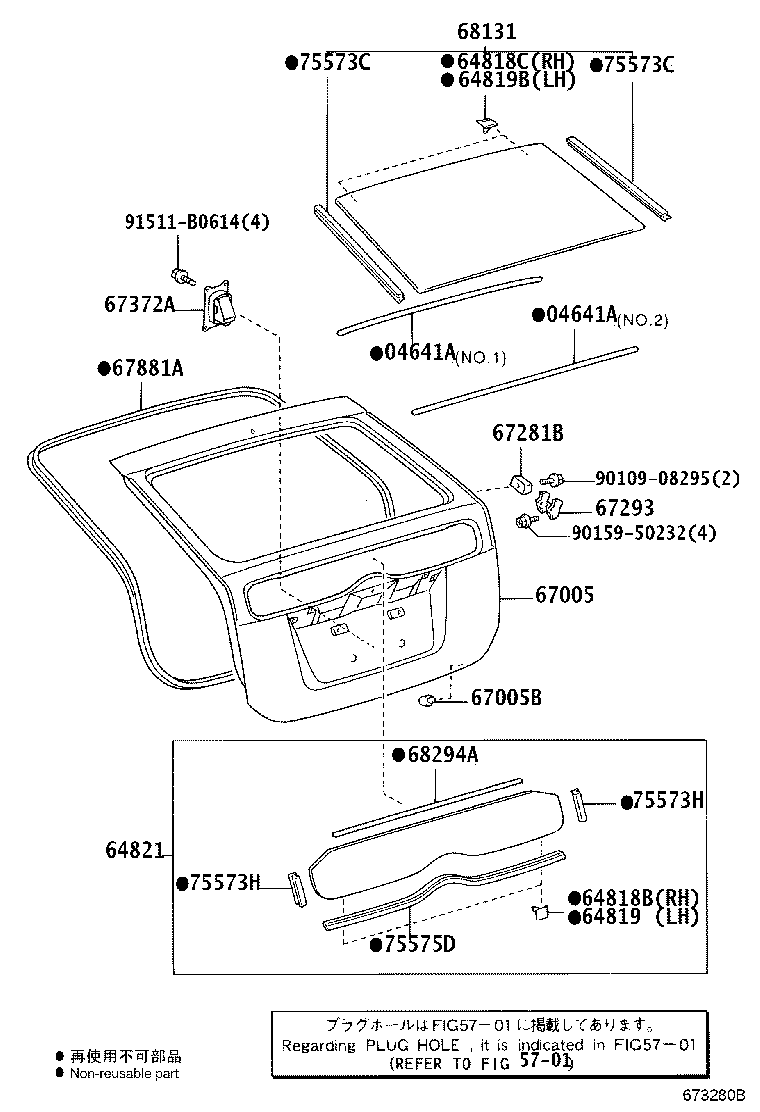

Exploded illustration 673280B 68131 — GLASS, BACK DOOR (11 parts) 75573C — MOULDING, BACK WINDOW, OUTSIDE (4 parts) 75573C — MOULDING, BACK WINDOW, OUTSIDE (4 parts) 64818C — SPACER, BACK WINDOW GLASS, NO.1 (4 parts) 64819B — SPACER, BACK WINDOW GLASS, NO.2 (4 parts) 04641A — DAM KIT, BACK WINDOW GLASS ADHESIVE (8 parts) 04641A — DAM KIT, BACK WINDOW GLASS ADHESIVE (8 parts) 67881A — WEATHERSTRIP, BACK DOOR (4 parts) 64821 — GLASS, BACK WINDOW FIX (5 parts) 75573H — MOULDING, BACK WINDOW, OUTSIDE (5 parts) 68294A — DAM, BACK DOOR GLASS ADHESIVE (5 parts) 75573H — MOULDING, BACK WINDOW, OUTSIDE (5 parts) 75575D — MOULDING, BACK WINDOW, LOWER (5 parts) 64818B — SPACER, BACK DOOR GLASS, NO.1 (5 parts) 64819 — SPACER, BACK WINDOW GLASS, NO.2 (5 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (2 parts) 67005 — PANEL SUB-ASSY, BACK DOOR (8 parts) 67281B — STOPPER, BACK DOOR, LOWER (2 parts) 67293 — CUSHION, BACK DOOR LOWER STOPPER (2 parts) 9010908295 — not listed in this catalogue 9015950232 — not listed in this catalogue 91511B0614 — not listed in this catalogue 67372A — WEIGHT, BACK DOOR (5 parts) 5701 — not listed in this catalogue
673280B · 20 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
84 parts on this figure
Part number Description Fitment Price
04641A — Dam Kit, Back Window Glass Adhesive
68294-47010 note Dam Kit, Back Window Glass Adhesive
2003-08 → 2005-11 ended
NHW20 ¥750
68294-47020 note Dam Kit, Back Window Glass Adhesive
2003-08 → 2005-11 ended
NHW20 ¥750
68294-47010 note Dam Kit, Back Window Glass Adhesive
2005-11 → 2009-03 ended
NHW20 S ¥750
68294-47010 note Dam Kit, Back Window Glass Adhesive
2005-11 → —
NHW20 G ¥750
68294-47010 note Dam Kit, Back Window Glass Adhesive
2009-06 → —
NHW20 ¥750
68294-47020 note Dam Kit, Back Window Glass Adhesive
2005-11 → 2009-03 ended
NHW20 S ¥750
68294-47020 note Dam Kit, Back Window Glass Adhesive
2009-06 → —
NHW20 ¥750
68294-47020 note Dam Kit, Back Window Glass Adhesive
2005-11 → —
NHW20 G ¥750
64818B — Spacer, Back Door Glass, NO.1
64818-47030 Spacer, Back Door Glass, NO.1
2003-08 → 2005-03 ended
NHW20 ¥220
64818-47030 Spacer, Back Door Glass, NO.1
2005-03 → 2005-11 ended
NHW20 ¥220
64818-47030 Spacer, Back Door Glass, NO.1
2005-11 → 2009-03 ended
NHW20 S ¥220
64818-47030 Spacer, Back Door Glass, NO.1
2005-11 → —
NHW20 G ¥220
64818-47030 Spacer, Back Door Glass, NO.1
2009-06 → —
NHW20 ¥220
64818C — Spacer, Back Window Glass, NO.1
64818-47010 Spacer, Back Window Glass, NO.1
2003-08 → 2005-11 ended
NHW20 ¥220
64818-47010 Spacer, Back Window Glass, NO.1
2005-11 → 2009-03 ended
NHW20 S ¥220
64818-47010 Spacer, Back Window Glass, NO.1
2005-11 → —
NHW20 G ¥220
64818-47010 Spacer, Back Window Glass, NO.1
2009-06 → —
NHW20 ¥220
64819 — Spacer, Back Window Glass, NO.2
64819-47030 Spacer, Back Window Glass, NO.2
2003-08 → 2005-03 ended
NHW20 ¥220
64819-47030 Spacer, Back Window Glass, NO.2
2005-03 → 2005-11 ended
NHW20 ¥220
64819-47030 Spacer, Back Window Glass, NO.2
2005-11 → 2009-03 ended
NHW20 S ¥220
64819-47030 Spacer, Back Window Glass, NO.2
2005-11 → —
NHW20 G ¥220
64819-47030 Spacer, Back Window Glass, NO.2
2009-06 → —
NHW20 ¥220
64819B — Spacer, Back Window Glass, NO.2
64819-47010 Spacer, Back Window Glass, NO.2
2003-08 → 2005-11 ended
NHW20 ¥220
64819-47010 Spacer, Back Window Glass, NO.2
2005-11 → —
NHW20 G ¥220
64819-47010 Spacer, Back Window Glass, NO.2
2009-06 → —
NHW20 ¥220
64819-47010 Spacer, Back Window Glass, NO.2
2005-11 → 2009-03 ended
NHW20 S ¥220
64821 — Glass, Back Window Fix
64821-47020 Glass, Back Window Fix
2003-08 → 2005-03 ended
NHW20 ¥37,200
64821-47021 Glass, Back Window Fix
2005-03 → 2005-11 ended
NHW20 ¥37,000
64821-47021 Glass, Back Window Fix
2005-11 → 2009-03 ended
NHW20 S ¥37,000
64821-47021 Glass, Back Window Fix
2005-11 → —
NHW20 G ¥37,000
64821-47021 Glass, Back Window Fix
2009-06 → —
NHW20 ¥37,000
67005 — Panel Sub-assy, Back Door
67005-47010 Panel Sub-assy, Back Door
2003-08 → 2005-11 ended
NHW20 ¥88,300
67005-47020 note Panel Sub-assy, Back Door
2003-08 → 2005-11 ended
NHW20 ¥88,300
67005-47030 note Panel Sub-assy, Back Door
2003-08 → 2005-11 ended
NHW20 ¥88,300
67005-47040 note Panel Sub-assy, Back Door
2003-08 → 2005-11 ended
NHW20 ¥88,300
67005-47010 note Panel Sub-assy, Back Door
2005-11 → 2009-03 ended
NHW20 S ¥88,300
67005-47020 Panel Sub-assy, Back Door
2005-11 → 2011-12 ended
NHW20 ¥88,300
67005-47040 note Panel Sub-assy, Back Door
2005-11 → 2010-11 ended
NHW20 ¥88,300
67005-47040 note Panel Sub-assy, Back Door
2010-11 → 2011-12 ended
NHW20 ¥88,300
67005B — Cushion(FOR BACK DOOR PANEL)
90541-09125 Cushion(FOR BACK DOOR PANEL)
2003-08 → 2005-11 ended
NHW20 ¥100
90541-09125 Cushion(FOR BACK DOOR PANEL)
2005-11 → —
NHW20 ¥100
67281B — Stopper, Back Door, Lower
67281-47010 Stopper, Back Door, Lower
2003-08 → 2005-11 ended
NHW20 ¥970
67281-47010 Stopper, Back Door, Lower
2005-11 → —
NHW20 ¥970
67293 — Cushion, Back Door Lower Stopper
67293-47010 Cushion, Back Door Lower Stopper
2003-08 → 2005-11 ended
NHW20 ¥450
67293-47010 Cushion, Back Door Lower Stopper
2005-11 → —
NHW20 ¥450
67372A — Weight, Back Door
67372-47010 Weight, Back Door
2003-08 → 2005-11 ended
NHW20 G ¥5,900
67372-47010 note Weight, Back Door
2003-08 → 2005-11 ended
NHW20 S ¥5,900
67372-47010 note Weight, Back Door
2004-08 → 2005-11 ended
NHW20 S ¥5,900
67372-47010 Weight, Back Door
2005-11 → 2009-03 ended
NHW20 G ¥5,900
67372-47010 note Weight, Back Door
2005-11 → 2009-03 ended
NHW20 S ¥5,900
67881A — Weatherstrip, Back Door
67881-47010 Weatherstrip, Back Door
2003-08 → 2005-06 ended
NHW20 ¥12,900
67881-47011 Weatherstrip, Back Door
2005-07 → 2005-11 ended
NHW20 ¥12,800
67881-47011 Weatherstrip, Back Door
2005-11 → 2009-01 ended
NHW20 ¥12,800
67881-47012 Weatherstrip, Back Door
2009-02 → —
NHW20 ¥12,800
68131 — Glass, Back Door
68105-47010 note Glass, Back Door
2003-08 → 2005-11 ended
NHW20 ¥0
68105-47020 note Glass, Back Door
2003-08 → 2005-11 ended
NHW20 ¥79,300
68105-47030 note Glass, Back Door
2003-08 → 2005-11 ended
NHW20 ¥0
68105-47060 note Glass, Back Door
2003-08 → 2005-11 ended
NHW20 ¥0
68105-47010 note Glass, Back Door
2005-11 → 2009-03 ended
NHW20 S ¥0
68105-47030 note Glass, Back Door
2005-11 → 2009-03 ended
NHW20 ¥0
68105-47060 note Glass, Back Door
2005-11 → 2009-03 ended
NHW20 ¥0
68105-47130 note Glass, Back Door
2009-06 → 2010-11 ended
NHW20 —
68105-47130 note Glass, Back Door
2010-11 → 2010-12 ended
NHW20 —
68105-47131 note Glass, Back Door
2010-12 → —
NHW20 —
68105-47140 note Glass, Back Door
2009-06 → —
NHW20 —
68294A — Dam, Back Door Glass Adhesive
68294-47030 Dam, Back Door Glass Adhesive
2005-03 → 2005-11 ended
NHW20 ¥670
68294-47030 Dam, Back Door Glass Adhesive
2003-08 → 2005-03 ended
NHW20 ¥670
68294-47030 Dam, Back Door Glass Adhesive
2005-11 → 2009-03 ended
NHW20 S ¥670
68294-47030 Dam, Back Door Glass Adhesive
2005-11 → —
NHW20 G ¥670
68294-47030 Dam, Back Door Glass Adhesive
2009-06 → —
NHW20 ¥670
75573C — Moulding, Back Window, Outside
75573-47060 Moulding, Back Window, Outside
2003-08 → 2005-11 ended
NHW20 ¥1,460
75573-47060 Moulding, Back Window, Outside
2005-11 → 2009-03 ended
NHW20 S ¥1,460
75573-47060 Moulding, Back Window, Outside
2005-11 → —
NHW20 G ¥1,460
75573-47060 Moulding, Back Window, Outside
2009-06 → —
NHW20 ¥1,460
75573H — Moulding, Back Window, Outside
75573-47070 Moulding, Back Window, Outside
2003-08 → 2005-03 ended
NHW20 ¥830
75573-47070 Moulding, Back Window, Outside
2005-03 → 2005-11 ended
NHW20 ¥830
75573-47070 Moulding, Back Window, Outside
2005-11 → 2009-03 ended
NHW20 S ¥830
75573-47070 Moulding, Back Window, Outside
2005-11 → —
NHW20 G ¥830
75573-47070 Moulding, Back Window, Outside
2009-06 → —
NHW20 ¥830
75575D — Moulding, Back Window, Lower
75575-47010 Moulding, Back Window, Lower
2003-08 → 2005-03 ended
NHW20 ¥1,330
75575-47010 Moulding, Back Window, Lower
2005-03 → 2005-11 ended
NHW20 ¥1,330
75575-47010 Moulding, Back Window, Lower
2005-11 → 2009-03 ended
NHW20 S ¥1,330
75575-47010 Moulding, Back Window, Lower
2005-11 → —
NHW20 G ¥1,330
75575-47010 Moulding, Back Window, Lower
2009-06 → —
NHW20 ¥1,330
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
