Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

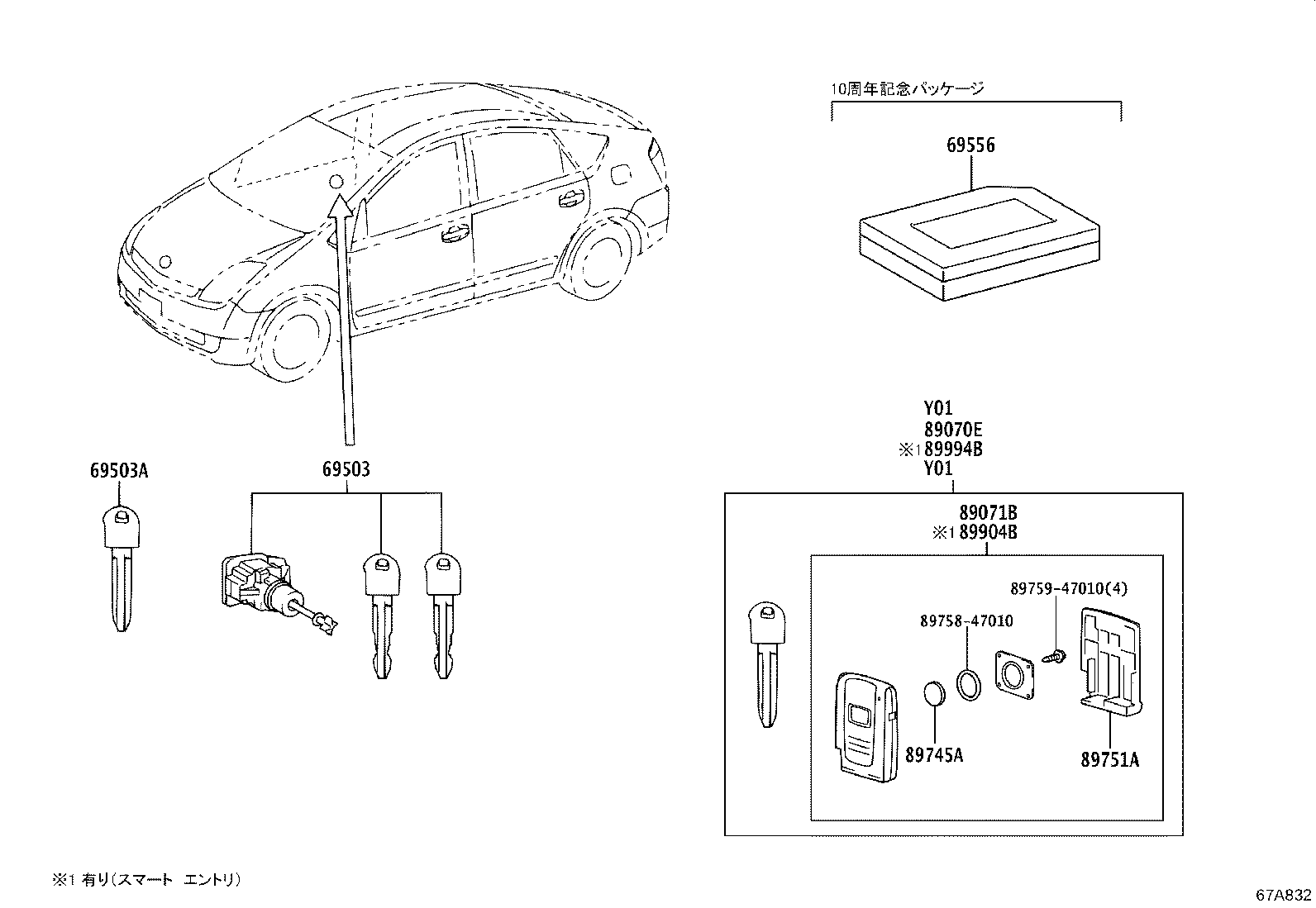

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69503 — Cylinder Set, Lock | ||||
| 69005-47070 |
Cylinder Set, Lock
2003-08 → 2005-11
ended
|
NHW20 | ¥4,010 | |
| 69005-47070 |
Cylinder Set, Lock
2005-11 → —
|
NHW20 | ¥4,010 | |
| 69503A — Key, Blank | ||||
| 69515-47010 |
Key, Blank
2003-08 → 2005-11
ended
|
NHW20 | ¥2,070 | |
| 69515-47010 |
Key, Blank
2005-11 → —
|
NHW20 | ¥2,070 | |
| 69556 — Case, Key Set | ||||
| 69556-47010 note |
Case, Key Set
2007-04 → 2009-03
ended
|
NHW20 S | ¥23,000 | |
| 89070E — Transmitter Assy, Door Control | ||||
| 89070-47170 |
Transmitter Assy, Door Control
2003-08 → 2005-11
ended
|
NHW20 S | ¥18,400 | |
| 89070-47170 |
Transmitter Assy, Door Control
2005-11 → 2006-09
ended
|
NHW20 S | ¥18,400 | |
| 89070-47170 note |
Transmitter Assy, Door Control
2005-11 → 2006-09
ended
|
NHW20 S | ¥18,400 | |
| 89070-47171 |
Transmitter Assy, Door Control
2006-10 → —
|
NHW20 S | ¥19,500 | |
| 89070-47171 note |
Transmitter Assy, Door Control
2006-10 → —
|
NHW20 S | ¥19,500 | |
| 89071B — Module Set, Transmitter Sub-assy, Door Control | ||||
| 89071-47020 |
Module Set, Transmitter Sub-assy, Door Control
2003-08 → 2005-11
ended
|
NHW20 S | ¥18,000 | |
| 89071-47020 |
Module Set, Transmitter Sub-assy, Door Control
2005-11 → 2006-09
ended
|
NHW20 S | ¥18,000 | |
| 89071-47020 note |
Module Set, Transmitter Sub-assy, Door Control
2005-11 → 2006-09
ended
|
NHW20 S | ¥18,000 | |
| 89071-47021 |
Module Set, Transmitter Sub-assy, Door Control
2006-10 → 2008-08
ended
|
NHW20 S | ¥17,900 | |
| 89071-47021 note |
Module Set, Transmitter Sub-assy, Door Control
2006-10 → 2008-08
ended
|
NHW20 S | ¥17,900 | |
| 89071-47071 |
Module Set, Transmitter Sub-assy, Door Control
2008-08 → —
|
NHW20 S | ¥17,900 | |
| 89071-47071 note |
Module Set, Transmitter Sub-assy, Door Control
2008-08 → —
|
NHW20 S | ¥17,900 | |
| 89745A — Battery, Transmitter | ||||
| 89745-47010 |
Battery, Transmitter
2003-08 → 2005-11
ended
|
NHW20 | ¥440 | |
| 89745-47010 |
Battery, Transmitter
2005-11 → 2009-03
ended
|
NHW20 G | ¥440 | |
| 89745-47010 note |
Battery, Transmitter
2005-11 → 2009-11
ended
|
NHW20 S | ¥440 | |
| 89745-47010 |
Battery, Transmitter
2005-11 → 2009-11
ended
|
NHW20 S | ¥440 | |
| 89745-47010 note |
Battery, Transmitter
2007-04 → 2009-03
ended
|
NHW20 S | ¥440 | |
| 89745-50020 |
Battery, Transmitter
2009-11 → —
|
NHW20 | ¥440 | |
| 89745-50020 note |
Battery, Transmitter
2009-11 → —
|
NHW20 | ¥440 | |
| 89751A — Cover, Transmitter Housing | ||||
| 89751-47010 |
Cover, Transmitter Housing
2003-08 → 2005-11
ended
|
NHW20 G | ¥1,950 | |
| 89751-47020 |
Cover, Transmitter Housing
2003-08 → 2005-11
ended
|
NHW20 S | ¥1,950 | |
| 89751-47010 |
Cover, Transmitter Housing
2005-11 → 2009-03
ended
|
NHW20 G | ¥1,950 | |
| 89751-47010 note |
Cover, Transmitter Housing
2007-04 → 2009-03
ended
|
NHW20 S | ¥1,950 | |
| 89751-47020 |
Cover, Transmitter Housing
2005-11 → —
|
NHW20 S | ¥1,950 | |
| 89751-47020 note |
Cover, Transmitter Housing
2005-11 → —
|
NHW20 S | ¥1,950 | |
| 89904B — Transmitter Sub-assy, Electrical Key | ||||
| 89904-47030 |
Transmitter Sub-assy, Electrical Key
2003-08 → 2005-11
ended
|
NHW20 G | ¥23,800 | |
| 89904-47030 |
Transmitter Sub-assy, Electrical Key
2005-11 → 2009-03
ended
|
NHW20 G | ¥23,800 | |
| 89904-47030 note |
Transmitter Sub-assy, Electrical Key
2007-04 → 2009-03
ended
|
NHW20 S | ¥23,800 | |
| 89994B — Transmitter, Electrical Key | ||||
| 89994-47080 |
Transmitter, Electrical Key
2003-08 → 2005-11
ended
|
NHW20 G | ¥24,400 | |
| 89994-47080 |
Transmitter, Electrical Key
2005-11 → 2009-03
ended
|
NHW20 G | ¥24,400 | |
| 89994-47080 note |
Transmitter, Electrical Key
2007-04 → 2009-03
ended
|
NHW20 S | ¥24,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
