Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

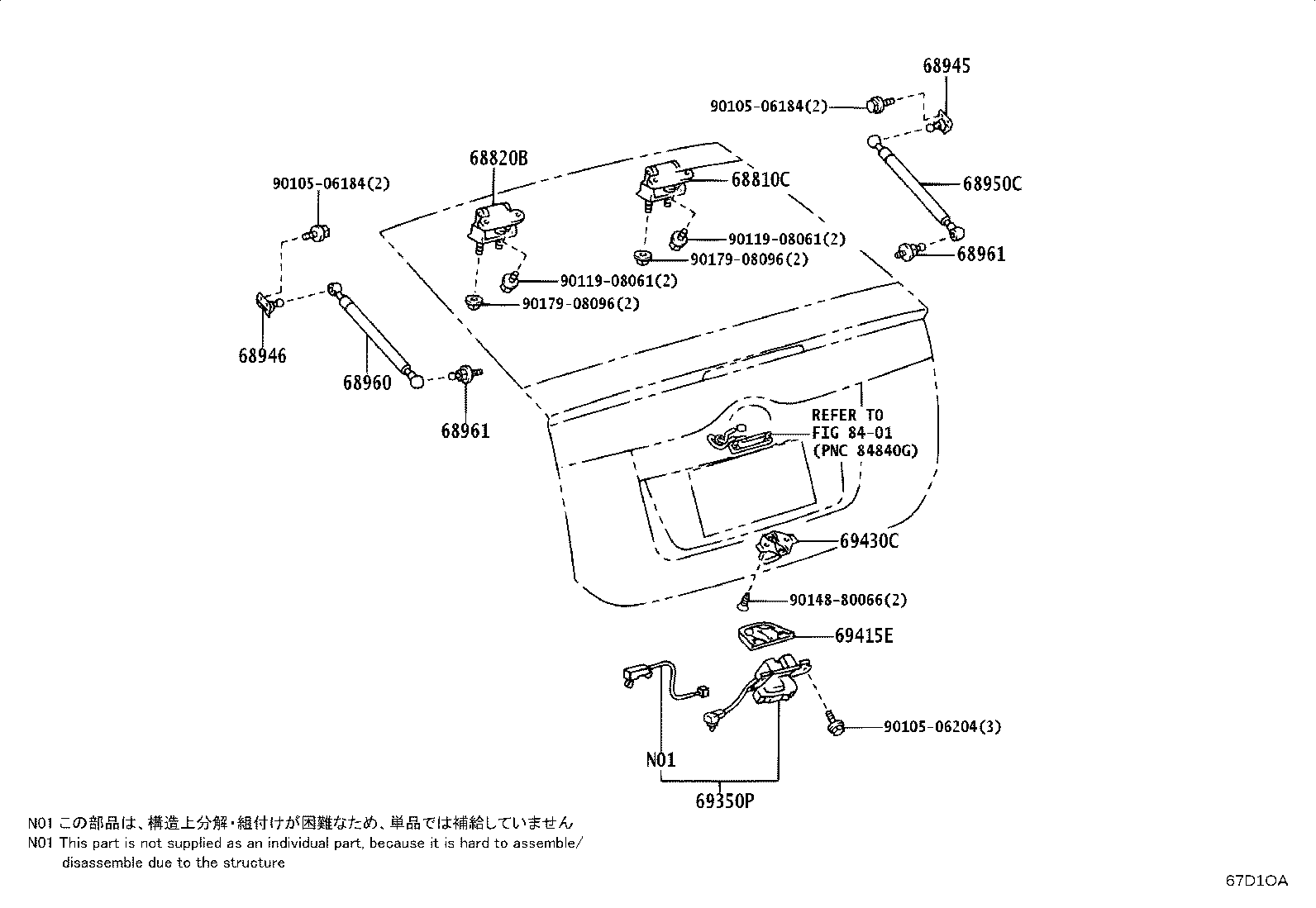

Exploded illustration 67D1OA 68961 — BOLT, BACK DOOR STAY (2 parts) 68960 — STAY ASSY, BACK DOOR, LH (32 parts) 68820B — HINGE ASSY, BACK DOOR, LH (2 parts) 68946 — BRACKET, BACK DOOR DAMPER STAY, UPPER LH (2 parts) 9010506184 — not listed in this catalogue 9017908096 — not listed in this catalogue 9017908096 — not listed in this catalogue 68810C — HINGE ASSY, BACK DOOR, RH (2 parts) 9010506184 — not listed in this catalogue 68945 — BRACKET, BACK DOOR DAMPER STAY, UPPER RH (2 parts) 68950C — STAY ASSY, BACK DOOR, RH (32 parts) 68961 — BOLT, BACK DOOR STAY (2 parts) 69430C — STRIKER ASSY, BACK DOOR LOCK (2 parts) 69415E — COVER, BACK DOOR LOCK STRIKER (2 parts) 9014880066 — not listed in this catalogue 9010506204 — not listed in this catalogue 69350P — LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH (2 parts) 9011908061 — not listed in this catalogue 9011908061 — not listed in this catalogue 8401 — not listed in this catalogue
67D1OA · 11 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
68810C — Hinge Assy, Back Door, RH
68810-47010 Hinge Assy, Back Door, RH
2003-08 → 2005-11 ended
NHW20 ¥2,170
68810-47010 Hinge Assy, Back Door, RH
2005-11 → 2011-12 ended
NHW20 ¥2,170
68820B — Hinge Assy, Back Door, LH
68810-47010 Hinge Assy, Back Door, LH
2003-08 → 2005-11 ended
NHW20 ¥2,170
68810-47010 Hinge Assy, Back Door, LH
2005-11 → 2011-12 ended
NHW20 ¥2,170
68945 — Bracket, Back Door Damper Stay, Upper RH
68945-12030 Bracket, Back Door Damper Stay, Upper RH
2003-08 → 2005-11 ended
NHW20 ¥550
68945-12030 Bracket, Back Door Damper Stay, Upper RH
2005-11 → —
NHW20 ¥550
68946 — Bracket, Back Door Damper Stay, Upper LH
68945-12030 Bracket, Back Door Damper Stay, Upper LH
2003-08 → 2005-11 ended
NHW20 ¥550
68945-12030 Bracket, Back Door Damper Stay, Upper LH
2005-11 → —
NHW20 ¥550
68950C — Stay Assy, Back Door, RH
68950-0W200 note Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 G ¥9,200
68950-0W200 note Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 S ¥9,200
68950-0W200 Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 G ¥9,200
68950-0W200 note Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 S ¥9,200
68950-0W200 note Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 S ¥9,200
68950-0W201 note Stay Assy, Back Door, RH
2004-01 → 2004-08 ended
NHW20 S ¥9,100
68950-0W201 note Stay Assy, Back Door, RH
2004-01 → 2004-08 ended
NHW20 G ¥9,100
68950-0W210 Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 S ¥9,400
68950-0W210 note Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 S ¥9,400
68950-0W210 Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 G ¥9,400
68950-0W210 note Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 S ¥9,400
68950-0W211 Stay Assy, Back Door, RH
2004-01 → 2004-08 ended
NHW20 G ¥9,400
68950-0W211 note Stay Assy, Back Door, RH
2004-01 → 2004-08 ended
NHW20 S ¥9,400
68950-0W211 note Stay Assy, Back Door, RH
2004-01 → 2004-08 ended
NHW20 S ¥9,400
68950-0W270 Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 S ¥9,400
68950-0W271 Stay Assy, Back Door, RH
2004-01 → 2004-08 ended
NHW20 S ¥9,400
68950-0W280 note Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 G ¥9,300
68950-0W280 note Stay Assy, Back Door, RH
2003-08 → 2004-01 ended
NHW20 S ¥9,300
68950-0W360 Stay Assy, Back Door, RH
2004-08 → 2005-05 ended
NHW20 ¥9,400
68950-0W361 Stay Assy, Back Door, RH
2005-06 → 2005-11 ended
NHW20 ¥9,400
68950-0W370 note Stay Assy, Back Door, RH
2004-08 → 2005-05 ended
NHW20 S ¥9,400
68950-0W370 note Stay Assy, Back Door, RH
2004-08 → 2005-05 ended
NHW20 S ¥9,400
68950-0W370 note Stay Assy, Back Door, RH
2004-08 → 2005-05 ended
NHW20 G ¥9,400
68950-0W371 note Stay Assy, Back Door, RH
2005-06 → 2005-11 ended
NHW20 G ¥9,400
68950-0W371 note Stay Assy, Back Door, RH
2005-06 → 2005-11 ended
NHW20 S ¥9,400
68950-0W371 note Stay Assy, Back Door, RH
2005-06 → 2005-11 ended
NHW20 S ¥9,400
68950-0W361 Stay Assy, Back Door, RH
2005-11 → 2007-06 ended
NHW20 S ¥9,400
68950-0W362 Stay Assy, Back Door, RH
2007-07 → —
NHW20 S ¥9,400
68950-0W371 Stay Assy, Back Door, RH
2005-11 → 2007-09 ended
NHW20 G ¥9,400
68950-0W371 note Stay Assy, Back Door, RH
2005-11 → 2007-09 ended
NHW20 S ¥9,400
68950-0W372 Stay Assy, Back Door, RH
2007-10 → 2009-03 ended
NHW20 G ¥9,400
68950-0W372 note Stay Assy, Back Door, RH
2007-10 → 2009-03 ended
NHW20 S ¥9,400
68960 — Stay Assy, Back Door, LH
68960-0W190 note Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 G —
68960-0W190 note Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 S —
68960-0W190 note Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 S —
68960-0W190 note Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 S —
68960-0W190 Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 G —
68960-0W191 note Stay Assy, Back Door, LH
2004-01 → 2004-08 ended
NHW20 G ¥9,100
68960-0W191 note Stay Assy, Back Door, LH
2004-01 → 2004-08 ended
NHW20 S ¥9,100
68960-0W200 Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 G ¥9,400
68960-0W200 note Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 S ¥9,400
68960-0W200 note Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 S ¥9,400
68960-0W200 Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 S ¥9,400
68960-0W201 Stay Assy, Back Door, LH
2004-01 → 2004-08 ended
NHW20 G ¥9,400
68960-0W201 note Stay Assy, Back Door, LH
2004-01 → 2004-08 ended
NHW20 S ¥9,400
68960-0W201 note Stay Assy, Back Door, LH
2004-01 → 2004-08 ended
NHW20 S ¥9,400
68960-0W260 Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 S ¥9,400
68960-0W261 Stay Assy, Back Door, LH
2004-01 → 2004-08 ended
NHW20 S ¥9,400
68960-0W270 note Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 G ¥9,300
68960-0W270 note Stay Assy, Back Door, LH
2003-08 → 2004-01 ended
NHW20 S ¥9,300
68960-0W360 Stay Assy, Back Door, LH
2004-08 → 2005-05 ended
NHW20 ¥9,400
68960-0W361 Stay Assy, Back Door, LH
2005-06 → 2005-11 ended
NHW20 ¥9,400
68960-0W370 note Stay Assy, Back Door, LH
2004-08 → 2005-05 ended
NHW20 S ¥9,400
68960-0W370 note Stay Assy, Back Door, LH
2004-08 → 2005-05 ended
NHW20 G ¥9,400
68960-0W370 note Stay Assy, Back Door, LH
2004-08 → 2005-05 ended
NHW20 S ¥9,400
68960-0W371 note Stay Assy, Back Door, LH
2005-06 → 2005-11 ended
NHW20 G ¥9,400
68960-0W371 note Stay Assy, Back Door, LH
2005-06 → 2005-11 ended
NHW20 S ¥9,400
68960-0W371 note Stay Assy, Back Door, LH
2005-06 → 2005-11 ended
NHW20 S ¥9,400
68960-0W361 Stay Assy, Back Door, LH
2005-11 → 2007-06 ended
NHW20 S ¥9,400
68960-0W362 Stay Assy, Back Door, LH
2007-07 → —
NHW20 S ¥9,400
68960-0W371 Stay Assy, Back Door, LH
2005-11 → 2007-09 ended
NHW20 G ¥9,400
68960-0W371 note Stay Assy, Back Door, LH
2005-11 → 2007-09 ended
NHW20 S ¥9,400
68960-0W372 note Stay Assy, Back Door, LH
2007-10 → 2009-03 ended
NHW20 S ¥9,400
68960-0W372 Stay Assy, Back Door, LH
2007-10 → 2009-03 ended
NHW20 G ¥9,400
68961 — Bolt, Back Door Stay
68961-20140 Bolt, Back Door Stay
2003-08 → 2005-11 ended
NHW20 ¥280
68961-20140 Bolt, Back Door Stay
2005-11 → —
NHW20 ¥280
69350P — Lock Assy, Back Door, W/Courtesy Lamp Switch
69350-47010 Lock Assy, Back Door, W/Courtesy Lamp Switch
2003-08 → 2005-11 ended
NHW20 ¥15,500
69350-47010 Lock Assy, Back Door, W/Courtesy Lamp Switch
2005-11 → 2011-12 ended
NHW20 ¥15,500
69415E — Cover, Back Door Lock Striker
69415-47010 Cover, Back Door Lock Striker
2003-08 → 2005-11 ended
NHW20 ¥1,040
69415-47010 Cover, Back Door Lock Striker
2005-11 → —
NHW20 ¥1,040
69430C — Striker Assy, Back Door Lock
69430-53010 Striker Assy, Back Door Lock
2003-08 → 2005-11 ended
NHW20 ¥1,680
69430-53010 Striker Assy, Back Door Lock
2005-11 → —
NHW20 ¥1,680
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
