Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

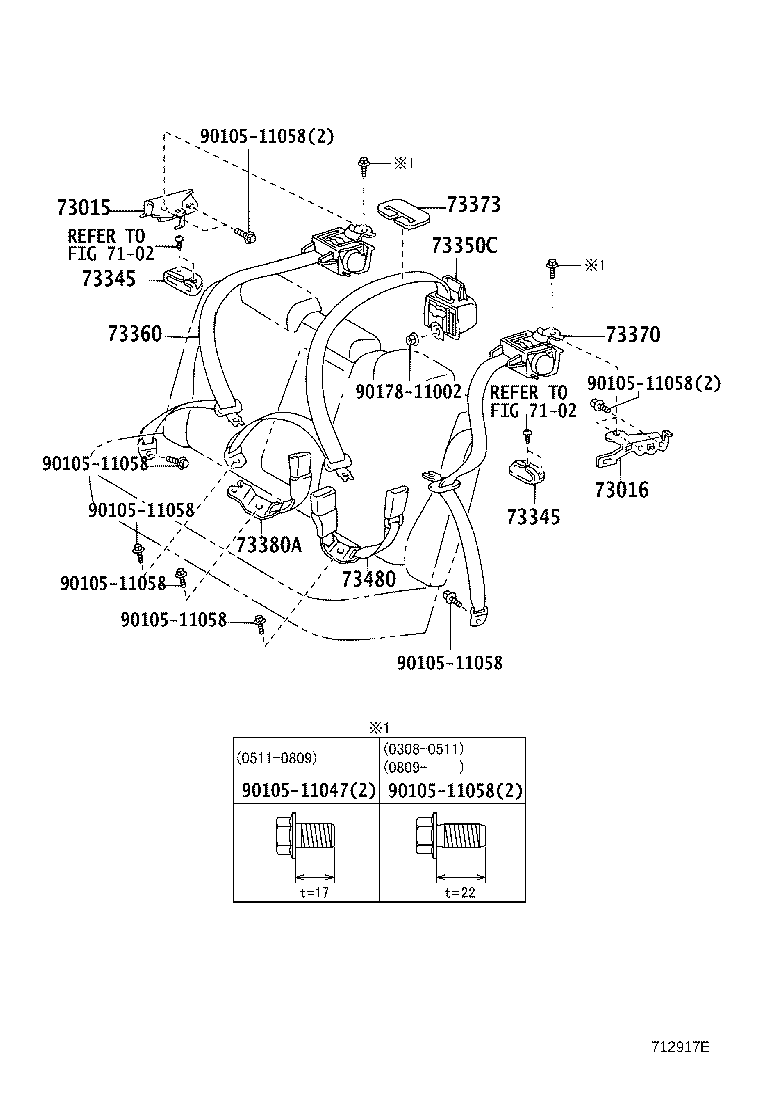

Exploded illustration 712917E 73015 — BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH (2 parts) 73345 — GUIDE, REAR SEAT SHOULDER BELT, CENTER (36 parts) 73360 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH (7 parts) 9010511058 — not listed in this catalogue 73373 — COVER, REAR SEAT SHOULDER BELT (18 parts) 73350C — BELT ASSY, REAR SEAT, OUTER CENTER (7 parts) 9017811002 — not listed in this catalogue 7102 — not listed in this catalogue 7102 — not listed in this catalogue 73370 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH (7 parts) 9010511058 — not listed in this catalogue 73345 — GUIDE, REAR SEAT SHOULDER BELT, CENTER (36 parts) 73016 — BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH (2 parts) 9010511047 — not listed in this catalogue 9010511058 — not listed in this catalogue 9010511058 — not listed in this catalogue 73480 — BELT ASSY, REAR SEAT INNER W/CENTER, LH (4 parts) 9010511058 — not listed in this catalogue 73380A — BELT ASSY, REAR SEAT, INNER (4 parts) 9010511058 — not listed in this catalogue 9010511058 — not listed in this catalogue 9010511058 — not listed in this catalogue
712917E · 10 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
73015 — Bracket Sub-assy, Belt Outer Anchor, RH
73015-47010 Bracket Sub-assy, Belt Outer Anchor, RH
2003-08 → 2005-11 ended
NHW20 ¥780
73015-47020 Bracket Sub-assy, Belt Outer Anchor, RH
2005-11 → —
NHW20 ¥910
73016 — Bracket Sub-assy, Belt Outer Anchor, LH
73016-47010 Bracket Sub-assy, Belt Outer Anchor, LH
2003-08 → 2005-11 ended
NHW20 ¥910
73016-47010 Bracket Sub-assy, Belt Outer Anchor, LH
2005-11 → —
NHW20 ¥910
73345 — Guide, Rear Seat Shoulder Belt, Center
73345-20010-A0 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,170
73345-20010-A0 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,170
73345-20010-A0 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,170
73345-20010-A0 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,170
73345-20010-A0 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,170
73345-20010-A0 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,170
73345-20010-B1 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,160
73345-20010-B1 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,160
73345-20010-B1 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,160
73345-20010-B1 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,160
73345-20010-B1 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,160
73345-20010-B1 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,160
73345-20010-B1 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,160
73345-20010-B1 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,160
73345-33020-A0 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,190
73345-33020-A0 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,190
73345-33020-A0 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,190
73345-33020-A0 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,190
73345-33020-A0 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,190
73345-33020-A0 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,190
73345-33020-B2 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,160
73345-33020-B2 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,160
73345-33020-B2 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,160
73345-33020-B2 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,160
73345-33020-B2 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,160
73345-33020-B2 note Guide, Rear Seat Shoulder Belt, Center
2004-08 → 2005-11 ended
NHW20 ¥1,160
73345-33020-B2 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,160
73345-33020-B2 note Guide, Rear Seat Shoulder Belt, Center
2003-08 → 2005-11 ended
NHW20 ¥1,160
73345-20010-B1 note Guide, Rear Seat Shoulder Belt, Center
2005-11 → 2009-03 ended
NHW20 S ¥1,160
73345-20010-B1 note Guide, Rear Seat Shoulder Belt, Center
2005-11 → 2011-12 ended
NHW20 G ¥1,160
73345-20010-B1 note Guide, Rear Seat Shoulder Belt, Center
2009-06 → 2011-12 ended
NHW20 ¥1,160
73345-20010-E1 note Guide, Rear Seat Shoulder Belt, Center
2005-11 → 2009-03 ended
NHW20 ¥1,170
73345-33020-B2 note Guide, Rear Seat Shoulder Belt, Center
2005-11 → 2009-03 ended
NHW20 S ¥1,160
73345-33020-B2 note Guide, Rear Seat Shoulder Belt, Center
2005-11 → 2011-12 ended
NHW20 G ¥1,160
73345-33020-B2 note Guide, Rear Seat Shoulder Belt, Center
2009-06 → 2011-12 ended
NHW20 ¥1,160
73345-33020-E1 note Guide, Rear Seat Shoulder Belt, Center
2005-11 → 2009-03 ended
NHW20 ¥1,170
73350C — Belt Assy, Rear Seat, Outer Center
73350-47010-A0 note Belt Assy, Rear Seat, Outer Center
2003-08 → 2005-07 ended
NHW20 ¥24,700
73350-47010-B0 note Belt Assy, Rear Seat, Outer Center
2003-08 → 2005-07 ended
NHW20 ¥24,700
73350-47011-A0 note Belt Assy, Rear Seat, Outer Center
2005-08 → 2005-11 ended
NHW20 ¥24,700
73350-47011-B0 note Belt Assy, Rear Seat, Outer Center
2005-08 → 2005-11 ended
NHW20 ¥24,700
73350-47011-B0 note Belt Assy, Rear Seat, Outer Center
2005-11 → 2010-10 ended
NHW20 ¥24,700
73350-47011-E0 note Belt Assy, Rear Seat, Outer Center
2005-11 → 2009-03 ended
NHW20 ¥24,700
73350-47012-B0 note Belt Assy, Rear Seat, Outer Center
2010-10 → 2011-12 ended
NHW20 ¥23,800
73360 — Belt Assy, Rear Seat 3 Point Type, Outer RH
73360-47040-A0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2003-08 → 2005-07 ended
NHW20 ¥23,900
73360-47040-B0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2003-08 → 2005-07 ended
NHW20 ¥23,900
73360-47041-A0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2005-08 → 2005-11 ended
NHW20 ¥23,900
73360-47041-B0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2005-08 → 2005-11 ended
NHW20 ¥23,800
73360-47041-B0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2005-11 → 2010-10 ended
NHW20 ¥23,800
73360-47041-E0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2005-11 → 2009-03 ended
NHW20 ¥23,800
73360-47042-B0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2010-10 → 2011-12 ended
NHW20 ¥23,800
73370 — Belt Assy, Rear Seat 3 Point Type, Outer LH
73360-47040-A0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2003-08 → 2005-07 ended
NHW20 ¥23,900
73360-47040-B0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2003-08 → 2005-07 ended
NHW20 ¥23,900
73360-47041-A0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2005-08 → 2005-11 ended
NHW20 ¥23,900
73360-47041-B0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2005-08 → 2005-11 ended
NHW20 ¥23,800
73360-47041-B0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2005-11 → 2010-10 ended
NHW20 ¥23,800
73360-47041-E0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2005-11 → 2009-03 ended
NHW20 ¥23,800
73360-47042-B0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2010-10 → 2011-12 ended
NHW20 ¥23,800
73373 — Cover, Rear Seat Shoulder Belt
73373-33020-A0 note Cover, Rear Seat Shoulder Belt
2003-08 → 2005-11 ended
NHW20 ¥610
73373-33020-A0 note Cover, Rear Seat Shoulder Belt
2003-08 → 2005-11 ended
NHW20 ¥610
73373-33020-A0 note Cover, Rear Seat Shoulder Belt
2003-08 → 2005-11 ended
NHW20 ¥610
73373-33020-A0 note Cover, Rear Seat Shoulder Belt
2004-08 → 2005-11 ended
NHW20 ¥610
73373-33020-A0 note Cover, Rear Seat Shoulder Belt
2004-08 → 2005-11 ended
NHW20 ¥610
73373-33020-A0 note Cover, Rear Seat Shoulder Belt
2004-08 → 2005-11 ended
NHW20 ¥610
73373-33020-B7 note Cover, Rear Seat Shoulder Belt
2004-08 → 2005-11 ended
NHW20 ¥610
73373-33020-B7 note Cover, Rear Seat Shoulder Belt
2003-08 → 2005-11 ended
NHW20 ¥610
73373-33020-B7 note Cover, Rear Seat Shoulder Belt
2004-08 → 2005-11 ended
NHW20 ¥610
73373-33020-B7 note Cover, Rear Seat Shoulder Belt
2004-08 → 2005-11 ended
NHW20 ¥610
73373-33020-B7 note Cover, Rear Seat Shoulder Belt
2004-08 → 2005-11 ended
NHW20 ¥610
73373-33020-B7 note Cover, Rear Seat Shoulder Belt
2004-08 → 2005-11 ended
NHW20 ¥610
73373-33020-B7 note Cover, Rear Seat Shoulder Belt
2003-08 → 2005-11 ended
NHW20 ¥610
73373-33020-B7 note Cover, Rear Seat Shoulder Belt
2003-08 → 2005-11 ended
NHW20 ¥610
73373-33020-B7 note Cover, Rear Seat Shoulder Belt
2005-11 → 2009-03 ended
NHW20 S ¥610
73373-33020-B7 note Cover, Rear Seat Shoulder Belt
2005-11 → 2011-12 ended
NHW20 G ¥610
73373-33020-B7 note Cover, Rear Seat Shoulder Belt
2009-06 → 2011-12 ended
NHW20 ¥610
73373-33020-E2 note Cover, Rear Seat Shoulder Belt
2005-11 → 2009-03 ended
NHW20 ¥610
73380A — Belt Assy, Rear Seat, Inner
73380-47010-A0 note Belt Assy, Rear Seat, Inner
2003-08 → 2005-11 ended
NHW20 ¥3,820
73380-47010-B0 note Belt Assy, Rear Seat, Inner
2003-08 → 2005-11 ended
NHW20 ¥3,810
73380-47010-B0 note Belt Assy, Rear Seat, Inner
2005-11 → 2011-12 ended
NHW20 ¥3,810
73380-47010-E0 note Belt Assy, Rear Seat, Inner
2005-11 → 2009-03 ended
NHW20 ¥3,810
73480 — Belt Assy, Rear Seat Inner W/Center, LH
73480-47040-A0 note Belt Assy, Rear Seat Inner W/Center, LH
2003-08 → 2005-11 ended
NHW20 ¥6,200
73480-47040-B0 note Belt Assy, Rear Seat Inner W/Center, LH
2003-08 → 2005-11 ended
NHW20 ¥6,200
73480-47040-B0 note Belt Assy, Rear Seat Inner W/Center, LH
2005-11 → 2011-12 ended
NHW20 ¥6,200
73480-47040-E0 note Belt Assy, Rear Seat Inner W/Center, LH
2005-11 → 2009-03 ended
NHW20 ¥6,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
