Toyota Prius
2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan
Supported model
Data version 2012-01

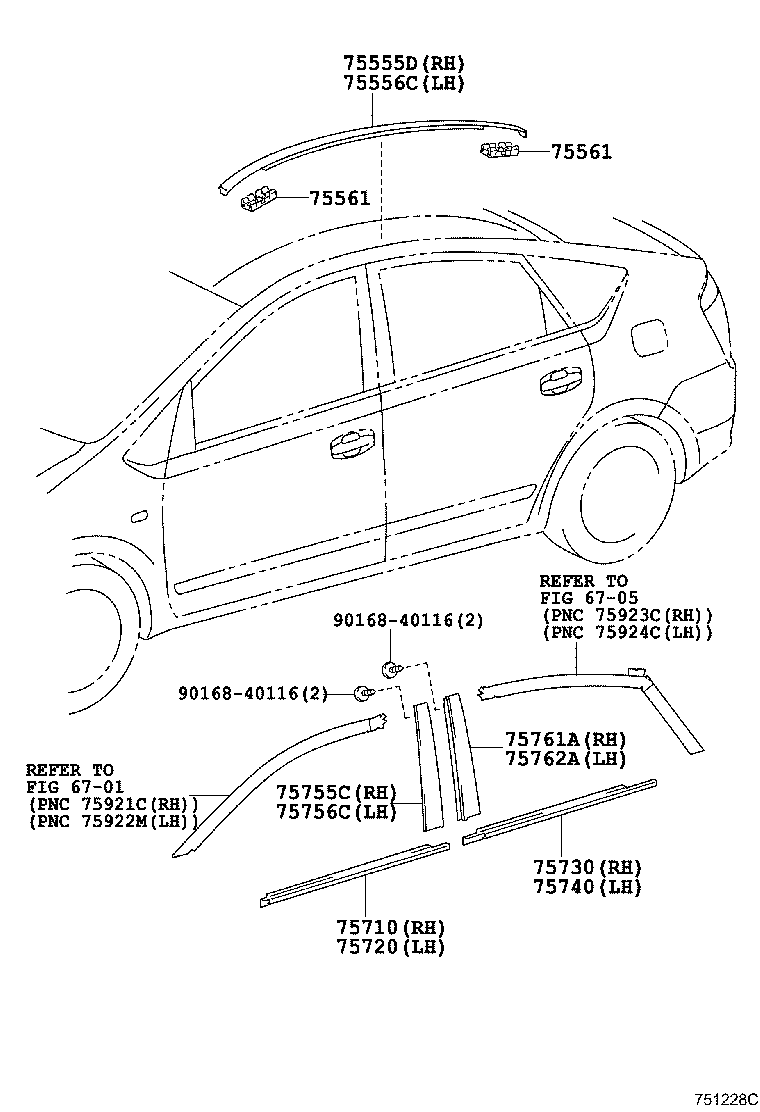

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75555D — Moulding, Roof Drip Side Finish, Center RH | ||||
| 75555-47020 |
Moulding, Roof Drip Side Finish, Center RH
2003-08 → 2005-11
ended
|
NHW20 | ¥3,440 | |
| 75555-47020 |
Moulding, Roof Drip Side Finish, Center RH
2005-11 → —
|
NHW20 | ¥3,440 | |
| 75556C — Moulding, Roof Drip Side Finish, Center LH | ||||
| 75556-47020 |
Moulding, Roof Drip Side Finish, Center LH
2003-08 → 2005-11
ended
|
NHW20 | ¥3,440 | |
| 75556-47020 |
Moulding, Roof Drip Side Finish, Center LH
2005-11 → —
|
NHW20 | ¥3,440 | |
| 75561 — Clip, Roof Drip Side Finish Moulding, NO.1 | ||||
| 75561-33030 |
Clip, Roof Drip Side Finish Moulding, NO.1
2003-08 → 2005-11
ended
|
NHW20 | ¥140 | |
| 75561-33030 |
Clip, Roof Drip Side Finish Moulding, NO.1
2005-11 → —
|
NHW20 | ¥140 | |
| 75710 — Moulding Assy, Front Door Belt, RH | ||||
| 75710-47010 |
Moulding Assy, Front Door Belt, RH
2003-08 → 2005-11
ended
|
NHW20 | ¥3,980 | |
| 75710-47010 |
Moulding Assy, Front Door Belt, RH
2005-11 → 2011-12
ended
|
NHW20 | ¥3,980 | |
| 75720 — Moulding Assy, Front Door Belt, LH | ||||
| 75720-47010 |
Moulding Assy, Front Door Belt, LH
2003-08 → 2005-11
ended
|
NHW20 | ¥3,980 | |
| 75720-47010 |
Moulding Assy, Front Door Belt, LH
2005-11 → —
|
NHW20 | ¥3,980 | |
| 75730 — Moulding Assy, Rear Door Belt, RH | ||||
| 75730-47010 |
Moulding Assy, Rear Door Belt, RH
2003-08 → 2005-11
ended
|
NHW20 | ¥3,980 | |
| 75730-47010 |
Moulding Assy, Rear Door Belt, RH
2005-11 → —
|
NHW20 | ¥3,980 | |
| 75740 — Moulding Assy, Rear Door Belt, LH | ||||
| 75740-47010 |
Moulding Assy, Rear Door Belt, LH
2003-08 → 2005-11
ended
|
NHW20 | ¥3,980 | |
| 75740-47010 |
Moulding Assy, Rear Door Belt, LH
2005-11 → —
|
NHW20 | ¥3,980 | |
| 75755C — Moulding, Front Door Window Frame, Rear RH | ||||
| 75755-47010 |
Moulding, Front Door Window Frame, Rear RH
2003-08 → 2005-11
ended
|
NHW20 | ¥2,350 | |
| 75755-47010 |
Moulding, Front Door Window Frame, Rear RH
2005-11 → 2011-12
ended
|
NHW20 | ¥2,350 | |
| 75756C — Moulding, Front Door Window Frame, Rear LH | ||||
| 75756-47010 |
Moulding, Front Door Window Frame, Rear LH
2003-08 → 2005-11
ended
|
NHW20 | ¥2,350 | |
| 75756-47010 |
Moulding, Front Door Window Frame, Rear LH
2005-11 → 2011-12
ended
|
NHW20 | ¥2,350 | |
| 75761A — Moulding, Rear Door Window Frame, Front RH | ||||
| 75761-47010 |
Moulding, Rear Door Window Frame, Front RH
2003-08 → 2005-11
ended
|
NHW20 | ¥2,220 | |
| 75761-47010 |
Moulding, Rear Door Window Frame, Front RH
2005-11 → 2011-12
ended
|
NHW20 | ¥2,220 | |
| 75762A — Moulding, Rear Door Window Frame, Front LH | ||||
| 75762-47010 |
Moulding, Rear Door Window Frame, Front LH
2003-08 → 2005-11
ended
|
NHW20 | ¥2,220 | |
| 75762-47010 |
Moulding, Rear Door Window Frame, Front LH
2005-11 → 2011-12
ended
|
NHW20 | ¥2,220 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
