Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

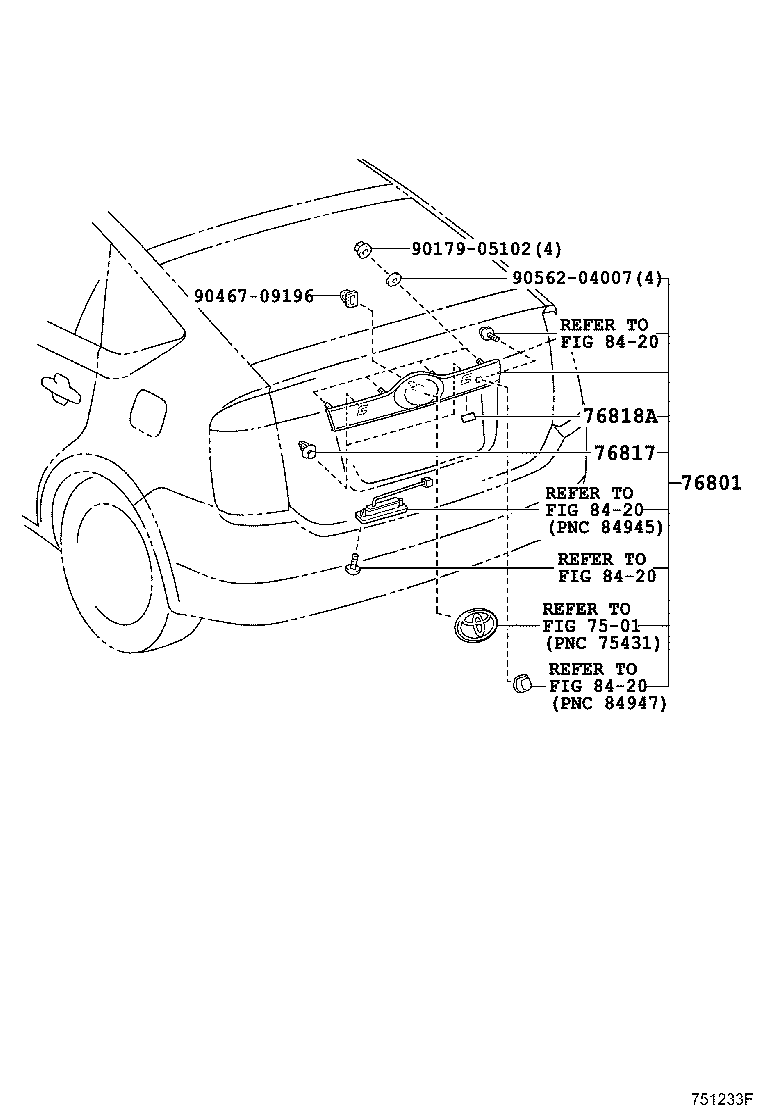

Exploded illustration 751233F 9046709196 — not listed in this catalogue 9017905102 — not listed in this catalogue 9056204007 — not listed in this catalogue 76801 — GARNISH SUB-ASSY, BACK DOOR, OUTSIDE (40 parts) 8420 — not listed in this catalogue 8420 — not listed in this catalogue 8420 — not listed in this catalogue 76818A — PAD, LUGGAGE GARNISH, NO.1 (3 parts) 8420 — not listed in this catalogue 7501 — not listed in this catalogue 76817 — CLIP, BACK DOOR OUTSIDE GARNISH (2 parts)
751233F · 3 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
45 parts on this figure
Part number Description Fitment Price
76801 — Garnish Sub-assy, Back Door, Outside
76801-47030-A0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 S ¥24,400
76801-47030-A1 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 S ¥24,400
76801-47030-B0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 S ¥24,400
76801-47030-C0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 S ¥24,400
76801-47030-D0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 S ¥24,400
76801-47030-E0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 S ¥24,400
76801-47030-G0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 S ¥24,400
76801-47030-J0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 S ¥24,400
76801-47030-J1 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 S ¥24,400
76801-47040-A0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 G ¥29,700
76801-47040-A1 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 G ¥29,700
76801-47040-B0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 G ¥29,700
76801-47040-C0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 G ¥29,700
76801-47040-D0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 G ¥29,700
76801-47040-E0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 G ¥29,700
76801-47040-G0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 G ¥29,700
76801-47040-J0 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 G ¥29,700
76801-47040-J1 note Garnish Sub-assy, Back Door, Outside
2003-08 → 2005-11 ended
NHW20 G ¥29,700
76801-47050-A0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2010-10 ended
NHW20 S ¥14,400
76801-47050-A1 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 S ¥14,400
76801-47050-B0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2010-10 ended
NHW20 S ¥14,400
76801-47050-C0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2010-10 ended
NHW20 S ¥14,400
76801-47050-D0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 S ¥14,400
76801-47050-E0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 S ¥14,400
76801-47050-G0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 S ¥14,400
76801-47050-J0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 S ¥14,400
76801-47060-A0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 G ¥18,400
76801-47060-A1 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 G ¥18,400
76801-47060-A1 note Garnish Sub-assy, Back Door, Outside
2007-04 → 2009-03 ended
NHW20 S ¥18,400
76801-47060-B0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 G ¥18,400
76801-47060-B0 note Garnish Sub-assy, Back Door, Outside
2007-04 → 2009-03 ended
NHW20 S ¥18,400
76801-47060-C0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 G ¥18,400
76801-47060-D0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 G ¥18,400
76801-47060-E0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 G ¥18,400
76801-47060-G0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 G ¥18,400
76801-47060-J0 note Garnish Sub-assy, Back Door, Outside
2005-11 → 2009-03 ended
NHW20 G ¥18,400
76801-47060-J2 note Garnish Sub-assy, Back Door, Outside
2007-04 → 2009-03 ended
NHW20 S ¥18,400
76801-47100-A0 note Garnish Sub-assy, Back Door, Outside
2010-10 → 2011-12 ended
NHW20 ¥14,400
76801-47100-B0 note Garnish Sub-assy, Back Door, Outside
2010-10 → 2011-12 ended
NHW20 ¥14,400
76801-47100-C0 note Garnish Sub-assy, Back Door, Outside
2010-10 → 2011-12 ended
NHW20 ¥14,400
76817 — Clip, Back Door Outside Garnish
75819-53010 Clip, Back Door Outside Garnish
2003-08 → 2005-11 ended
NHW20 ¥230
75819-53010 Clip, Back Door Outside Garnish
2005-11 → —
NHW20 ¥230
76818A — Pad, Luggage Garnish, NO.1
76818-12160 Pad, Luggage Garnish, NO.1
2003-08 → 2005-11 ended
NHW20 G ¥120
76818-12160 Pad, Luggage Garnish, NO.1
2005-11 → 2009-03 ended
NHW20 G ¥120
76818-12160 note Pad, Luggage Garnish, NO.1
2007-04 → 2009-03 ended
NHW20 S ¥120
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
