Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

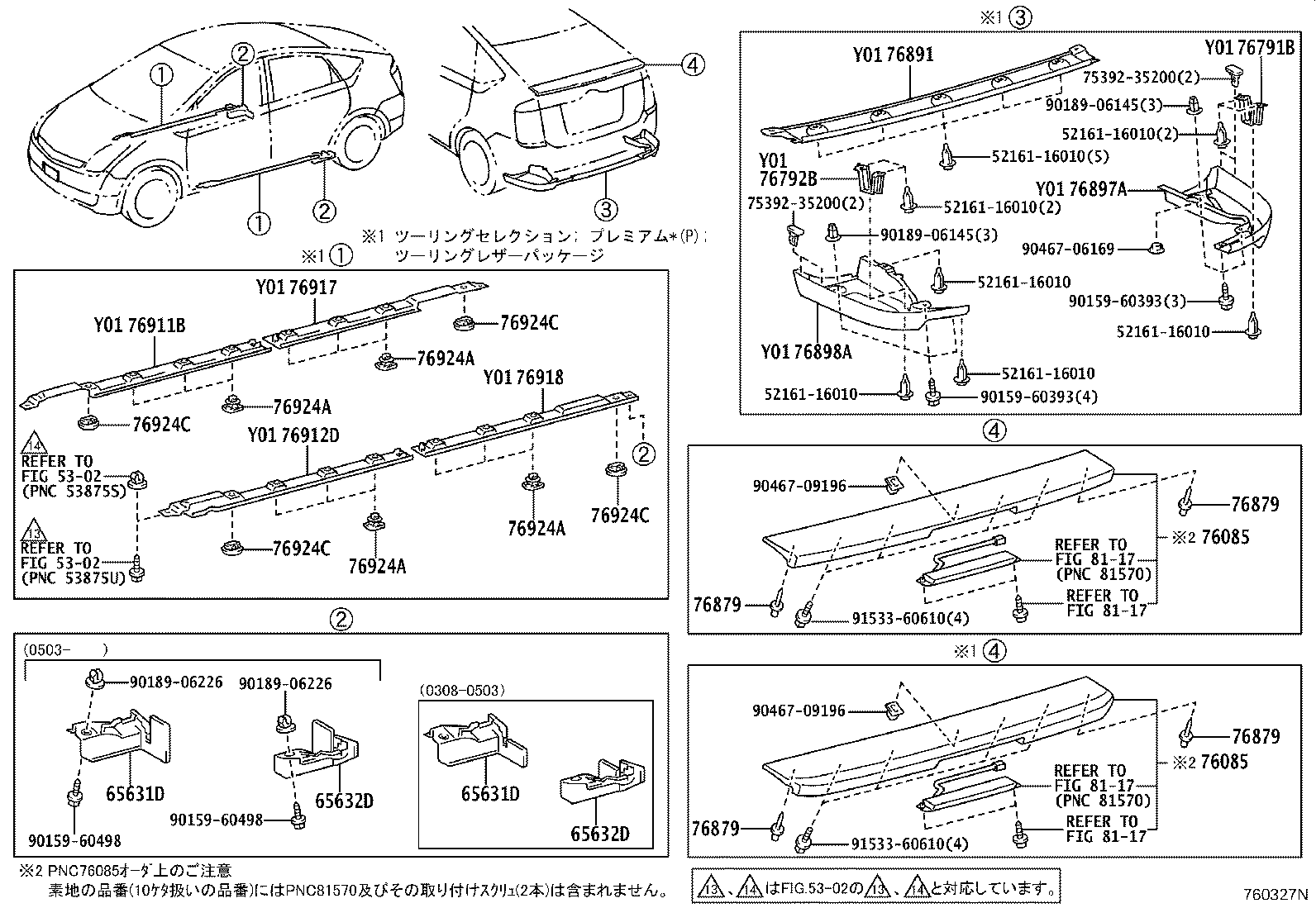

Exploded illustration 760327N 5216116010 — not listed in this catalogue 7539235200 — not listed in this catalogue 76879 — CLIP, REAR SPOILER, NO.1 (2 parts) 9046709196 — not listed in this catalogue 5216116010 — not listed in this catalogue 76898A — SPOILER,REAR SIDE LH (4 parts) 9046709196 — not listed in this catalogue 9018906226 — not listed in this catalogue 9018906226 — not listed in this catalogue 9015960498 — not listed in this catalogue 65632D — PLATE, REAR WHEEL HOUSE, FRONT LH (3 parts) 65631D — PLATE, REAR WHEEL HOUSE, FRONT RH (3 parts) 9015960498 — not listed in this catalogue 76879 — CLIP, REAR SPOILER, NO.1 (2 parts) 9153360610 — not listed in this catalogue 9153360610 — not listed in this catalogue 76085 — SPOILER SUB-ASSY, REAR (60 parts) 76085 — SPOILER SUB-ASSY, REAR (60 parts) 76879 — CLIP, REAR SPOILER, NO.1 (2 parts) 76879 — CLIP, REAR SPOILER, NO.1 (2 parts) 9018906145 — not listed in this catalogue 5216116010 — not listed in this catalogue 5216116010 — not listed in this catalogue 76792B — BRACKET, REAR SPOILER, NO.1 LH (4 parts) 5216116010 — not listed in this catalogue 76897A — SPOILER,REAR SIDE RH (4 parts) 9018906145 — not listed in this catalogue 9046706169 — not listed in this catalogue 9015960393 — not listed in this catalogue 9015960393 — not listed in this catalogue 5216116010 — not listed in this catalogue 5216116010 — not listed in this catalogue 76891 — SPOILER, REAR NO.1 (4 parts) 76791B — BRACKET, REAR SPOILER (4 parts) 7539235200 — not listed in this catalogue 65632D — PLATE, REAR WHEEL HOUSE, FRONT LH (3 parts) 65631D — PLATE, REAR WHEEL HOUSE, FRONT RH (3 parts) 76911B — MUDGUARD, SIDE, RH (4 parts) 76924A — RETAINER, SIDE MUDGUARD, NO.2 (4 parts) 76924A — RETAINER, SIDE MUDGUARD, NO.2 (4 parts) 76912D — MUDGUARD, SIDE, LH (4 parts) 76924C — RETAINER, SIDE MUDGUARD, NO.2 (4 parts) 76924A — RETAINER, SIDE MUDGUARD, NO.2 (4 parts) 76924C — RETAINER, SIDE MUDGUARD, NO.2 (4 parts) 76917 — MUDGUARD, SIDE, REAR RH (4 parts) 76918 — MUDGUARD, SIDE, REAR LH (4 parts) 76924C — RETAINER, SIDE MUDGUARD, NO.2 (4 parts) 76924C — RETAINER, SIDE MUDGUARD, NO.2 (4 parts) 76924A — RETAINER, SIDE MUDGUARD, NO.2 (4 parts) 8117 — not listed in this catalogue 8117 — not listed in this catalogue 8117 — not listed in this catalogue 5302 — not listed in this catalogue 5302 — not listed in this catalogue 8117 — not listed in this catalogue
760327N · 27 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
112 parts on this figure
Part number Description Fitment Price
65631D — Plate, Rear Wheel House, Front RH
65631-47020 Plate, Rear Wheel House, Front RH
2003-08 → 2005-03 ended
NHW20 ¥2,030
65631-47030 Plate, Rear Wheel House, Front RH
2005-03 → 2005-11 ended
NHW20 ¥2,260
65631-47030 Plate, Rear Wheel House, Front RH
2005-11 → —
NHW20 ¥2,260
65632D — Plate, Rear Wheel House, Front LH
65632-47020 Plate, Rear Wheel House, Front LH
2003-08 → 2005-03 ended
NHW20 ¥2,030
65632-47030 Plate, Rear Wheel House, Front LH
2005-03 → 2005-11 ended
NHW20 ¥2,260
65632-47030 Plate, Rear Wheel House, Front LH
2005-11 → —
NHW20 ¥2,260
76085 — Spoiler Sub-assy, Rear
76085-47020-A0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥67,800
76085-47020-A1 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥67,800
76085-47020-B0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥67,800
76085-47020-C0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥67,800
76085-47020-D0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥67,800
76085-47020-E0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥67,800
76085-47020-G0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥67,800
76085-47020-J0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥67,800
76085-47020-J1 note Spoiler Sub-assy, Rear
2004-08 → 2005-11 ended
NHW20 ¥67,800
76085-47030-A0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-A0 note Spoiler Sub-assy, Rear
2004-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-A1 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-A1 note Spoiler Sub-assy, Rear
2004-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-B0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-B0 note Spoiler Sub-assy, Rear
2004-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-C0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-C0 note Spoiler Sub-assy, Rear
2004-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-D0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-D0 note Spoiler Sub-assy, Rear
2004-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-E0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-E0 note Spoiler Sub-assy, Rear
2004-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-G0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-G0 note Spoiler Sub-assy, Rear
2004-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-J0 note Spoiler Sub-assy, Rear
2003-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-J0 note Spoiler Sub-assy, Rear
2004-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-J1 note Spoiler Sub-assy, Rear
2004-08 → 2005-11 ended
NHW20 ¥73,000
76085-47030-J1 note Spoiler Sub-assy, Rear
2004-08 → 2005-11 ended
NHW20 ¥73,000
76085-47020-A0 note Spoiler Sub-assy, Rear
2005-11 → 2006-09 ended
NHW20 ¥67,800
76085-47020-A2 note Spoiler Sub-assy, Rear
2005-11 → 2006-09 ended
NHW20 ¥67,800
76085-47020-B1 note Spoiler Sub-assy, Rear
2005-11 → 2006-09 ended
NHW20 ¥67,800
76085-47020-C0 note Spoiler Sub-assy, Rear
2005-11 → 2006-09 ended
NHW20 ¥67,800
76085-47020-D1 note Spoiler Sub-assy, Rear
2005-11 → 2006-09 ended
NHW20 ¥67,800
76085-47020-E0 note Spoiler Sub-assy, Rear
2005-11 → 2006-09 ended
NHW20 ¥67,800
76085-47020-G1 note Spoiler Sub-assy, Rear
2005-11 → 2006-09 ended
NHW20 ¥67,800
76085-47020-J0 note Spoiler Sub-assy, Rear
2005-11 → 2006-09 ended
NHW20 ¥67,800
76085-47021-A0 note Spoiler Sub-assy, Rear
2006-10 → 2011-12 ended
NHW20 ¥67,800
76085-47021-A2 note Spoiler Sub-assy, Rear
2006-10 → 2009-03 ended
NHW20 ¥67,800
76085-47021-B1 note Spoiler Sub-assy, Rear
2006-10 → 2011-12 ended
NHW20 ¥67,800
76085-47021-C0 note Spoiler Sub-assy, Rear
2006-10 → 2011-12 ended
NHW20 ¥67,800
76085-47021-D1 note Spoiler Sub-assy, Rear
2006-10 → 2009-03 ended
NHW20 ¥67,800
76085-47021-E0 note Spoiler Sub-assy, Rear
2006-10 → 2009-03 ended
NHW20 ¥67,800
76085-47021-G1 note Spoiler Sub-assy, Rear
2006-10 → 2009-03 ended
NHW20 ¥67,800
76085-47021-J0 note Spoiler Sub-assy, Rear
2006-10 → 2009-03 ended
NHW20 ¥67,800
76085-47021-J2 note Spoiler Sub-assy, Rear
2007-04 → 2009-03 ended
NHW20 S ¥67,800
76085-47030-A0 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 ¥73,000
76085-47030-A0 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 G ¥73,000
76085-47030-A2 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 G ¥73,000
76085-47030-A2 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 ¥73,000
76085-47030-B1 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 G ¥73,000
76085-47030-B1 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 ¥73,000
76085-47030-C0 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 G ¥73,000
76085-47030-C0 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 ¥73,000
76085-47030-D1 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 G ¥73,000
76085-47030-D1 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 ¥73,000
76085-47030-E0 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 G ¥73,000
76085-47030-E0 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 ¥73,000
76085-47030-G1 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 G ¥73,000
76085-47030-G1 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 ¥73,000
76085-47030-J0 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 G ¥73,000
76085-47030-J0 note Spoiler Sub-assy, Rear
2005-11 → 2009-03 ended
NHW20 ¥73,000
76791B — Bracket, Rear Spoiler
76791-47010 note Bracket, Rear Spoiler
2003-08 → 2005-11 ended
NHW20 ¥680
76791-47010 note Bracket, Rear Spoiler
2004-08 → 2005-11 ended
NHW20 ¥680
76791-47010 note Bracket, Rear Spoiler
2005-11 → 2009-03 ended
NHW20 ¥680
76791-47010 note Bracket, Rear Spoiler
2005-11 → 2009-03 ended
NHW20 G ¥680
76792B — Bracket, Rear Spoiler, NO.1 LH
76792-47010 note Bracket, Rear Spoiler, NO.1 LH
2003-08 → 2005-11 ended
NHW20 ¥680
76792-47010 note Bracket, Rear Spoiler, NO.1 LH
2004-08 → 2005-11 ended
NHW20 ¥680
76792-47010 note Bracket, Rear Spoiler, NO.1 LH
2005-11 → 2009-03 ended
NHW20 ¥680
76792-47010 note Bracket, Rear Spoiler, NO.1 LH
2005-11 → 2009-03 ended
NHW20 G ¥680
76879 — Clip, Rear Spoiler, NO.1
76879-47010 Clip, Rear Spoiler, NO.1
2003-08 → 2005-11 ended
NHW20 ¥310
76879-47010 Clip, Rear Spoiler, NO.1
2005-11 → —
NHW20 ¥310
76891 — Spoiler, Rear NO.1
76891-47010 note Spoiler, Rear NO.1
2003-08 → 2005-11 ended
NHW20 ¥10,700
76891-47010 note Spoiler, Rear NO.1
2004-08 → 2005-11 ended
NHW20 ¥10,700
76891-47010 note Spoiler, Rear NO.1
2005-11 → 2009-03 ended
NHW20 ¥10,700
76891-47010 note Spoiler, Rear NO.1
2005-11 → 2009-03 ended
NHW20 G ¥10,700
76897A — Spoiler,Rear Side RH
76087-47010 note Spoiler,Rear Side RH
2003-08 → 2005-11 ended
NHW20 ¥14,000
76087-47010 note Spoiler,Rear Side RH
2004-08 → 2005-11 ended
NHW20 ¥14,000
76087-47010 note Spoiler,Rear Side RH
2005-11 → 2009-03 ended
NHW20 ¥14,000
76087-47010 note Spoiler,Rear Side RH
2005-11 → 2009-03 ended
NHW20 G ¥14,000
76898A — Spoiler,Rear Side LH
76088-47010 note Spoiler,Rear Side LH
2003-08 → 2005-11 ended
NHW20 ¥14,000
76088-47010 note Spoiler,Rear Side LH
2004-08 → 2005-11 ended
NHW20 ¥14,000
76088-47010 note Spoiler,Rear Side LH
2005-11 → 2009-03 ended
NHW20 ¥14,000
76088-47010 note Spoiler,Rear Side LH
2005-11 → 2009-03 ended
NHW20 G ¥14,000
76911B — Mudguard, Side, RH
76911-47010 note Mudguard, Side, RH
2003-08 → 2005-11 ended
NHW20 ¥7,700
76911-47010 note Mudguard, Side, RH
2004-08 → 2005-11 ended
NHW20 ¥7,700
76911-47010 note Mudguard, Side, RH
2005-11 → 2009-03 ended
NHW20 ¥7,700
76911-47010 note Mudguard, Side, RH
2005-11 → 2009-03 ended
NHW20 G ¥7,700
76912D — Mudguard, Side, LH
76912-47010 note Mudguard, Side, LH
2003-08 → 2005-11 ended
NHW20 ¥7,700
76912-47010 note Mudguard, Side, LH
2004-08 → 2005-11 ended
NHW20 ¥7,700
76912-47010 note Mudguard, Side, LH
2005-11 → 2009-03 ended
NHW20 ¥7,700
76912-47010 note Mudguard, Side, LH
2005-11 → 2009-03 ended
NHW20 G ¥7,700
76917 — Mudguard, Side, Rear RH
76917-47010 note Mudguard, Side, Rear RH
2003-08 → 2005-11 ended
NHW20 ¥7,700
76917-47010 note Mudguard, Side, Rear RH
2004-08 → 2005-11 ended
NHW20 ¥7,700
76917-47010 note Mudguard, Side, Rear RH
2005-11 → 2009-03 ended
NHW20 ¥7,700
76917-47010 note Mudguard, Side, Rear RH
2005-11 → 2009-03 ended
NHW20 G ¥7,700
76918 — Mudguard, Side, Rear LH
76918-47010 note Mudguard, Side, Rear LH
2003-08 → 2005-11 ended
NHW20 ¥7,700
76918-47010 note Mudguard, Side, Rear LH
2004-08 → 2005-11 ended
NHW20 ¥7,700
76918-47010 note Mudguard, Side, Rear LH
2005-11 → 2009-03 ended
NHW20 ¥7,700
76918-47010 note Mudguard, Side, Rear LH
2005-11 → 2009-03 ended
NHW20 G ¥7,700
76924A — Retainer, Side Mudguard, NO.2
76924-47010 note Retainer, Side Mudguard, NO.2
2003-08 → 2005-11 ended
NHW20 ¥480
76924-47010 note Retainer, Side Mudguard, NO.2
2004-08 → 2005-11 ended
NHW20 ¥480
76924-47010 note Retainer, Side Mudguard, NO.2
2005-11 → 2009-03 ended
NHW20 ¥480
76924-47010 note Retainer, Side Mudguard, NO.2
2005-11 → 2009-03 ended
NHW20 G ¥480
76924C — Retainer, Side Mudguard, NO.2
76924-52021 note Retainer, Side Mudguard, NO.2
2003-08 → 2005-11 ended
NHW20 ¥110
76924-52021 note Retainer, Side Mudguard, NO.2
2004-08 → 2005-11 ended
NHW20 ¥110
76924-52021 note Retainer, Side Mudguard, NO.2
2005-11 → 2009-03 ended
NHW20 ¥110
76924-52021 note Retainer, Side Mudguard, NO.2
2005-11 → 2009-03 ended
NHW20 G ¥110
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
