Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

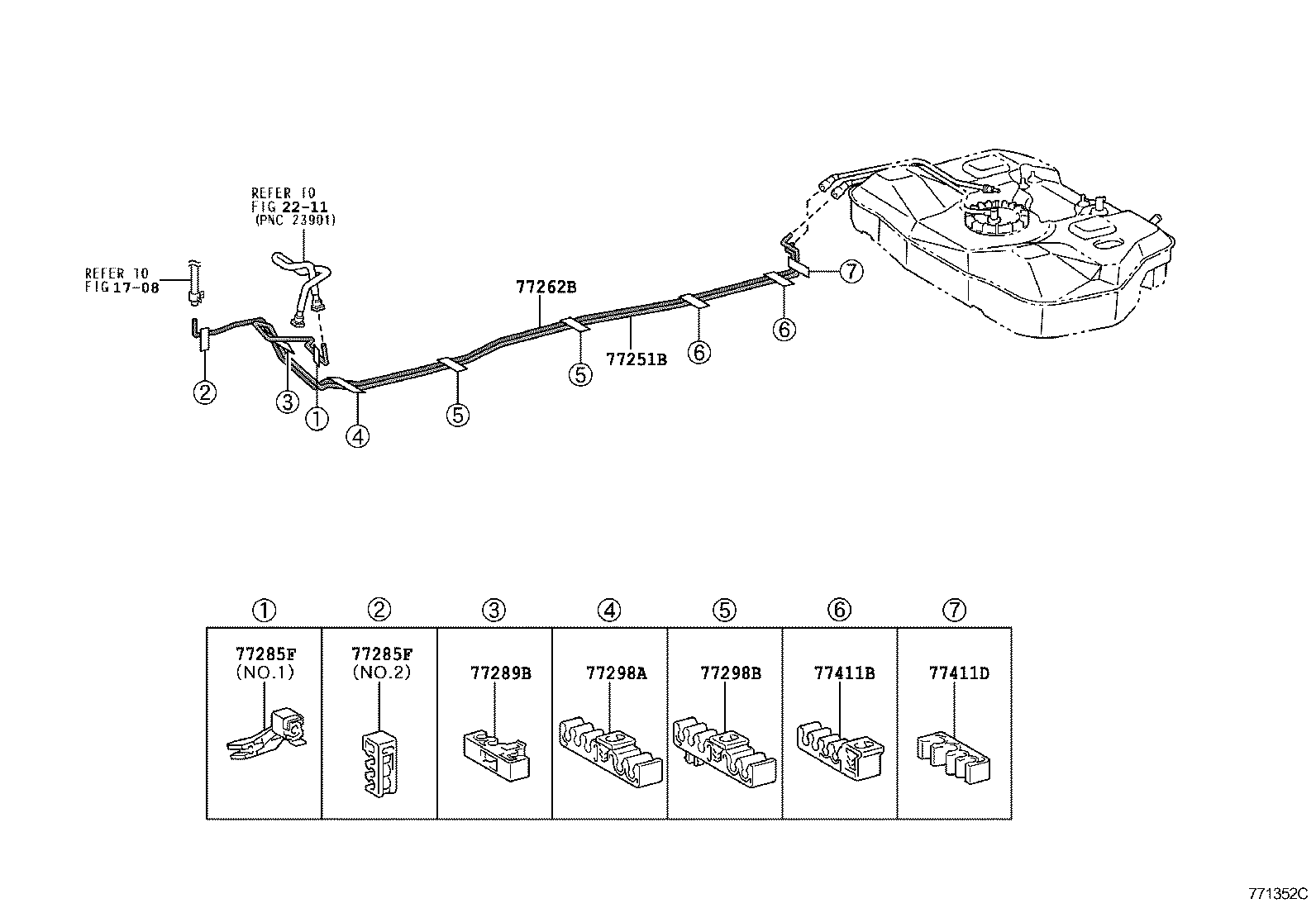

Exploded illustration 771352C 1708 — not listed in this catalogue 2211 — not listed in this catalogue 77285F — CLAMP, FUEL TUBE, NO.1 (4 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (4 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (2 parts) 77298A — CLAMP, FUEL TUBE, NO.4 (2 parts) 77298B — CLAMP, FUEL TUBE, NO.4 (2 parts) 77411B — SUPPORT, FUEL TUBE GROMMET, NO.1 (2 parts) 77411D — SUPPORT, FUEL TUBE GROMMET, NO.2 (2 parts) 77262B — TUBE, FUEL TANK TO CANISTER, NO.2 (2 parts) 77251B — TUBE, FUEL MAIN (3 parts)
771352C · 9 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-47070 Tube, Fuel Main
2003-08 → 2005-11 ended
NHW20 ¥4,000
77251-47070 Tube, Fuel Main
2005-11 → 2010-03 ended
NHW20 ¥4,000
77251-47080 Tube, Fuel Main
2010-03 → —
NHW20 ¥4,000
77262B — Tube, Fuel Tank TO Canister, NO.2
77261-47060 Tube, Fuel Tank TO Canister, NO.2
2003-08 → 2005-11 ended
NHW20 ¥3,670
77261-47060 Tube, Fuel Tank TO Canister, NO.2
2005-11 → —
NHW20 ¥3,670
77285F — Clamp, Fuel Tube, NO.1
77289-47030 note Clamp, Fuel Tube, NO.1
2003-08 → 2005-11 ended
NHW20 ¥900
77289-68020 note Clamp, Fuel Tube, NO.1
2003-08 → 2005-11 ended
NHW20 ¥390
77289-47030 note Clamp, Fuel Tube, NO.1
2005-11 → —
NHW20 ¥900
77289-68020 note Clamp, Fuel Tube, NO.1
2005-11 → —
NHW20 ¥390
77289B — Clamp, Fuel Tube, NO.3
77289-33050 Clamp, Fuel Tube, NO.3
2003-08 → 2005-11 ended
NHW20 ¥630
77289-33050 Clamp, Fuel Tube, NO.3
2005-11 → —
NHW20 ¥630
77298A — Clamp, Fuel Tube, NO.4
77298-68010 Clamp, Fuel Tube, NO.4
2003-08 → 2005-11 ended
NHW20 ¥270
77298-68010 Clamp, Fuel Tube, NO.4
2005-11 → 2011-12 ended
NHW20 ¥270
77298B — Clamp, Fuel Tube, NO.4
77298-47020 Clamp, Fuel Tube, NO.4
2003-08 → 2005-11 ended
NHW20 ¥770
77298-47020 Clamp, Fuel Tube, NO.4
2005-11 → 2011-12 ended
NHW20 ¥770
77411B — Support, Fuel Tube Grommet, NO.1
77411-48010 Support, Fuel Tube Grommet, NO.1
2003-08 → 2005-11 ended
NHW20 ¥760
77411-48010 Support, Fuel Tube Grommet, NO.1
2005-11 → 2011-12 ended
NHW20 ¥760
77411D — Support, Fuel Tube Grommet, NO.2
77411-48030 Support, Fuel Tube Grommet, NO.2
2003-08 → 2005-11 ended
NHW20 ¥370
77411-48030 Support, Fuel Tube Grommet, NO.2
2005-11 → 2011-12 ended
NHW20 ¥370
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
