Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

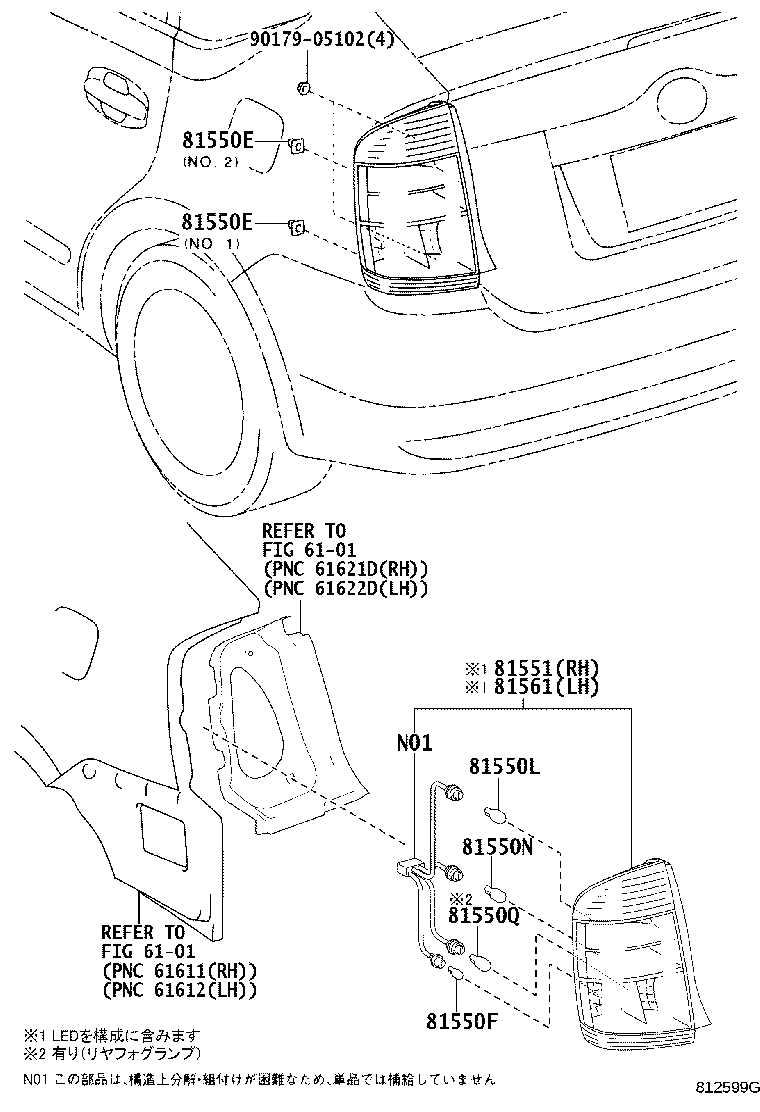

Exploded illustration 812599G 6101 — not listed in this catalogue 6101 — not listed in this catalogue 81550L — BULB, REAR TURN SIGNAL LAMP (2 parts) 81550N — BULB, BACK UP LAMP (2 parts) 81550Q — BULB, REAR FOG LAMP, NO.1 (2 parts) 81550F — BULB, TAILLAMP (2 parts) 81561 — LENS, REAR COMBINATION LAMP, LH (9 parts) 81551 — LENS, REAR COMBINATION LAMP, RH (9 parts) 9017905102 — not listed in this catalogue 81550E — CLIP(FOR REAR COMBINATION LAMP) (6 parts) 81550E — CLIP(FOR REAR COMBINATION LAMP) (6 parts)
812599G · 8 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
81550E — Clip(FOR REAR COMBINATION LAMP)
90467-09075 note Clip(FOR REAR COMBINATION LAMP)
2003-08 → 2005-11 ended
NHW20 ¥110
90467-09112 note Clip(FOR REAR COMBINATION LAMP)
2003-08 → 2005-11 ended
NHW20 ¥160
90467-09075 note Clip(FOR REAR COMBINATION LAMP)
2005-11 → 2009-03 ended
NHW20 G ¥110
90467-09075 note Clip(FOR REAR COMBINATION LAMP)
2005-11 → —
NHW20 S ¥110
90467-09112 note Clip(FOR REAR COMBINATION LAMP)
2005-11 → 2009-03 ended
NHW20 G ¥160
90467-09112 note Clip(FOR REAR COMBINATION LAMP)
2005-11 → —
NHW20 S ¥160
81550F — Bulb, Taillamp
99132-12050 Bulb, Taillamp
2003-08 → 2005-11 ended
NHW20 ¥110
99132-12050 Bulb, Taillamp
2005-11 → —
NHW20 ¥110
81550L — Bulb, Rear Turn Signal Lamp
90981-15011 Bulb, Rear Turn Signal Lamp
2003-08 → 2005-11 ended
NHW20 ¥300
90981-15011 Bulb, Rear Turn Signal Lamp
2005-11 → —
NHW20 ¥300
81550N — Bulb, Back UP Lamp
90981-13043 Bulb, Back UP Lamp
2003-08 → 2005-11 ended
NHW20 ¥220
90981-13043 Bulb, Back UP Lamp
2005-11 → —
NHW20 ¥220
81550Q — Bulb, Rear Fog Lamp, NO.1
90981-13043 note Bulb, Rear Fog Lamp, NO.1
2003-08 → 2005-11 ended
NHW20 ¥220
90981-13043 note Bulb, Rear Fog Lamp, NO.1
2005-11 → —
NHW20 ¥220
81551 — Lens, Rear Combination Lamp, RH
81551-47050 Lens, Rear Combination Lamp, RH
2003-08 → 2004-05 ended
NHW20 ¥28,000
81551-47051 Lens, Rear Combination Lamp, RH
2004-05 → 2005-11 ended
NHW20 ¥28,000
81551-47060 note Lens, Rear Combination Lamp, RH
2003-08 → 2004-05 ended
NHW20 ¥28,000
81551-47061 note Lens, Rear Combination Lamp, RH
2004-05 → 2005-11 ended
NHW20 ¥28,000
81551-47080 Lens, Rear Combination Lamp, RH
2005-11 → 2009-03 ended
NHW20 G ¥30,100
81551-47080 Lens, Rear Combination Lamp, RH
2005-11 → —
NHW20 S ¥30,100
81551-47090 note Lens, Rear Combination Lamp, RH
2005-11 → 2006-11 ended
NHW20 ¥31,000
81551-47091 note Lens, Rear Combination Lamp, RH
2006-11 → 2009-03 ended
NHW20 G ¥30,900
81551-47091 note Lens, Rear Combination Lamp, RH
2006-11 → —
NHW20 S ¥30,900
81561 — Lens, Rear Combination Lamp, LH
81561-47050 Lens, Rear Combination Lamp, LH
2003-08 → 2004-05 ended
NHW20 ¥28,000
81561-47051 Lens, Rear Combination Lamp, LH
2004-05 → 2005-11 ended
NHW20 ¥28,000
81561-47060 note Lens, Rear Combination Lamp, LH
2003-08 → 2004-05 ended
NHW20 ¥28,000
81561-47061 note Lens, Rear Combination Lamp, LH
2004-05 → 2005-11 ended
NHW20 ¥28,000
81561-47080 Lens, Rear Combination Lamp, LH
2005-11 → 2009-03 ended
NHW20 G ¥30,100
81561-47080 Lens, Rear Combination Lamp, LH
2005-11 → —
NHW20 S ¥30,100
81561-47090 note Lens, Rear Combination Lamp, LH
2005-11 → 2006-11 ended
NHW20 ¥31,000
81561-47091 note Lens, Rear Combination Lamp, LH
2006-11 → 2009-03 ended
NHW20 G ¥30,900
81561-47091 note Lens, Rear Combination Lamp, LH
2006-11 → —
NHW20 S ¥30,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
