Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

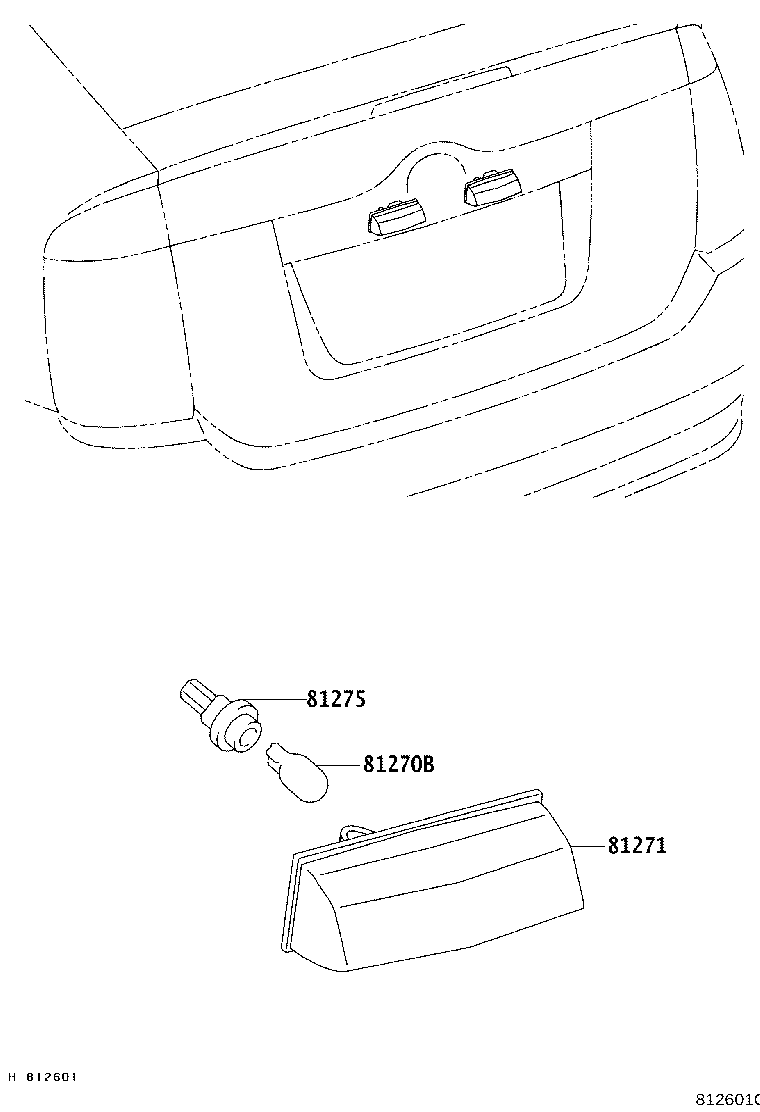

Exploded illustration 812601G 81275 — SOCKET AND WIRE, LICENSE PLATE LAMP (3 parts) 81270B — BULB (FOR LICENSE PLATE LAMP) (3 parts) 81271 — LENS, LICENSE PLATE LAMP (4 parts)
812601G · 3 callouts Full size ↗
10 parts on this figure
Part number Description Fitment Price
81270B — Bulb (FOR LICENSE PLATE LAMP)
99132-12050 note Bulb (FOR LICENSE PLATE LAMP)
2003-08 → 2005-11 ended
NHW20 ¥110
99132-12050 note Bulb (FOR LICENSE PLATE LAMP)
2005-11 → 2009-03 ended
NHW20 G ¥110
99132-12050 note Bulb (FOR LICENSE PLATE LAMP)
2005-11 → —
NHW20 S ¥110
81271 — Lens, License Plate Lamp
81271-53010 Lens, License Plate Lamp
2003-08 → 2005-11 ended
NHW20 ¥1,520
81271-53010 Lens, License Plate Lamp
2005-11 → 2006-10 ended
NHW20 ¥1,520
81271-53011 Lens, License Plate Lamp
2006-10 → 2009-03 ended
NHW20 G ¥1,050
81271-53011 Lens, License Plate Lamp
2006-10 → —
NHW20 S ¥1,050
81275 — Socket And Wire, License Plate Lamp
90075-99011 Socket And Wire, License Plate Lamp
2003-08 → 2005-11 ended
NHW20 ¥200
90075-99011 Socket And Wire, License Plate Lamp
2005-11 → 2009-03 ended
NHW20 G ¥200
90075-99011 Socket And Wire, License Plate Lamp
2005-11 → —
NHW20 S ¥200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
