Toyota Prius

2003-08 → 2011-12 · chassis NHW20 · catalogue 222120 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

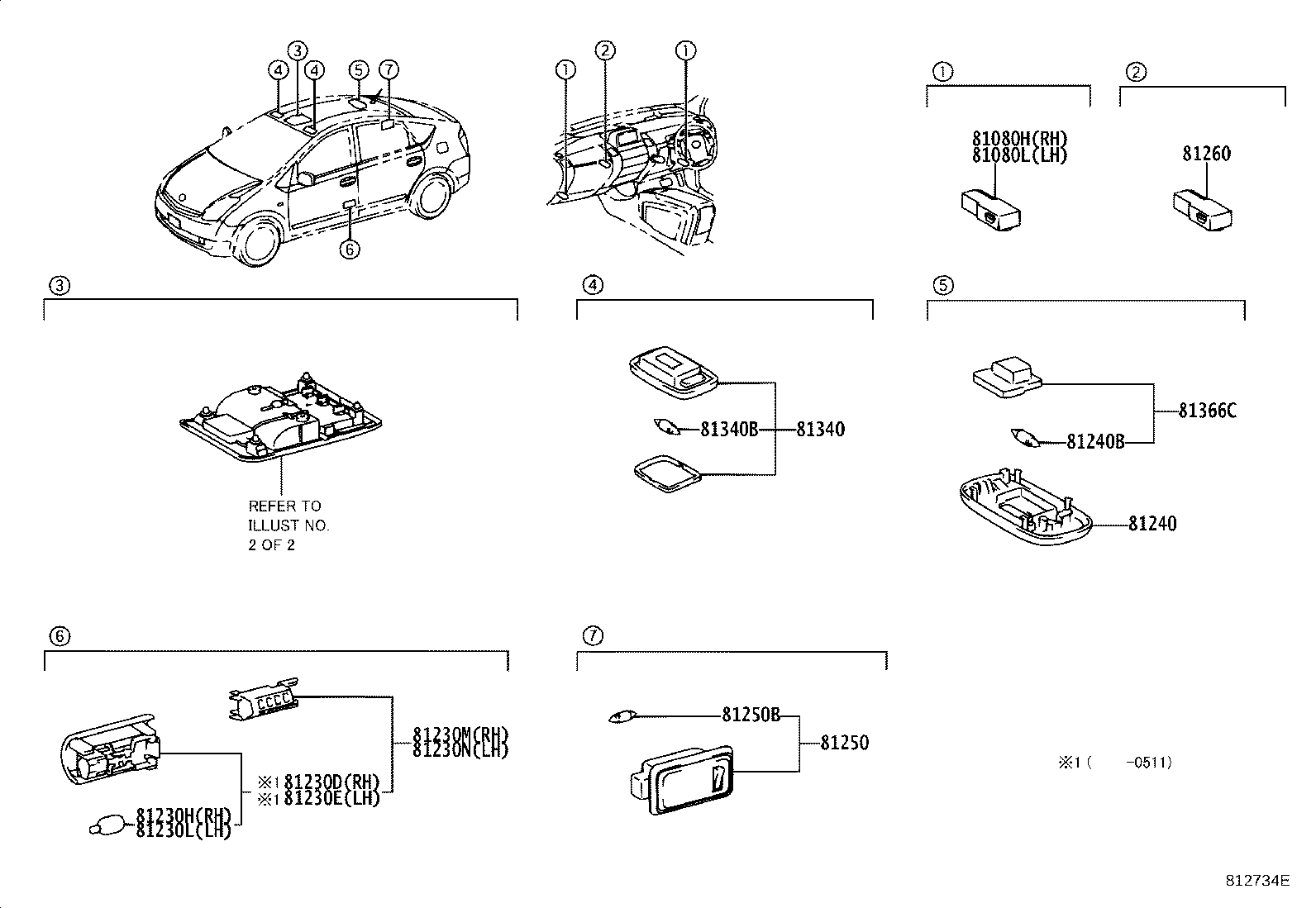

Exploded illustration 812734E 81080H — LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH (3 parts) 81080L — LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH (3 parts) 81260 — LAMP ASSY, GLOVE BOX (2 parts) 81250 — LAMP ASSY, ROOM, NO.2 (2 parts) 81250B — BULB, ROOM LAMP, NO.2 (2 parts) 81240 — LAMP ASSY, ROOM, NO.1 (4 parts) 81240B — BULB, ROOM LAMP, NO.1 (2 parts) 81366C — BASE, ROOM LAMP SWITCH (2 parts) 81340 — LAMP ASSY, VANITY (4 parts) 81230D — LAMP ASSY, FRONT DOOR COURTESY, RH (1 parts) 81230E — LAMP ASSY, FRONT DOOR COURTESY, LH (1 parts) 81340B — BULB (FOR VANITY LAMP) (2 parts) 81230H — BULB(FOR FRONT DOOR COURTESY LAMP RH) (2 parts) 81230L — BULB(FOR FRONT DOOR COURTESY LAMP LH) (2 parts) 81230M — LAMP ASSY, COURTESY, RH (2 parts) 81230N — LAMP ASSY, COURTESY, LH (2 parts)
812734E · 16 callouts Full size ↗
36 parts on this figure
Part number Description Fitment Price
81080H — Lamp Assy, Interior Illumination, NO.1 RH
81080-48010 Lamp Assy, Interior Illumination, NO.1 RH
2003-08 → 2005-11 ended
NHW20 G ¥860
81080-48010 Lamp Assy, Interior Illumination, NO.1 RH
2005-11 → 2009-03 ended
NHW20 G ¥860
81080-48010 note Lamp Assy, Interior Illumination, NO.1 RH
2007-04 → 2009-03 ended
NHW20 S ¥860
81080L — Lamp Assy, Interior Illumination, NO.1 LH
81080-48010 Lamp Assy, Interior Illumination, NO.1 LH
2003-08 → 2005-11 ended
NHW20 G ¥860
81080-48010 Lamp Assy, Interior Illumination, NO.1 LH
2005-11 → 2009-03 ended
NHW20 G ¥860
81080-48010 note Lamp Assy, Interior Illumination, NO.1 LH
2007-04 → 2009-03 ended
NHW20 S ¥860
81230D — Lamp Assy, Front Door Courtesy, RH
81230-48020 Lamp Assy, Front Door Courtesy, RH
2003-08 → 2005-11 ended
NHW20 ¥1,590
81230E — Lamp Assy, Front Door Courtesy, LH
81230-48020 Lamp Assy, Front Door Courtesy, LH
2003-08 → 2005-11 ended
NHW20 ¥1,590
81230H — Bulb(FOR FRONT DOOR COURTESY LAMP RH)
90981-12010 note Bulb(FOR FRONT DOOR COURTESY LAMP RH)
2003-08 → 2005-11 ended
NHW20 ¥110
90981-12010 note Bulb(FOR FRONT DOOR COURTESY LAMP RH)
2005-11 → —
NHW20 ¥110
81230L — Bulb(FOR FRONT DOOR COURTESY LAMP LH)
90981-12010 note Bulb(FOR FRONT DOOR COURTESY LAMP LH)
2003-08 → 2005-11 ended
NHW20 ¥110
90981-12010 note Bulb(FOR FRONT DOOR COURTESY LAMP LH)
2005-11 → —
NHW20 ¥110
81230M — Lamp Assy, Courtesy, RH
81230-47010 Lamp Assy, Courtesy, RH
2003-08 → 2005-11 ended
NHW20 ¥1,750
81230-47010 Lamp Assy, Courtesy, RH
2005-11 → —
NHW20 ¥1,750
81230N — Lamp Assy, Courtesy, LH
81230-47010 Lamp Assy, Courtesy, LH
2003-08 → 2005-11 ended
NHW20 ¥1,750
81230-47010 Lamp Assy, Courtesy, LH
2005-11 → —
NHW20 ¥1,750
81240 — Lamp Assy, Room, NO.1
81240-68010-A0 note Lamp Assy, Room, NO.1
2003-08 → 2005-11 ended
NHW20 ¥3,560
81240-68010-B1 note Lamp Assy, Room, NO.1
2003-08 → 2005-11 ended
NHW20 ¥3,560
81240-68010-B1 note Lamp Assy, Room, NO.1
2005-11 → 2011-12 ended
NHW20 ¥3,560
81240-68010-E1 note Lamp Assy, Room, NO.1
2005-11 → 2009-03 ended
NHW20 ¥3,560
81240B — Bulb, Room Lamp, NO.1
90981-14011 note Bulb, Room Lamp, NO.1
2003-08 → 2005-11 ended
NHW20 ¥180
90981-14011 note Bulb, Room Lamp, NO.1
2005-11 → —
NHW20 ¥180
81250 — Lamp Assy, Room, NO.2
81250-48010 Lamp Assy, Room, NO.2
2003-08 → 2005-11 ended
NHW20 ¥2,420
81250-48010 Lamp Assy, Room, NO.2
2005-11 → —
NHW20 ¥2,420
81250B — Bulb, Room Lamp, NO.2
99132-13050 note Bulb, Room Lamp, NO.2
2003-08 → 2005-11 ended
NHW20 ¥150
99132-13050 note Bulb, Room Lamp, NO.2
2005-11 → —
NHW20 ¥150
81260 — Lamp Assy, Glove Box
81080-48010 Lamp Assy, Glove Box
2003-08 → 2005-11 ended
NHW20 ¥860
81080-48010 Lamp Assy, Glove Box
2005-11 → 2011-12 ended
NHW20 ¥860
81340 — Lamp Assy, Vanity
81340-33140-A0 note Lamp Assy, Vanity
2003-08 → 2005-11 ended
NHW20 ¥2,240
81340-33140-B2 note Lamp Assy, Vanity
2003-08 → 2005-11 ended
NHW20 ¥2,680
81340-33140-B2 note Lamp Assy, Vanity
2005-11 → 2011-12 ended
NHW20 ¥2,680
81340-33140-E0 note Lamp Assy, Vanity
2005-11 → 2009-03 ended
NHW20 ¥2,680
81340B — Bulb (FOR VANITY LAMP)
99132-13050 note Bulb (FOR VANITY LAMP)
2003-08 → 2005-11 ended
NHW20 ¥150
99132-13050 note Bulb (FOR VANITY LAMP)
2005-11 → —
NHW20 ¥150
81366C — Base, Room Lamp Switch
81366-68010 Base, Room Lamp Switch
2003-08 → 2005-11 ended
NHW20 ¥860
81366-68010 Base, Room Lamp Switch
2005-11 → 2011-12 ended
NHW20 ¥860
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
